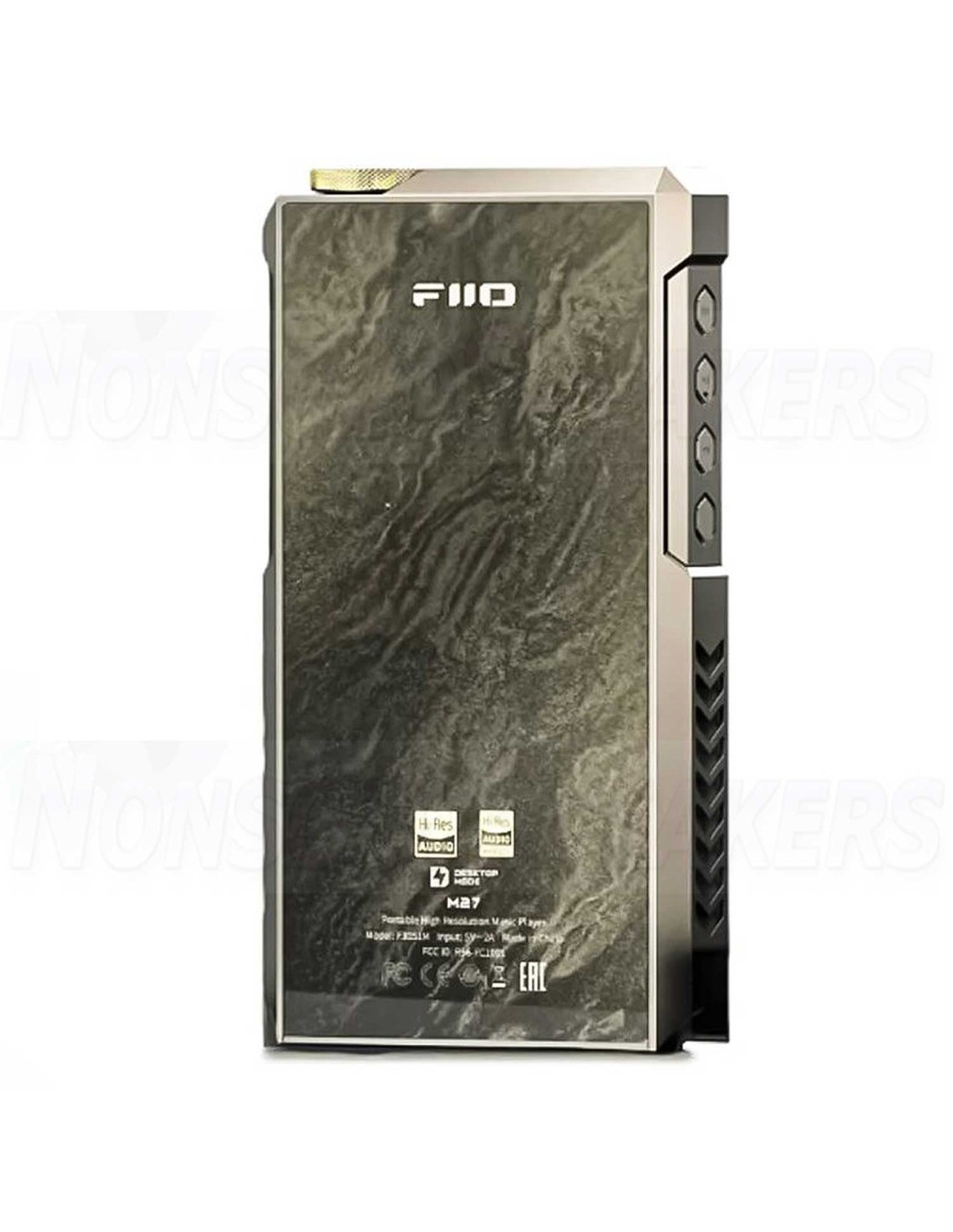

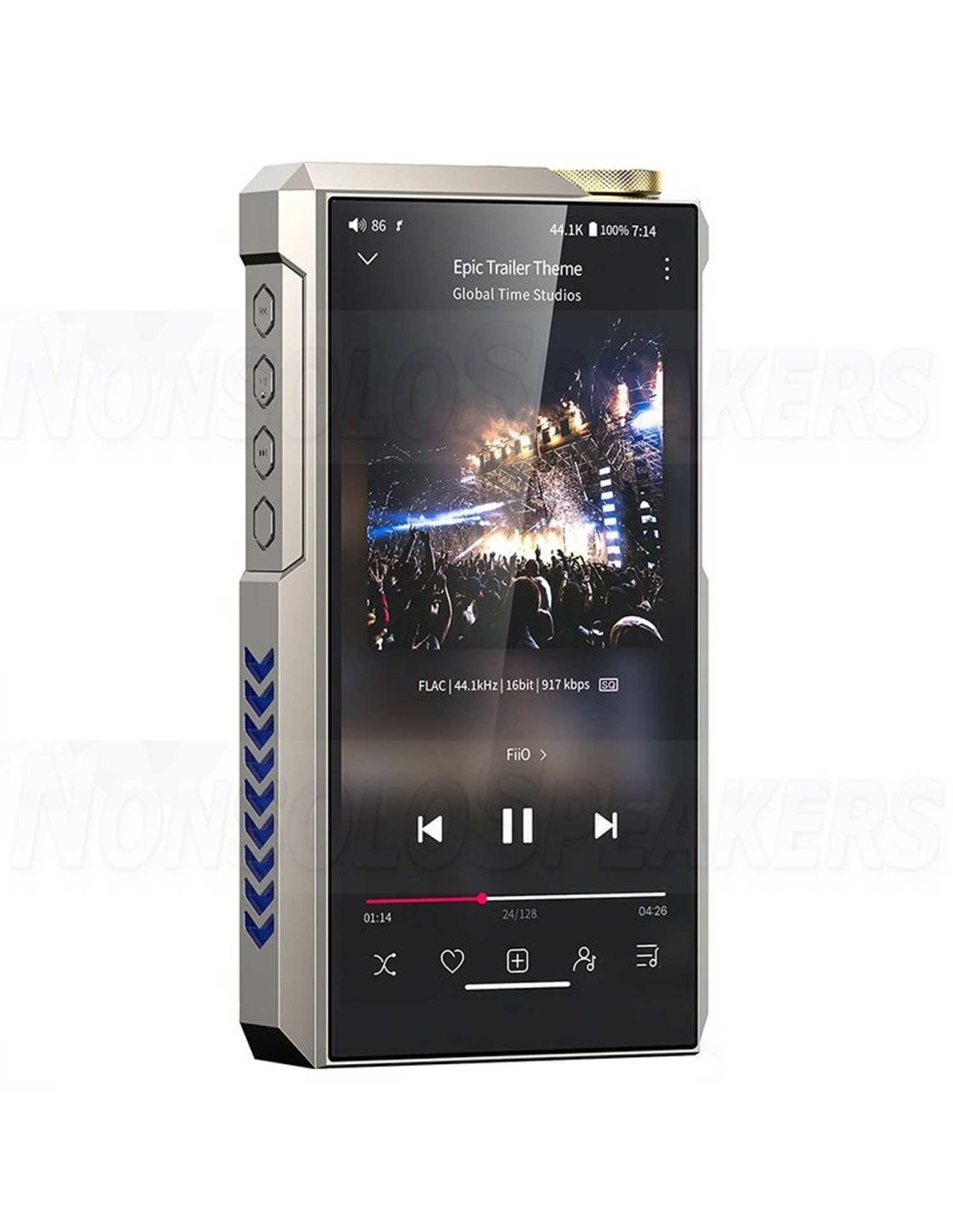

FiiO M27 - Portable High-Resolution Music Player
.

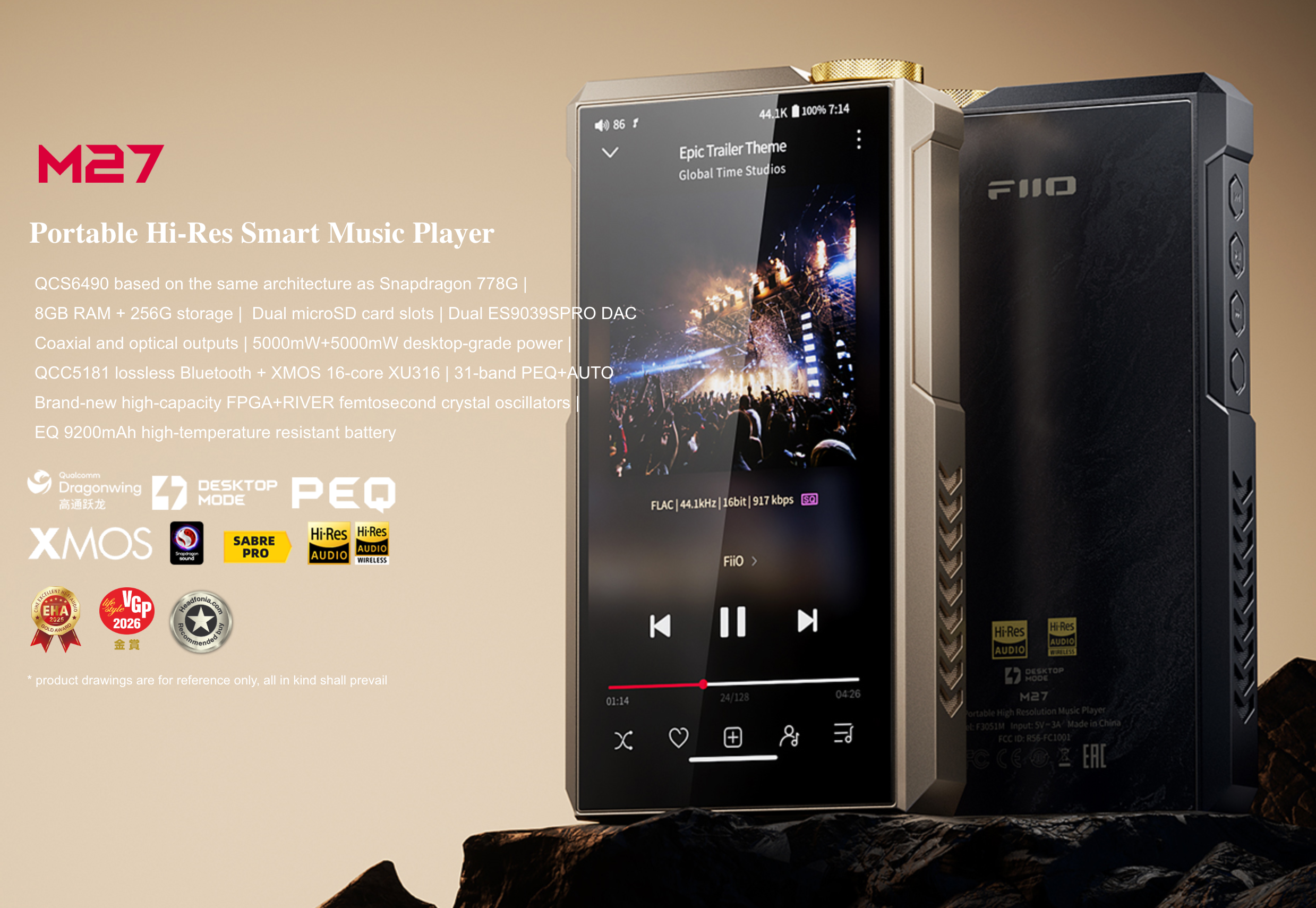

The FiiO M27 is a high-end portable music player designed for Hi-Res audio enthusiasts seeking maximum quality and versatility on the go. It features the powerful QCS6490 system-on-chip, based on the same architecture as the Snapdragon 778G, which ensures high performance and stability. Supported by 8GB of RAM and 256GB of internal storage, the M27 offers generous storage and smooth playback even with large audio files, while two microSD slots offer the option of further expanding storage space.
In terms of audio, this portable player is equipped with two ES9039SPRO DACs in a dual configuration, capable of delivering a crystal-clear and detailed audio experience. The coaxial and optical outputs make the M27 compatible with desktop audio systems, while the output power is truly impressive: up to 5000 mW per channel, a desktop-grade level of power that can drive even the most demanding headphones.
The Bluetooth module is based on the QCC5181 chipset, which supports lossless transmission, and is complemented by a 16-core XMOS XU316 processor, offering an uncompromising wireless audio experience. Thanks to a 31-band equalizer with AUTO option, the user has full control over the sound to adapt it to their taste or the type of headphones used. Signal timing is further enhanced by a new design with a high-capacity FPGA and RIVER femtosecond crystal oscillators, which minimize jitter and improve playback stability.
.
Renewed Performance

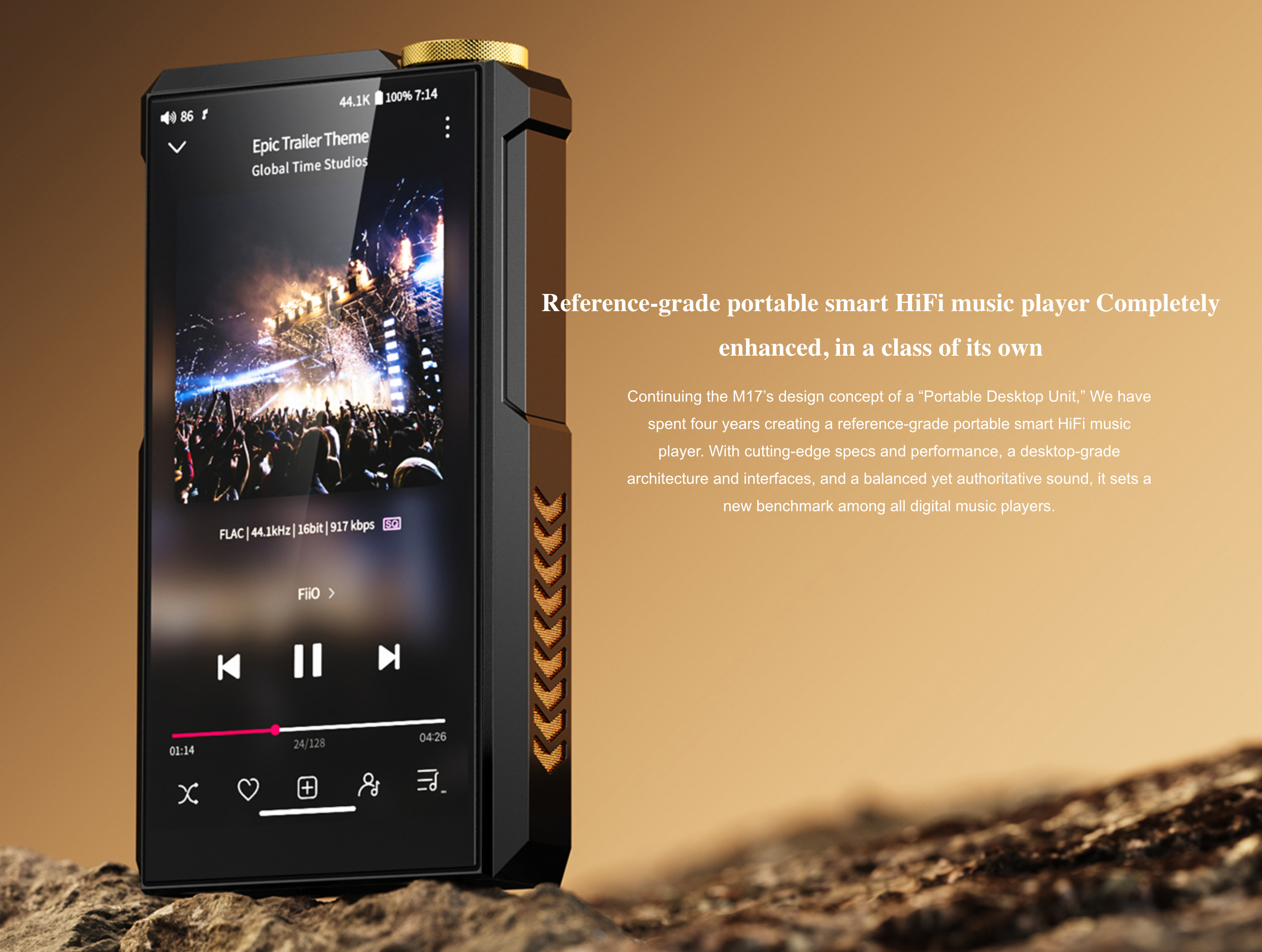

The FiiO M27 evolves the "Portable Desktop Unit" concept introduced with the M17, taking it to an entirely new level. After four years of development, FiiO presents a reference-level portable smart HiFi player, designed to offer cutting-edge specifications, desktop architecture and connectivity, and a balanced and authoritative sound signature. The result is a new benchmark in the high-end digital audio player landscape.
.
QCS6490 Processor with Snapdragon 778G Architecture
The heart of the M27 is the QCS6490 processor, based on the same architecture as the Snapdragon 778G, which represents a significant generational upgrade. The high-performance A78 core, clocked at up to 2.7 GHz, ensures exceptional system responsiveness: smooth multitasking, instant app launches, and effortless management of all popular audio and video services. A powerful and stable engine, designed for an uncompromising user experience.
.

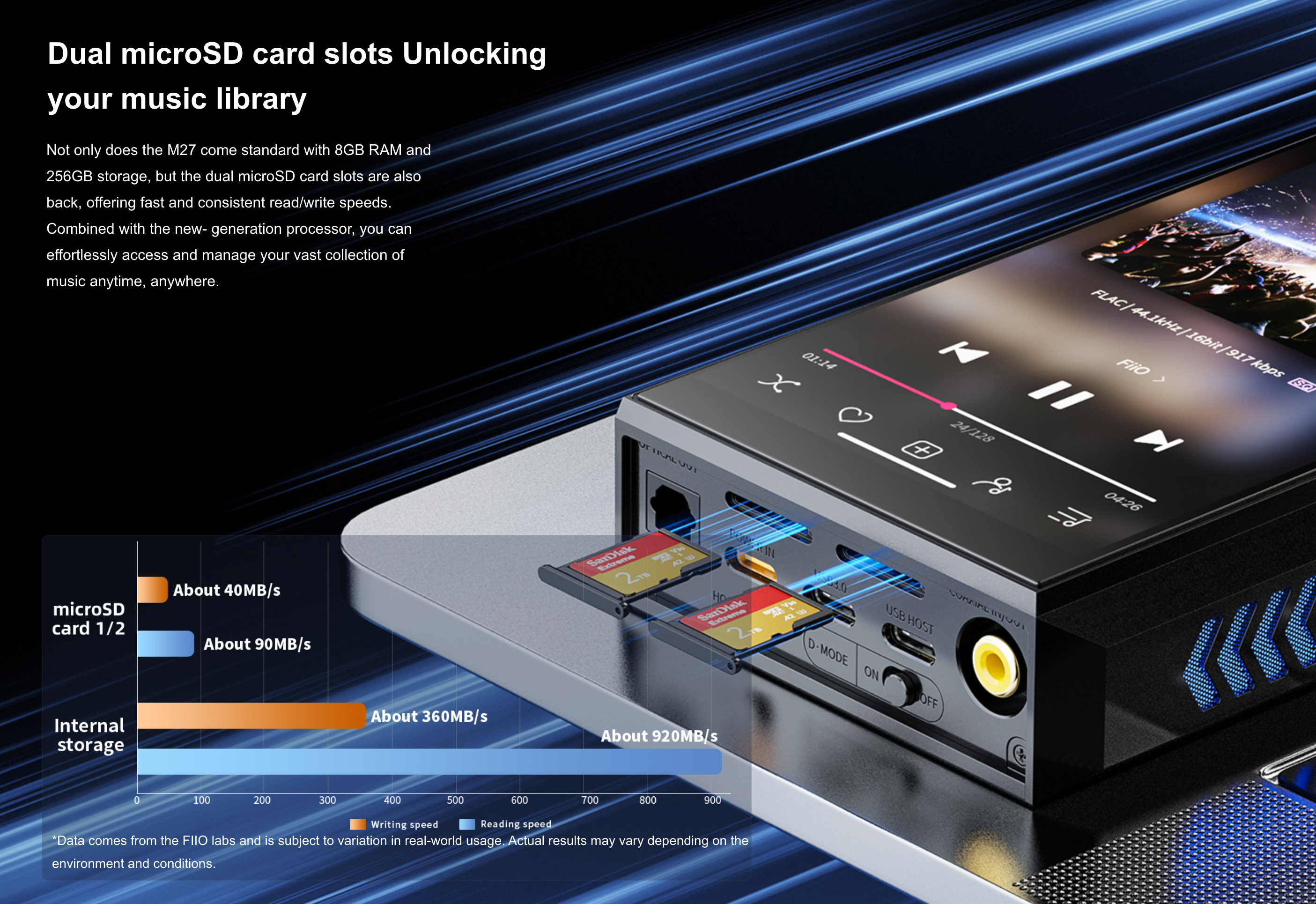

Dual microSD Slots
The FiiO M27 integrates 8 GB of RAM and 256 GB of internal storage, but more importantly, it reintroduces dual microSD slots, supporting high-speed read and write speeds. Combined with the new processor, browsing even large libraries becomes instant and responsive. Whether you have thousands of FLAC, DSD, or PCM files, you can manage your entire music collection with maximum fluidity, wherever you are.
.

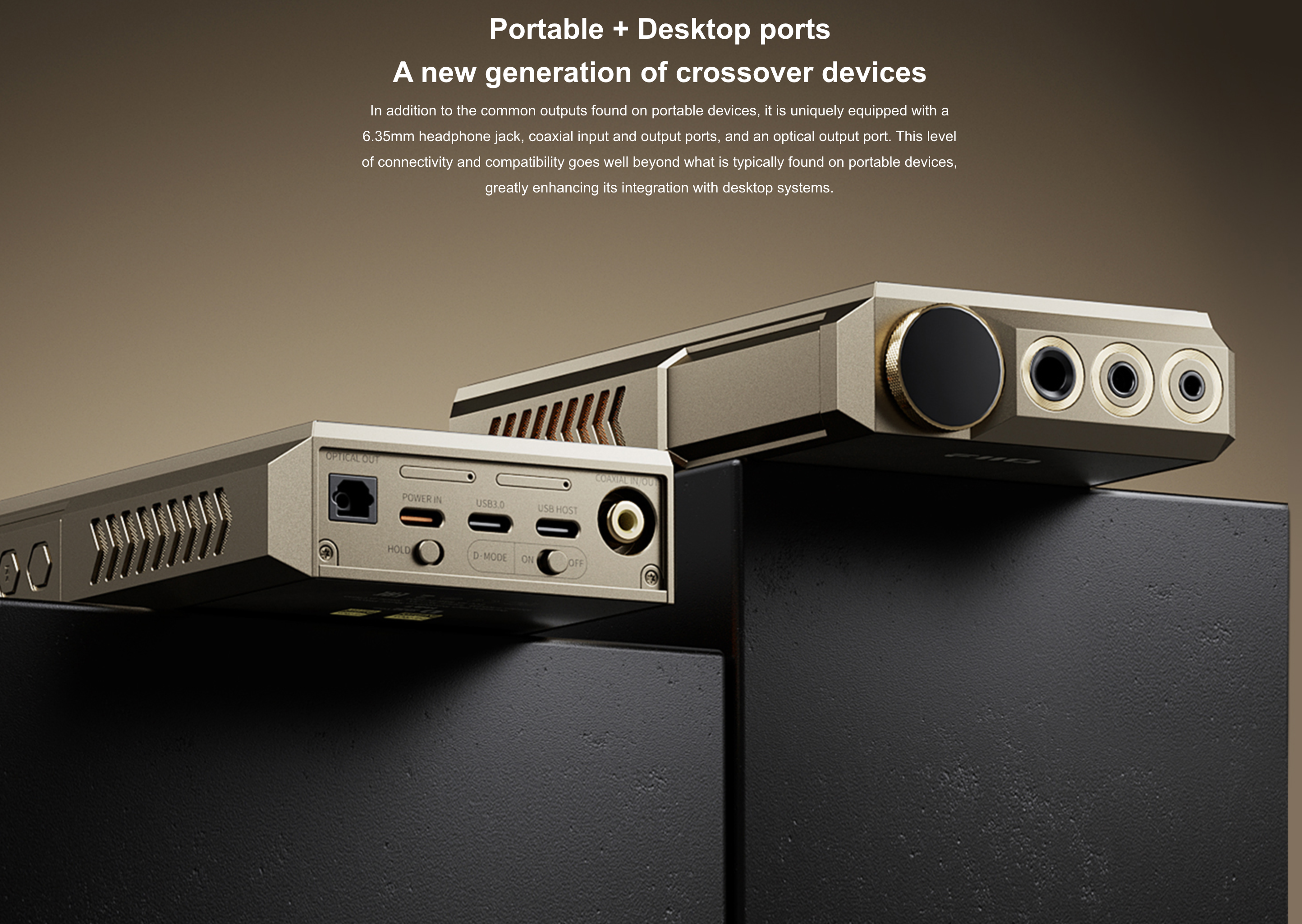

Desktop Ports + Portability

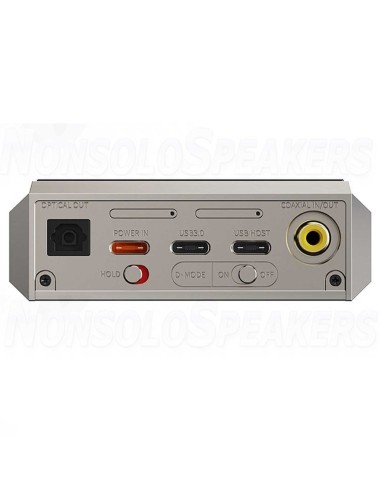

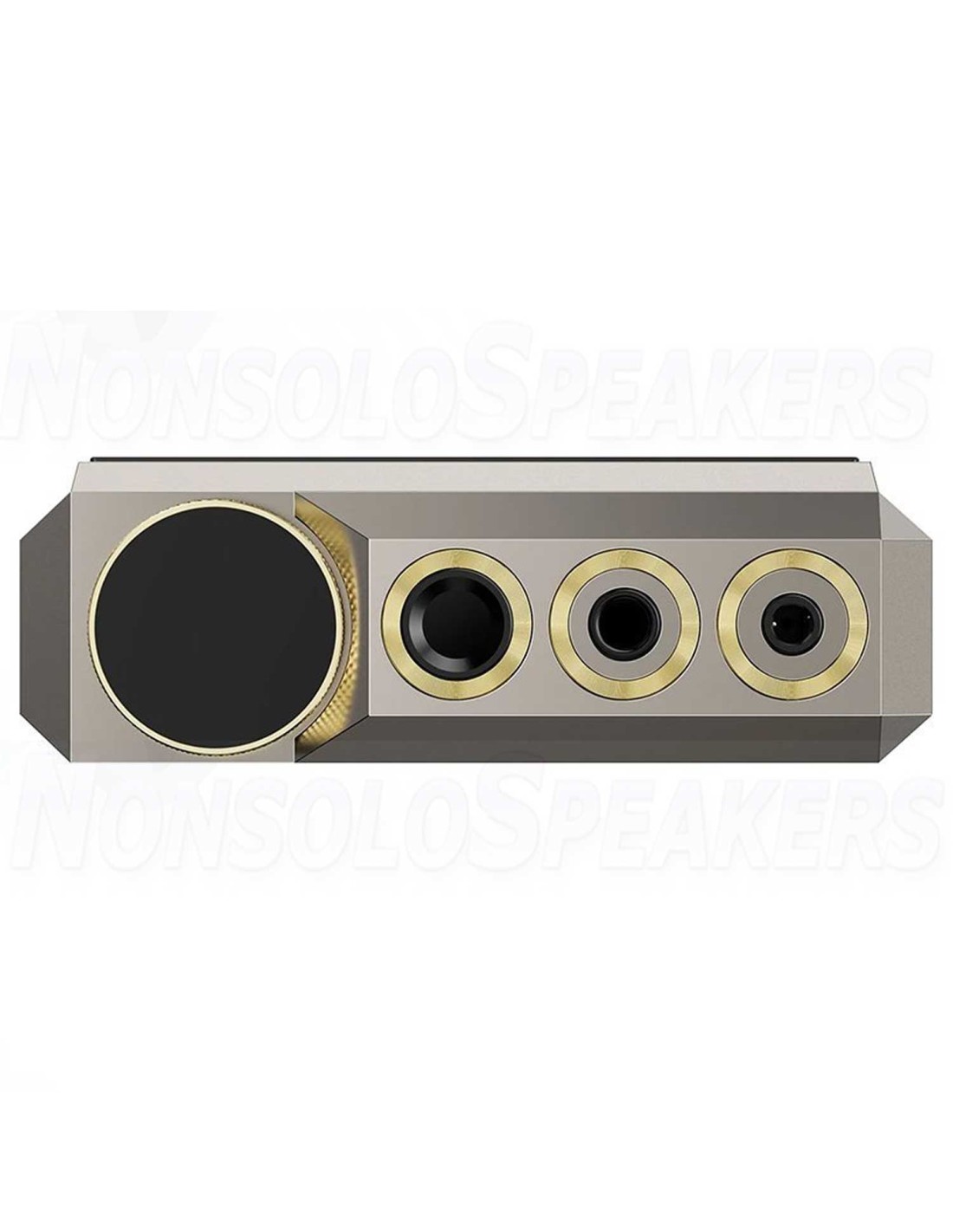

The M27 is designed to seamlessly integrate into both portable and fixed setups. In addition to the outputs typical of portable players, it offers a range of ports typically reserved for desktop devices: 6.35mm jacks, coaxial inputs and outputs, and a dedicated optical output. This advanced connectivity dramatically expands the device's compatibility and allows for seamless integration with amplifiers, DACs, and professional desktop setups.
.
End-to-End Lossless Audio
The FiiO M27 guarantees a completely lossless audio chain, from source to output, for pure, faithful listening in any environment. Thanks to advanced signal processing and hi-fi-grade components, every musical detail is precisely reproduced, without compression or compromise.
.

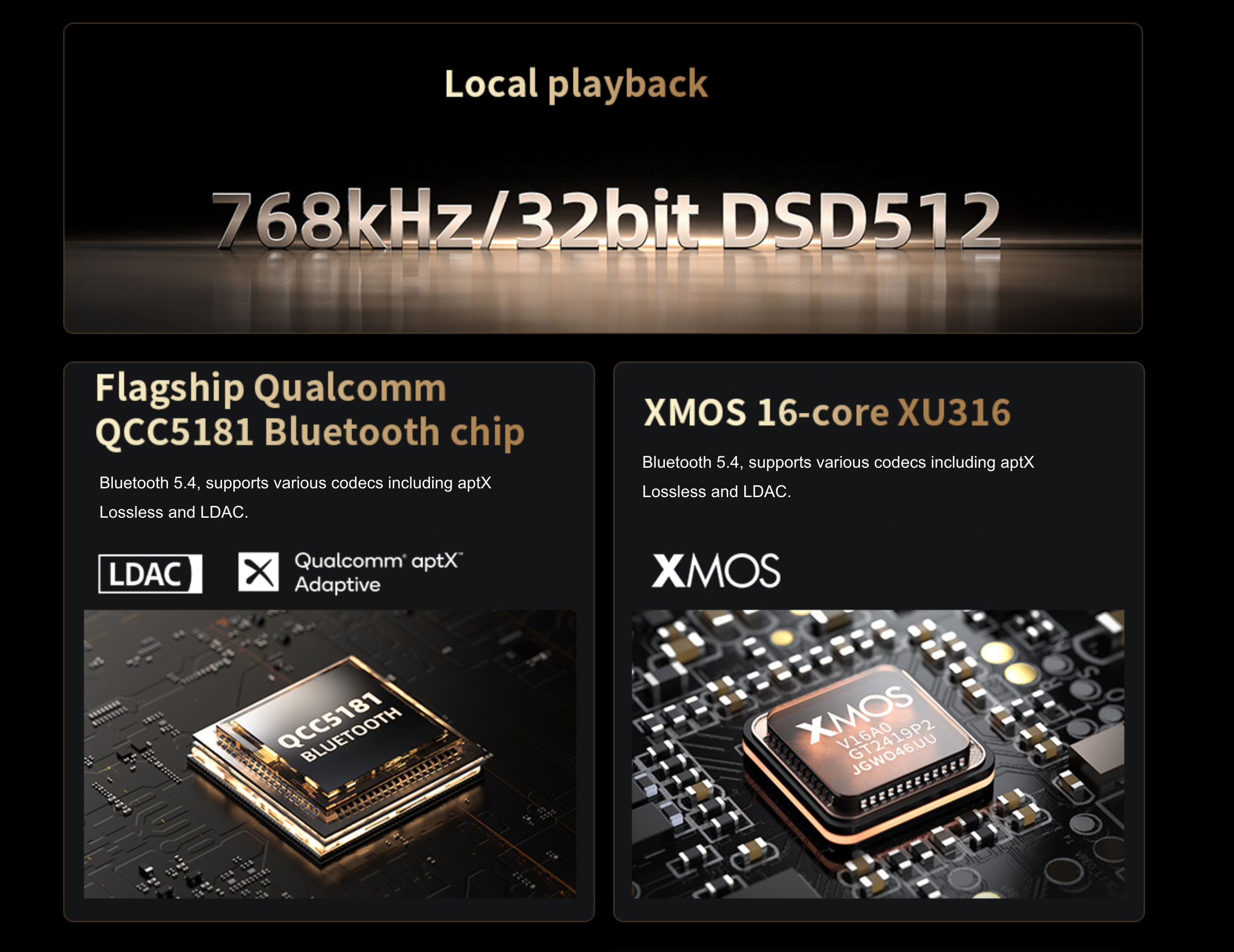

Bluetooth 5.4 supports various codecs, including aptX Lossless and LDAC
.
Dual 8-Channel ESS ES9039SPRO DACs
The FiiO M27 integrates two ESS ES9039SPRO DACs, reference-level chips with ultra-high dynamic range and extremely low distortion. The configuration uses dual-channel ultra-low-noise ES9312 regulators to support the two DACs, with four independent power supplies dedicated to the differential modules. The result is audiophile-grade sound reproduction: transparent, detailed, and free of background noise, ideal for high-resolution recordings.
.
Five Hardware Gain Levels
The FiiO M27 offers significant improvements in power and voltage at every gain level and with any impedance. This ensures authoritative drive with both sensitive IEMs and full-size, high-impedance headphones. With a fast charger connected to the dedicated port, Ultra High Gain Mode activates, unleashing over 5000 mW per channel, allowing the M27 to effortlessly control even the most complex dynamic passages.
.ù

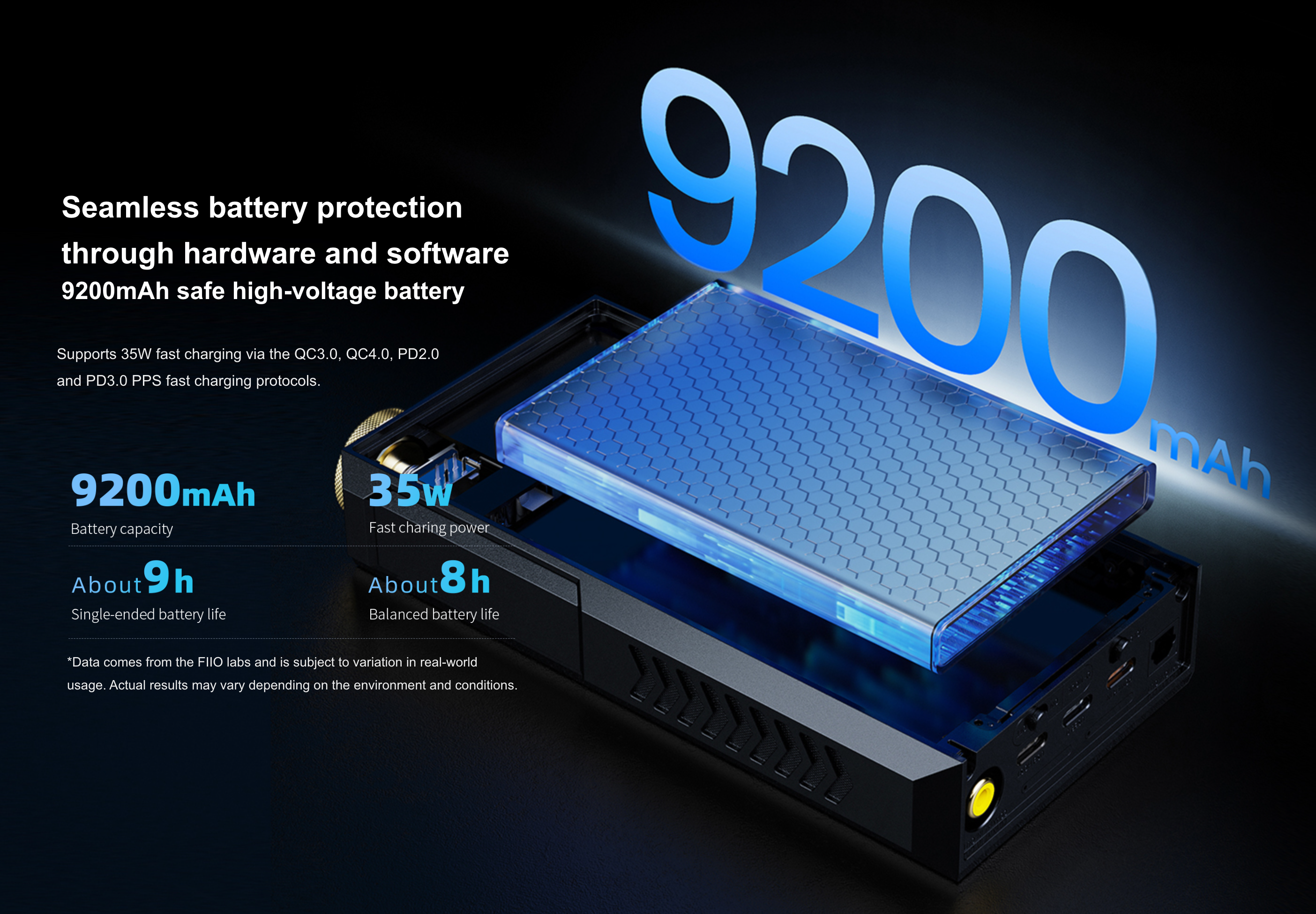

Safe 9200 mAh Battery + Hardware/Software Protection
The player uses a high-voltage 9200 mAh battery, designed with advanced hardware and software protection systems. It supports 35W fast charging compatible with QC3.0, QC4.0, PD2.0, and PD3.0 PPS protocols. Approximate battery life:
• Single-ended output: approximately 9 hours
• Balanced output: approximately 8 hours
.

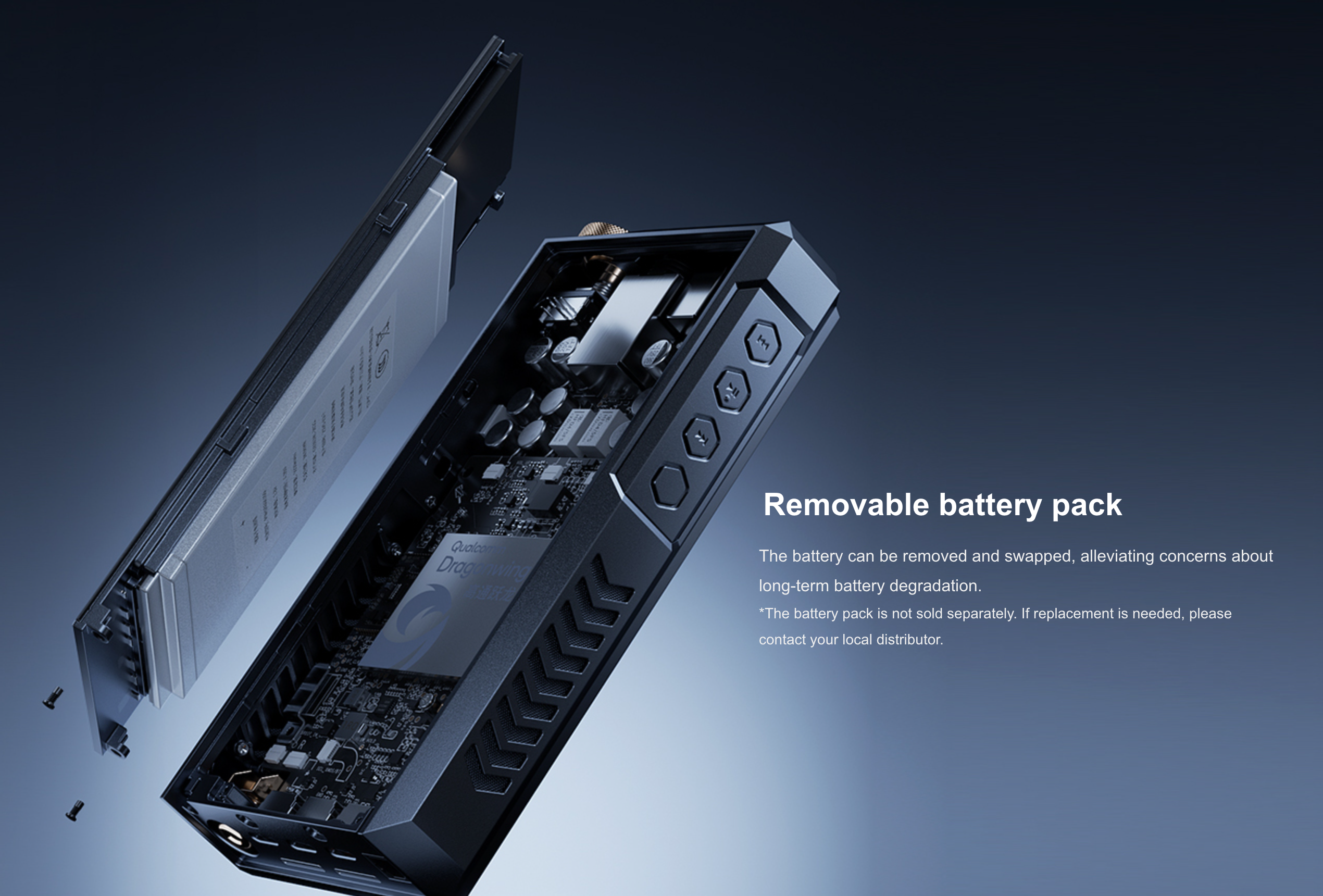

Removable Battery
The battery module is removable and replaceable, reducing the risk of long-term degradation and extending the life of the device.
.
The battery pack is not sold separately; replacement is required through an authorized distributor.
.
Patented Desktop Mode
Desktop Mode allows you to completely bypass the battery, preventing charge/discharge cycles during high-power use. This reduces battery wear and extends its life.
.
Proprietary 6th-Generation DAPS System
The sixth-generation DAPS (Digital Audio Purification System) introduces a high-capacity FPGA combined with two ultra-precise femtosecond oscillators. This architecture ensures extremely low-jitter digital transmission and a highly stable clock, resulting in purer, more defined, and natural sound.
.

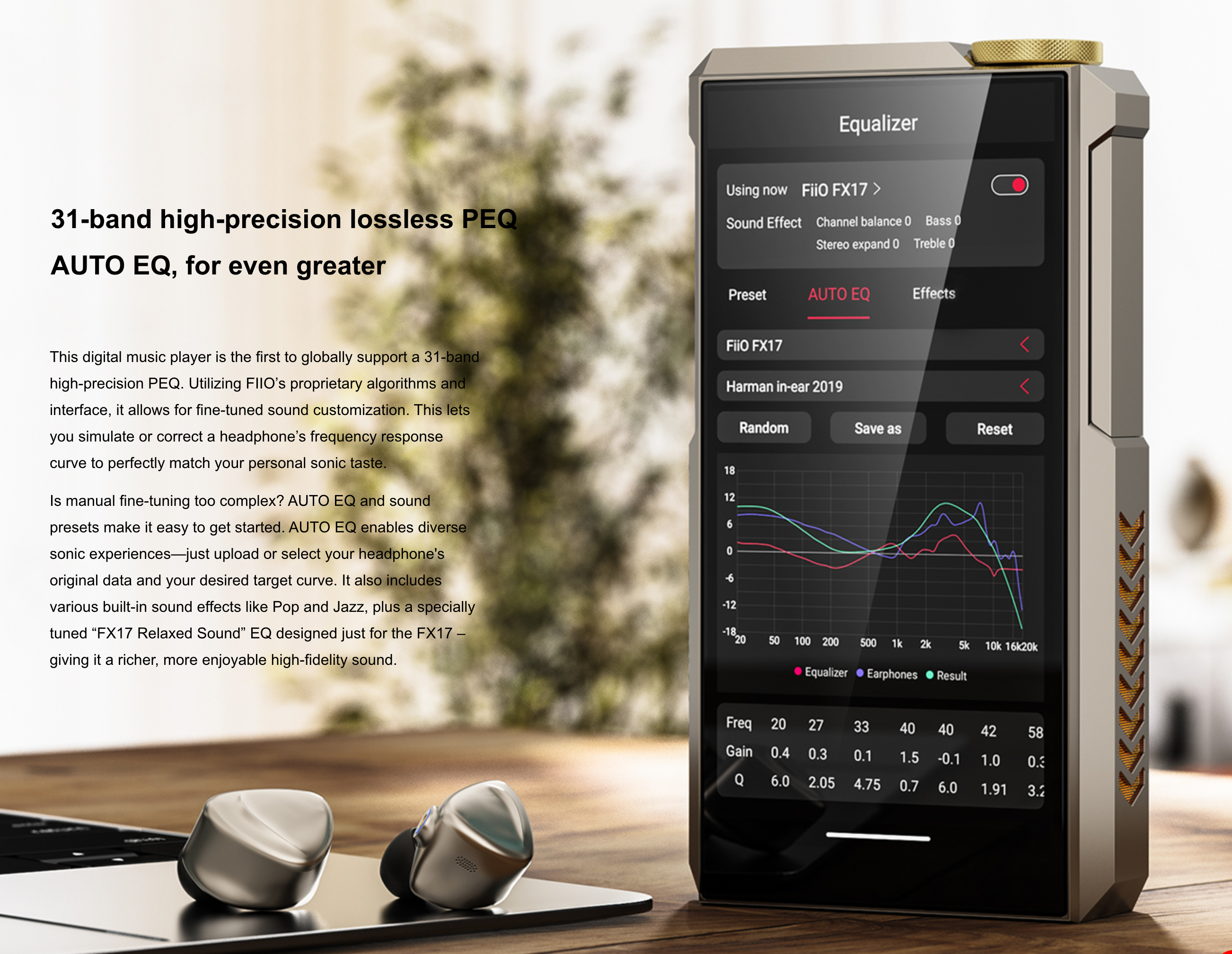

31-Band Lossless PEQ + AUTO EQ
The FiiO M27 is the world's first DAP to support 31-band lossless PEQ, enabling extremely accurate sound customization using FII's proprietary algorithms. This system allows you to simulate or correct the frequency response of your headphones, adapting it to your target curve or personal preferences. For those who want instant adjustment, the following are available:
• AUTO EQ based on the original headphone data
• Sound presets (Pop, Jazz, etc.)
• The dedicated "FX17 Relaxed Sound" EQ for even richer and more enjoyable listening.
.
Desktop-Grade Audio Architecture
The FiiO M27 adopts a six-stage fully differential audio circuitry, designed to meet desktop standards. This structure reduces crosstalk, improves signal stability, and enhances dynamic range, delivering precise music reproduction rich in micro-detail.
.

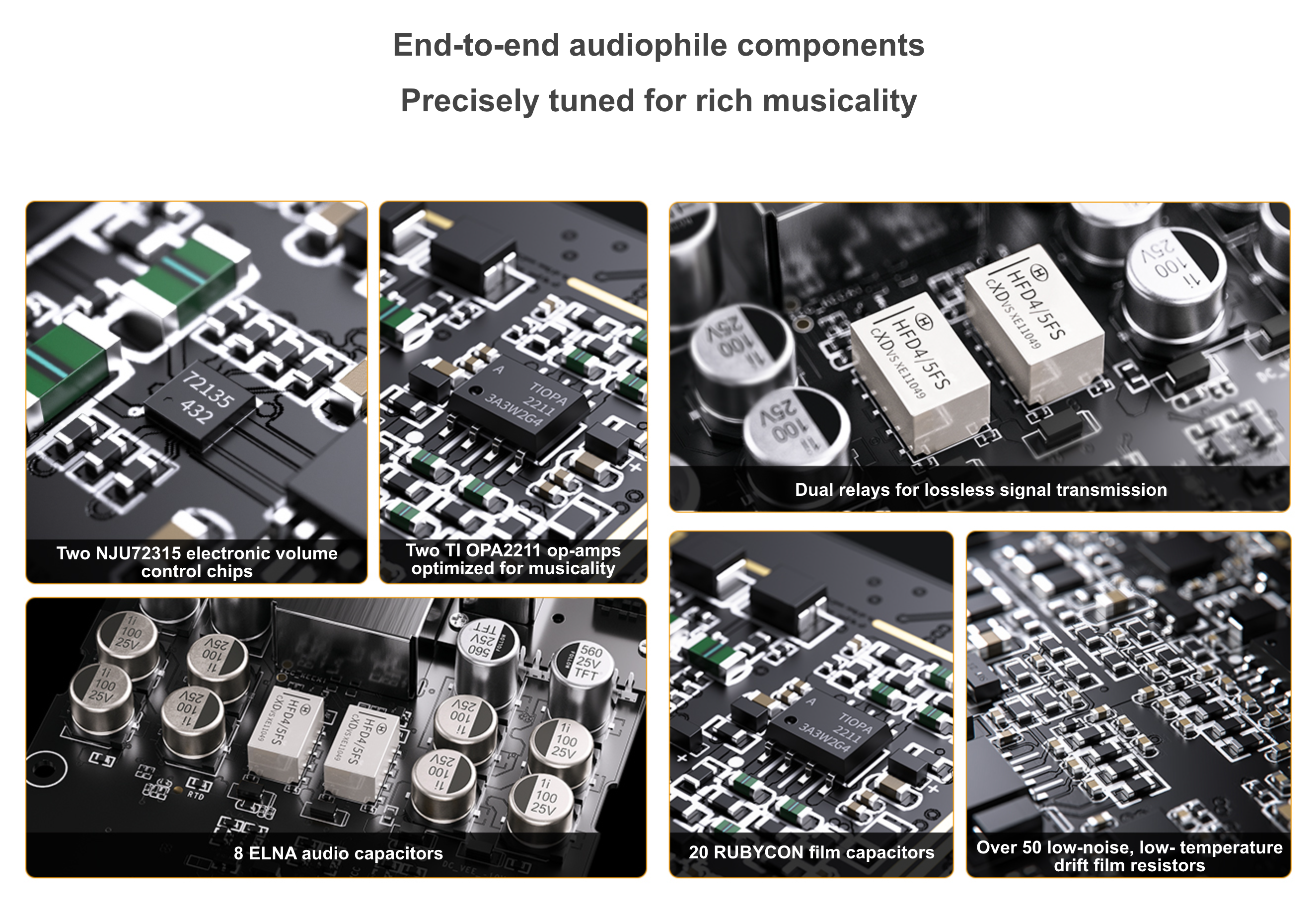

End-to-End Audiophile Components
The FiiO M27 integrates a selection of professional-quality audiophile components, optimized to deliver a rich, natural, and highly dynamic sound. Each circuit element has been carefully calibrated to maximize tonal output, ensure a wide soundstage, and deliver the full depth of your high-resolution recordings.
.
Separate Power Supply for Digital and Analog Sections
The FiiO M27 employs a completely separate power supply architecture for the digital and analog modules. This design minimizes crosstalk and interference, ensuring greater precision in digital decoding and extremely clean analog output. The result is a stable and quiet electrical foundation, allowing the DAC and amplifier to unleash their full potential with clear, dynamic audio that is faithful to the source.
.

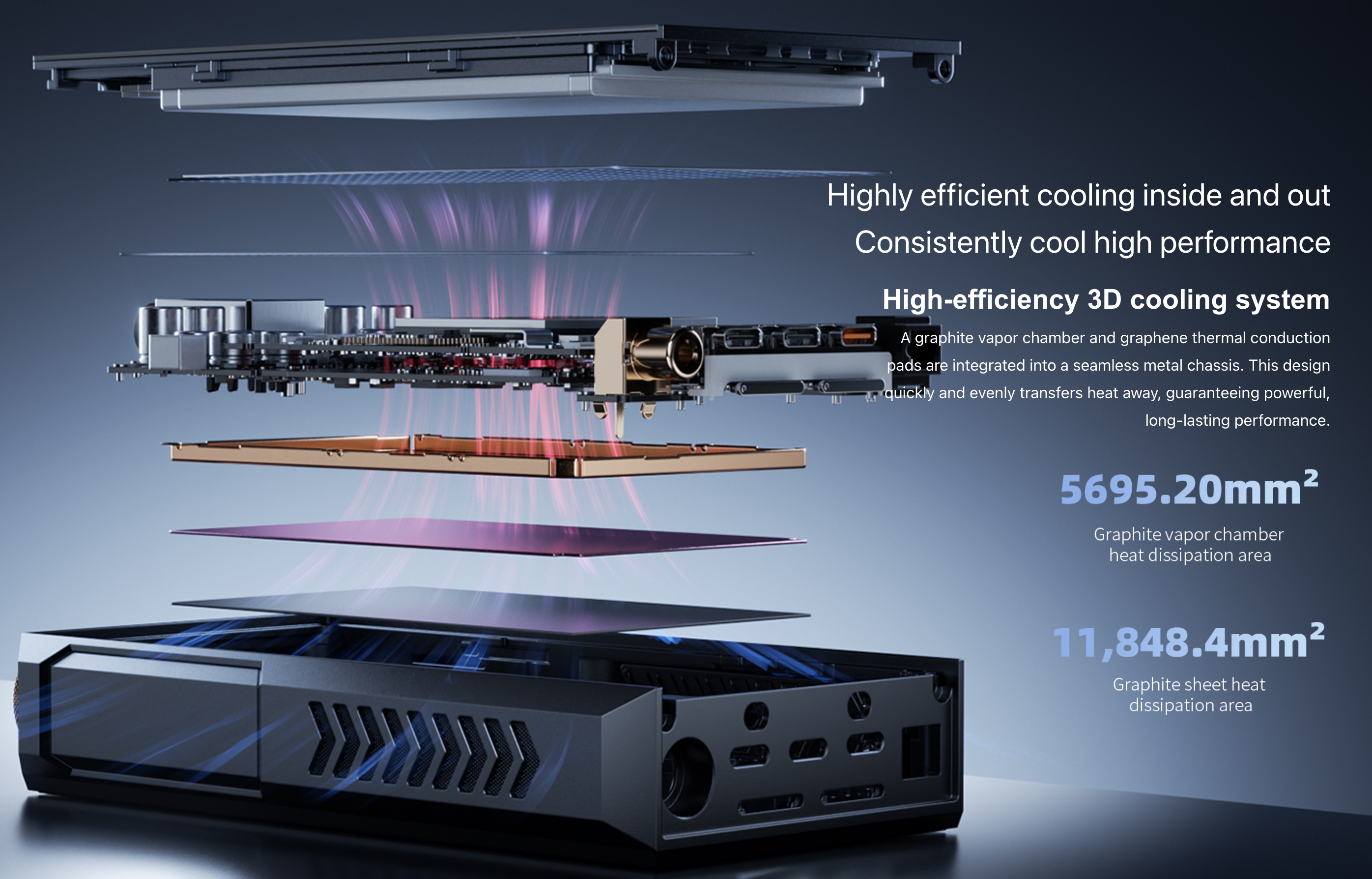

3D Thermal Dissipation with Vapor Chamber and Graphene
The FiiO M27 integrates an advanced cooling system consisting of a graphite vapor chamber and graphene thermal pads, perfectly coupled to the metal unibody chassis. This solution distributes heat quickly and evenly, preventing thermal buildup and keeping the device in ideal conditions for high and stable performance even during prolonged listening sessions.
• 5695.20 mm² – graphite vapor chamber heatsink area
• 11,848.4 mm² – graphite foil heatsink area
.
Thanks to this highly efficient thermal management, the M27 ensures reliability, longevity, and consistent performance over time.
.
Stability for Amplification
The highly thermally conductive copper heatsinks are strategically placed to rapidly reduce heat generated in the most critical areas of the internal circuitry. This optimized thermal transfer allows the headphone amplifier to maintain a stable operating temperature, ensuring maximum power, linearity, and sound quality even under load.
.

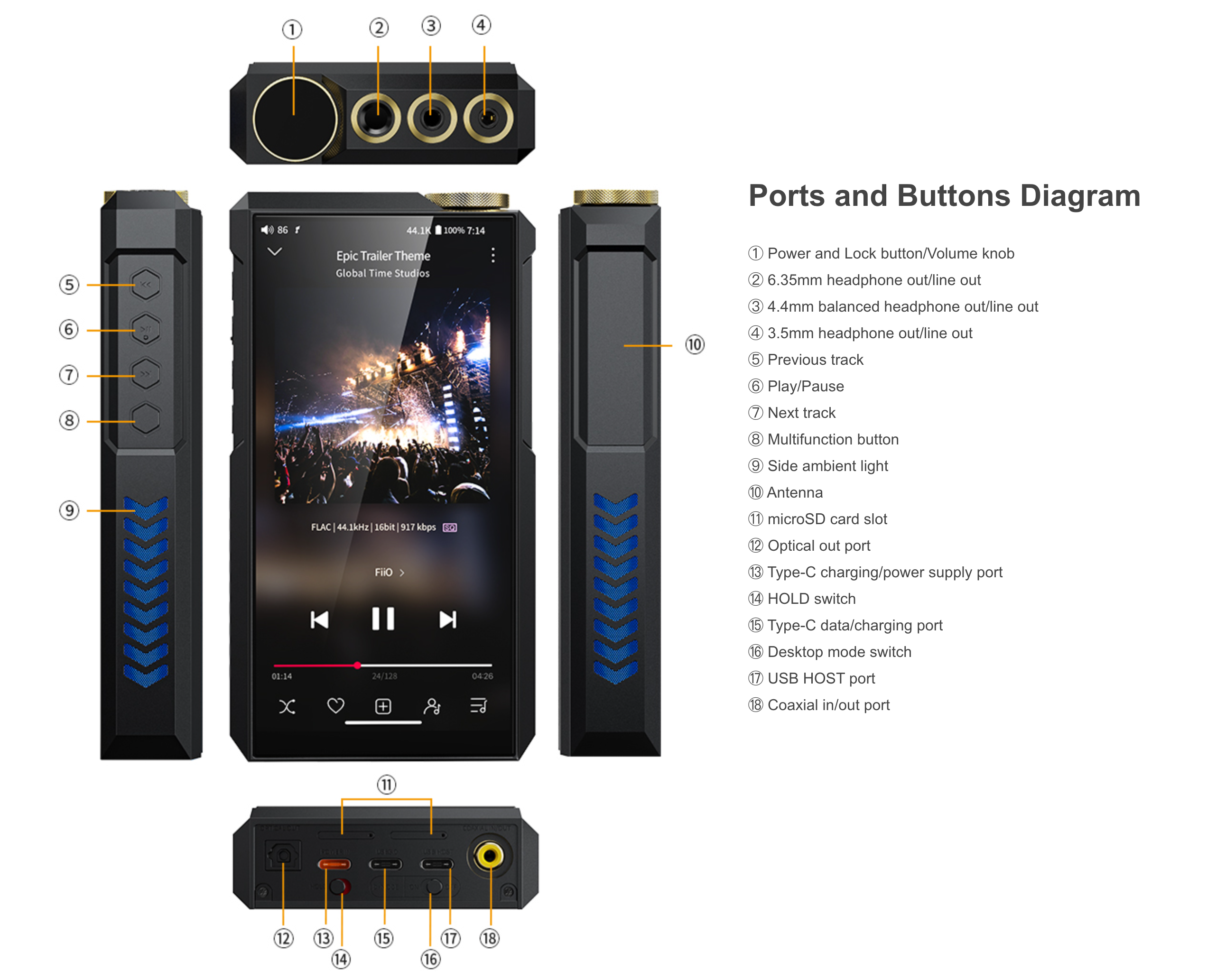

Ports and Buttons Layout
Power and Lock Button/Volume Control
26.35mm Headphone/Line Output
4.4mm Balanced Headphone/Line Output
43.5mm Headphone/Line Output
Previous Track
Play/Pause
Next Track
Multi-Function Button
Side Ambient Light
Antenna
MicroSD Card Slot
Optical Output Port
Type-C Power/Charging Port
HOLD Switch
Type-C Data/Charging Port
Desktop Mode Switch
USB Host Port
Coaxial Input/Output Port
.

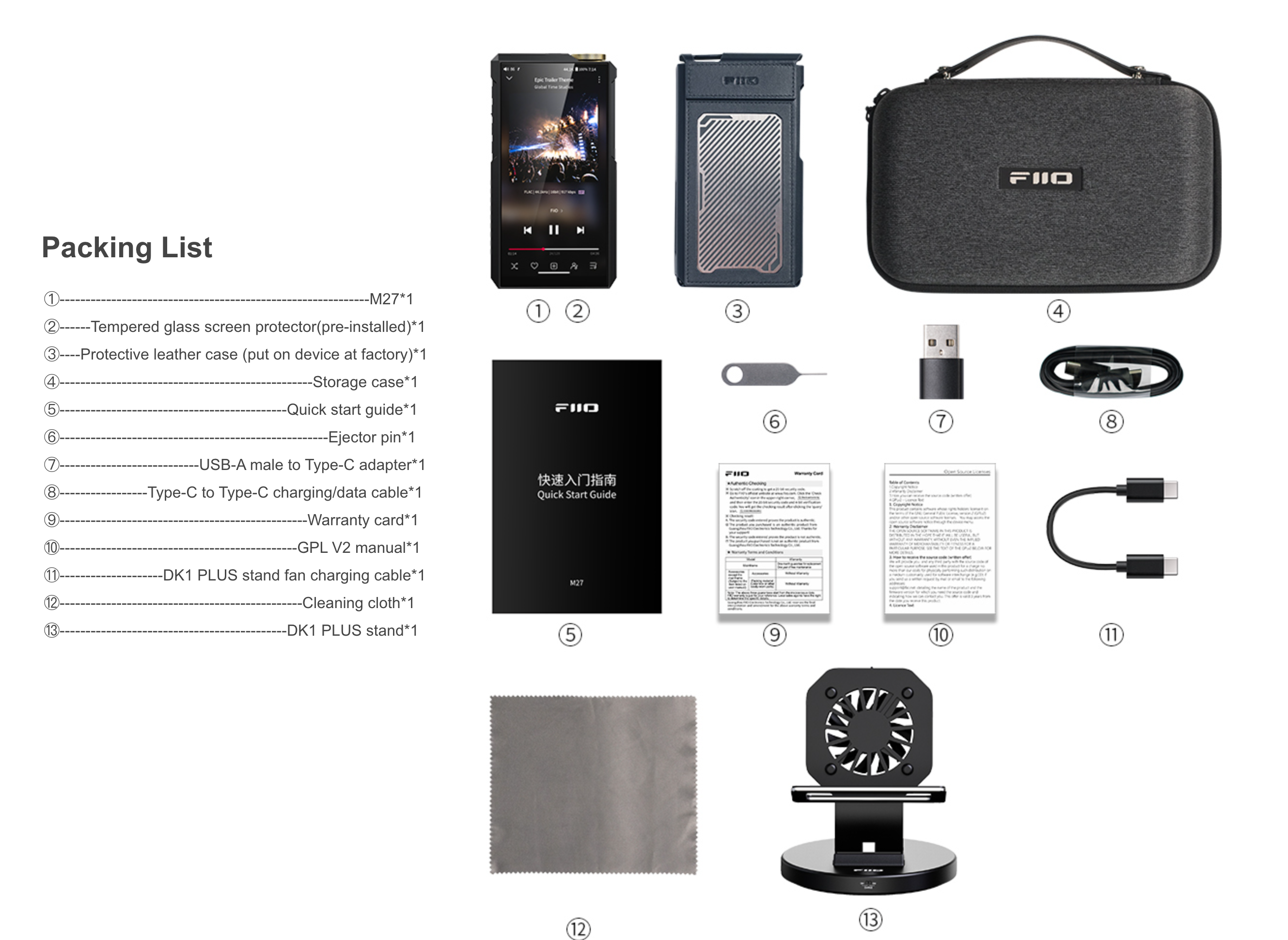

Package Contents
M27 x 1
Tempered Glass Screen Protector (Pre-installed) x 1
Protective Leather Case (Factory Installed) x 1
Protective Case x 1
Quick Start Guide x 1
Eject Tip x 1
USB-A Male to USB-C Male Adapter Type-C x 1
Type-C to Type-C charging/data cable x 1
Warranty card x 1
GPL V2 manual x 1
Charging cable for DK1 PLUS fan with stand x 1
Cleaning cloth x 1
DK1 PLUS stand x 1
.
