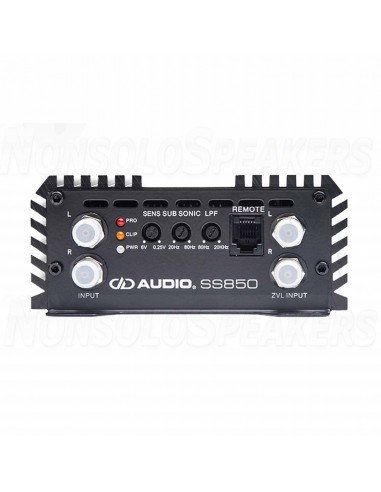

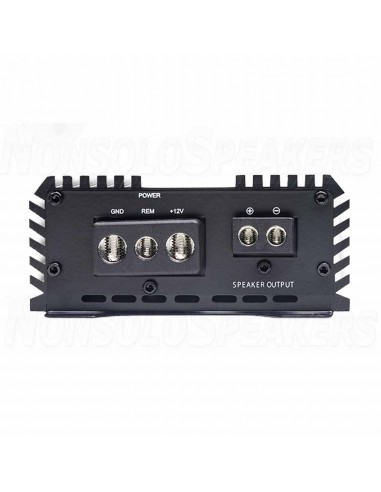

DIGITAL DESIGNS SS850 Amplifier mono class D

.

Maximum efficiency, from stock electrical systems, is the aim of the SS850. Coming in at over 850 Watts RMS under 1% THD, it can drive single, dual or even triple subs to high output levels. Sharing the same architecture as the other high speed, half bridge SS amplifiers, the over-spec power supply delivers the strong impact that low cost full bridge designs fall flat on.

The new SS/SX amplifiers are the latest in high speed, high current class D designs offering high power and superior sound quality in compact footprints.

The classic DD AUDIO style heat sink is used in this upgrade for max cooling with 50% more side wall thickness than industry norms and extra long fins to increase surface area. When every Watt matters, the SS850 delivers the best bang for the buck.

.

Technical Specifications

• Operating Voltage: 9 - 16
• Test Voltage: 14.4
• Input Channel(s): 2
• Output Channel(s): 1
• Continuous Wattage @2ohm: 575
• Continuous Wattage @1ohm: 850
• Max Current Draw (Amps): 90
• RCA Input Voltage Sensitivity: 6 - 0.25
• RCA Input S/N: 95
• Damping Factor: 100
• THD: 1.0%
• Frequency Response (Hz): 20 - 20k
• Sub-Sonic Filter: 20 - 80
• Low-Pass Filter: 80 - 20k
• ZVL Input: Yes
• Remote Control: Remote Included in Box
• Power Wire Gauge: 4
• Speaker Wire Gauge: 8
• Dimensions (Inches): 5.75 x 4.6 x 2
• Dimensions (MM): 141 x 117 x 50
• Shipping Weight (Lbs): 4
