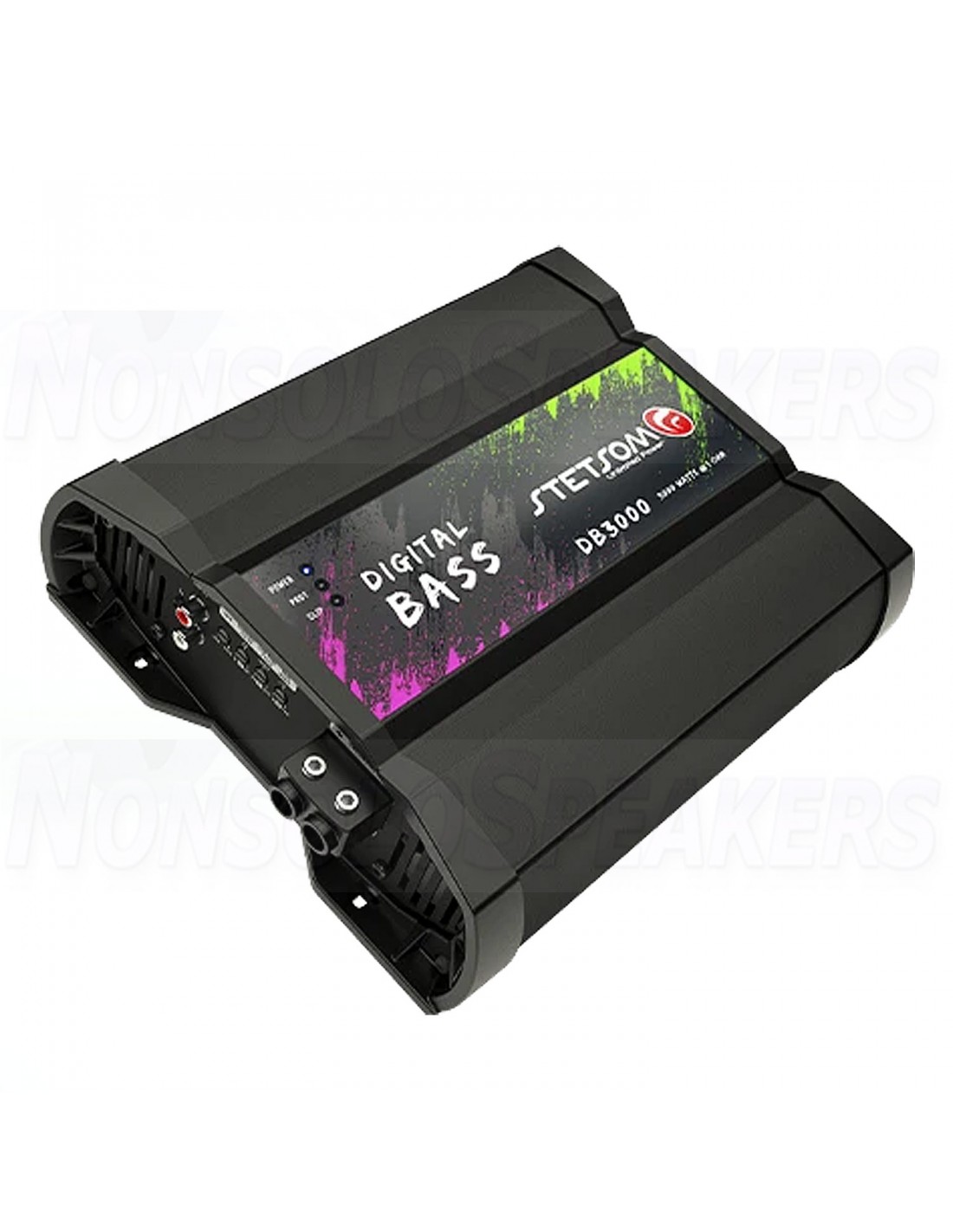

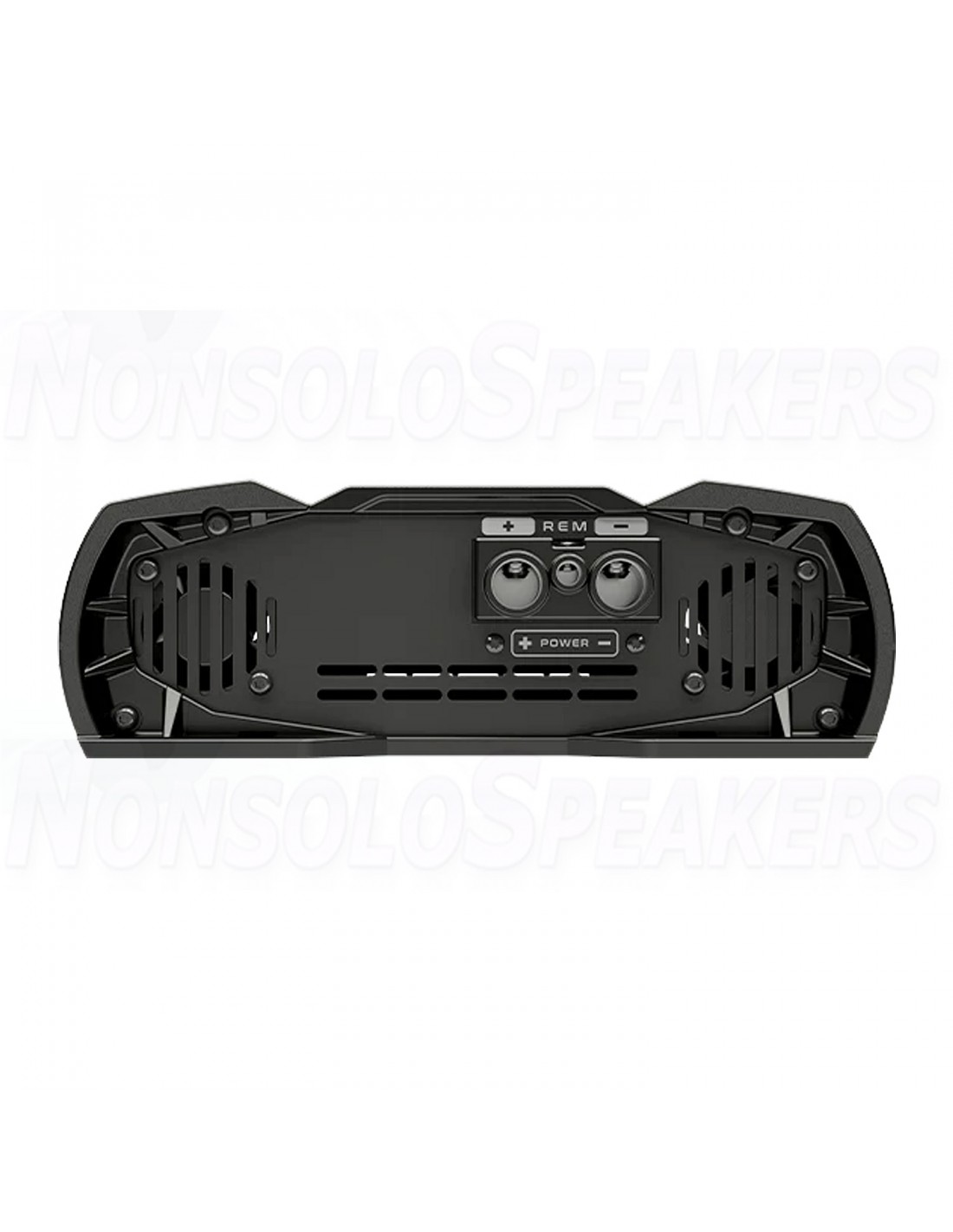

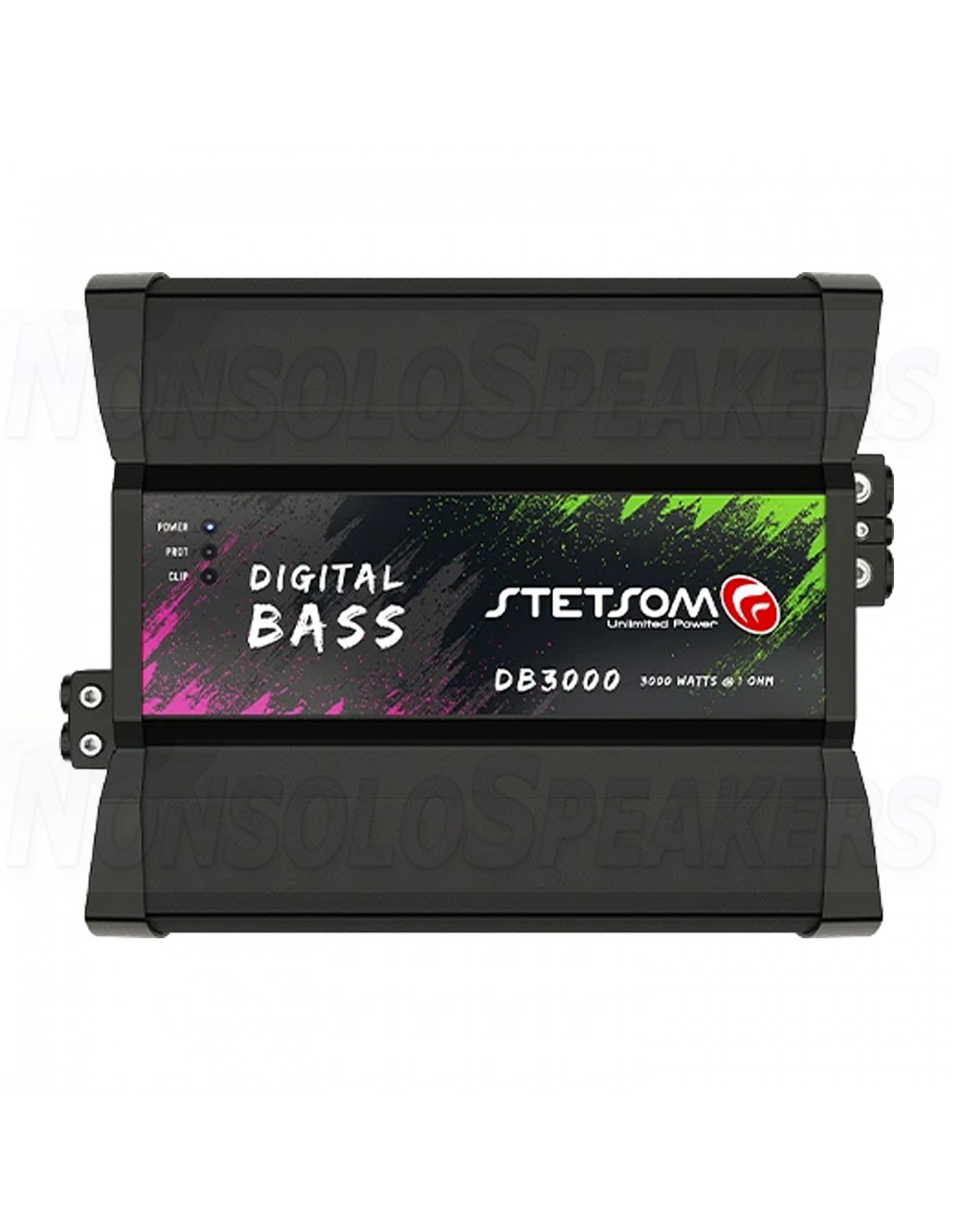

STETSOM DB3000_1 Amplifier mono 1 ohm

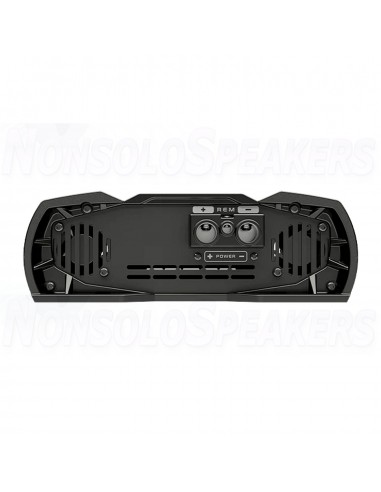

STETSOM DB3000_2 Amplifier mono 2 ohm

PRODUCT DETAILS

The Stinger SSLC bass remote control is suitable for the Stetsom EX 3000EQ – 1OHM.

This is how the 3 amplifier series from Stetsom differ:

The Stetsom DB series includes amplifiers that have been designed exclusively for the bass range.

The Stetsom EX line is a full range amplifier series and can be used for bass as well as for front systems up to high frequencies.

The Stetsom Vulcan amplifier series can be used for the bass range up to the midrange!

Characteristics:

EX is the export series from Stetsom, which serves the worldwide demand for inexpensive and extremely powerful amplifiers.

Designed for those looking for high performance and fidelity in automotive amplifiers with the most innovative electronic components.

Detailed features of the EX 3000 EQ:

Three-band equalizer: BASS, MID BASS, MID HIGH, plus traditional level functions, high pass and low pass.

EQ Bass: -10dB to + 10dB / EQ medium: from -10dB to + 10dB / EQ medium high: from -10dB to + 10dB.

Frequency response from 10Hz to 25KHz and cooling device controlled by an intelligent system.

Made in Brazil

Data:

1-channel amplifier optimized for 1 ohm connection!

RMS power at 1 ohm 12.6V: 3000W RMS

RMS power at 2 ohms 12.6V: 2100W RMS

RMS power at 4 ohms 12.6V: 1150W RMS

RMS power at 1 ohm 14.4V: 3550W RMS

RMS power at 2 ohms 14.4V: 2400W RMS

RMS power at 4 ohms 14.4V: 1500W RMS

Supply voltage: 9.5 ~ 15Vdc

Frequency range: 10Hz ~ 25KHz

Crossover low pass: 50Hz ~ 25KHz

Crossover high pass: 10Hz ~ 700Hz

Signal-to-noise ratio:> 90 dB

Harmonic distortion: <0.9% THD

Input sensitivity: 0.2V

Input impedance: 12 kOhm

Consumption with music signal: 2A ~ 140A

Consumption with bass signal at Burp: 2A ~ 280A

Dimensions (H x W x D) mm: 77 x 222 x 188 mm

Weight: 2.4 kg
