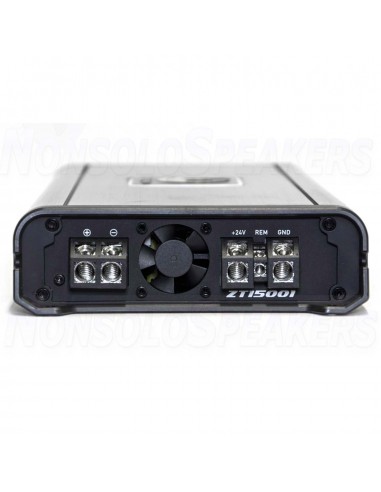

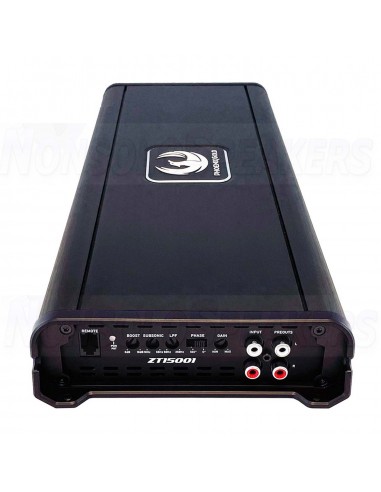

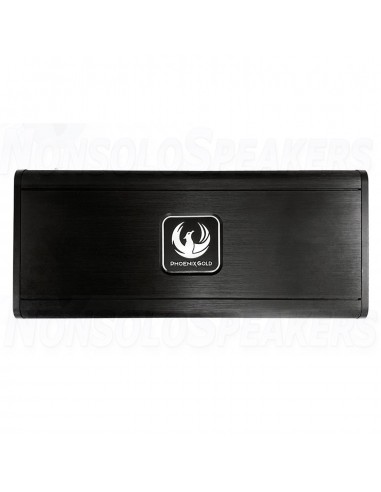

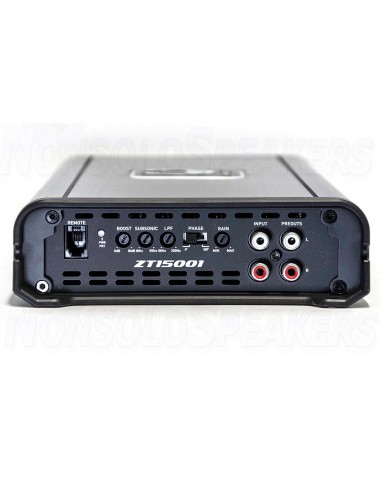

Phoenix Gold ZT15001 – 1500 Watt Monoblock 24V Class-D Amplifier High grade connection terminals AutoStart function on High level input

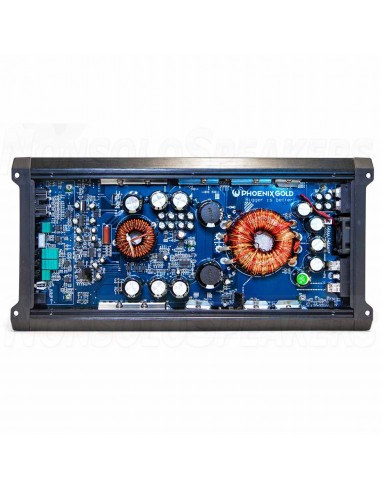

The ZT15001 is a powerful 1500W monoblock 24V Class-D Amplifier with a fantastic compact design suitable for even the smallest of installs. Featuring our high-quality signature gold design circuit board, the product uses its high-grade connection terminal to ensure a clean crisp power delivery to all your components.

Technical Specifications:

• Power Ratings (RMS)
• 1500W x 1 @ 1Ohm
• 1100W x 1 @ 2Ohm
• 600W x 1 @ 4Ohm
• Class-D Technology
• Frequency Response: 20Hz – 400Hz
• Signal to Noise Ratio: >96dB
• High & Low Pass
• Crossover 24dB per octave Crossover Range: 50Hz – 250Hz
• Subsonic Crossover Filter: 10Hz – 55Hz Bass Boost: @ 45Hz 0 to +18db
• Phase Control: 0-180
• Low-High Level Input Range: 0.2V to 10V
• Min Load Impedance: 1Ohm
• Dimensions (LxWxH): 383 x 160 x 48mm
• Includes Bass Controller
