Phoenix Gold ZXMPMB1 Mercedes Plug and Play Power Up Kit

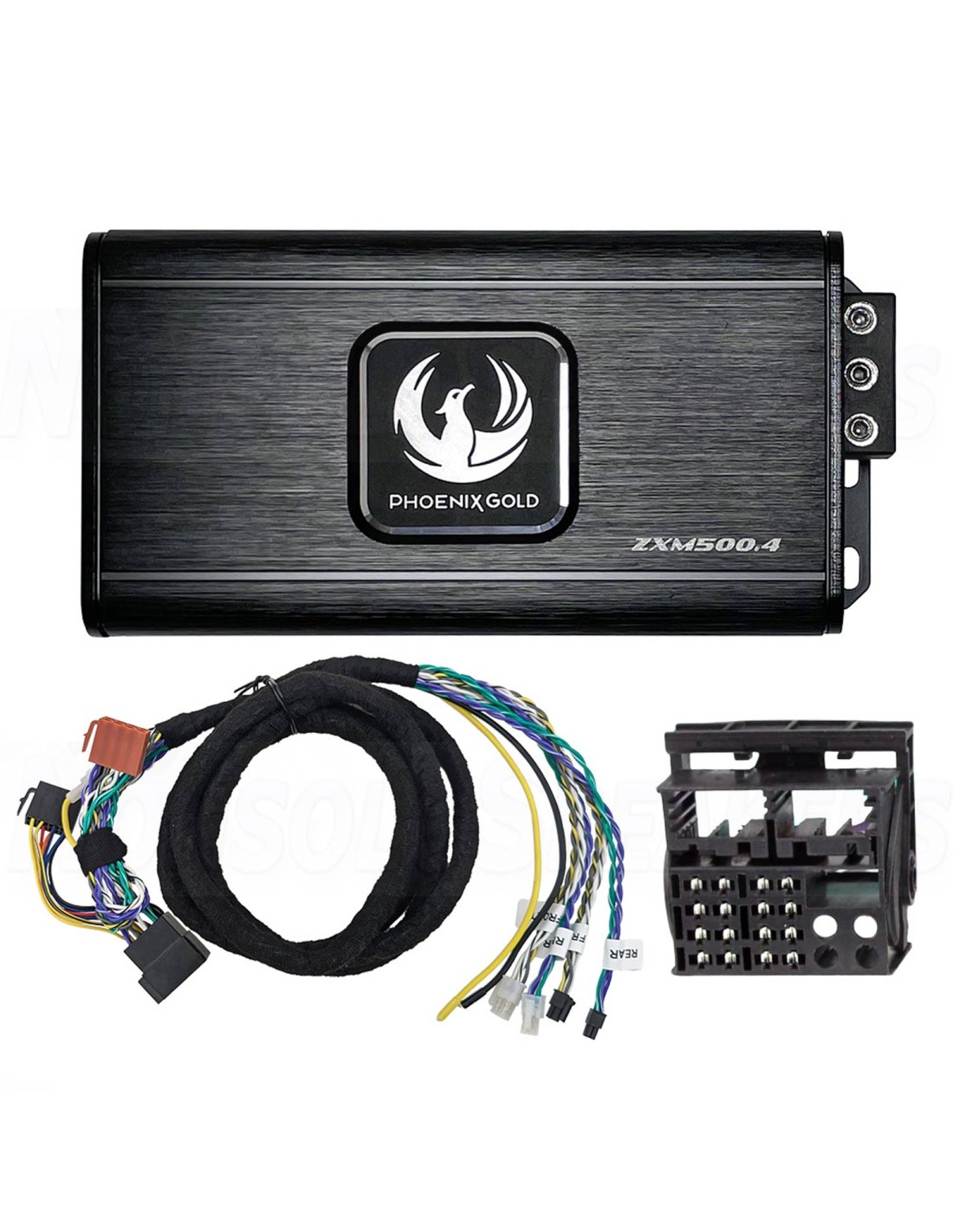

ZXMPMB1 is a Plug and Play power-up kit made for Mercedes (for a full model list please view Vehicle Applications). The ZXMPMB1 power up kit consists of a variety of technology designed to improve the overall audio output of a vehicle. The ZXMPMB1 includes a 400W DSP Amplifier and plug and play harnesses. The ZXMPMB1 includes a ZXM500.4 Amplifier and ZXMISOT2 ISO-T harness.

Utilising the high-level signals from your vehicle and passing it through the 4-channel 500W amplifier transforming and amplifying the audio signal before sending it to your speakers, gives them a real boost in both output and performance delivering an all new and improved audio experience with ZXMPMB1.

The amplifier boasts a sleek, compact design while delivering substantial power in a remarkably small package. This makes the amplifier easy to install almost anywhere and thanks to the use of class-D technology the amplifier does not run the risk of getting hot or overheating.

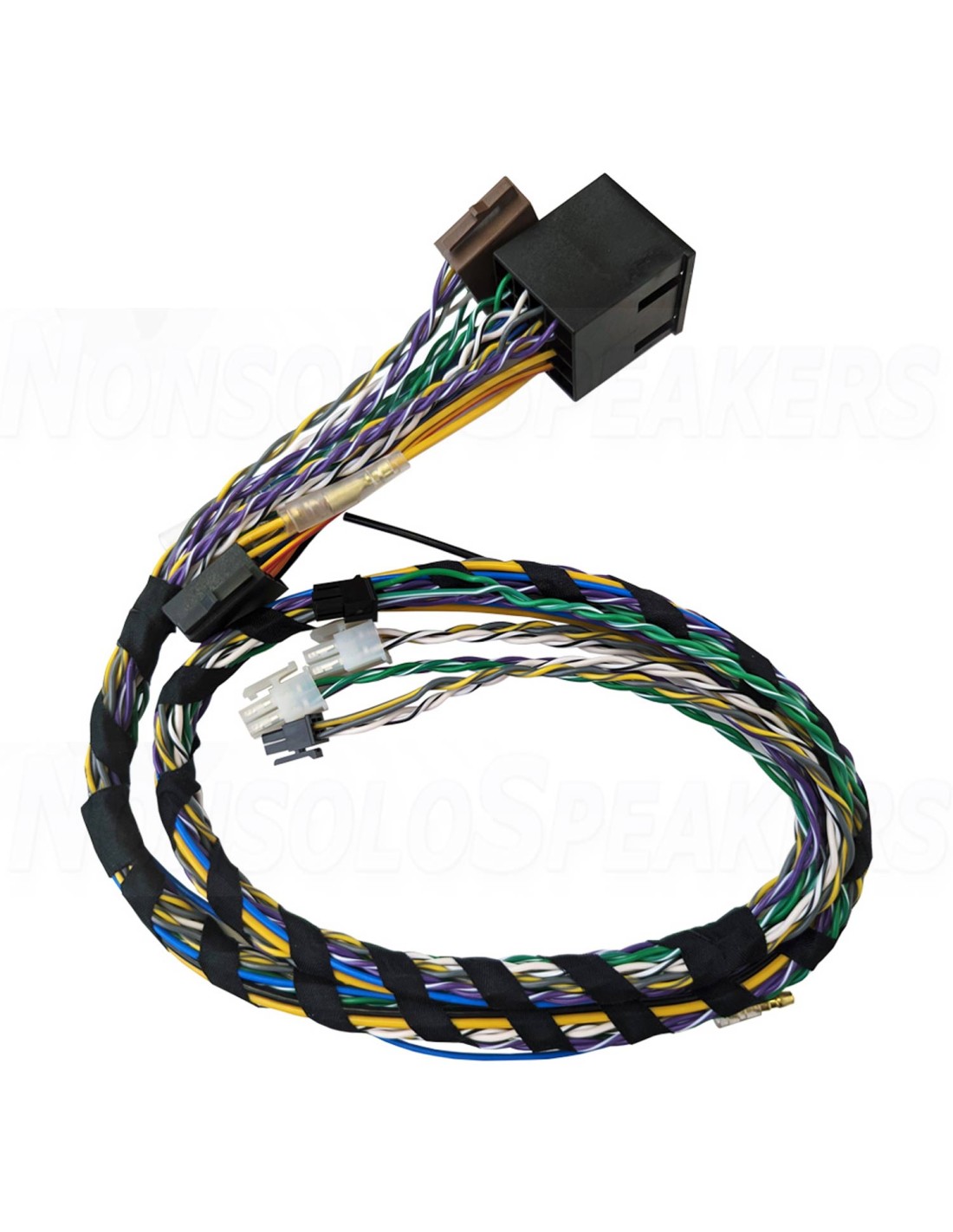

The ZXMISOT2 2.2M ISO-T Harness is the perfect accessory when installing the ZXM500.4 amplifier. This 220cm long plug-and-play harness is installed between the amplifier and vehicle, taking high-level input signal from the car and passing it through the amplifier and sending it to the speakers, giving you extra power.

The amplifier boasts a sleek, compact design while delivering substantial power in a remarkably small package. This makes the amplifier easy to install almost anywhere and thanks to the use of class-D technology the amplifier does not run the risk of getting hot or overheating.

.

ZXMPMB1 Power-up Kit Key Features

Quick and easy install

No modifications needed on the vehicle

Invisible integration

Sound quality superior to the original one

No additional accessories required

All in one box

.

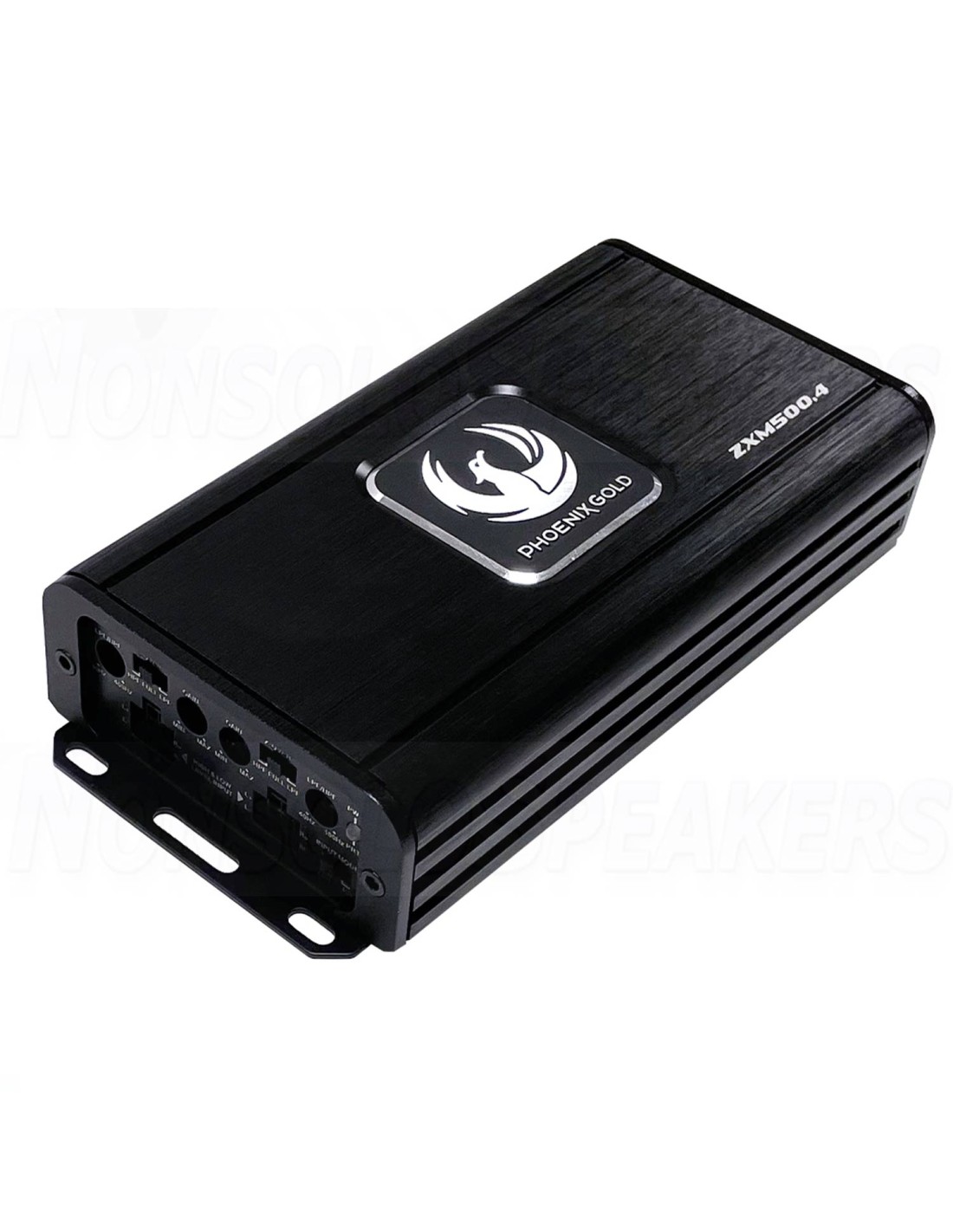

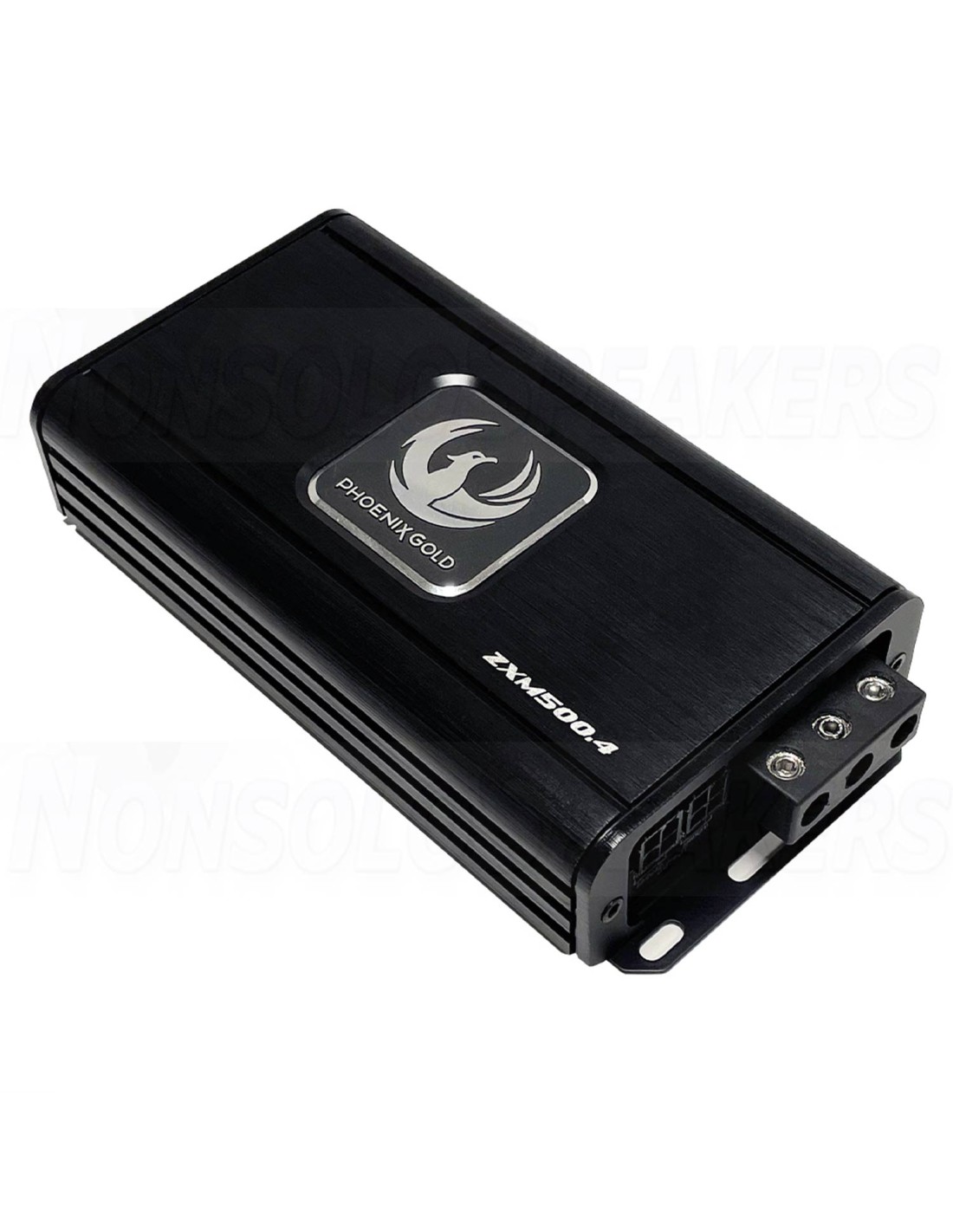

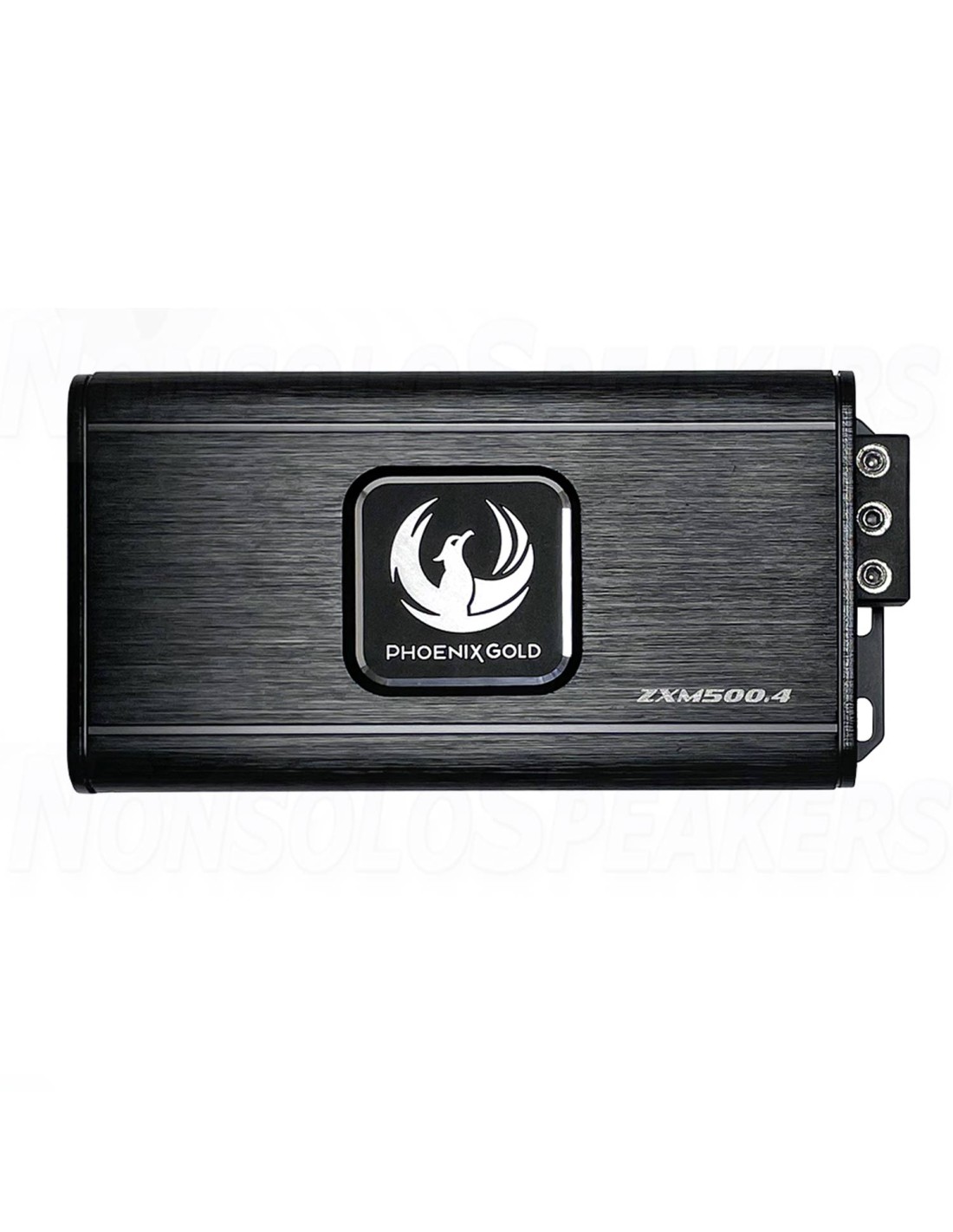

The ZXM500.4 is an impressive Class-D 4-channel Mini Amplifier. The ZXM amplifiers are made to be as small as possible without compromising sound quality, power and functions. The ZXM500.4 is a 4-channel amplifier with a total power of 500W RMS. This equals 4x80W RMS in 4Ohm but the amplifier is stable into 2Ohm and then delivers 4x125W RMS. The 4 channels can also be bridged into 2x250W RMS in 4Ohm. The amplifier comes with adjustable HP/ LP filters and also a switch to use 2ch input or 4ch input low or high level.

A high level of engineering has gone into making these amps with low EMI emissions to not interfere with the advanced electronics or FM signal.

.

ZXM500.4 Key Features

Massive Power & Performance

Full Class-D technology offers efficiency & performance

Short circuit/thermal and high/low voltage protection

Excellent signal-to-noise ratio and FM noise rejection

Built-in protection LED light status indicator

Surface mount component technology

Ultra small size for easy installation

Autostart on high-level input

Full adjustable HP & LP filter

.

ZXM500.4 Specifications

Class-D 4-Channel Mini Amplifier

Power (MAX) 1000W

Power Ratings (RMS)

125W x 4 @ 2Ohm

80W x 4 @ 4Ohm

250W x 2 @ 4Ohm bridged

Frequency Response: 20Hz 20kHz

Signal to Noise Ratio: > 90dB

Total Harmonic Distortion: < 0.3%

Low Pass Filter: 40Hz 400Hz (12dB/Oct)

High Pass Filter: 40Hz 400Hz (12dB/Oct)

High-Level Input Auto Turn-On

Dimensions (LxWxH) 165 x 83.1 x 34.8mm

.

Why choose the Phoenix Gold ZD Series?

The Phoenix Gold ZD Series is an exceptional product line offering a wide range of options to enhance your audio experience.

Whether youre in search of a simple kit or a comprehensive amplified system, the Phoenix Gold ZD Series provides an effortless installation process, seamlessly replacing your original system without any modifications to your vehicles environment. Its as simple as plug, play, and enjoy.

With an extensive compatibility list, our product line caters to multiple car manufacturers and models. We understand that choosing the right audio system can be overwhelming, which is why weve developed the ZD Series.

The Phoenix Gold ZD Series, with immersive surround sound,is designed to meet all your audio needs. Upgrade your car with the ZD Series and say goodbye to complicated installations and generic audio systems. Enjoy superior sound quality design for your vehicle with the Phoenix Gold ZD Series!

.

Why choose Phoenix Gold:

Phoenix Gold exists to give you a car audio experience of musical realism that will have you questioning if youre riding around in a music studio or are sitting in the front row of a rock concert. Our product line is the result of a continued dedication to our key values of performance, innovation, quality, and excellence, bringing you The Gold Standard in Sound.

.

Vehicle Application
