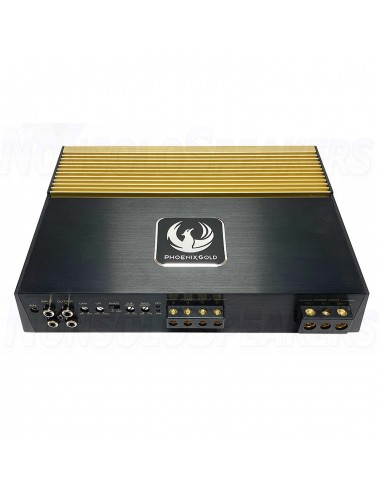

    Phoenix Gold ZQ15001 – Monoblock Class D High End Amplifier

    The ZQ Series of amplifiers feature award winning technology that not only offers a natural uncompromised sound but also a design that represents Phoenix Gold's past, present, and future all in one. Highly sought after by PG enthusiasts and audiophiles alike, the ZQ Series is a rebirth of PG's original core values offering premium high-end technology that brings the purest audio sound to the masses.

    Estimated Shipping Costs
    Shipping Costs
    €19.20
    Shipping Time
    .
    Want to check another country or courier?

    You might also like


    Phoenix Gold ZQ15001
    5 Items
    New product

    Phoenix Gold ZQ15001 – Monoblock Class D High End Amplifier

    The ZQ Series of amplifiers feature award winning technology that not only offers a natural uncompromised sound but also a design that represents Phoenix Gold’s past, present, and future all in one. Highly sought after by PG enthusiasts and audiophiles alike, the ZQ Series is a rebirth of PG’s original core values offering premium high-end technology that brings the purest audio sound to the masses.
    The ZQ15001 is a powerful Monoblock Class D amplifier offering up to 1500W of power. This unit is perfect for growing installations over time, offering enough power to start an install and continue giving a smooth power supply as a system is upgraded and updated.
    The ZQ15001 is a strong durable unit in a attractive compact casing making it usable in a variety of applications. The Gold Treated PCB’s of the ZQ15001 feature a unique two layered, gold immersion treatment along with 24K gold plated terminals offering superior connectivity. The dual power supply has been optimised to proficiently feed the amp and only the best Nichicon (Japan) & Wima (Germany) capacitors are used to provide the best possible uninterrupted power supply. High end polymer gain potentiometers are used to aid amplification and the shielded transformer cores which are manufactured in Germany ensure a pure feed of power throughout the amp. The dual colour extrusion heatsink with heat transfer optimisation ensures that the amp stays cool even when under the highest most strenuous usage.
    .

    Technical Specifications:

    • Pure Class D Technology
    • Power Ratings (RMS)
    • 650W x 1 @ 4Ohm
    • 1000W x 1 @2Ohm
    • 1500W x 1 @ 1Ohm
    • Frequency Response: 5Hz – 250Hz
    • Signal to Noise Ratio: >80dB
    • Low Pass Filter: 40Hz – 250Hz
    • Subsonic Filter: 5Hz – 50Hz
    • Bass Boost: @ 45Hz 0 to +18dB
    • Phase Control: 0-180
    • Input Impedance: 20K Ohm
    • Supply Voltage: 11 – 15V
    • Dimensions (LxWxH): 280 x 200 x 56mm
