FiiO DM13 BT S Portable Stereo CD Player Silver

.

The FiiO DM13's specially designed audio architecture combines two flagship Cirrus Logic CS43198 chips with two low-noise SGM8262 hi-fi headphone amplifiers. The combination of two DACs and two amplifiers enables the portable CD player to produce truly high-quality sound.

.

High-quality "core" for smoother volume control

Flagship DAC 2x CS43198 Unlike most portable CD players, the FiiO DM13 uses two flagship CS43198 DAC chips, which offer high performance and low power consumption for excellent audio quality. FIIO engineers also specially designed an output stage to better capture the DAC's sound, with the same DAC chip controlling the volume. The DAC chip enables 99-step fine-tuning of the volume, which not only allows for smooth volume changes but also makes the sound clearer at any volume.

.

Tiny Body - Enormous Performance

The FiiO DM13 may be compact, but it offers impressive performance that sets it apart from other similar products. Not only can it drive most headphones, but it can also be connected to powered speakers or other headphone amplifiers for an exceptional listening experience.

.

Portable CD Player - Useful Anywhere

FIIO designers combined manufacturing craftsmanship and structural design to shrink the FiiO DM13 to a size smaller than most other CD players, measuring approximately 144 x 137 x 27 mm (without feet). The DM13 also features an ESP (Electronic Skip Protection) switch, ensuring a stable and enjoyable audio experience whether you're on the go or listening to music while stationary.

.

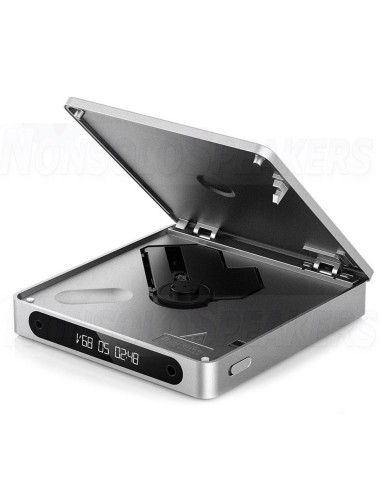

Stable CD Reading - Keep an Eye on Everything

With a gentle push of the lever, the lid opens effortlessly, allowing you to insert your disc. This gives your music a physical presence unheard of with purely digital playback. The spacious disc compartment significantly reduces the likelihood of scratches during high-speed rotation, providing maximum protection for your favorite discs.

.

Custom LCD Display - Reliably Clear

The high-contrast, durable LCD display clearly shows the volume, track number, and song playback time, making the device's status easy to understand. It also resists screen burn-in after extended use, giving you one less thing to worry about.

.

3.5 mm + 4.4 mm dual headphone outputs

3.5 mm and 4.4 mm outputs: for connecting headphones Single-ended and balanced line outputs: for connecting to powered speakers or amplifiers

.

Optical/coaxial digital outputs

Special low-jitter crystal oscillators ensure precise synchronization of the digital clock, resulting in cleaner and more stable digital signal transmission. Optical and coaxial digital outputs: for connecting to an external DAC.

.

USB CD Ripping - More Playback Options

You can rip your favorite CDs into WAV files, which are stored on a portable storage device, and easily share them with friends and family. The WAV music files on this portable storage device can then be easily transferred to other computers or phones, allowing you to play the music on your CDs anytime, anywhere. * Only supports FAT32-formatted storage devices.

.

aptX High-Res Bluetooth - Convenient wireless connections that also sound great

Unlike conventional portable Bluetooth CD players, the DM13 BT features a Qualcomm Bluetooth platform that delivers high-resolution Bluetooth audio with support for the aptX, aptX Low Latency, aptX HD, and standard SBC codecs. This high-quality wireless transmission enhances the Bluetooth sound quality of portable CDs.

.

Patented Desktop Mode - Relaxed Listening

FIIO's highly acclaimed Desktop Mode is now available for the DM13. When connected to a USB power source, simply slide the D.MODE switch to "ON," and the DM13 will be powered directly via USB without consuming battery power, extending battery life. *When the remaining battery capacity reaches 0% and the device is forcibly turned off, the battery will begin charging regardless of the current mode.

.

Long Battery Life - 10 Hours of Playback with Lithium Batteries

The DM13 is powered by a specially selected 3750 mAh, 3.8 V cobalt lithium battery. You can take the DM13 anywhere and enjoy 10 hours* of music—more than enough for even the longest listening sessions. *Data from FIIO Labs. Actual results may vary due to usage conditions that differ from those tested.

.

Gapless Playback - Smooth Playback

During the initial development phase of this product, FiiO gathered extensive user feedback and overcame many challenges to carefully develop a range of user-friendly and thoughtful features, including gapless playback, the ability to save favorites, and loop playback. The loop playback function supports loops on a single track, random tracks, and even the entire CD, allowing you to customize playback to your liking.

.

High-Quality Materials - Luxurious and Durable

The aluminum alloy body perfectly combines texture and feel while ensuring the structural strength of the device. Precision-machined aluminum alloy components are used for the critical hinge, providing greater wear resistance and durability. *Rigorous testing in FiiO labs has proven that the hinge can be reliably closed and opened more than 5,000 times.

.

Colorful and Vibrant - A Unique Style

Discover how different colors can create different moods. Coming soon are silver, black, red, white, and white with skylight effect. This is not only a portable CD player with great sound, but also a stylish accessory that can literally brighten up your music journey.

.

Technical Specifications

• Power supply: USB power adapter with max. 5V 2A (Type-C)
• DAC: CS43198*2
• Headphone amplifier: SGM8262*2
• Display: 1.5-inch LCD
• Headphone outputs: 3.5 mm unbalanced + 4.4 mm balanced
• Line outputs: 3.5 mm LO/COAX/OPT + 4.4 mm balanced LO
• Output power 1: L+R ≥180 mW + 180 mW (32 Ω, THD+N <1%/single-ended)
• Output power 2: L+R ≥660 mW + 660 mW (32 Ω, THD+N <1%/balanced)
• Single-ended line output level: L+R = 2.5 Vrms + 2.5 Vrms
• Balanced line output level: L+R = 5 Vrms + 5 Vrms
• Bluetooth output codecs: aptX HD/aptX Low Latency/aptX/SBC (Bluetooth version only)
• Supported CD-R formats: FLAC/WAV/WMA/AAC/MP3 (only supports the CD layer of SACD discs)
• SNR: ≥124 dB (A-weighted)
• Noise floor: PO: ≤2.4 μV (A-weighted), BAL: ≤2.8 μV (A-weighted)
• THD+N: ≤0.0024% (1 kHz/0 dB at 32 Ω)
• Battery capacity: 3750 mAh
• Battery life: ≥10 hours
• Dimensions: approx. 144 x 137 x 27 mm (without feet)
• Weight: approx. 450 g

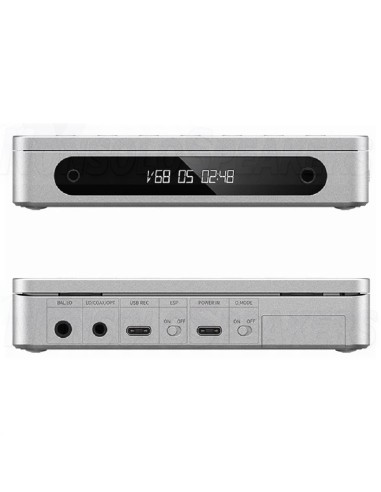

• 3.5 mm headphone output
• 4.4 mm headphone output
• 4.4mm line output
• 3.5mm combo jack / analog / TOSLINK / COAX output
• USB-C REC port
• USB-C charging port
