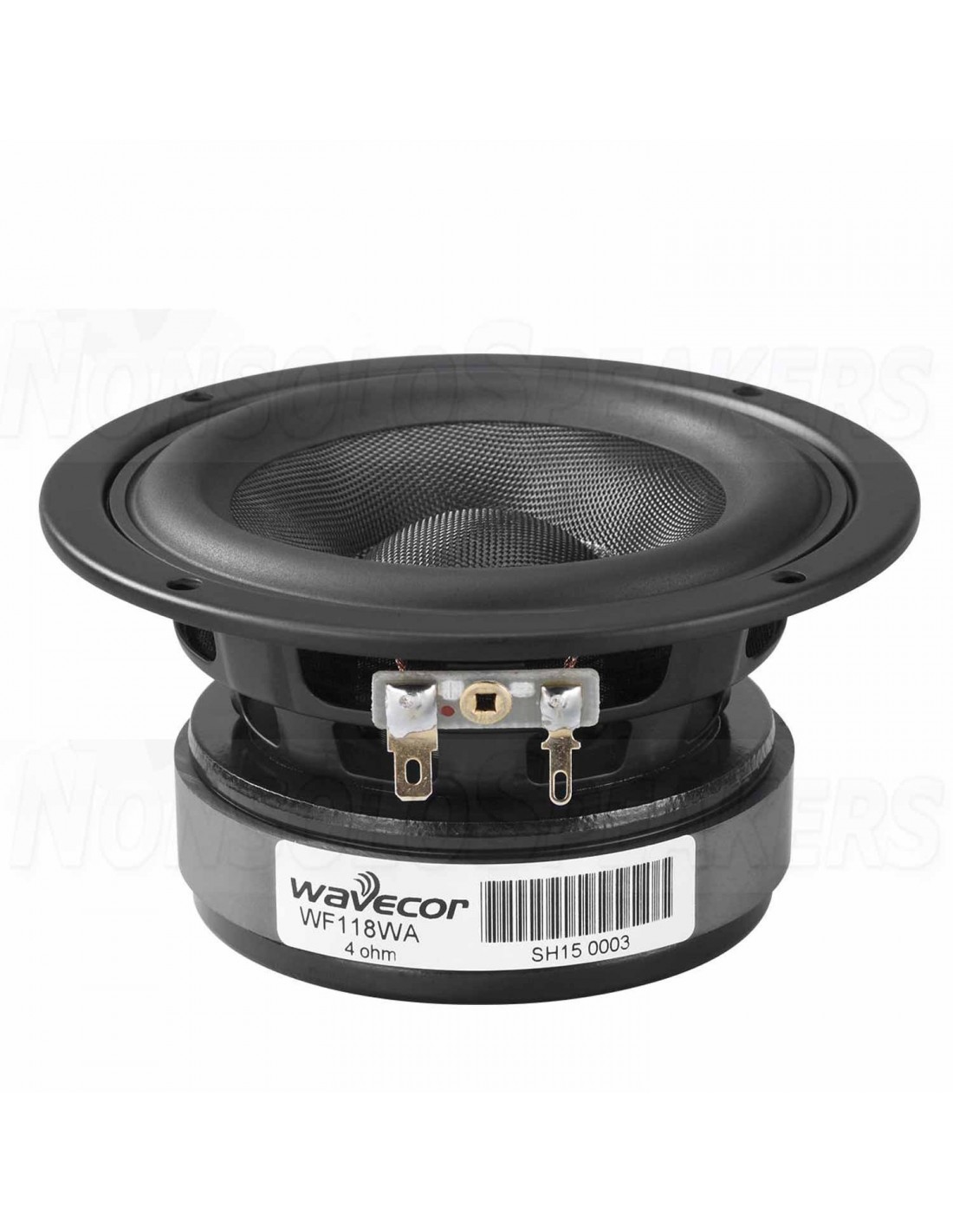

Wavecor WF118WA06 11,8cm glass fibre midwoofer 8 ohm

WF118WA05/06 are mid/woofers designed for demanding bass and midrange applications. They work equally well for high-end hi-fi, high quality home theater systems, and top multimedia setups, etc.
Powered by a large 85 mm magnet structure that ensures good efficiency and optimal T/S parameters.
The large 32 mm voice coil ensures high power handling - thermally and mechanically
The new optimized woven glass fibre cone ensures large bandwidth and low distortion. Distortion is further reduced by efficient venting and by adding an internal alu shorting ring to  stabilize the magnetic field in the air gap

• New optimized glass fibre cone design
• Rigid steel chassis with extensive venting for lower air flow speed reducing audible distortion
• Vented center pole with dual flares for reduced noise level at large cone excursions
• Heavy-duty fiber glass voice coil former to reduce mechanical losses resulting in better dynamic performance and low-level details
• Large motor structure for better control and power handling
• Built-in alu field-stabilizing ring for reduced distortion at high levels
• Low-loss suspension (high Qm) for better reproduction of details and dynamics
• Black plated motor parts for better heat transfer to the surrounding air
• Conex spider for better durability under extreme conditions
• Gold plated terminals to ensure long-term trouble free connection
• Delivered with foam gasket attached for hassle-free mounting and secure cabinet sealing

  Notes

  	Parameter	WF118WA05		WF118WA06		Unit
  		Before burn-in	After burn-in	Before burn-in	After burn-in
  	Nominal size	4½		4½		[inch.]
  	Nominal impedance	4		8		[ohm]
  	Recommended max. upper frequency limit	4		4		[kHz]
  1, 3	Sensitivity, 2.83V/1m (average 400-4,000 Hz)	87.5		84.5		[dB]
  2	Power handling, short term, IEC 268-5, no additional filtering					[W]
  2	Power handling, long term, IEC 268-5, no additional filtering					[W]
  2	Power handling, continuous, IEC 268-5, no additional filtering	50		50		[W]
  	Effective radiating area, Sd	54		54		[sq.cm]
  3, 6	Resonance frequency (free air, no baffle), Fs	65		66		[Hz]
  	Moving mass, incl. air (free air, no baffle), Mms	7.1		6.9		[g]
  3	Force factor, Bxl	4.3		5.6		[N/A]
  3, 6	Suspension compliance, Cms	0.84		0.84		[mm/N]
  3, 6	Equivalent air volume, Vas	3.5		3.5		[lit.]
  3, 6	Mechanical resistance, Rms	0.39		0.39		[Ns/m]
  3, 6	Mechanical Q, Qms	7.5		7.4		[-]
  3, 6	Electrical Q, Qes	0.49		0.59		[-]
  3, 6	Total Q, Qts	0.46		0.55		[-]
  4	Voice coil resistance, RDC	3.2		6.5		[ohm]
  5	Voice coil inductance, Le(measured at 10 kHz)	0.16		0.28		[mH]
  	Voice coil inside diameter	32		32		[mm]
  	Voice coil winding height	11		11		[mm]
  	Air gap height	5		5		[mm]
  	Theoretical linear motor stroke, Xmax	±3		±3		[mm]
  	Magnet weight	325		325		[g]
  	Total unit net weight excl. packaging	0.95		0.95		[kg]
  3, 5	Krm	1.13		2.06		[mohm]
  3, 5	Erm	0.73		0.72		[-]
  3, 5	Kxm	2.2		3.5		[mH]
  3, 5	Exm	0.74		0.75
