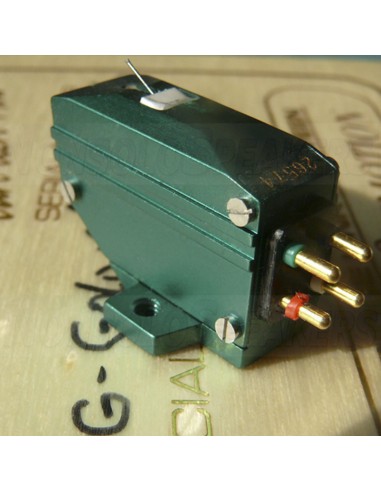

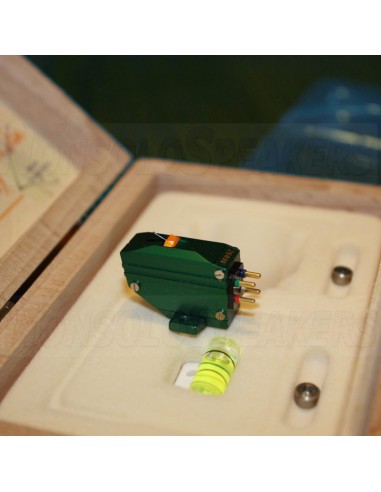

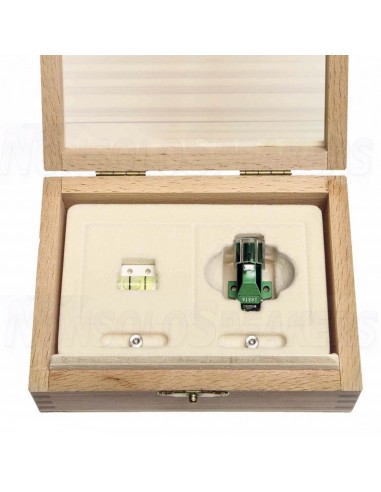

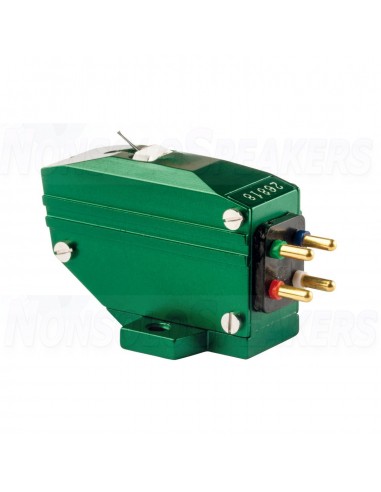

Van Den Hul The FROG Gold MC Phono Cartridge
Van Den Hul The FROG Gold MC Phono Cartridge
The van den Hul Frog Gold MC Cartridge is a custom hand-built moving coil cartridge with the coil of a Grasshopper III and the front pole and suspension of the Grasshopper IV: the best cartridge available for its price! The Frog Gold has a 0.65 mV/channel output, matched crystal gold-wire coils and extra magnet modification.
You might also like
Van Den Hul The FROG Gold MC Phono Cartridge
The van den Hul Frog Gold MC Cartridge is a custom hand-built moving coil cartridge with the coil of a Grasshopper III and the front pole and suspension of the Grasshopper IV: the best cartridge available for its price! The Frog Gold has a 0.75 mV/channel output, matched crystal gold-wire coils and extra magnet modification..
.
The FROG ® is available in three versions:
Standard Version:
Output 0.65 mV/channel, matched crystal copper-wire coils and extra magnet modification
> Gold Version: <
Output 0.65 mV/channel, matched crystal gold-wire coils and extra magnet modification
High Ouput Version:
Output 2.25 mV/channel, matched crystal copper-wire coils and extra magnet modification
-
Production time:
The production time for a The FROG ® cartridge after ordering is about two weeks.
.
Specifics:
Output: 0.65mV
Stylus Shape: VDH 1S
Stylus Radii: 2 x 85 Micron
Frequency Range: 5-55,000 Hz
Tracking Force: 1.35-1.50 Grams
Anti-Skating Force: 0.4-0.6 Grams
Static Compliance: 35 Micron/mN
Tracking Ability: 70-80 Micron
Channel Unbalance: Less Than 0.3dB
Channel Separation: Greater Than 35/30dB
Stylus Tip Mass: 0.32 Milligram
System Weight: 8.2 Grams
Load Capacitance: Non Critical
Load Impedance: 500 (Greater Than 200) Ohm
Optimum Load Impedance: 20-200 Ohms
Effective Tonearm Mass: 6-10 Grams
MC Resistance: 16 Ohms
.
.
.
.
.
.
.
.
.
,
.
.
