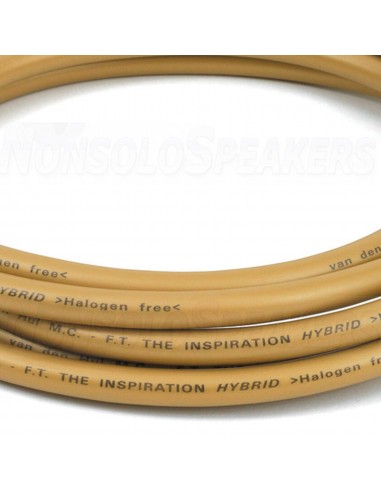

The new twin lead loudspeaker cable of our state-of-the-art FUSION SERIES. It equally excels in bi-wiring and bi-amping configurations or even as interconnect. It’s highly versatile and heavily protected against audio signal interference.

Very detailed signal transmission and superb spacious character.

Protection from interferences caused by electromagnetic noise. It features a separate central ground lead* for ground connection between loudspeakers and amplifier.

Four star-quad-configured signal lines surround the central ground lead.

Additional protection against R.F. interference is provided by the cable’s heavy braided screen. (This should be grounded at the amplifier side and be left disconnected at the loudspeaker end)

When using digital (switchmode) power amplifiers, any radiation of residual noise from the loudspeaker lines is prevented.

Hybrid technology means the conductors are embedded in a conductive layer containing our Linear Structured Carbon ®.

Jacket and insulation are both made of HULLIFLEX ® 4, a very rugged insulation material which provides outstanding protection.

Having four signal lines, The INSPIRATION HYBRID is also suitable to be used as a bi-wiring or bi-amping loudspeaker cable;

The signal lines are intended to be pairwise combined to form a twin lead loudspeaker cable with a total cross-section area of 2 x 3.94 mm² and a resistance of 2 x 1.4 Ω/100 m.

With four signal lines The INSPIRATION HYBRID is also suitable to be used as a bi-wiring or bi-amping loudspeaker cable;

(Total cross-section area: 4 x 1.97 mm²; Resistance: 4 x 2.8 Ω/100 m).

.

Specifics:

• Cable type:                       2-core speaker cable
• Conductor material:           Fusion - surrounded by a conductive layer of linear structured carbo-carbon
• Project goal:                     speaker cable for wide application

Conductor/diameter/number of fibers:

• Each signal wire:              1.97 mm² / ~ AWG 14/98
• Ground wire:                    0.56 mm² / AWG 19.6 / 7
• Screen:                            4.45 mm² / AWG 10.7 / 252
• External dimensions:         11.5 mm
• Resistance                        20 °C / 68 °F:
• Signal wire:                      1.4 Ohm / 100 m
• Central ground wire:          3.2 Ohm / 100 m
• Screen:                            0.45 Ohm / 100 m
• Capacitance:                     318 pF / m
• Insulation / Dielectric / Voltage:HULLIFLEX ® 4/300 Vrms min
• Insulation color:                gold
