The designation “Special” in this cartridge’s name indicates important improvements over its previous version:

• The cartridge is equipped with a thicker frontpole and an extra small magnet, both further enhancing its resolution capabilities and output voltage.

Production time:
The production time for a MC – ONE Special cartridge after ordering is about two weeks.

.

.

.

.

.

.

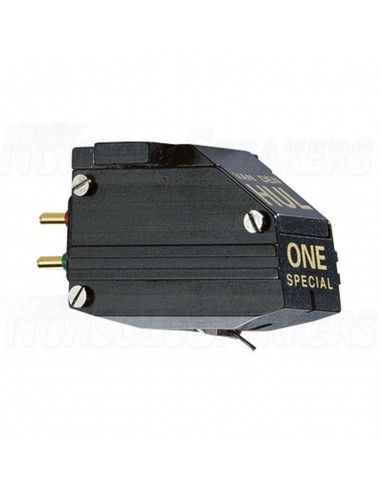

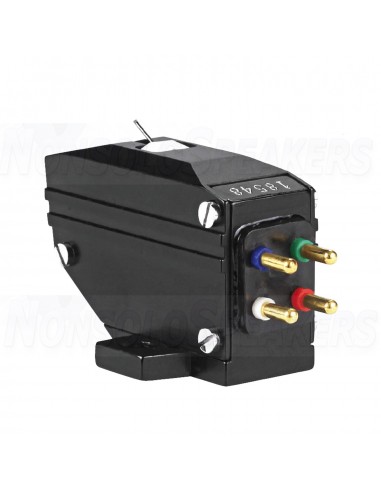

The MC - ONE Special
stylus replacement see (*1)
stylus shape VDH - I
stylus radii 3 x 85 Micron
frequency range 5 - 50.000 Hz
tracking force 13.5 - 15.0 mN
static compliance 28 Micron/mN
tracking ability 70 - 80 Micron
output voltage
0.65 mV RMS
channel unbalance < 0.5 dB
channel separation
> 35 / > 30 dB
stylus tip mass 0.35 Milligram
system weight 8.2 Gram
vertical tracking angle 22 Degrees
load capacitance see (*2)
load impedance
200 Ohm
eff tone arm mass 8 - 12 Gram
moving coil resistance
9 Ohm +/- 10%
