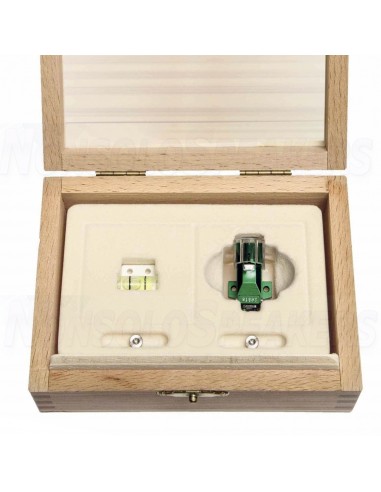

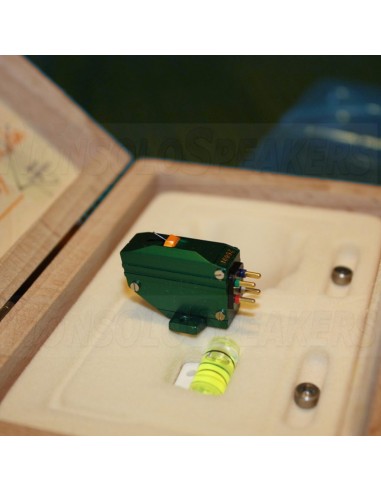

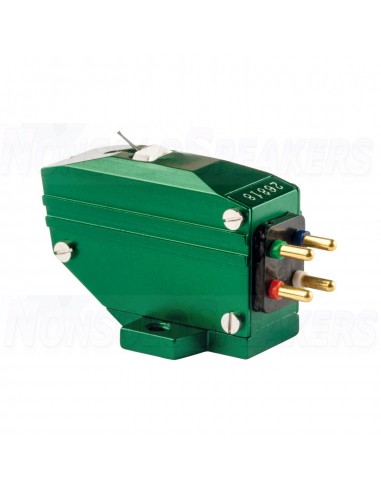

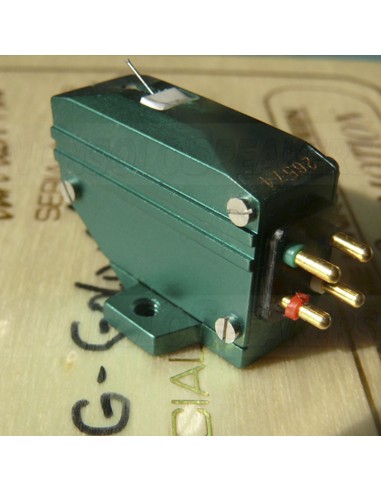

Van Den Hul The Frog MC Phono Cartridge

.

The van den Hul Frog MC Cartridge is a custom hand-built moving coil cartridge with matched coils .Is the best cartridge available for the price! The Frog has a 0.65 mV/channel output, matched coils and an extra internal support magnet.

It’s not easy being green. Throughout the auditioning, I was impressed by the amount of musical detail van den Hul’s Frog managed to extract from recordings I know well. Yet I never felt it was emphasizing detail over the gestalt. Without ever cloying, the Frog was unceasingly warm — music never lost its “human” touch. And the cartridge mated with a wide variety of tonearms and phono preamps. The Frog is no prima donna — it plays well with others.

.

The FROG ® is available in three versions:

>Standard Version:<

Output 0.65 mV/channel, matched crystal copper-wire coils and extra magnet modification

Gold Version:

Output 0.65 mV/channel, matched crystal gold-wire coils and extra magnet modification

High Ouput Version:

Output 2.25 mV/channel, matched crystal copper-wire coils and extra magnet modification

Production time:

The production time for a The FROG ® cartridge after ordering is about two weeks.

,

Specifics

• Type: Moving coil phono cartridge
• Frequency Range 5Hz to 55kHz
• Stylus Shape: VDH - IS
• Stylus Radii: 2 x 85 Micron
• Tracking Force: 1.2 to 1.6 grams
• Static Compliance: 35 Micron / mN
• Tracking Ability: at 15 mN at 315 Hz 70 - 80 Micron
• Output Voltage: at 1 kHz at 5.7 cm/s eff. 0.65 mV RMS
• Channel Unbalance: < 0.3 dB
• Channel Separation: at 1 kHz/10 kHz >35 / >30 dB
• Equivalent Stylus Tip Mass: 0.32 Milligram
• Vertical Tracking Angle: 22 Degrees
• Optimum Load Capacitance: non-critical
• Recommended Load Impedance: 500 (> 200) Ohm
• Recommended Eff. Tone arm Mass: 6 - 10 Gram
• Moving Coil Resistance (per channel): 21 Ohm
• System Weight: 8.2 Grams
• Manufacturer's Warranty: 12 months - cartridge only

.

.

.

.

.

.

.

.

.

,

.

.
