SB Audience ROSSO-65CD-T Compression Driver- 1,4"

SB Audience ROSSO-65CD-T Compression Driver- 1,4"

1 PIECE

At SB we believe in the importance of subjective listening during the development process to complement the advanced FEM stimulation, motor optimization, diaphragm design, voice coil technology, adhesives etc. We have done extensive listening and also compared to several high priced competing transducers, and at SB Audience we are really excited about the sound of these new drivers.

The new line of products incorporate a heavy duty distinctive looking cast aluminium rear chamber that visually define the new products. The chamber has been optimized to minimize resonances and absorb reflections.

• Exremely light weight PEI diaphragm
• Smooth response with airy detailed highs
• High sensitivity and compact design

With well over 35 years of experience in professional sound reinforcement drivers, we strive to bring this know-how to the world with the most competitive high quality drivers on the market.

SB Audience is spawned from the heavyweight manufacturing of Sinar Baja Electric Indonesia and has serviced well known brands in the PRO audio industry for decades with in house engineering and manufacturing. There are three categories within our standard product range: Bianco, achieves good performance at the most reasonable cost. Rosso, aims at high performance at an attractive price, and Nero is our higher performance line still achieving exceptional price performance ratio.

• Titanium diaphragm
  Copper cap for reduced distortion and extended HF response
  Extended upper frequency response
  Advanced ferrite motor assembly
  High sensitivity and linear frequency response
  Advanced voice coil with flat copper clad aluminum wire

• Shape Cylindrical
• Product type Compression driver
• Brand SB Audience
• Product manufacturer range Compression, Rosso, 65 mm
• Front chape Cylindrical

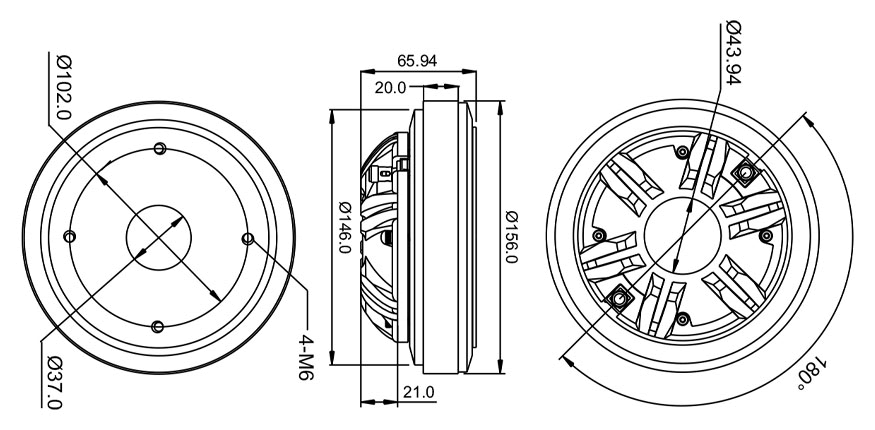

• External diametre 156 mm
• Exit diameter compression driver 1.4 inch
• Magnet type Ferrite

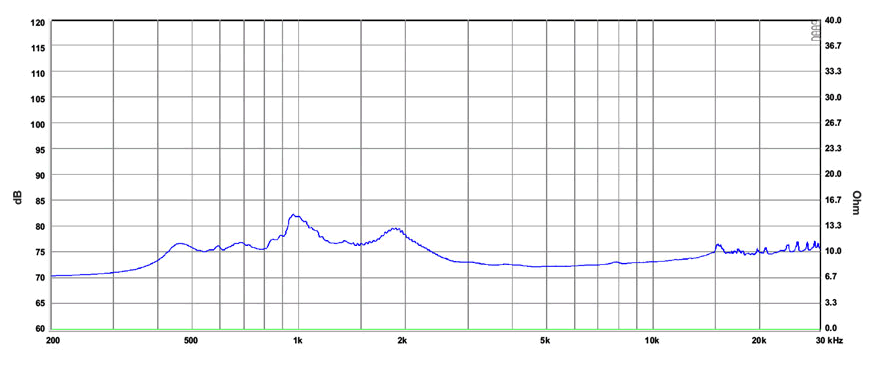

• Nominal impedance 8 ohm
• Nominal power handling 70 W
• Max power handling 140 W
• Manufacturer sensitivity 110 dB

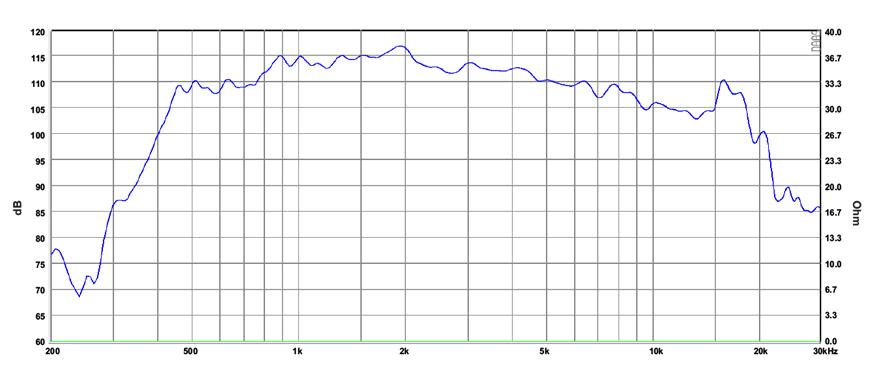

• Frequency response 500-20000 Hz
• Recommended min cutoff frequency 1000 Hz
• Voice coil diameter 2.56 inch
• Winding depth 1.8 mm
• Gap height 2.5 mm
• Flux density 1.6 T
• Depth 65.94 mm
• Diamètre aimant (mm) 156 mm
• Weight 3.95 kg
• Re 6.2 ohm
• Demodulation ring Yes
• Diaphragm material Titanium
• Winding material CCAW (Copper-clad aluminium wire)
• Diaphragm former material Kapton
• Shipping weight 4.06 kg
