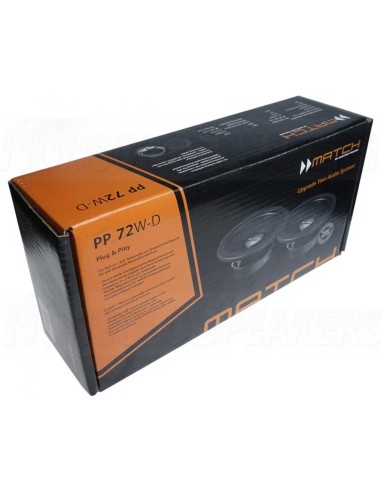

MATCH PP 72W-D - Subwoofer 165 mm 100/200W - Pair -
MATCH PP 72W-D - Subwoofer 165 mm 100/200W - Pair -
MATCH PP 72W-D - Subwoofer 165 mm 100/200W - Pair -
MATCH PP 72W-D - Subwoofer 165 mm 100/200W - Pair -

MATCH PP 72W-D - Subwoofer 165 mm 100/200W - Pair -

MATCH PP 72W-D - Subwoofer 165 mm 100/200W - Pair -

FOR EU CUSTOMERS

Variants
MATCH PP 72W-D - Subwoofer 165 mm 100/200W - Pair -
Helix CI3 K200.2FM-S3 - i3 - Speaker Kit 200mm 2-Way - 3 Ohm
Helix CI3 K165.2FM-S3 - i3 - Speaker Kit 165mm 2-Way - 3 Ohm
MATCH UP C42BMW-FRT.2 2-way component system for BMW vehicles
MATCH PP 8W-Q Subwoofer 200 mm 200/400W 4x3Ohm
MATCH UP C42BMW-FRT.3 2-way component system for BMW vehicles
MATCH UP X4BMW-FRT.3 2-way coaxial system for BMW
+3
+3
MATCH UP X4BMW-FRT.2 2-way coaxial system for BMW
MATCH UP X4BMW-FRT.1 2-way coaxial system for BMW
SHIPMENT IN 7/10 WORKING DAYS
€113.05 €119.00 -5%
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€19.08
Shipping Time
.
Want to check another country or courier?

You might also like



MATCH PP 72W-D - Subwoofer 165 mm 100/200W - Pair -

.

Not the right model for you? – If none of the MATCH Plug & Play subwoofer enclosures are perfect for your vehicle, you can build your own custom subwoofer using individual woofers from our Plug & Play line. These drivers are exactly identical to the systems used in the enclosure variants. As long as you meet our specifications for net volume and bass reflex port calibration in your custom enclosure, the sonic performance is identical.

Features

  • Handmade, extremely torsion-resistant paper cones.
  • High-power voice coils with wide winding widths.
  • Double voice coil venting to minimize compression effects.
  • Powerful magnetic drives for compact bass reflex enclosures.
  • Optimized for seamless interaction with MATCH Plug & Play amplifiers.
  • Connection terminal for MATCH subwoofer cable (PP-SC) included.

.

Technical data

  • Power RMS / Max. P 100 / 200 watts
  • Impedance Z 2 x 2 Ω
  • DC resistance Ref 2 x 1.6 Ω
  • Resonant frequency Fs 53 Hz
  • Mechanical quality Qms 3.30
  • Electrical quality Qes 0.41
  • Overall quality Qts 0.37
  • CMS indulgence 350 µm/N
  • Equivalent volume Vas 7.9 L
  • Force factor BI 8 Tm
  • Efficiency 1 W / 1 m SPL 87 dB
  • Membrane area SD 125 cm²
  • Moving mass Mms 25 g
  • Membrane material Handmade paper membrane
  • Mechanical resistance Rms 2.5 kg/s
  • Voice coil diameter O 38.8 mm
  • Width of voice coil Voice coil 16 mm
  • Maximum linear diaphragm travel Xmax +/- 5.0 mm
  • Outer diameter 0 157.5 mm
  • Installation diameter 0 133 mm
  • Installation depth 79 mm

.

Recommended enclosure volumes For two subwoofers

  • Closed enclosures Not recommended
  • Net volume -
  • Lower cut-off frequency (-3 dB) -

.

Bass reflex enclosure

  • Net volume 15 L
  • Reflex duct diameter 0 70 mm
  • Reflex duct area 38 cm²
  • Reflex duct length 20 cm
  • Tunnel tuning frequency 50 Hz
  • Lower cut-off frequency (-3 dB) 48 Hz

.

Delivery contents

  • 2 MATCH PP 72W-D subwoofers,
  • 1 Plug & Play connection terminal
MATCH PP 72W-D
