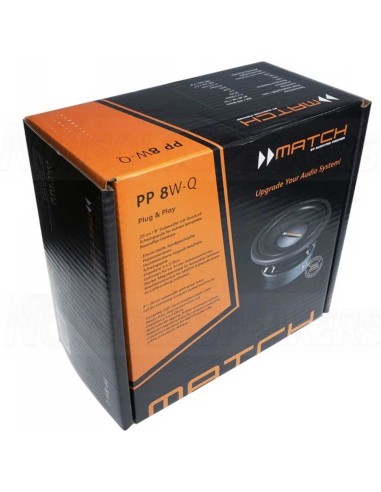

MATCH PP 8W-Q Subwoofer 200 mm 200/400W 4x3Ohm
MATCH PP 8W-Q Subwoofer 200 mm 200/400W 4x3Ohm
MATCH PP 8W-Q Subwoofer 200 mm 200/400W 4x3Ohm
MATCH PP 8W-Q Subwoofer 200 mm 200/400W 4x3Ohm

MATCH PP 8W-Q Subwoofer 200 mm 200/400W 4x3Ohm

MATCH PP 8W-Q  Subwoofer  200 mm 200/400W 4x3Ohm

FOR EU CUSTOMERS

Variants
MATCH PP 8W-Q Subwoofer 200 mm 200/400W 4x3Ohm
Helix CI3 K200.2FM-S3 - i3 - Speaker Kit 200mm 2-Way - 3 Ohm
Helix CI3 K165.2FM-S3 - i3 - Speaker Kit 165mm 2-Way - 3 Ohm
MATCH UP C42BMW-FRT.2 2-way component system for BMW vehicles
MATCH PP 72W-D - Subwoofer 165 mm 100/200W - Pair -
MATCH UP C42BMW-FRT.3 2-way component system for BMW vehicles
MATCH UP X4BMW-FRT.3 2-way coaxial system for BMW
+3
+3
MATCH UP X4BMW-FRT.2 2-way coaxial system for BMW
MATCH UP X4BMW-FRT.1 2-way coaxial system for BMW
SHIPMENT IN 7/10 WORKING DAYS
€103.55 €109.00 -5%
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€19.08
Shipping Time
.
Want to check another country or courier?

You might also like



MATCH PP 8W-Q  Subwoofer  200 mm 200/400W 4x3Ohm

.

Didn't find the enclosure subwoofer you're looking for? - If none of the four MATCH Plug & Play subwoofers fit your car in terms of shape and/or size, you can build your own "custom" version. We offer the PP 72W-D and PP 8W-Q woofers, which are 100% identical to the drivers used in the pre-installed variants. As long as you select the net volume and port tuning frequency according to the installation instructions, we guarantee the same acoustic performance as our "standard" subwoofers.

.

Thiele & Small Parameters

  • RMS Power / Max. 200/400 Watts
  • Impedance 4 x 3 Ω
  • DC Resistance 4 x 2.7 Ω
  • Resonant Frequency 37 Hz
  • Mechanical Q-factor 5.40
  • Electrical Q-factor 0.57
  • Total Q-factor 0.51
  • Compliance 341 μm/N
  • Equivalent Air Volume 23 L
  • Force Factor 7.5 Tm
  • Efficiency 1 W/1 m 87 dB
  • Cone Area 222 cm²
  • Moving Mass 53 g
  • Cone Material: Handmade Paper Cone
  • Mechanical Resistance 3.3 kg/s
  • Voice Coil Diameter 50.8 mm
  • Voice Coil Winding Height 21 mm
  • Max. Linear Excursion +/- 6.5 mm
  • Outer Diameter 212 mm / 8.35"
  • Installation Diameter 183 mm / 7.15" 7.2"
  • Installation depth: 105 mm / 4.1"
  • Net volume: 10 L
  • Port diameter: 60 mm / 2.36"
  • Port area: 28 cm²
  • Port length: 25 cm / 9.84"
  • Port tuning frequency: 47 Hz
  • Lower limit frequency (-3 dB): 45 Hz

Other Features

  • Dome material: Paper
  • Magnet type: Ferrite
  • Compatible: Suitable for all car brands and versions.
MATCH PP 8W-Q
