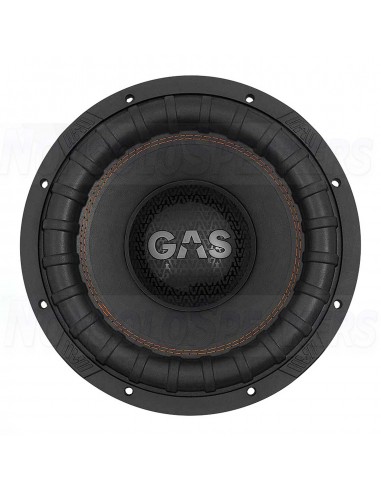

GAS MAX S2-12D2 12" 30 cm subwoofer 2+2 Ohm

The GAS MAX S2-12D2 is a 12" (300 mm) car subwoofer suitable for mounting in a speaker cabinet with an output of 2500 W RMS.

Try holding this subwoofer in your hands, you have entered the world WITHOUT COMPROMISE. A subwoofer that takes your car to a whole new level. Go out and impress the unbelievers! Show them that true commitment comes from the inside of your trunk and that "good enough" just isn't enough.

The MAX subwoofer is designed to test the limits and match your commitment in performance and style. Made for die-hard bass - with a strong and durable diaphragm made from unpressed paper and mineral mica that perfectly balances amazing power, weight and musicality. The canopy is made of IMPP for a unique 3D design, an idea that is taken from the MAD S2 series. But since this is the MAX S2, it's taken one step further with fiberglass. With impressive foam suspension with high rollability, you get even more amazing diaphragm movement. The dual voice coil wire is made of PCW (Pure Copper Wire). The connecting OFC wire comes straight out of it instead of the outdated connecting terminals.

The MAX S2 subwoofers will let everyone know that your audio commitment is real. No details were overlooked and no compromises were made. The subwoofer shows its dedication to the craft of bass with three stacked HQ 3x 108oz ferrite magnets that deliver an insane amount of subwoofer power. For greater durability, Dual Nomex spider is also used in all models and double stitching. The MAX S2 will show everyone that you have reached the next level, the MAX level. Subwoofer performance at this level requires extremely good ventilation. Therefore, cooling is solved in two different ways. The material in the top/back plate is thicker for optimal heat conduction and the implemented DVS2 (Dual Ventilation System) creates incredible heat dissipation while reducing distortion.

.

The main features of the GAS MAX S2-12D2 subwoofer

• Triple Subwoofer Ferrite Magnet 3x 108oz
• Double Nomec Spider
• Double-stitched membrane to the hinge
• Dual heat dissipation for reduced distortion and maximum durability
• Dual 4-layer Pure Copper Wire voice coils with direct leads
• Special IMPP fiberglass canopy with 3D design

.

Technical Specifications

• Power RMS/MAX: 2500/5000 W
• Subwoofer size: 12" - 300 mm
• Impedance: 2+2 Ohms
• Frequency range: 20-200 Hz
• Sensitivity: 85 dB
• Voice coil diameter: 76 mm
• Triple Ferrite Magnet
• Membrane made of pressed cellulose and mineral mica
• Hi-foam suspension with double stitching
• Mounting diameter: 285 mm
• Installation depth: 196 mm
• Recommended closed box volume: not suitable for a closed box
• Recommended bass reflex box volume: 58 L with slot 1400 mm2 x 420 mm
• Weight: 19.8 kg
