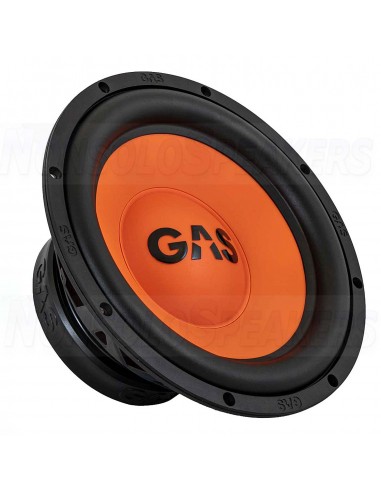

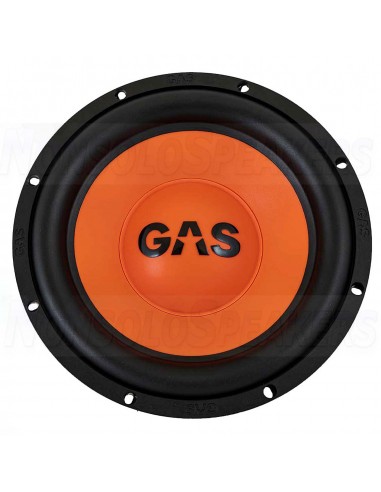

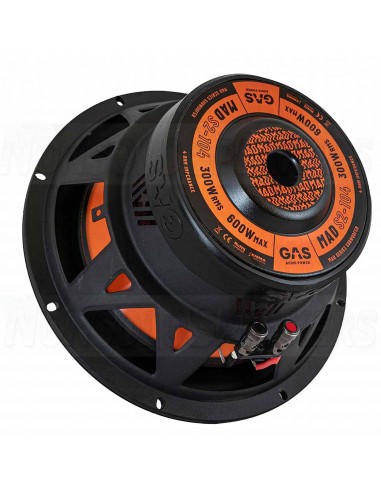

GAS MAD S2-104 10" 25cm subwoofer 4 Ohm

The GAS MAD S2-104 is a 10" (250 mm) car subwoofer suitable for mounting in a speaker cabinet with an output of 300 W RMS.

MAD subwoofers are built to be even LOUDER and last for many years. Amazing emotions lead to the creation of impressive speakers "charged" with great subwoofers. Innovative and ground-breaking techniques are used to increase both durability and performance. All this to make sure you can crank up the volume and play music all day and all night. Add raw power to the MAD S2 subwoofer and you'll be surprised.

Furthermore, at GAS, they focused on the construction around the diaphragm, where they developed the unique USG™ (Unity Surround & Gasket) attachment. Normally, the seal and frame are divided into two separate parts. But at GAS Audio Power they have combined this to optimize the linear movement and displacement area of ​​the diaphragm to give you an extra edge in precision and deliver amazing musical performance. If you like it LOUD, proper cooling is key. The subwoofer has an implemented DVS™ (Dual Ventilation System) ventilation system for reduced distortion and increased heat dissipation. Proper cooling means heat reduction, and heat reduction gives you the ability to add more subwoofers and get even more pressure!

The MAD S2 series is loud and impressive. This is a subwoofer with multi-talented Thiele/Small parameters that ensure great performance in closed, vented and bandpass enclosures. To complete the high-quality construction of the subwoofer, an industrial and durable MAD-shaped steel basket is created, which is durable and tough. The 51mm voice coil is made of PCW (Pure Copper Wire) and the dust cap as well as the canopy is made of IMPP for a unique 3D design that will really make your friends jealous.

.

The main features of the GAS MAD S2-104 subwoofer

• Subwoofer ferrite magnet with steel basket
• Injection Molded Polypropylene membrane
• Robust connection terminals
• Dual ventilation system
• Unique hinge attachment to the USG™ basket
• Suitable for ventilated and closed boxes

.

Technical Specifications

• Power RMS/MAX: 300/600 W
• Subwoofer size: 10" - 250 mm
• Impedance: 4 Ohms
• Frequency range: 25-200 Hz
• Sensitivity: 86 dB
• Voice coil diameter: 51 mm
• Ferrite magnet
• Polypropylene membrane
• Rubber hinge
• Mounting diameter: 231 mm
• Installation depth: 118.5 mm
• Recommended volume of closed box: 15-25 L
• Recommended volume of bass reflex box: 35 L with nozzle 75x260 mm
• Weight: 4.24 kg
