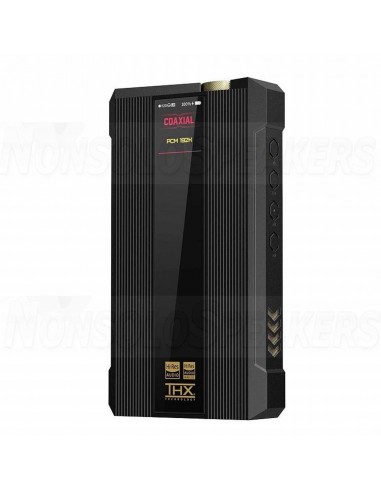

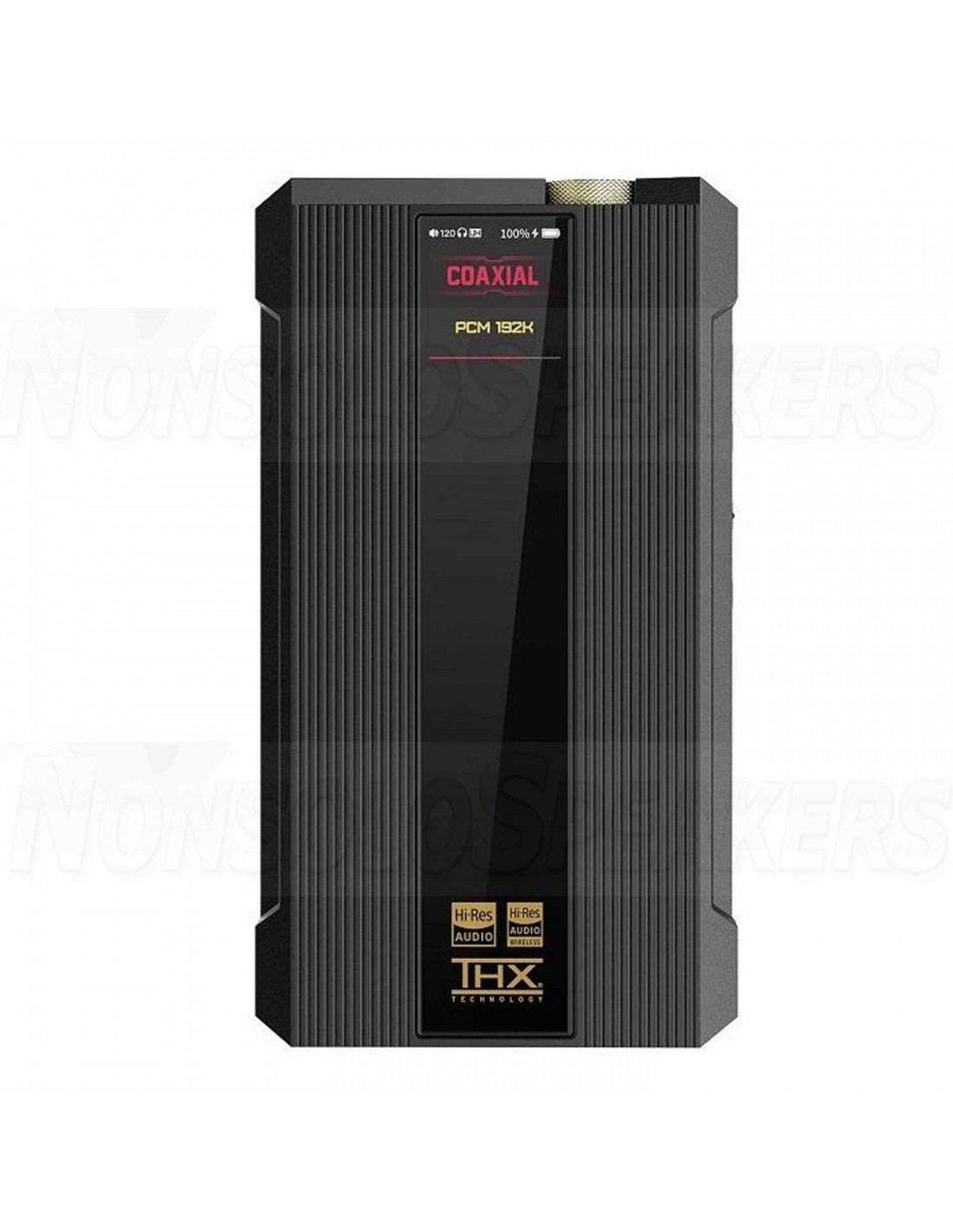

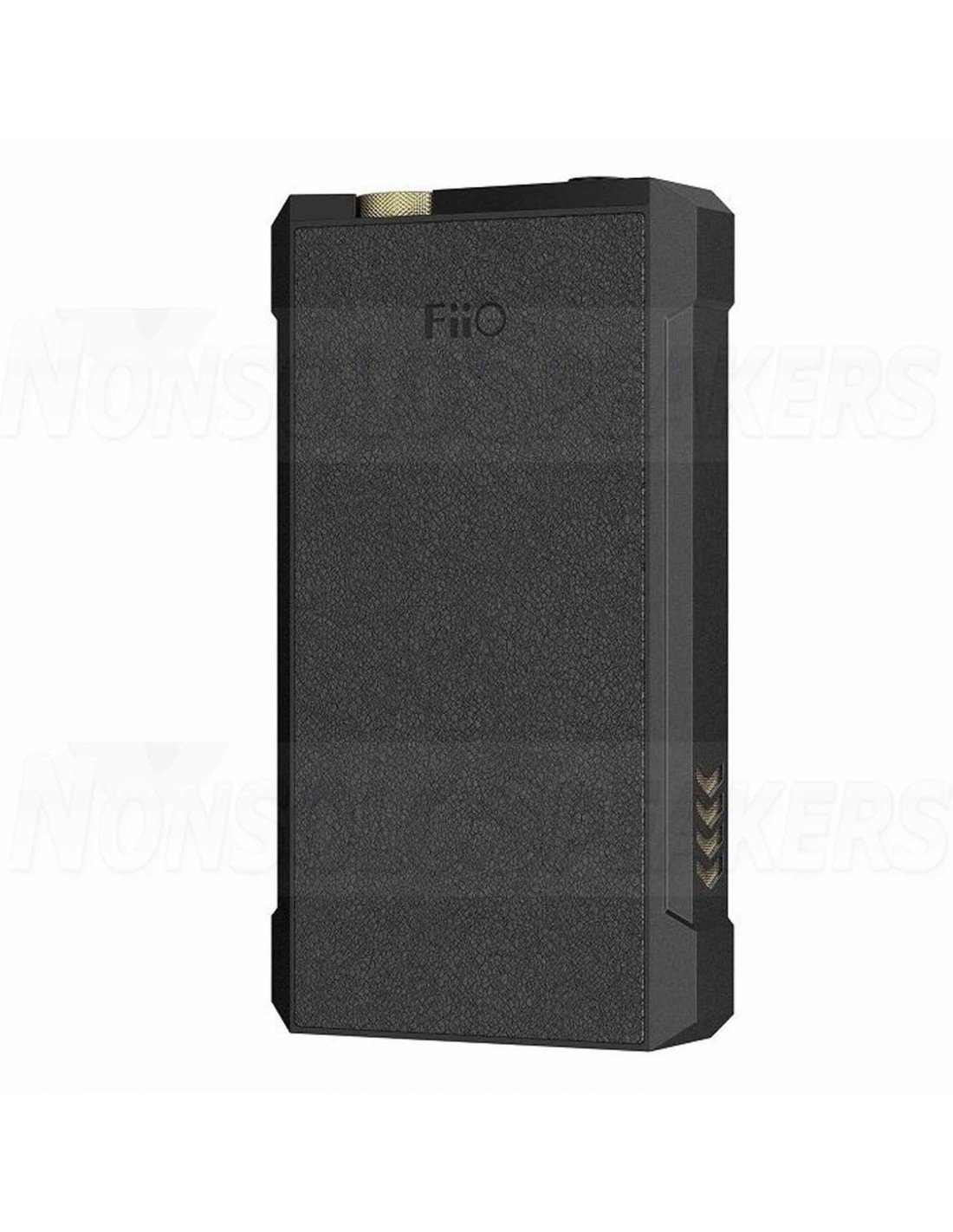

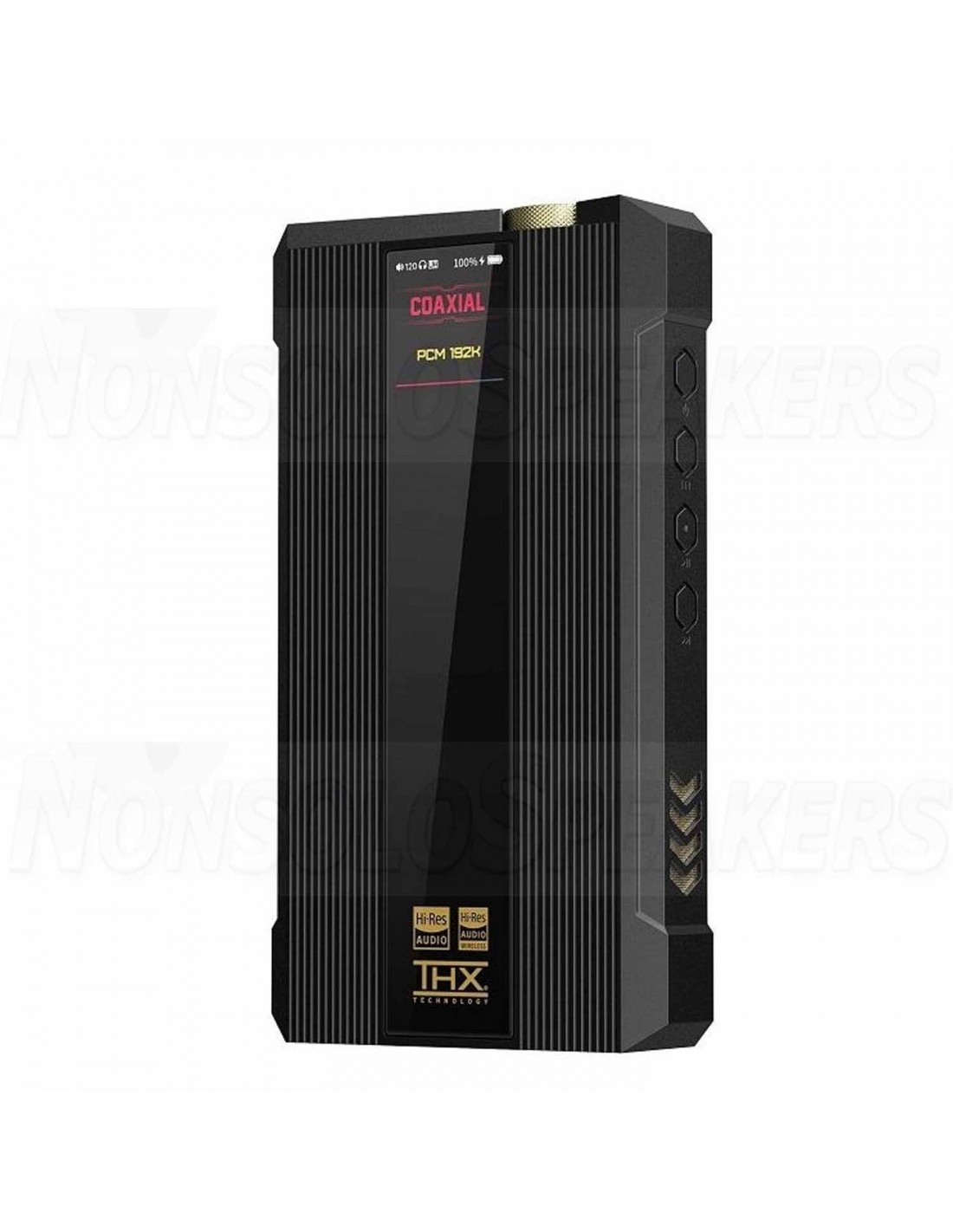

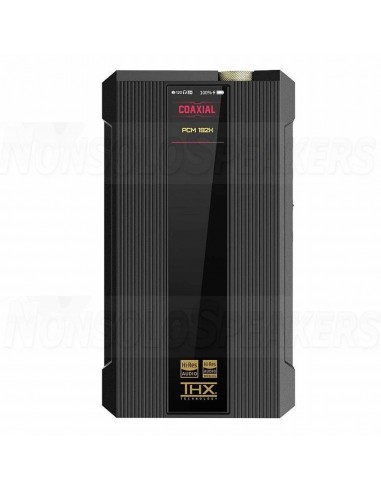

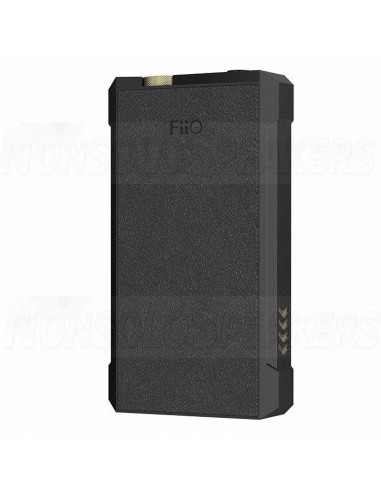

FiiO Q7 DAC and Headphone Amplifier with 3000mW output

.

Presenting the all-new FiiO Q7, the ultimate flagship USB DAC/AMP from the house of FiiO. It is based on the successful architecture of M17, FiiO’s flagship digital audio player. Q7 Houses premium flagship-grade components like ES9038Pro DAC, Desktop-grade THX AA788+ dual AMP circuits, the latest XMOS XU316 16-core receiver, Qualcomm’s latest QCC5124 Bluetooth chipset, etc. Q7 Promises top-tier performance and delivers it gracefully with its flagship-grade audio circuitry. Choose the Q7 as your USB DAC/AMP if you prioritize performance over anything else!!

Highlights:

• Flagship ESS ES9038Pro DAC Chipset.
• Supports high-resolution 32-Bit/384kHz PCM and Native DSD256 signals.
• Dual THX AAA 788+ Headphone Amp Circuits.
• Latest XMOS XU316 USB Processor.
• Bluetooth QCC5124 Qualcomm Chipset.
• Supports USB Type-C, Coaxial, Optical, and Bluetooth inputs. High-Res LDAC APTX HD, AptX Adaptive Wireless Codecs.
• Headphone Outputs: 3.5mm, 6.35mm Single-ended+ 4.4mm, 2.5mm Balanced.
• Reliable Dual Independent Power design.
• Can work as both Portable as well as Desktop Modes.
• Whopping 3000mw Output Power.
• Five-Level gain Modes.

Not Just Portable, But Transportable

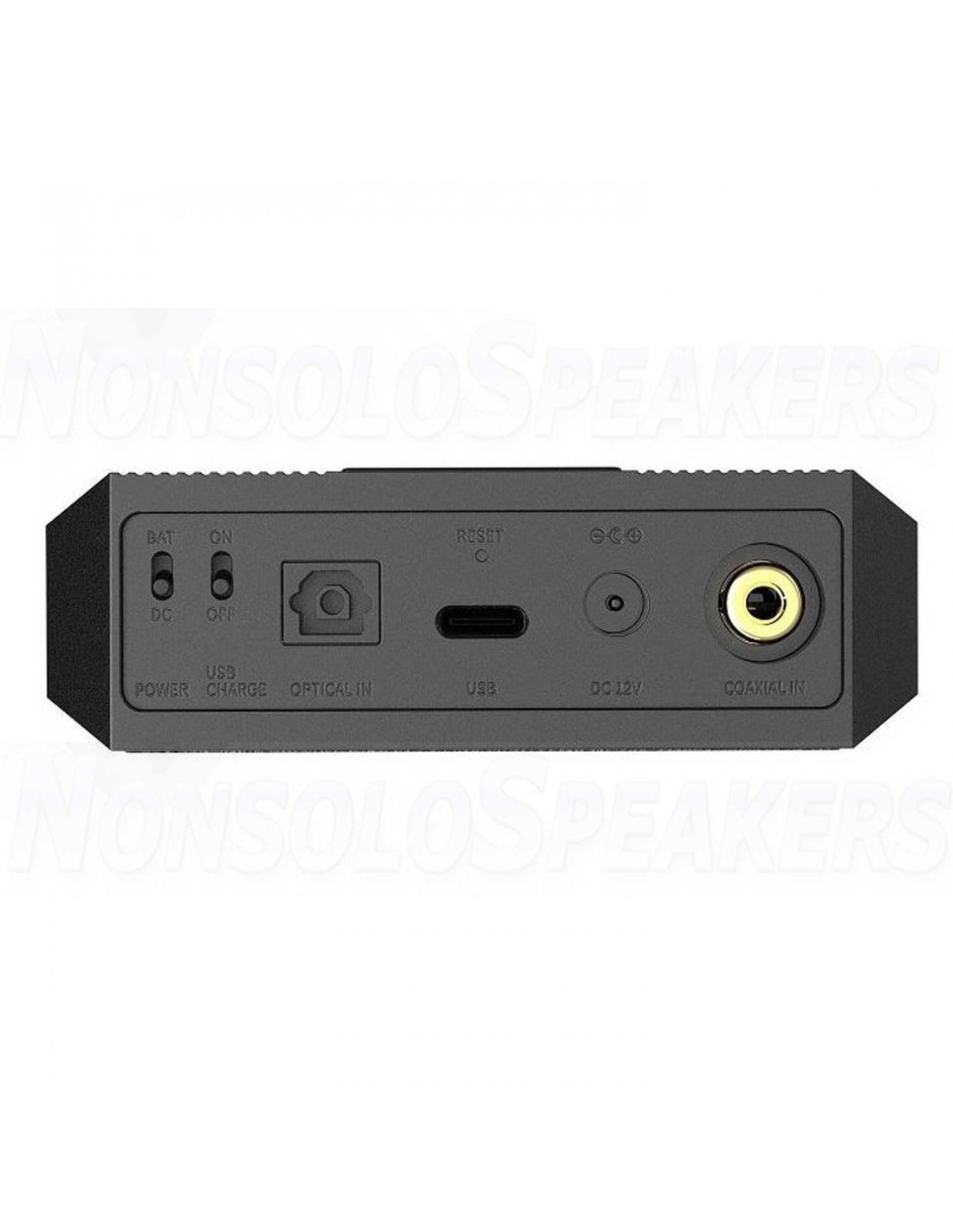

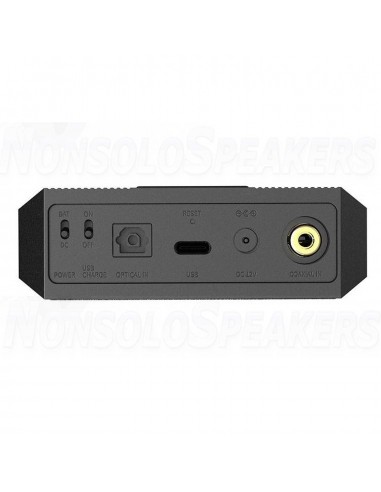

FiiO Q7 breaks the boundaries of portable devices. It’s a highly-capable device that got a dual power design. Users can use it portably with the in-built battery or they can connect it to a DC power source and take the performance to an all-new level of awesomeness. It has USB Type-C, Coaxial, Optical, and Bluetooth inputs.

.

Flagship Sabre DAC Chipset

FiiO Q7 houses Sabre’s flagship ES9038 Pro 32-bit DAC chipset at its heart. It provides extremely clean sound signal decoding achieving best-in-class ultra-low distortion, and noise-free sound decoding.

.

Latest-Gen XMOS USB Processor

FiiO Q7 adopts XMOS’s latest 16-core XU316 USB receiver chipset. It enables the Q7 to decode high-resolution 32-Bit PCM and native DSD signal decoding.

.

Extremely Powerful Output With Dual THX AMP Circuits

.

FiiO Q7 is a powerhouse, it houses boatloads of clean output power that can drive the most demanding sets on the planets with ease. Q7 comes with dual THX AA788+ amplification circuits that provide up to 3000mW of output power. It has five-level gain modes including a high-power over-ear headphone mode.

.

High-Resolution Bluetooth Connectivity

Q7 supports high-resolution Bluetooth connectivity with the help of Qualcomm’s latest QCC5124 Bluetooth chipset. It supports high-resolution wireless codecs including LDAC, APTX HD, AptX Adaptive, etc.

.

Your Headphone Hub

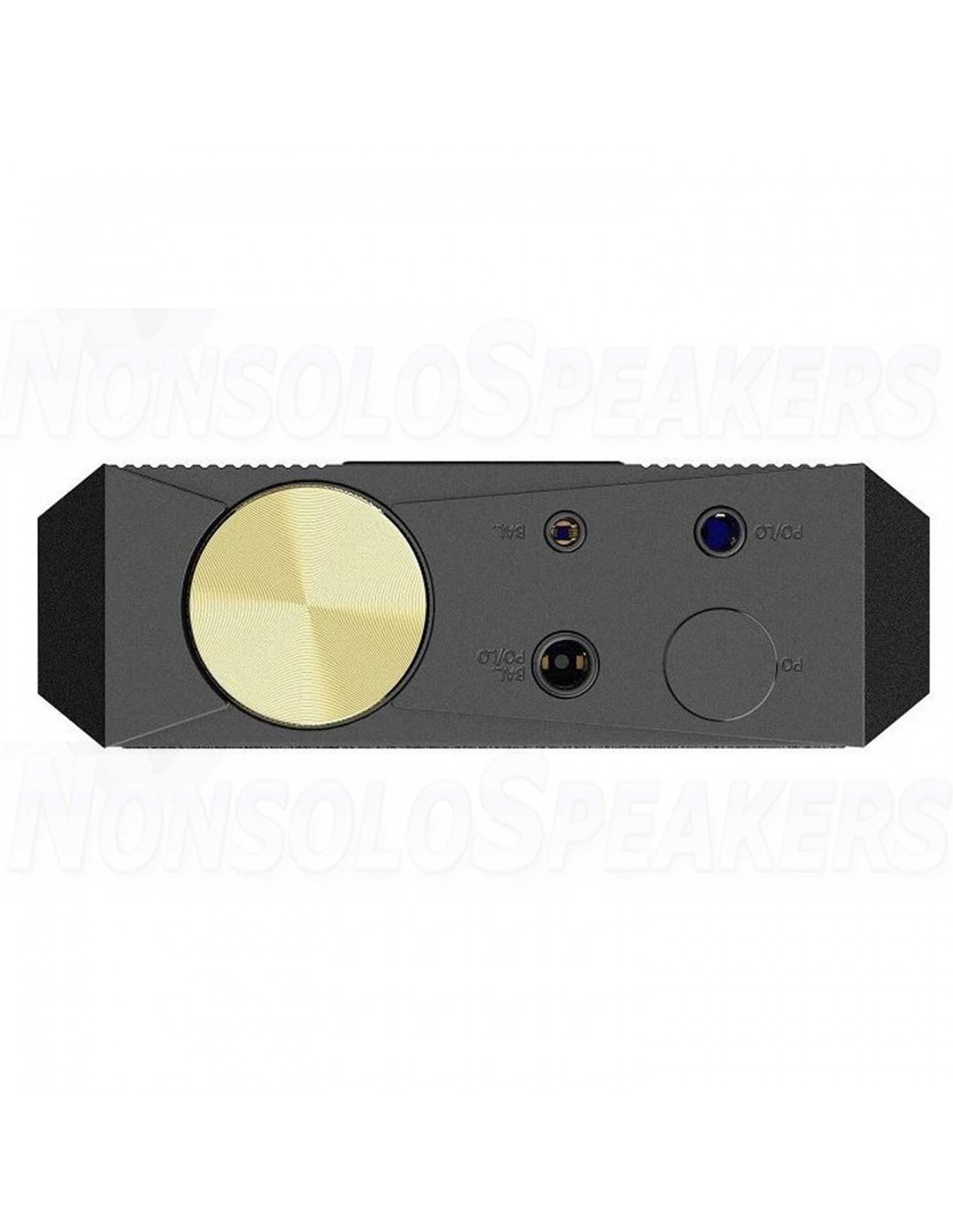

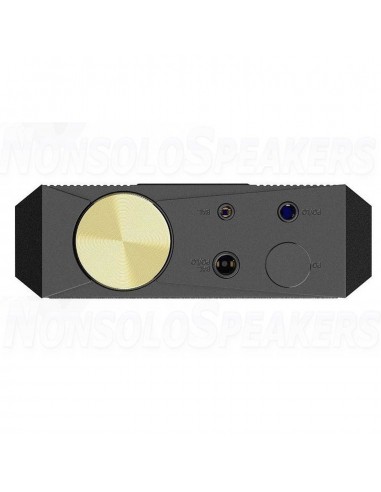

FiiO Q7 houses multiple headphone output ports including 3.5mm single-ended, 6.35mm single-ended, 2.5mm balanced, and 4.4mm balanced headphone ports. With its five gain levels, you can connect high-sensitivity IEMs to high-power requiring Headphones.

.

Technical Specifications:

• Model: FiiO Q7
• Type: Digital Audio Converter
• DAC: ES9038PRO
• Sampling Rate: PCM: 8 Hz – 768 Hz (8/16/24/32 bit) native – DSD64/128/256/512 – MQA 8X unfolded
• System Clock: Full synchronization technology with 4th generation
• FPGA processor and dual Japanese crystal clock
• Outputs: 3.5 mm TRS // 2.5 mm TRRS // 4.4 mm Pentaconn // 6.35 mm TRS
• Input: USB-C // Coaxial // Optical /
• Display: 1.3" LG IPS display
• Bluetooth Support: SBC, apt-X, apt-X HD, LDAC, HWA (AAC reception only)
• Battery: 3.8 V 9200 mAh Li-Polymer
• Fast Charging: Yes PD2.0, DC12V/1.5Ah, 9V/2A, 5V/2A // DC power supply
• Battery life: 11 hours with wired headphones (3.5 mm), 11 hours with balanced headphones
• Charging time: approx. 4.5 h
• Size: 158.4 mm x 88.5 mm x 28 mm
• Weight: 620 g
• Line-out Frequency response: 20 Hz – 50 kHz (-1 dB)
• Total harmonic distortion: 0.0006%
• SNR: >120 dB Crosstalk: 103 dB
• Line level: 1.9 V
• Noise floor: ＜2 μV 3.5 mm headphone output (super high gain)
• Output power: 1500 mW at 16 ohms / 1100 mW at 32 ohms / 130 mW at 300 ohms
• Frequency response: 20 Hz – 20 kHz (-0.1 dB)
• Total harmonic distortion: > 0.0005% SNR: > 125 dB
• Crosstalk: > 75 dB
• Output impedance: < 1.2 ohms (32 ohms) 3.5 mm headphone output (high gain)
• Output power: 750 mW at 16 ohms / 550 mW at 32 ohms / 65 mW at 300 ohms
• Frequency response: 20 Hz – 20 kHz (-0.5 dB)
• Total harmonic distortion: > 0.0006%
• SNR: > 122 dB
• Crosstalk: > 75 dB
• Output impedance: < 1.2 ohms (32 ohms) 2.5 mm / 4.4 mm headphone output (super high gain)
• Output power: 1500 mW at 16 ohms / 3000 mW at 32 ohms / 550 mW at 300 ohms
• Frequency response: 20 Hz – 50 kHz (-0.5 dB)
• Total harmonic distortion: > 0.0005%
• SNR: > 125 dB
• Crosstalk: > 114 dB
• Output impedance: < 1.7 ohms (32 ohms) 2.5 mm / 4.4 mm headphone output (super high gain)
• Output power: 1500 mW at 16 ohms / 1500 mW at 32 ohms / 260 mW at 300 ohms
• Frequency response: 20 Hz – 50 kHz (-0.5 dB)
• Total harmonic distortion: > 0.0005%
• SNR: > 125 dB
• Crosstalk: > 114 dB
• Output impedance: < 2.2 ohms (32 Ohms)
