MOREL ELATE CARBON 53 - 13cm kit 3 way

With the ELATE CARBON PRO 53 3-way 5" (13cm) speaker set, MOREL sets the performance bar to a level that has become unrivaled through the combination of first-class resilience and musicality. The Pro versions are supported by the new high-resolution Elate Alto Cavity speaker. Back silk dome tweeters highlighted. The new Elate carbon woofers feature 3" voice coils and KLIPPEL optimized EVC drives and carbon fiber/ROHACELL sandwich membrane for extremely low distortion, even at the highest volumes. The 3-way systems receive the new Elate MM3 3.5" dome midrange driver that offers a wider usable frequency range than its predecessor and dramatically improves the system's performance. The new Elate Carbon Pro Set is made for people who want to fully enjoy all aspects of music.

The style of Morel's iconic Lotus design speaker grilles alone will take your breath away, and then there's the sound... The Elate Carbon Pro 53 3-way system includes, in the active version, a 5-1/4 -inch woofer, a 3-inch midrange driver, and the Elate Alto 1.1-inch tweeter, which is not included in the non-Pro Elate Carbon systems. Both the midrange and woofer use a carbon fiber/Rohacell membrane that minimizes distortion, allowing for the most precise sound possible. And for the Elate Alto tweeter, Morel uses the cavity back technology developed for the Supremo Piccolo tweeter to achieve amazing highs.

Characteristics

• 3-way component speaker system passive
• Includes two woofers, two midrange drivers and two tweeters, 2 crossovers

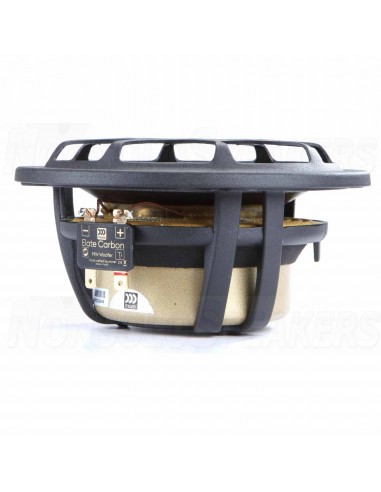

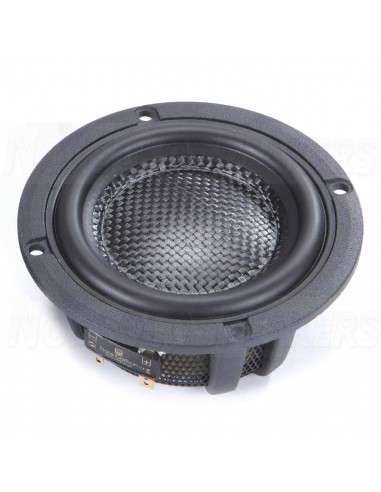

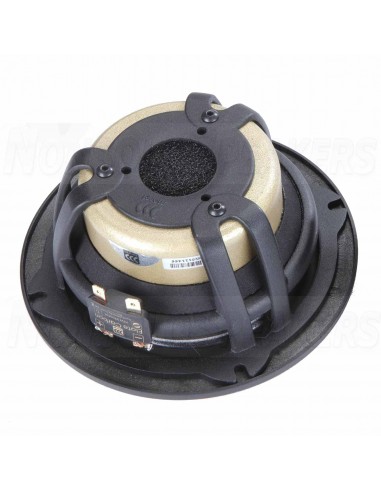

• 5-1/4" 3-layer carbon fiber/Rohacell woofer cone with butyl rubber surround

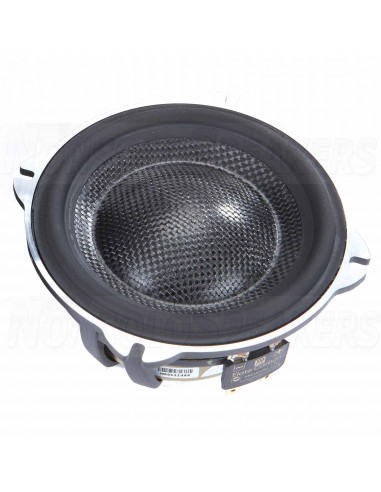

• 3" midrange driver made of 3-layer carbon fiber/Rohacell 1.

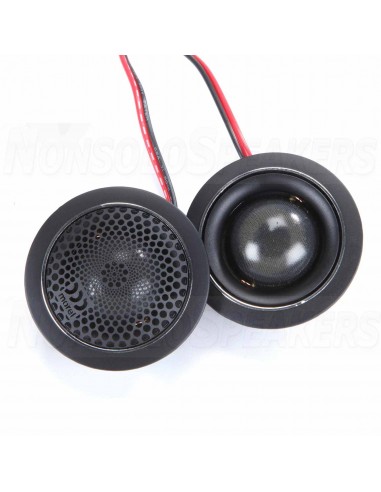

• 1" Elate Carbon Alto Acuflex coated silk dome tweeter
• Cast aluminum basket
• Can handle up to 160 watts RMS
• Frequency response: 40-25,000 Hz
• Sensitivity: 85dB at 2.83V
• Installation depth of the woofer: 6cm
• Diameter of the woofer cutout: 12.22cm
• Midrange installation depth: 3.9cm
• Midrange cutout diameter: 8.2cm
• Includes grid

Contenents of package

• 2 MW5 woofers
• 2 MM3 midrange drivers
• 2 Alto tweeters (with included 7" speaker cable)

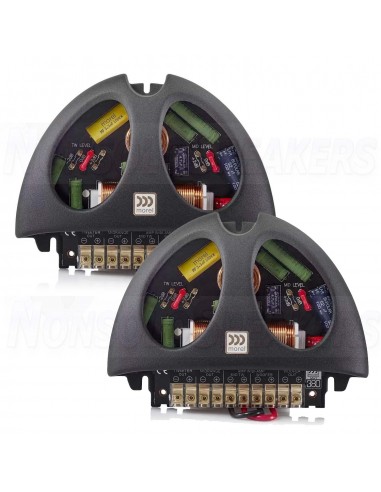

• 2 crossovers
• 2 woofer grilles
• 2 midrange grille
• s 2 midrange grille frames
• 2 tweeter grilles (installed)
• Eight 1-1/4" screws
• Fourteen 3/4" screws
• 18 quick release clamps putty for the grille
• Eight 0.25" crimp-on quick-release fasteners
• Four .110" crimp quick connectors installation Guide Warranty card
