MOREL ELATE CARBON PRO 63A Active 6-1/2"

Premium materials and design

Just the style of Morel's iconic Lotus-design speaker grilles takes your breath away, and then there's the sound... The Elate Carbon 63A 3-way component system includes a 6-1/2" woofer, a 3" midrange driver, and the MT450 tweeter for a fuller sound and excellent detail at impressive volume levels. Both the midrange and the woofer use a carbon-fiber/Rohacell cone that minimizes distortion for the most accurate sound possible.

For a better factory fit

Morel enhances the performance of their MT450 open-cavity silk dome tweeter with a coating of Acuflex™ compound, which helps damping for a natural sound. Its compact design makes it in easier fit in more factory tweeter locations.

Build an active system

Passive crossover systems are not included. Morel designed these Elate Carbon speakers to be neutral, without coloration, so that you can use your active crossover to craft exactly the right sound for you and your vehicle. You'll need an active crossover to use these speakers. If you would like to use passive crossovers with this system, optional Morel MXT380C crossovers are available

Why choose Morel?

It's hard to not feel overwhelmed by your choices when deciding which component system is worthy of your car... and your ears. But if you're looking for the best, Morel's component speakers soar. Every bit of that excellence is due to their passion for sound and their insistence that every hand-made Morel driver be tested to meet their premium standards.

.

.

.

.

.

.

.

.

.

Package Contents Morel Elate Carbon Pro 63A

User Manual

2 woofers MW6

2 MM3 Midrange

2 alto tweeters (with 7 inch long speaker cable)

2 woofer grids

2 mid-range grids

2 mid-range grille frames

2 tweeter grilles (installed)

Eight 1-1 / 4 "screws

Fourteen 3/4 "screws

18 speed clips

Installation guide

-

FEATURES

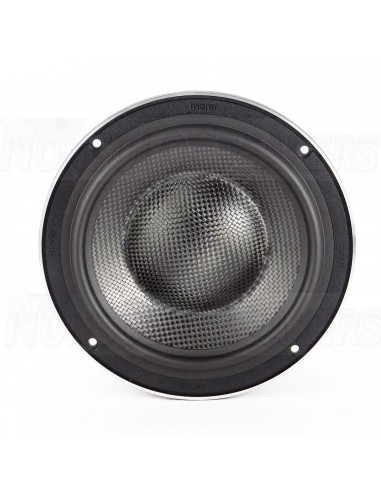

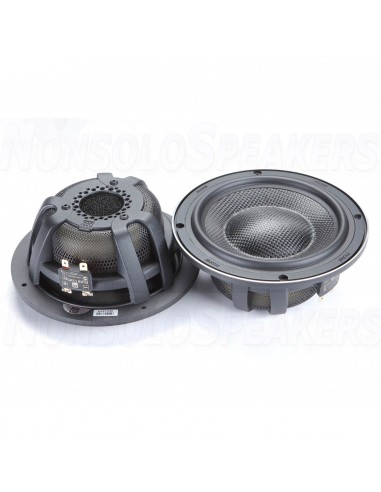

6-1/2" Carbon 3-Way Component Speakers

*NO Crossovers*

Power Handling:

Peak: 2000 watts per pair / 1000 watts each

RMS: 360 watts per pair / 180 watts each

Impedance: 4 Ohm

Sensitivity: 87 dB

Frequency Response: 30Hz - 25,000Hz

Triple Layer Cone

Carbon Fibre Composite Cone

Hexatech Aluminum Voice Coil

Titanium Bobbin Former

EVC Structure

Neodymium Magnet

Includes Grilles

Mounting Depth: 2.40" (61mm)

MM3 3.5" Midrange:

Power Handling:

Peak: 400 watts

RMS: 120 watts

Impedance: 4 Ohm

Sensitivity: 85 dB

Frequency Response: 40Hz - 6,000Hz

Silk Soft-Dome

Triple Layer Carbon Fibre Cone

Hexatech Aluminum Voice Coil

Neodymium Magnet Motor

Mounting Depth: 1.50" (38mm)

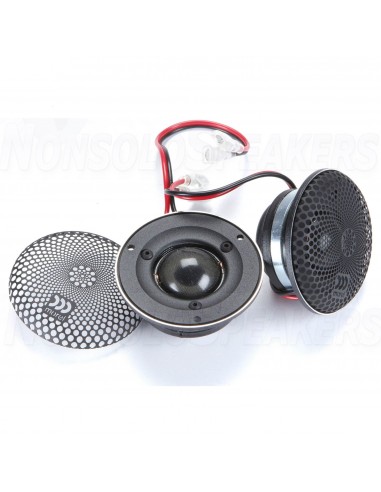

Elate Carbon Alto 1.1" Tweeters:

Power Handling:

Peak: 1000 watts

RMS: 220 watts

Impedance: 6 Ohm

Sensitivity: 91 dB

Frequency Response: 1,400Hz - 25,000Hz

Acuflex Silk Soft-Dome

Hexatech Aluminum Voice Coil

Neodymium Magnet

Mounting Depth: 1.25" (32mm)
