MOREL MAXIMO ULTRA 603 mk2 6.5" kit 3 way
MOREL MAXIMO ULTRA 603 mk2 6.5" kit 3 way
No matter how many car audio installations I do, listening to high-quality car speakers brings a certain thrill that never goes away — the thrill of the moment when I hear something totally new in an old favorite song.
MOREL MAXIMO ULTRA 603 mk2 6.5" kit 3 way
Morel MAXIMO ULTRA 603 3-way kit for upgrading standard speakers, creates a wide range of quality sound, with Morel quality, at a very attractive price.
Morel has invested the same passion, engineering and philosophy that has earned its car audio speakers countless awards in the development of the new MAXIMO ULTRA line consisting of 2-way systems, new 3-way component and coaxial speaker systems.
Following Morel's high quality philosophy, it features some of the company's innovative technologies and new design features. Designed to be easily installed in the stock positions and to integrate with the source present on the car.
Components of the Morel MAXIMO ULTRA 603 kit
*New 25mm (1 ″) diameter soft dome tweeter utilizing Morel's external voice coil (EVC ™) technology developed specifically for Maximo Ultra. The tweeter design sets new standards for power management and low distortion for this price level, while offering pleasant musical sound reproduction. Its four mounting options make installation very simple and immediate.

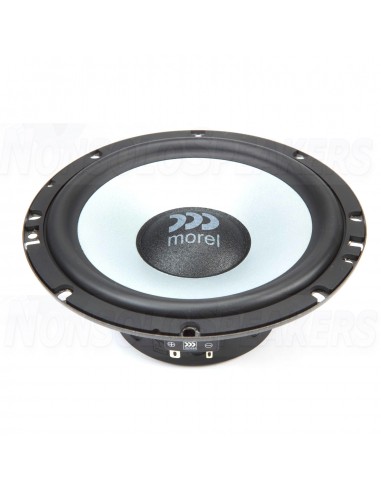

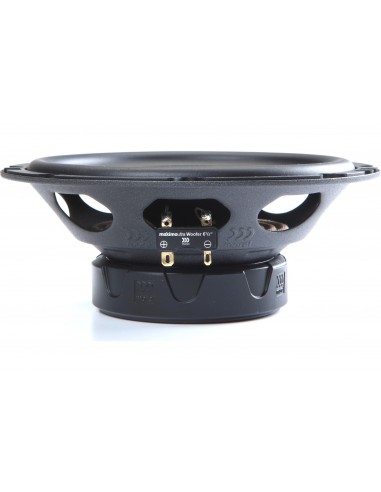

*The woofer features a high quality ferrite magnet motor that provides greater magnetic energy, with higher power handling and better efficiency. The new design uses a treated paper cone and computer-molded suspension for a linear boost during low-frequency reproduction of the mids, thereby reducing distortion and increasing bass dynamics.
*The mid-range in the 3-way component system is a premium new 2.5-inch wide-range midrange that employs a powerful dual neodymium magnet system, featuring a solid copper sleeve to ensure smooth frequency response and a low distortion. It offers striking detail and a lush mid-range in a compact size.
*The crossover network is built to handle more power using quality components. This minimizes the saturation that can cause premature speaker distortion, allowing a Maximo Ultra to sound to its full potential.
-
Features
Nominal impedance 4 Ohm
Power Management 100 Watts
Max power 180 Watts
Transient Power Management Sensitivity (2.83V / 1M) 90.5 dB
Frequency response 50 - 20,000 Hz
Voice coil diameter: 25mm woofer / 20mm midrange / 25mm tweeter
High quality copper voice coil
Neodymium tweeter magnet
Ferrite woofer magnet
Woofer Mounting Depth 63 mm (2.5 ")
-

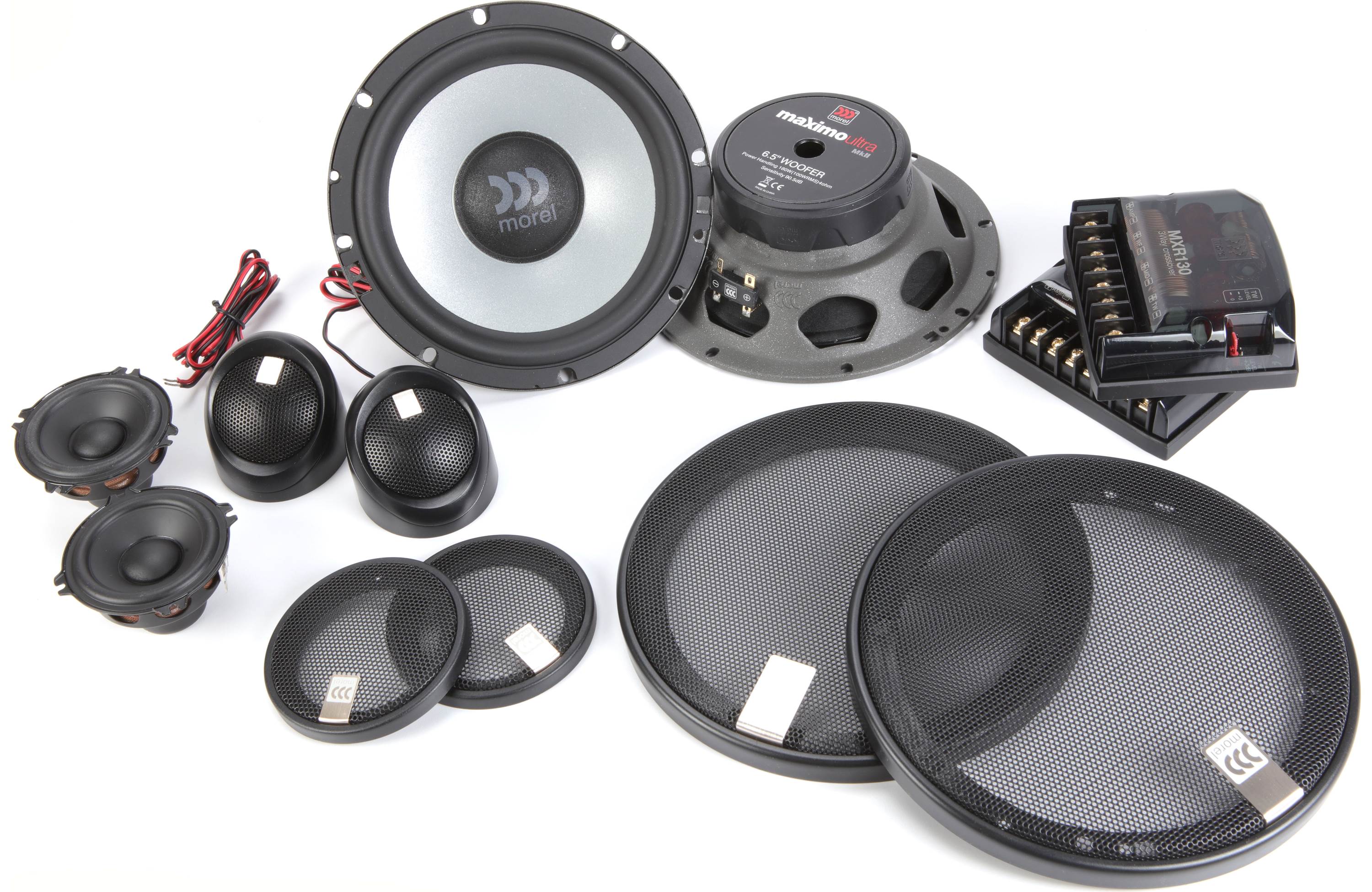

What's in the box:
- Morel Maximo Ultra 603 owner's manual
- Two Woofers
- Two Midrange
- Two Tweeters (with attached 38" length of speaker wire)
- 2 Crossovers
- 2 Woofer grilles
- 2 Woofer grille frames
- 2 Midrange grilles
- 2 Midrange grille frames
- Grille putty
- 2 Mesh tweeter grilles (installed)
- 2 Oval flush mount tweeter housings (with tweeters installed)
- 2 Flush mount brackets
- 2 Large angled surface mount tweeter housings
- 2 Small angled surface mount tweeter housings
- Twelve 1" Screws
- Eight 3/4" Screws
- 8 Large speed clips
- 8 Small speed clips
- Two 0.187" Crimp-on female quick slides
- Six 0.110" Crimp-on female quick slides
- Two 0.187" Quick slide insulating covers
- Six 0.110" Quick slide insulating covers
- Installation guide
- Morel window sticker
