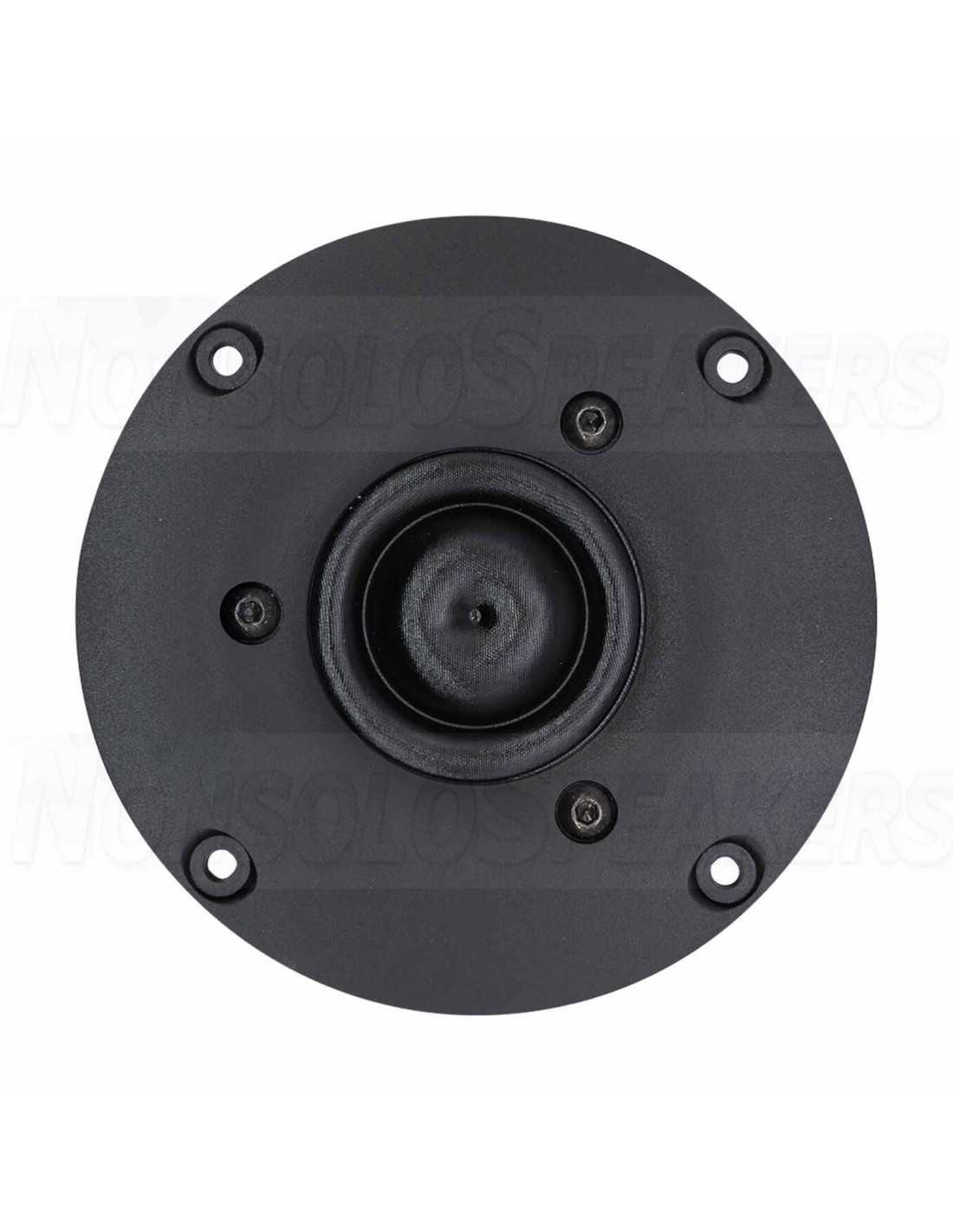

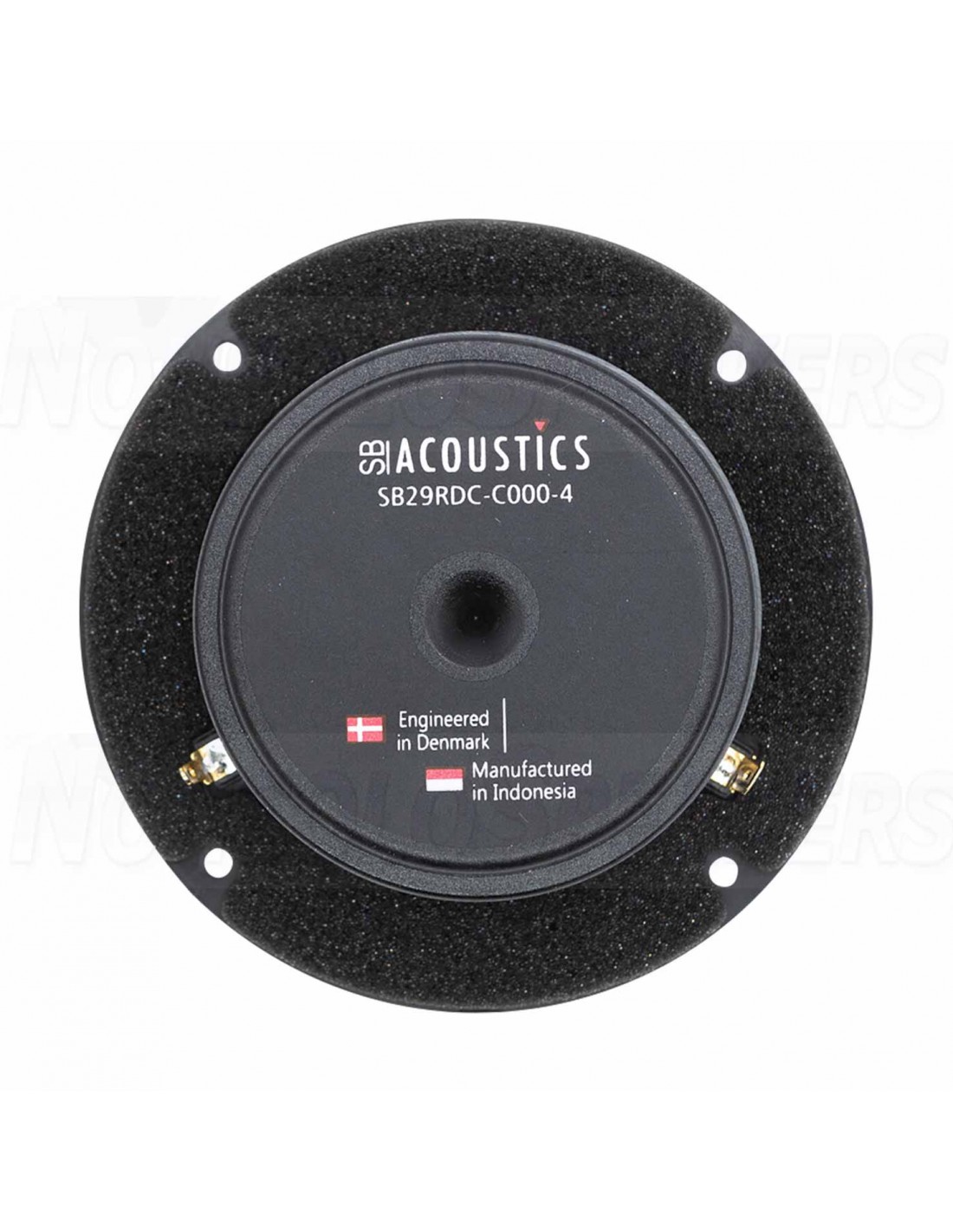

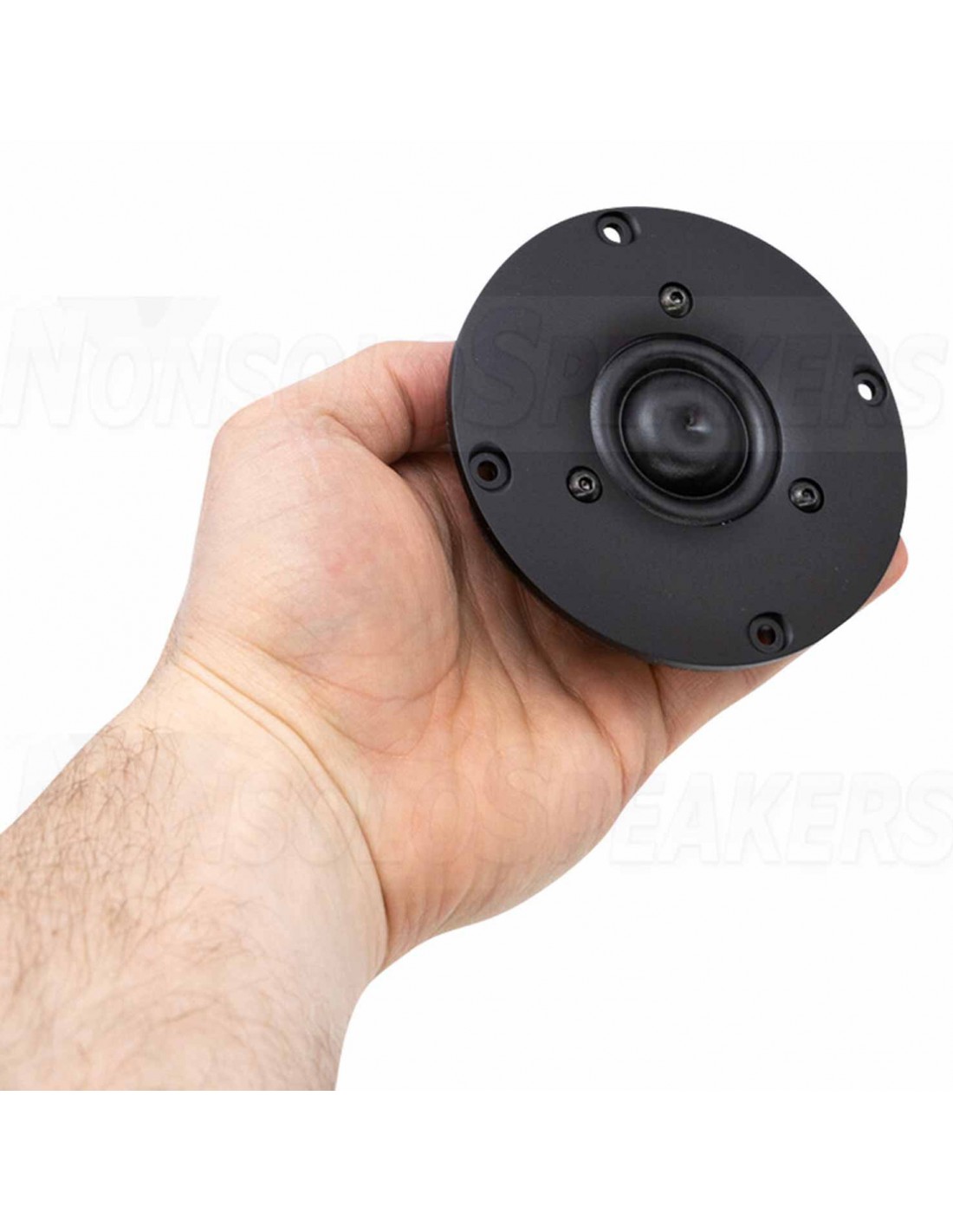

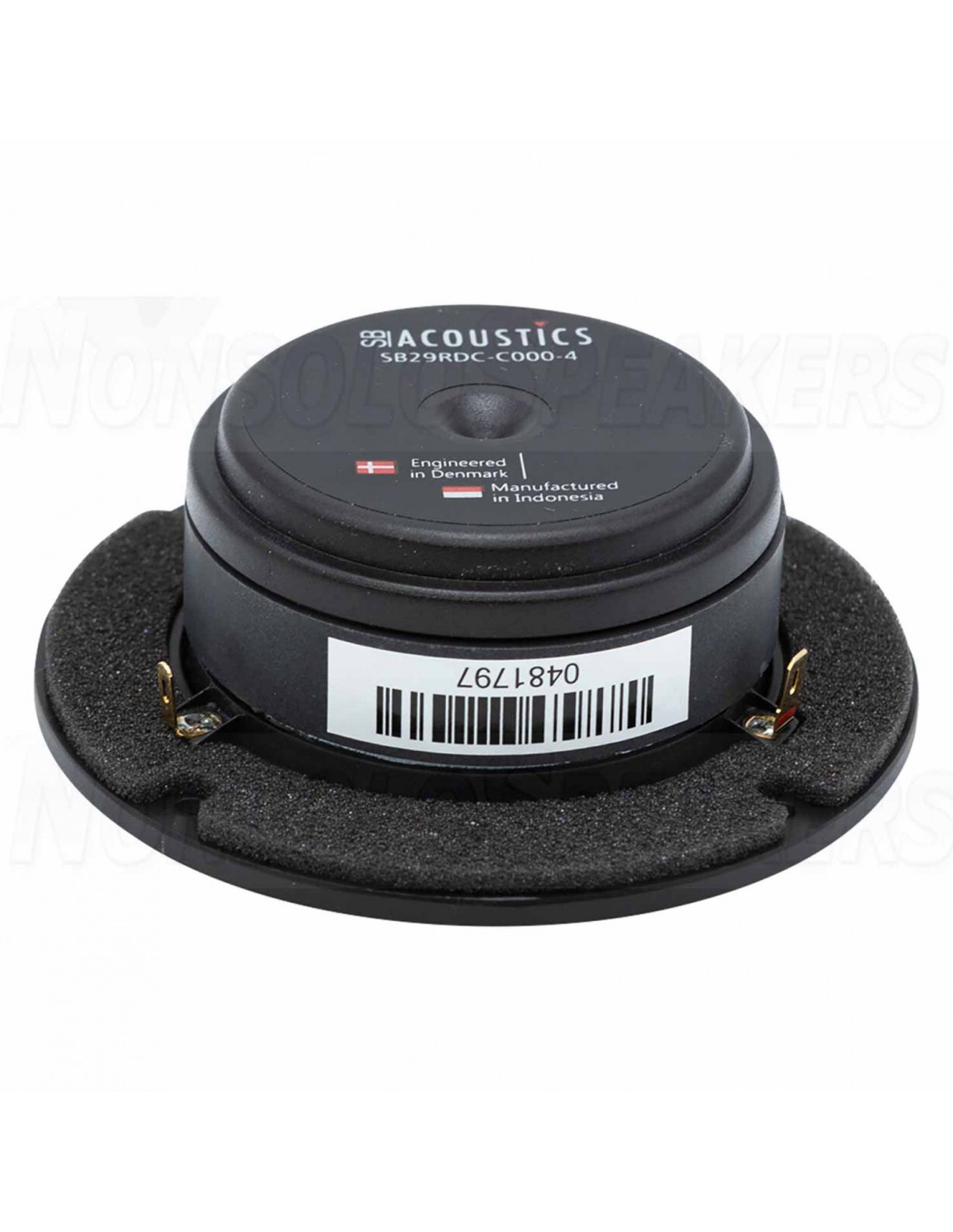

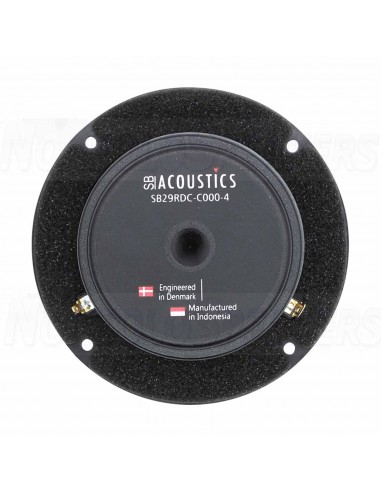

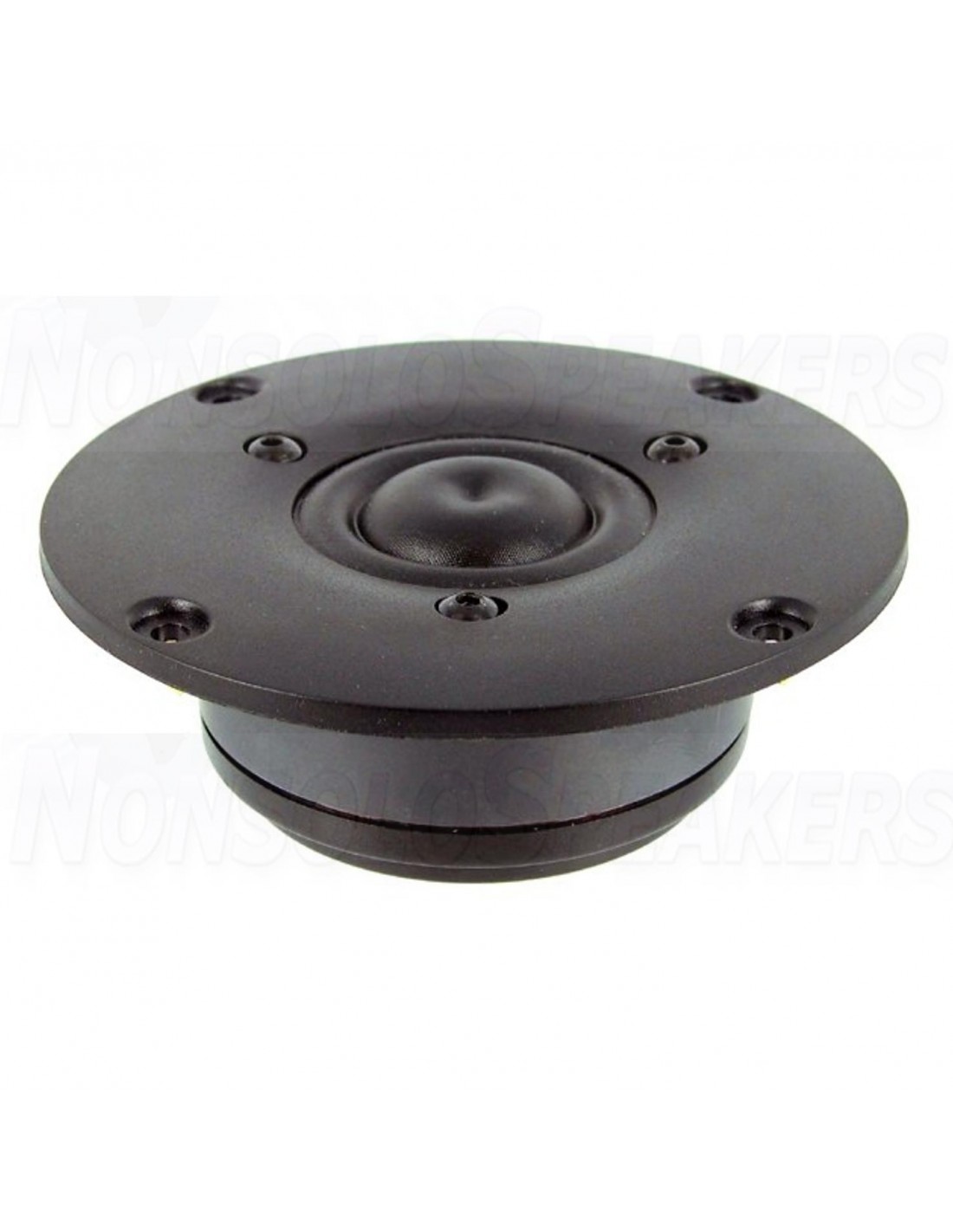

SB Acoustics SB29RDC-C000-4 Ring Dome Tweeter

SB ACOUSTICS SB29RDC-C000-4 - Tweeter 29mm

This tweeter features a proprietary fabric ring dome with a large roll surround. Stabilizing the center of the dome greatly reduces distortion and brings the acoustic center of the tweeter back to the voice coil, with the added benefit of increased sensitivity.

SHIPMENT IN 7-10 WORKING DAYS
€51.95
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



SB Acoustics SB29RDC-C000-4 Ring Dome Tweeter

.

Product description

Non-resonant diaphragm design for minimum high frequency break-up

Dual balanced compression chamber for improved dynamics

Copper cap for reduced voice coil inductance and minimum phase shift

Saturation controlled motor system for low distortion

Non-reflective rear chamber with optimized damping for improved dynamics

Flow optimized vented pole piece for optimum coupling to rear chamber

CCAW voice coil for low moving mass

Long life silver lead wires

Low resonance frequency

The larger terminal is the positive

.

Product details

SB Acoustics SB29RDC-C000-4 Ring Dome Tweeter

This tweeter features a proprietary fabric ring dome with a large roll surround. Stabilizing the center of the dome greatly reduces distortion and brings the acoustic center of the tweeter back to the voice coil, with the added benefit of increased sensitivity. The tweeter has a chambered back designed to provide a lower resonance frequency and reduce back wave reflections from the dome. A copper cap is used on the pole piece. Large surface area.

Specifications: Diaphragm Mass Inc. Airload (Mms): 0.45 g • Maximum Linear Excursion (Xmax): 0.25 mm • Surface Area of Cone (Sd): 9.6 cm2

.

Specifications

Article numberSB29RDC-C000-4
Tweeter TypeDome
Cone / Dome Diameter25 mm | 1"
Power Handling (RMS)100 Watts
Impedance (Z)4 Ω
Sensitivity (SPL at 1m / 2.83V)93 dB
Resonant Frequency (Fs)600 Hz
DC Resistance (Re)3 ohms
Voice Coil Inductance (Le)0.05 mH
Mechanical Q (Qms)2.2
Electromagnetic Q (Qes)0.9
Total Q (Qts)0.65


SB29RDC-C000-4
