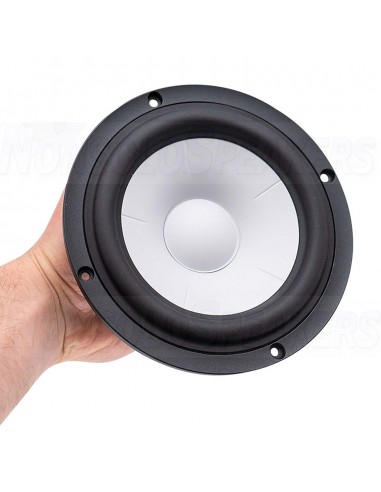

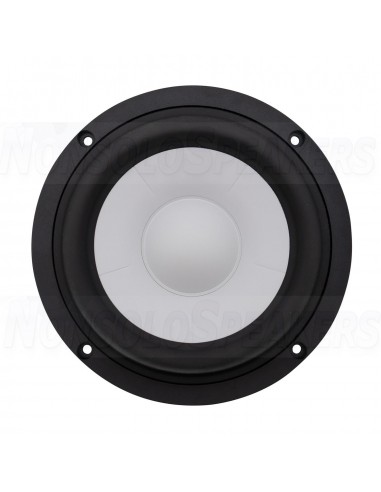

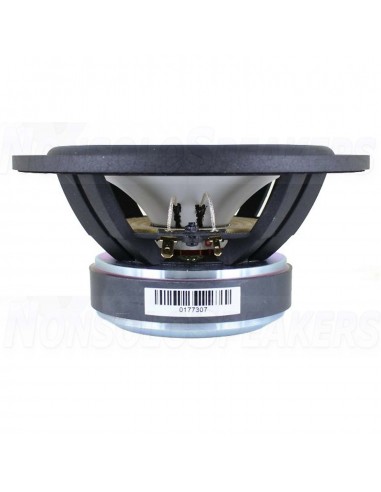

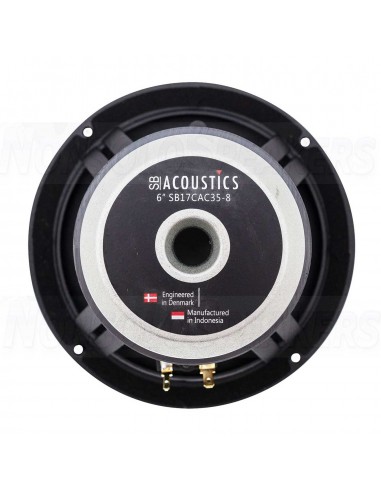

SB Acoustics SB17CAC35-4 6" Ceramic Woofer
SB Acoustics SB17CAC35-4 6" Ceramic Woofer
SB Acoustics SB17CAC35-4 6" Ceramic Woofer
SB Acoustics SB17CAC35-4 6" Ceramic Woofer
SB Acoustics SB17CAC35-4 6" Ceramic Woofer
SB Acoustics SB17CAC35-4 6" Ceramic Woofer
SB Acoustics SB17CAC35-4 6" Ceramic Woofer
SB Acoustics SB17CAC35-4 6" Ceramic Woofer
SB Acoustics SB17CAC35-4 6" Ceramic Woofer
SB Acoustics SB17CAC35-4 6" Ceramic Woofer

SB Acoustics SB17CAC35-4 6" Ceramic Woofer

SB Acoustics SB17CAC35-4 6" Ceramic Woofer

SB Ceramic cones consist of an aluminum/ceramic dual layer cone. Ceramic provides a very hard and robust surface with improved sonic properties and cosmetic appearance.

SHIPMENT IN 7/10 WORKING DAYS
€98.80 €104.00 -5%
Tax included
rating No review at the moment

The minimum purchase order quantity for the product is 2.

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



SB Acoustics SB17CAC35-4 6" Ceramic Woofer

.

Product description

Vented cast aluminum chassis for optimum strength and low compression

Geometrically reinforced ceramic cone for optimum piston operation and reduced break-up

Soft low damping rubber surround for improved transient response

Non-conducting fiber glass voice coil former for minimum damping

Extended copper sleeve on pole piece for low inductance and low distortion

CCAW voice coil for reduced moving mass

Long life silver lead wires

Vented pole piece for reduced compression

.

Product details

SB Acoustics SB17CAC35-4 6" Ceramic Woofer

SB Ceramic cones consist of an aluminum/ceramic dual layer cone. Ceramic provides a very hard and robust surface with improved sonic properties and cosmetic appearance.

Other than that, ceramic cones offer smoothness and harmonic richness unavailable from conventional paper cone material. Ceramic materials also offer significantly higher stiffness numbers and slightly better internal losses than typical metals such as titanium or aluminum. Compared to polymers, paper, and other soft materials, ceramics provide: significantly higher stiffness to weight ratio, more consistent performance over a wide range of temperature and humidity as well as superior immunity to UV light and sunlight, to water and salt water and to combustibility.

.

Specifications

Article numberSB17CAC35-4
Woofer SeriesCAC Series
Woofer TypeMidwoofer
Nominal Diameter6"
Power Handling (RMS)60 Watts
Impedance (Z)4 ohms
Sensitivity (SPL at 1m / 2.83V)90 dB
Voice Coil Diameter1.39"
DC Resistance (Re)3.1 ohms
Voice Coil Inductance (Le)0.13 mH
Resonant Frequency (Fs)29.5 Hz
Mechanical Q (Qms)4.7
Electromagnetic Q (Qes)0.31
Total Q (Qts)0.29
Diaphragm Mass Inc. Airload (Mms)15.2 g
Mechanical Compliance of Suspension (Cms)1.91 mm/N
Surface Area of Cone (Sd)118 cm2
BL Product (BL)5.3 Tm
Compliance Equivalent Volume (Vas)1.33 ft.³
Maximum Linear Excursion (Xmax)5.5 mm

SB17NAC35-4
