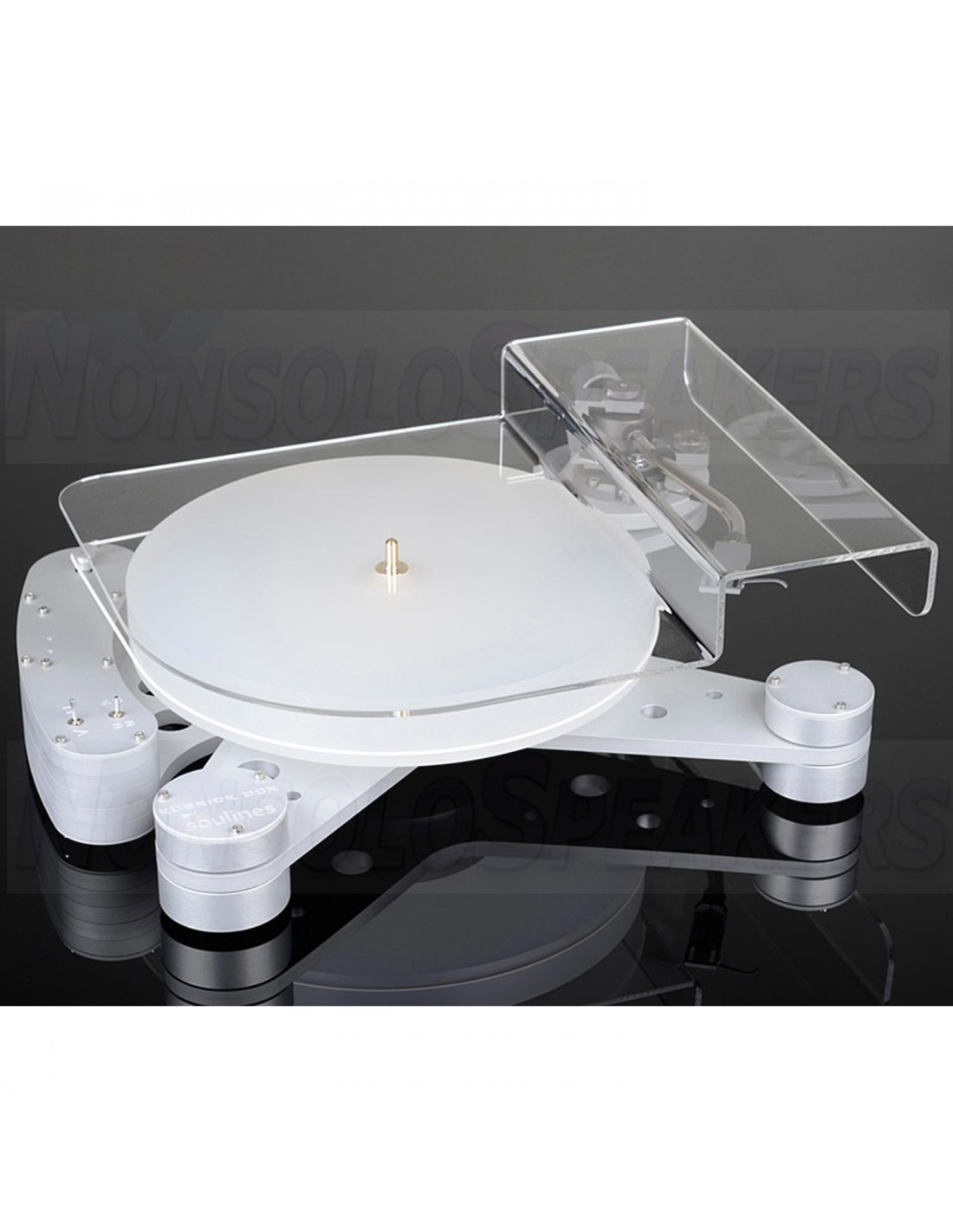

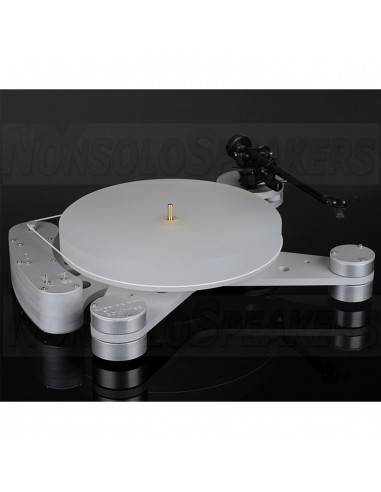

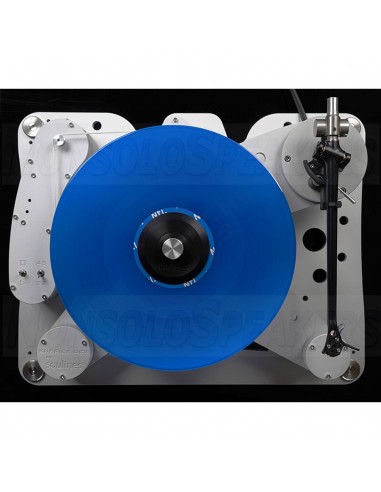

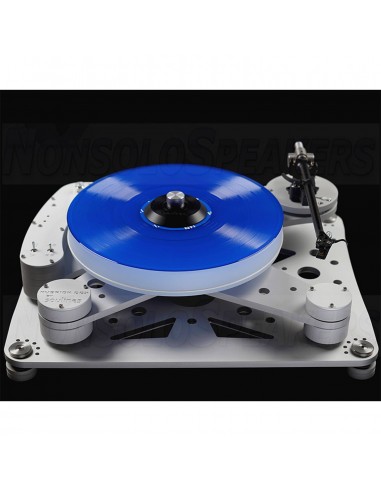

Soulines Kubrick DCX turntable high end
SHIPMENT IN 7/10 WORKING DAYS
€4,490.00
Tax included
No review at the moment
Soulines Kubrick DCX turntable on sale
The Arm , the cartridge, the base antivibration and cover on plexiglass are optional
This is our most advanced turntable to date. Building around our inverted main bearing and Acrylic platter, developed for the Hermes DCX model, we designed a highly rigid aluminum plinth and sub-plinth, built from differently shaped layers-blocks, coupled together and strategically damped.
Design (dimensions, shape and arrangement of different openings/holes) of plinth and sub-plinth aluminum blocks employs Golden Ratio and Fibonacci sequence, thus gaining uniform vibration damping and the reduction of the Moment of inertia in all three planes (along all three axes) to the Center of mass.
You might also like
Soulines Kubrick DCX turntable
Soulines Kubrick DCX turntable on sale
The Arm , the cartridge, the base antivibration and cover on plexiglass are optional
This is our most advanced turntable to date. Building around our inverted main bearing and Acrylic platter, developed for the Hermes DCX model, we designed a highly rigid aluminum plinth and sub-plinth, built from differently shaped layers-blocks, coupled together and strategically damped.
Design (dimensions, shape and arrangement of different openings/holes) of plinth and sub-plinth aluminum blocks employs Golden Ratio and Fibonacci sequence, thus gaining uniform vibration damping and the reduction of the Moment of inertia in all three planes (along all three axes) to the Center of mass.
Even though Kubrick DCX looks asymmetrical or unbalanced, it is in perfect balance, providing smooth platter rotation and steady tracking.

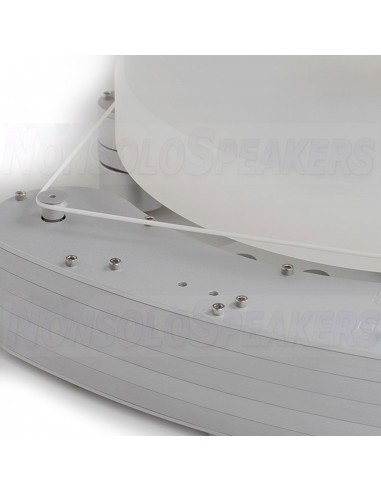

Drive mechanism utilizes high quality DC motor optimized for turntable use. Along with an easy operation and fine speed adjustment feature, an electronically controlled power supply provides stable current for smooth motor rotation.

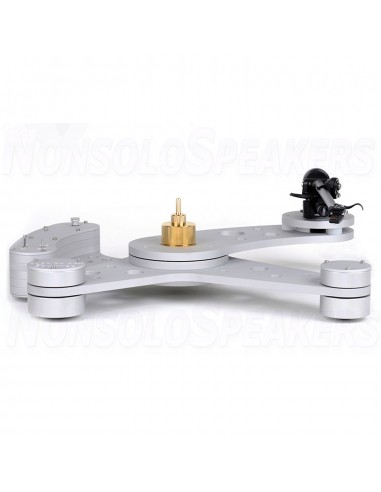

Inverted main bearing, machined from solid brass and stainless steel to extremely high precision, and solid aluminum arm-board are mounted directly on the sub plinth which is in turn 3-point coupled to the main plinth in order to maximize performance and minimize acoustic break through. The motor assembly is mounted on the main plinth.
The platter, 40mm thick and weighing 3.2kg, is machined from Acrylic to very high accuracy. The use of mat is completely up to the user preferences, thankfully to the 1.0mm deep recess carved into the top plane of the platter in the middle (for the record paper label) and to the fact that Acrylic proved itself as a great turntable mat "material".

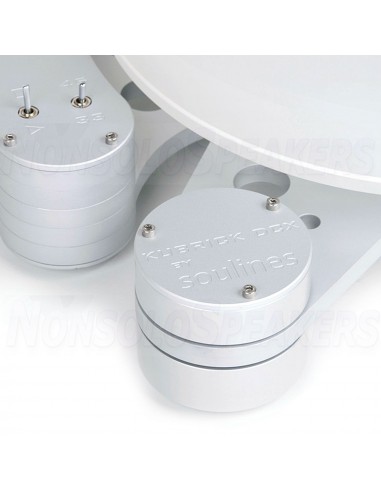

The turntable is supported by three adjustable cones machined from solid aluminum to allow leveling and provide optimum coupling to the surface that it sits on. Supporting cones are coupled to the main plinth by means of rubber-cork washers of different diameters, providing better vibration transmitting control.
Included in the package:

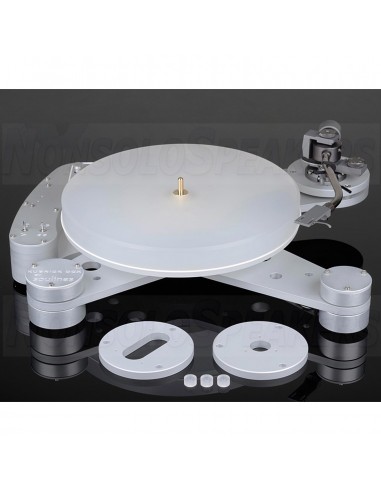

- three different (user) exchangeable aluminum made arm-boards for 9" tone-arms:
- SME arm-board - tone-arm pivot to spindle distance from 204-239mm
- Rega/Origin Live arm-board - tone-arm pivot to spindle distance 222mm
- Jelco arm-board - tone-arm pivot to spindle distance 214mmAcrylic (Perspex) dust cover, the SA cover

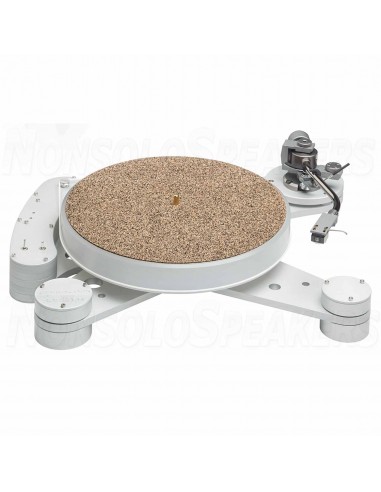

- high-performance rubber-cork mat
- the Protractor LP - a cartridge alignment tool including Baerwald, Loefgren and Stevenson protractors
Soulines Kubrick DCX
