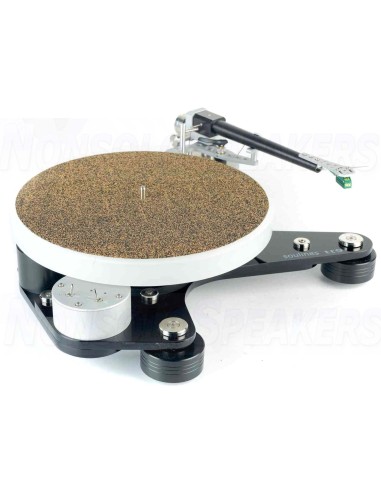

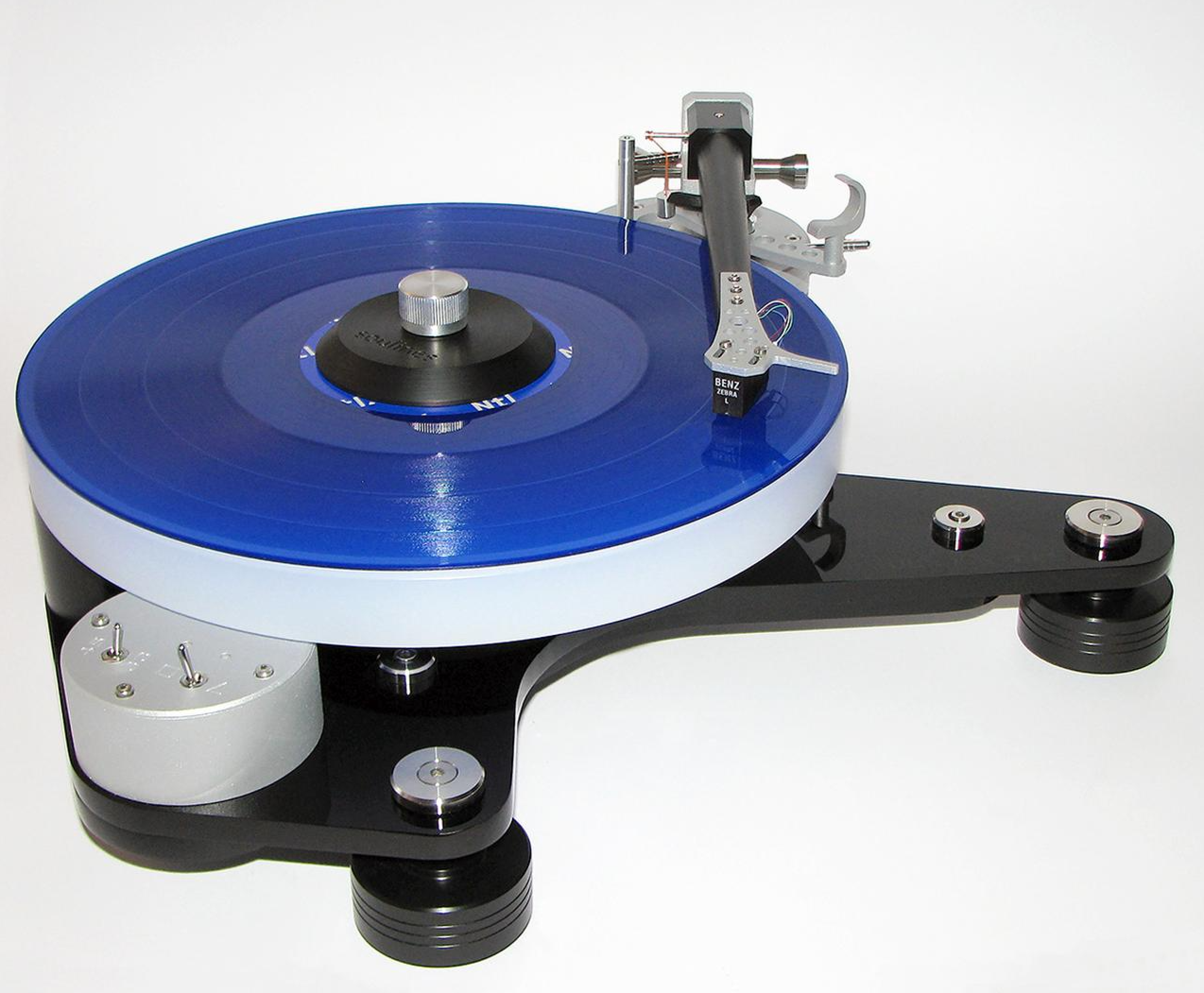

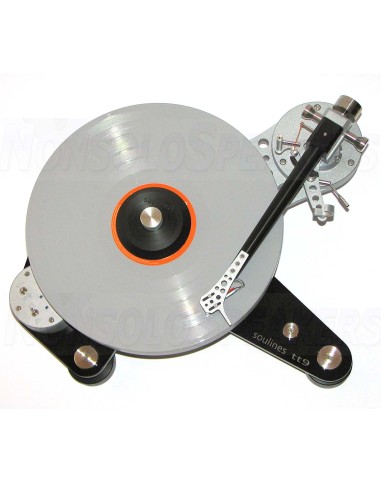

Soulines TT9 turntable high end with tonearm

-

Souline's new turntable model, the tt9, builds on advanced solutions derived from the flagship tt42 and Kubrick DCX models. Differently shaped and precisely machined elements, crafted from materials such as cast acrylic, Delrin (POM plastic), and aluminum, combine to form a lightweight yet extremely rigid structure.

The turntable's solid, lightweight structure prevents the accumulation of harmful resonance energy within it. Without excessive mass where resonances could build up, they are largely dissipated by the design itself.

The dimensions and shape of the plinth and sub-plinth elements (including the hole pattern) have been optimized using the golden ratio and the Fibonacci sequence. This ensures uniform vibration damping and reduces the moment of inertia in all three planes (along all three axes) towards the center of mass.

The tt9 continues our tradition of designing compact, high-quality turntables that can be considered high-end at an affordable price, while remaining extremely easy to use. Assembly of the tt9 is intuitive and simple, requiring no special tools or advanced technical expertise.

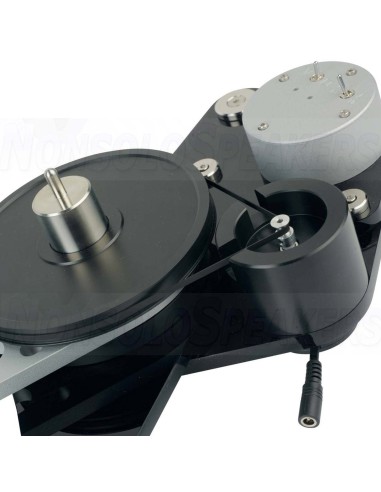

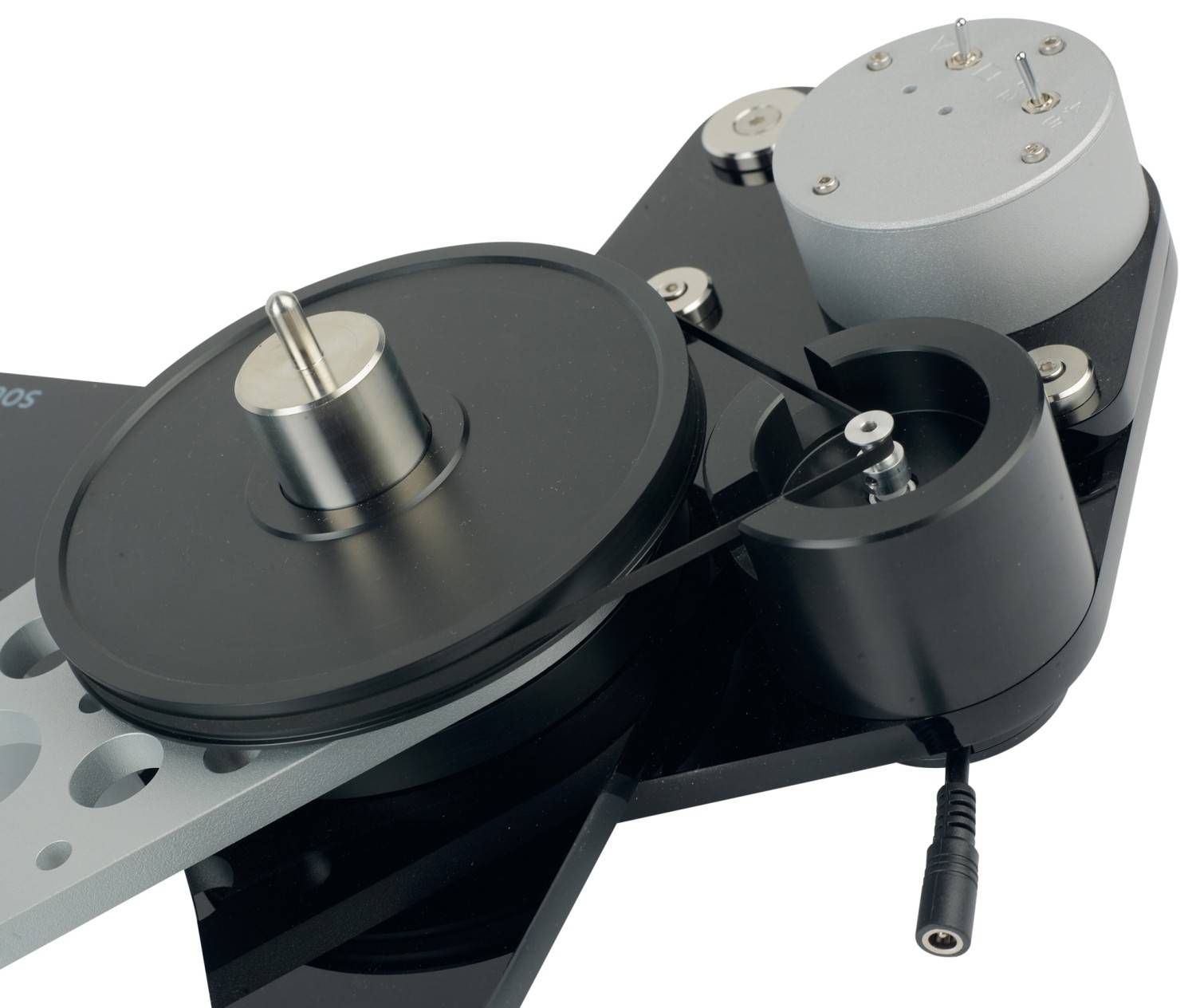

The main bearing is an inverted design, featuring a stainless steel outer cup, a brass spindle bushing, and a stainless steel spindle, all precision-machined and fitted with a Delrin pressure plate. The sub-platter is precision-machined from Delrin (POM plastic) and rigidly connected to the main bearing. The 30 mm thick, 2.5 kg platter is precision-cast from acrylic and, together with the advanced main bearing, ensures smooth rotation and quiet, vibration-free operation.

It features a 1.0 mm deep recess on the top for the record's paper label, ensuring the record remains perfectly flat. If you're concerned about records slipping directly onto the acrylic platter, use the tt clamp included with your tt9 to firmly press the record onto the platter for excellent sound quality.

The advanced main bearing and solid aluminum tonearm base are mounted directly onto the aluminum lower base, which in turn is connected at three points (using rubber and cork washers of varying thickness and diameter) to the cast acrylic and Delrin (POM) main base to maximize performance and minimize acoustic transmission. The Delrin (POM) motor assembly is rigidly attached to the main base.

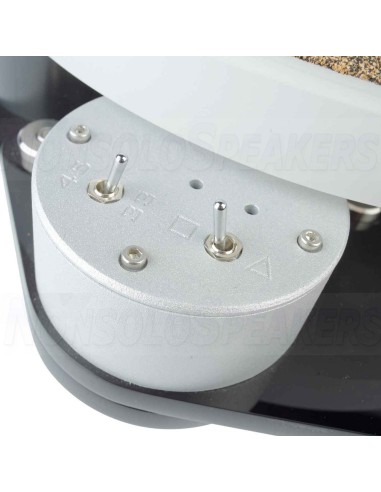

The drive system is based on the high-quality DC motor also used in our most advanced turntable models. It is electronically controlled, allowing for easy operation and precise speed adjustment for both speeds (if necessary). Changing speed and activating/deactivating functions is simple: simply flip the on/off and 33/45 RPM switches.

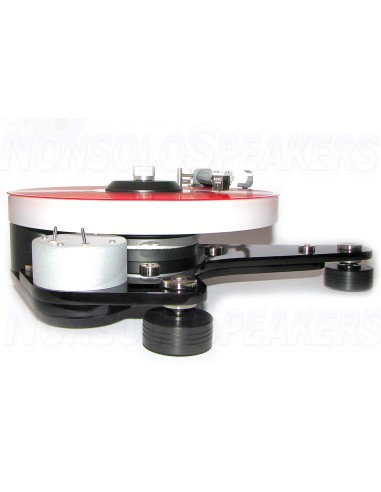

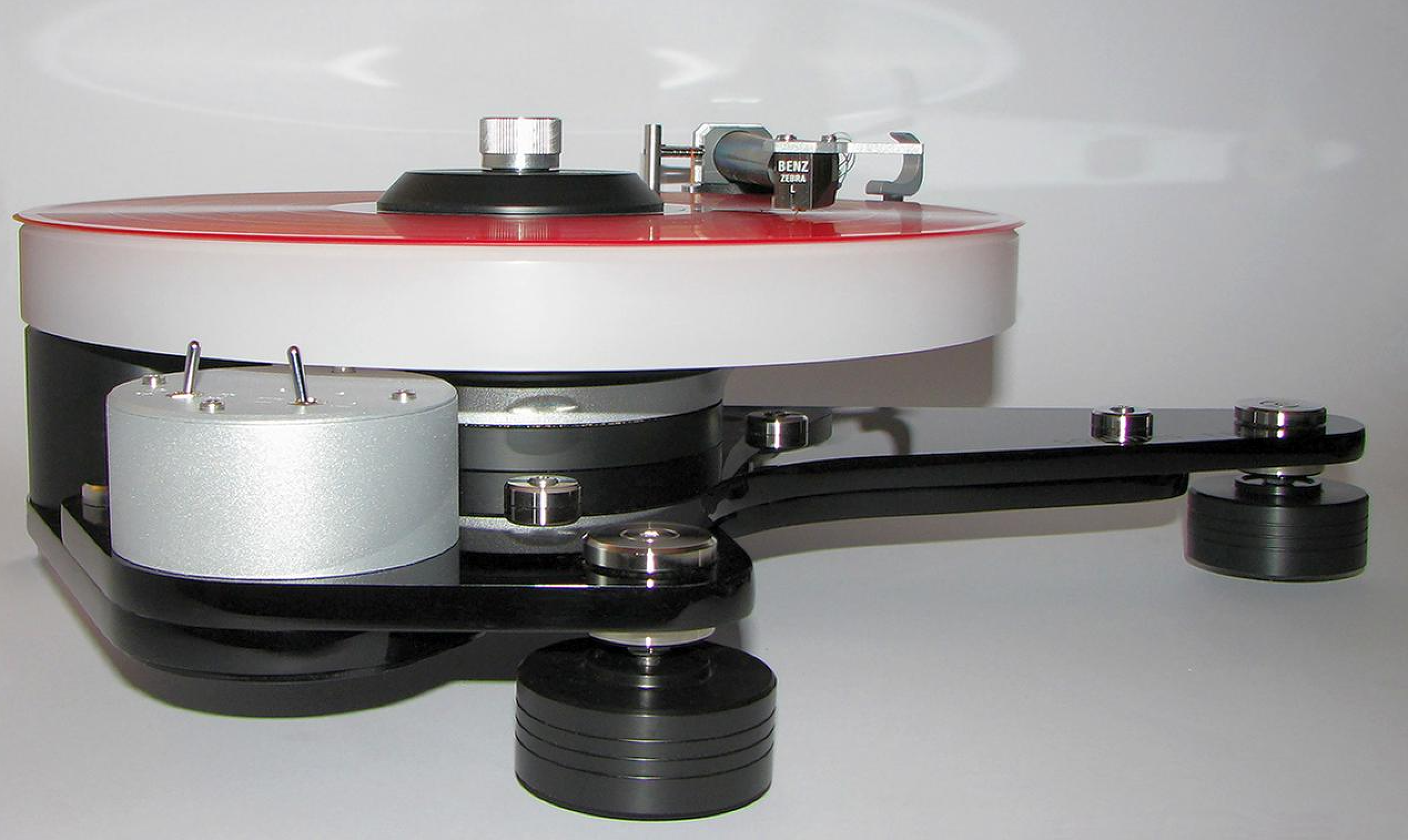

The turntable is supported by three adjustable Delrin (POM) cones, allowing for easy leveling and optimal coupling with the surface. The support cones are connected to the main base via rubber and cork washers of varying thickness and diameter, ensuring better control of vibration transmission.

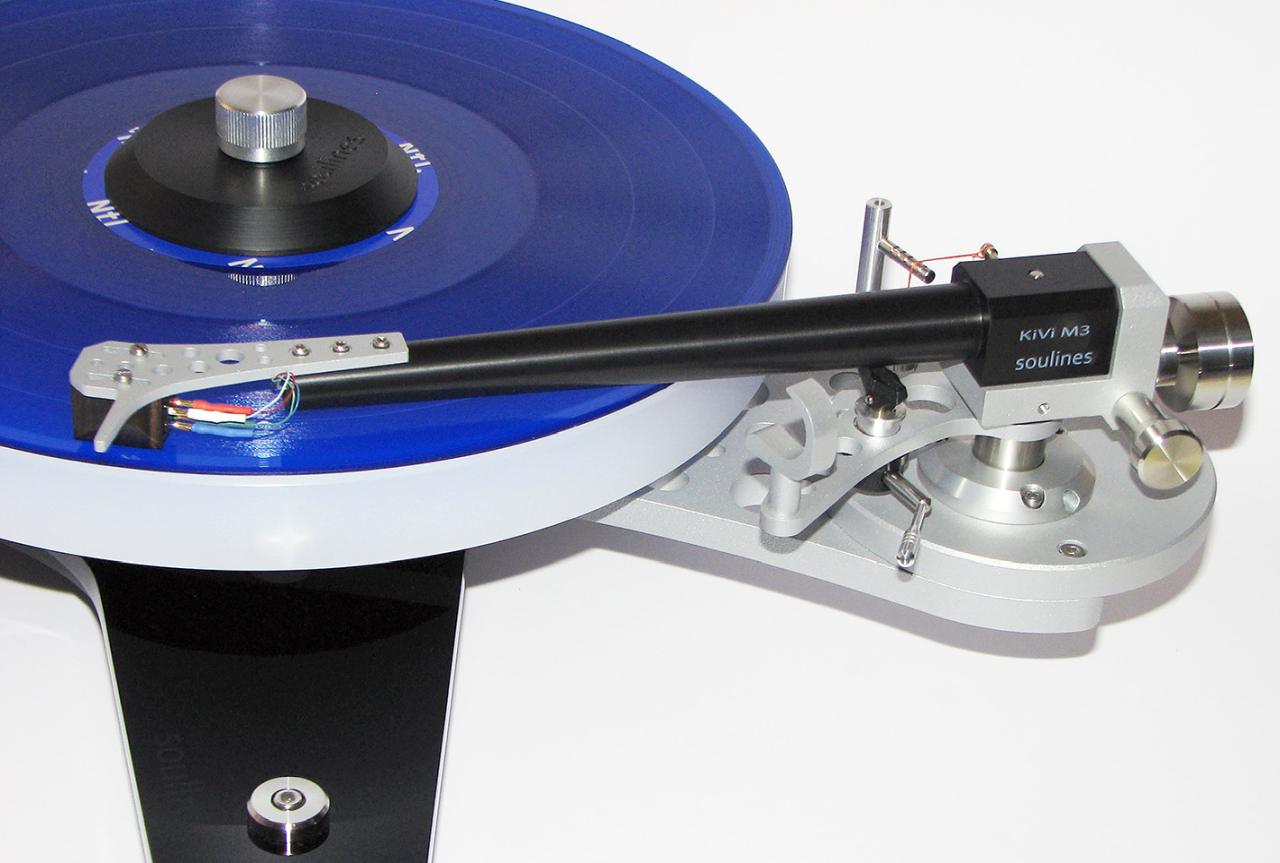

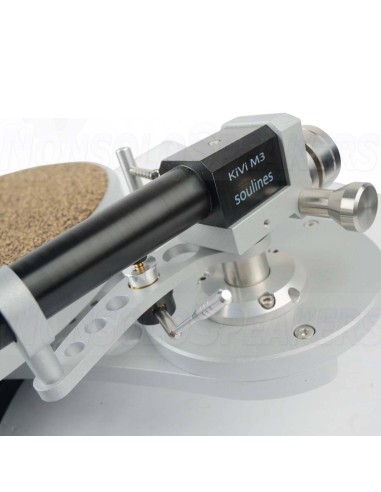

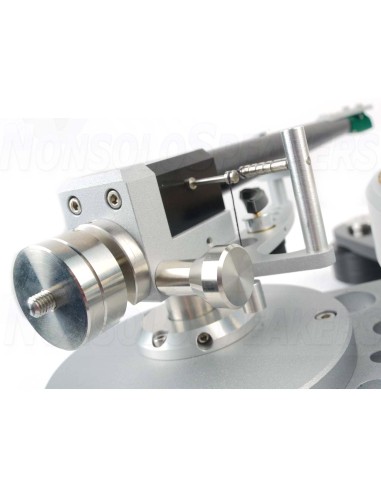

The tt9 turntable comes with a high-quality Soulines KiVi M3 tonearm (pre-installed), which, combined with a high-quality cartridge, makes for an excellent system for playing vinyl records.

.

The tt9 turntable comes with:

SA Cover, an acrylic (Plexiglass) dust cover

*tt Clamp, a record clamp

*a cartridge alignment tool, precisely printed on 300g paper, including Baerwald, Löfgren, and Stevenson models.

.

Specifications

Soulines TT9 Turntable Review with Kivi MK3 Tonearm, HiFi Test 2-2025

.

Principle:

Belt-driven turntable with DC motor

Weight:

12 kg Gross, 10 kg Net

Drive:

High-quality, electronically controlled DC motor

Speed ​​

Adjustable to 33.33 and 45.00 rpm

Main bearing

Solid brass and stainless steel inverted bearing with Delrin insert

Turntable

30 mm acrylic plate, 2.5 kg

Frame construction

Multi-layer aluminum, POM, and acrylic decks decoupled from the renowned Soulines rubber and cork damping discs

Decoupling

3-point

Design

Silver-anodized aluminum and black acrylic

Delivery contents

KiVi MK 3 tonearm, SA cover, and SX2 record clamp

Power supply

AC 230 V/50 Hz

DC connection/output

12 V/300 mA

Dimensions W/D/H

425/355/145 mm

Packaging dimensions: 510/410/310 mm
