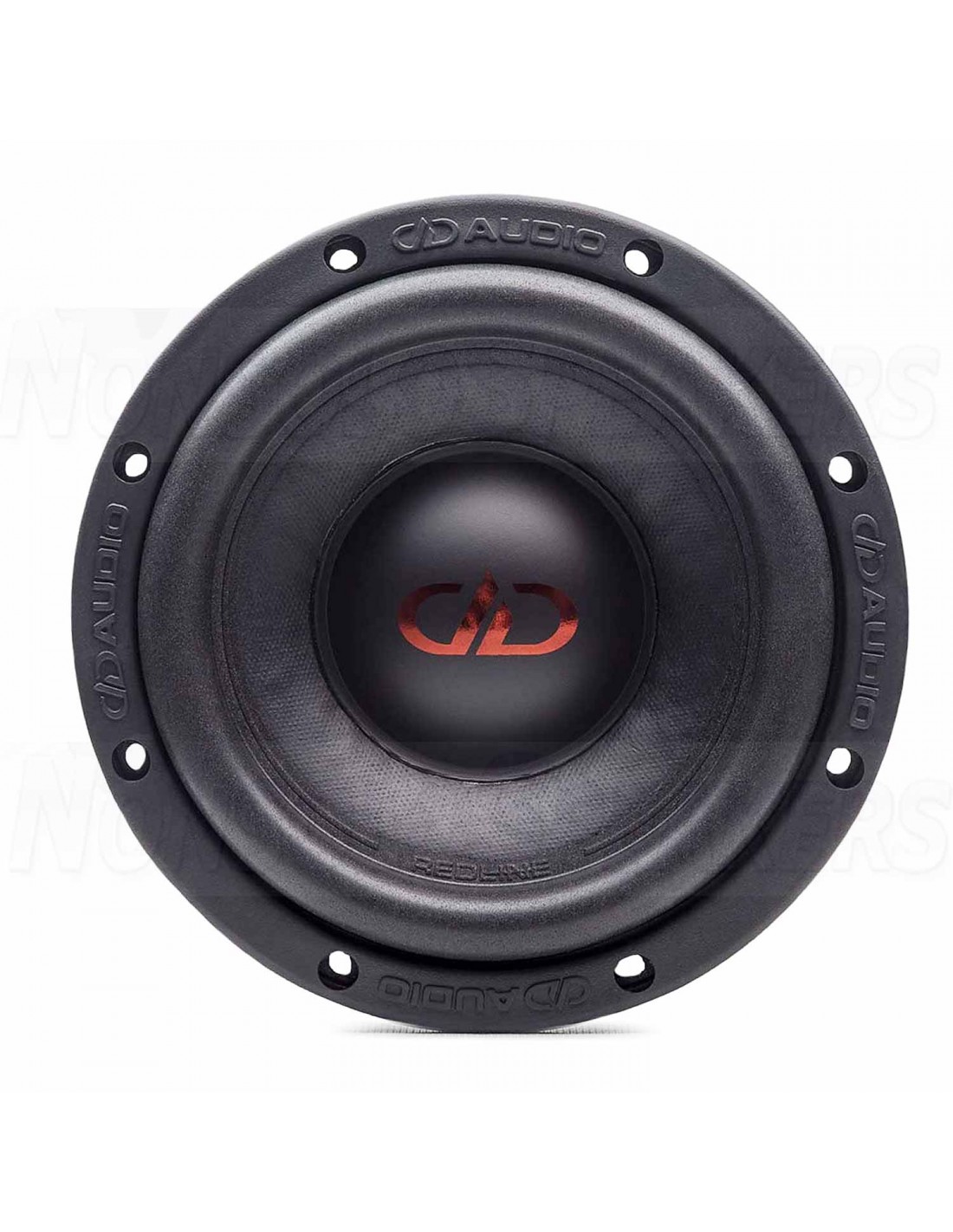

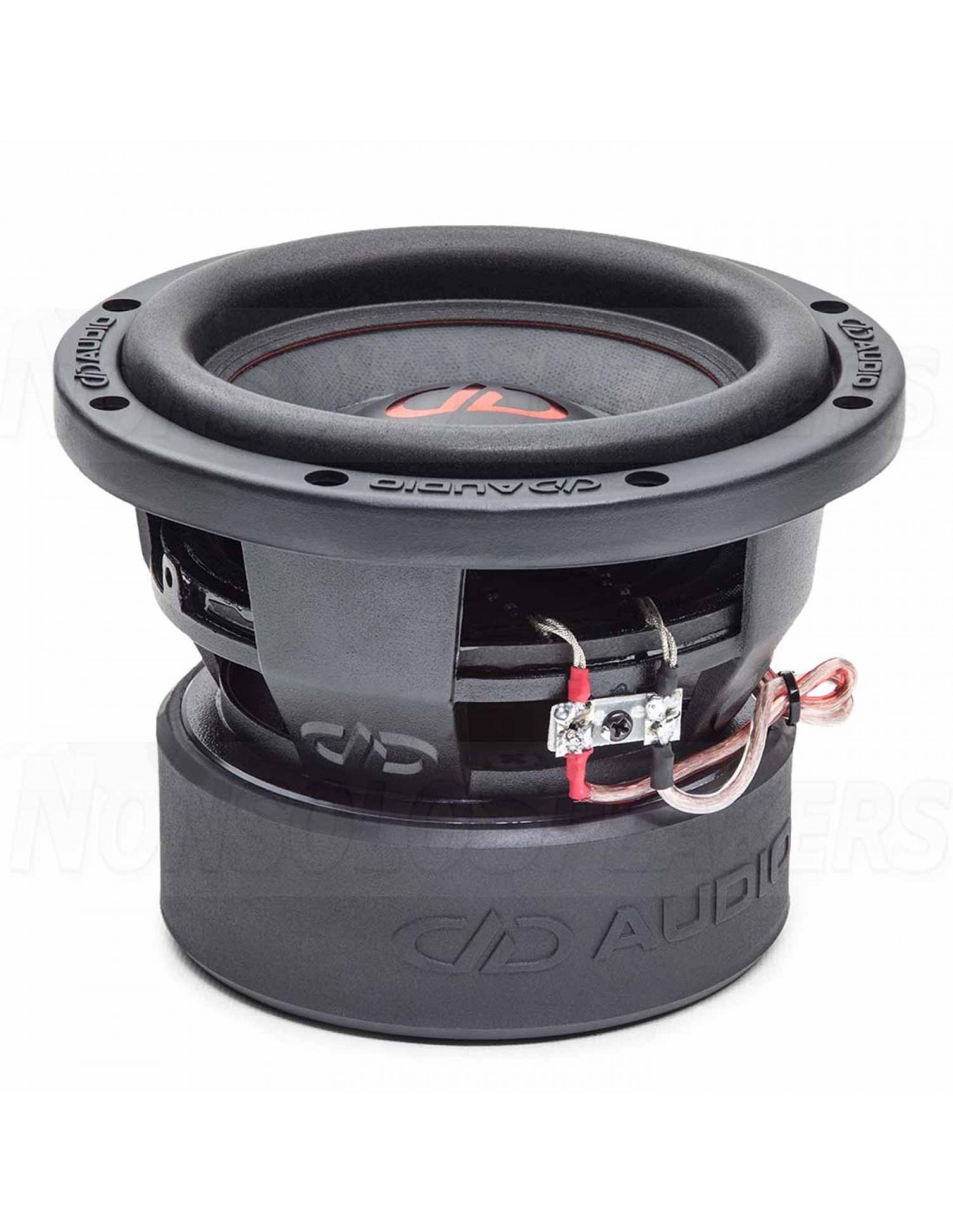

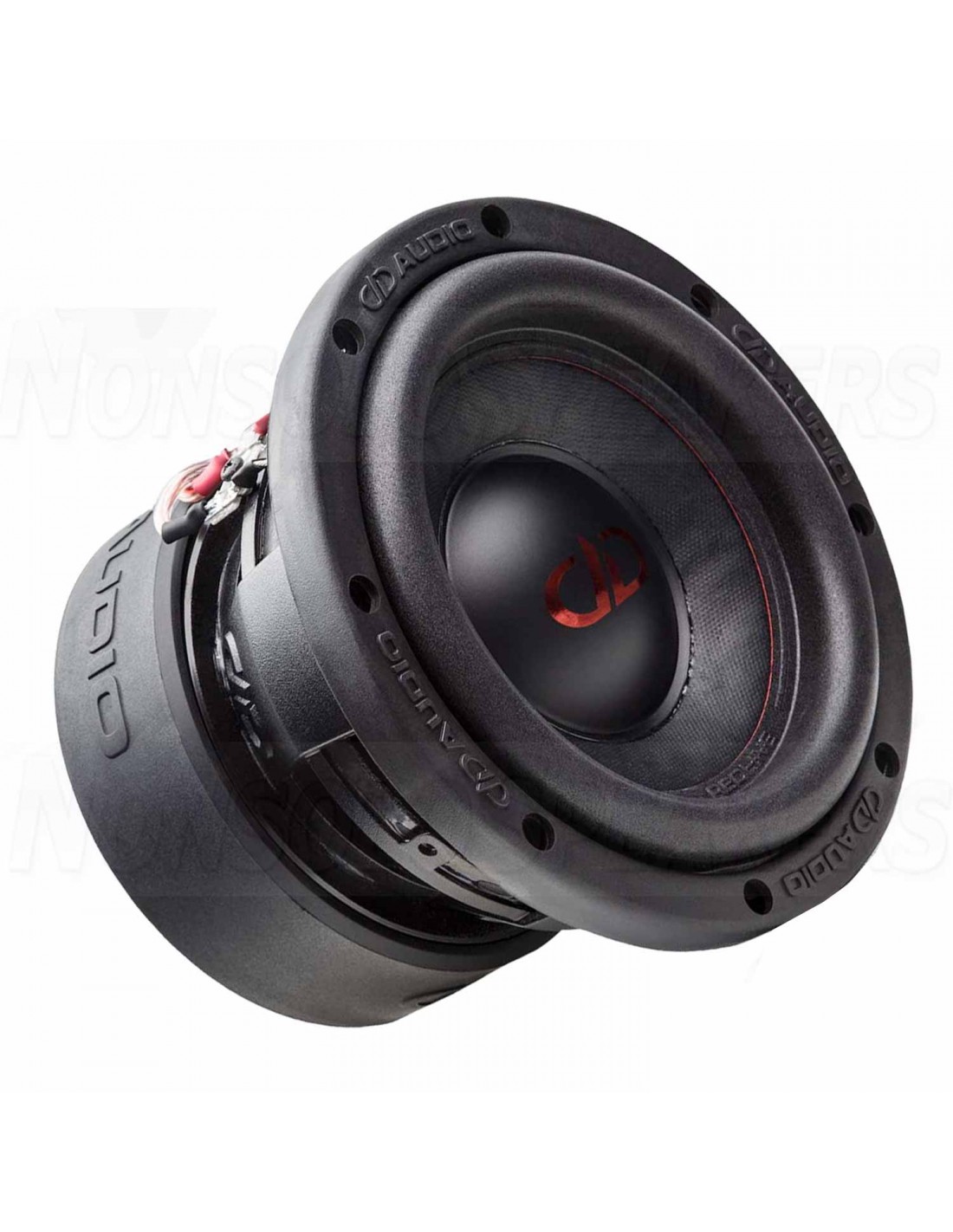

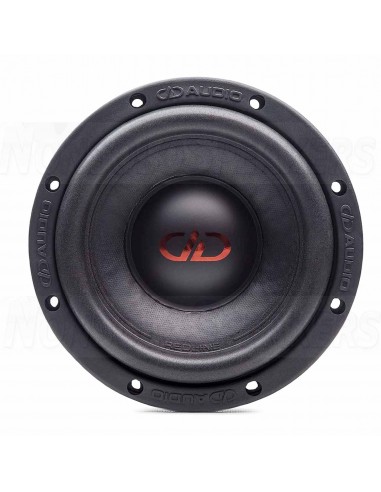

DD Audio Redline 606d-D2 6,5″ subwoofer

The 600 Series is a great entry point for a higher performance system design that keeps the vehicle as close to stock as possible. These subs will perform like a boss on as little as 250-500 Watts, meaning even multiple woofer systems can be driven with one moderate powered amplifier. This keeps electrical upgrades minimal with less added strain on the vehicle. With a high energy, double stack motor paired with a laminated triple layer poly cotton spider suspension the 600 Series works best with vented and multi-order enclosures.

.

Features

EROM surround
High-temp, 2.0”, voice coil
Double Layer Deep bass, high excursion spider system
Unique glass fiber and natural pulp cone
Back plate coil gap venting
Extended pole piece
DD cast basket

.

Technical Specifications

• Speaker Size (In): 6.5
• Watts RMS: 250 - 500
• Watts Peak: 1500
• Impedance: D2 VCD (In): 2
• Piston Diameter (In): 5.375
• Fs (Hz): 43.74
• Qms: 4.907
• Qes: 0.558
• Qts: 0.501
• Vas: 4.395
• Xmech (MM): 56
• Xmax (MM): 9
• Frame OD (In): 7
• Frame OD w/Gasket (In): 7 1/8
• Mounting Diameter (In): 6
• Mounting Depth (In): 4 1/2
• Motor Diameter (In): 5 1/2
• Motor Depth (In): 2
• Woofer Displacement (CuFt): 0.04
• Sealed Enclosure (CuFt): 0.25 - 0.5
• Ported Enclosure (CuFt): 0.25 - 0.75
• Shipping Weight (Lbs): 10.5
