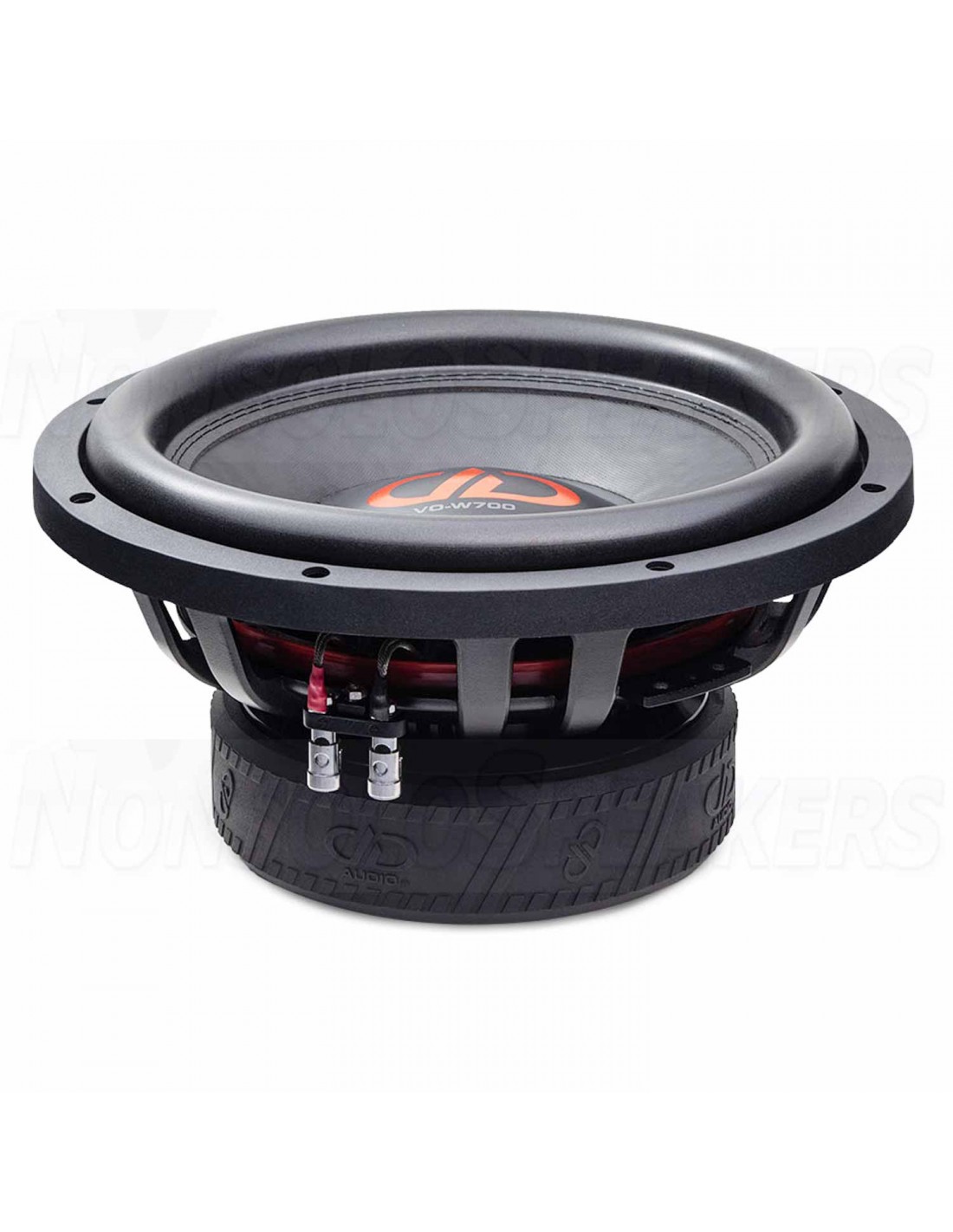

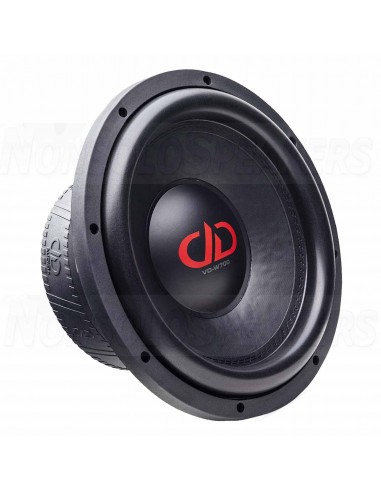

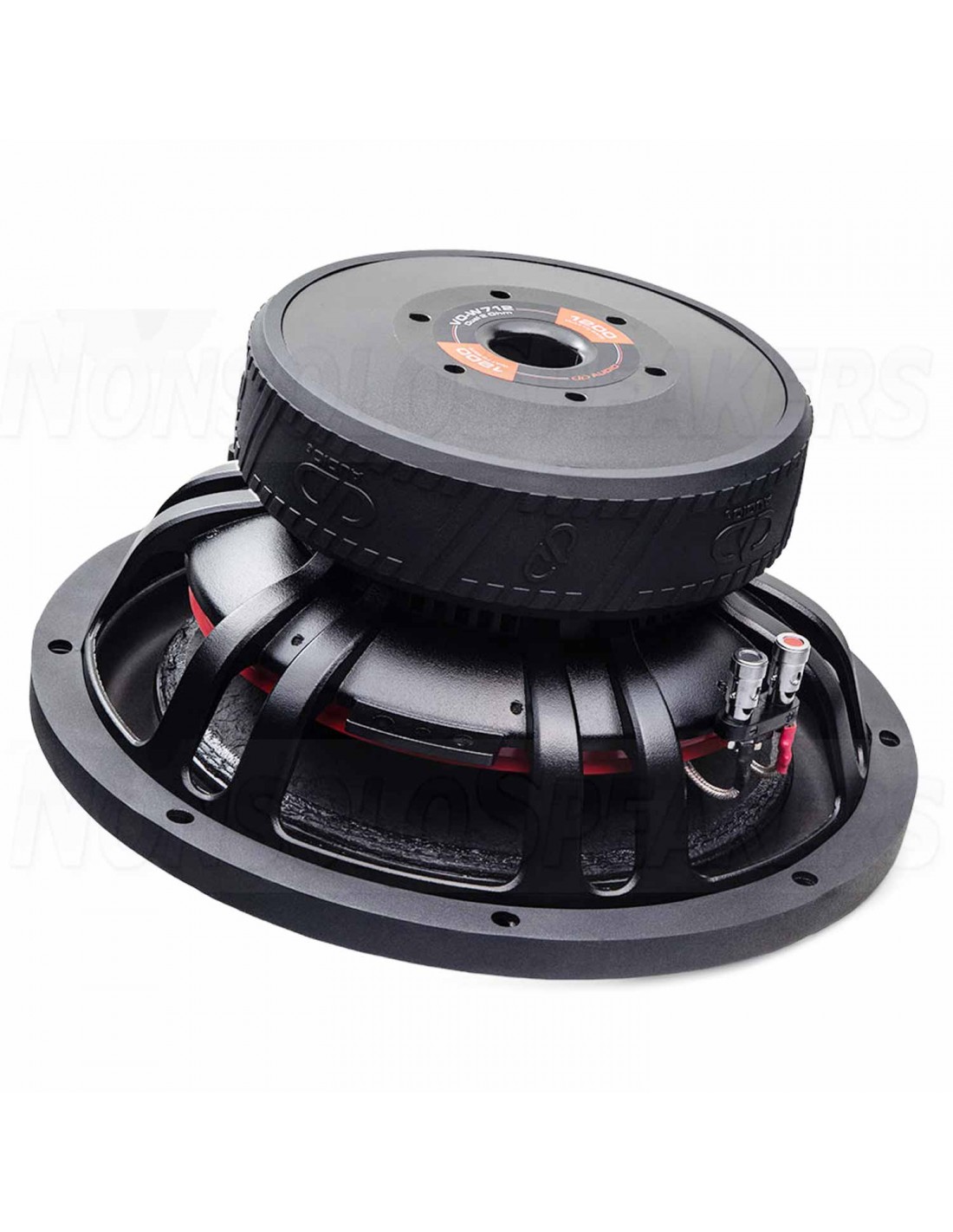

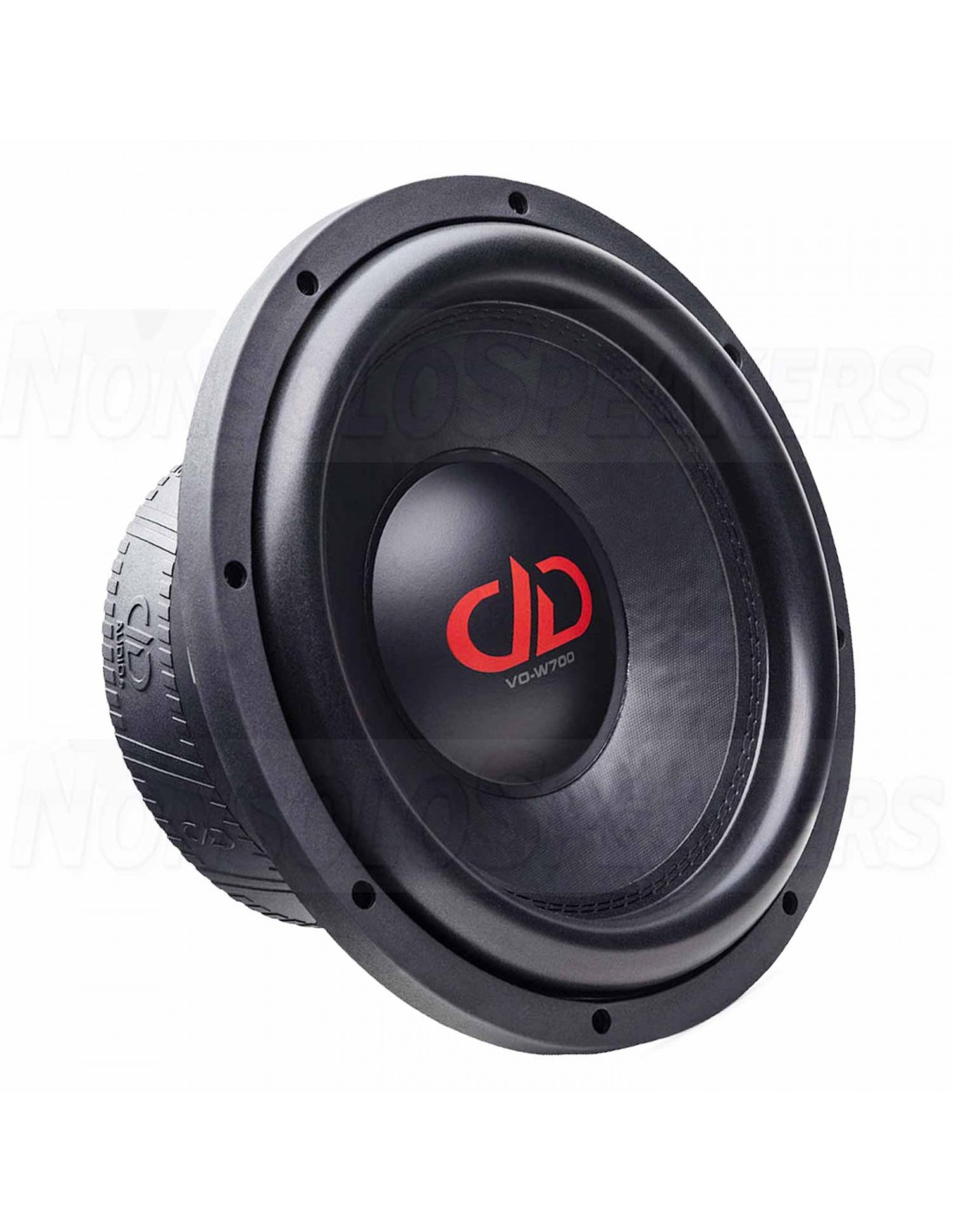

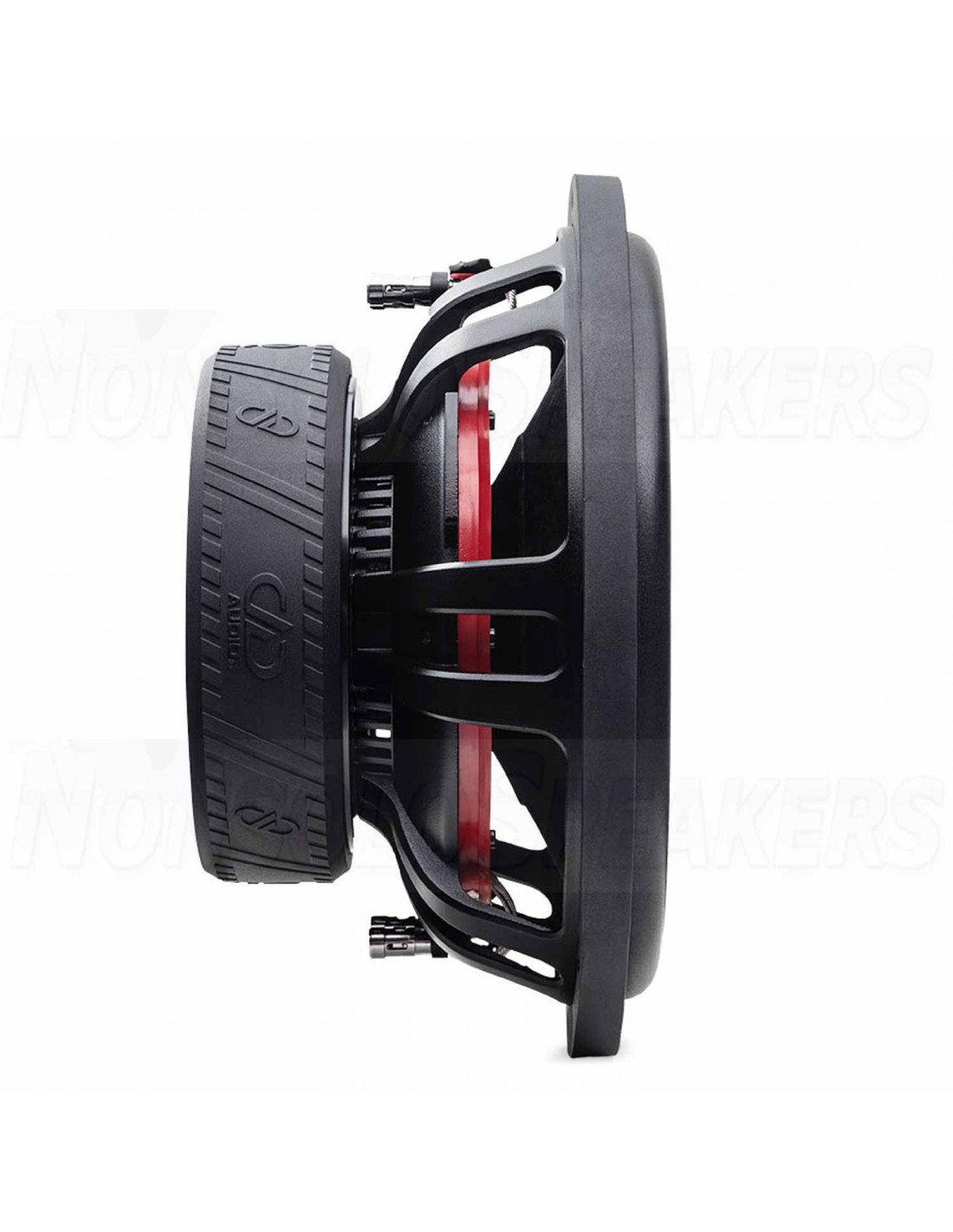

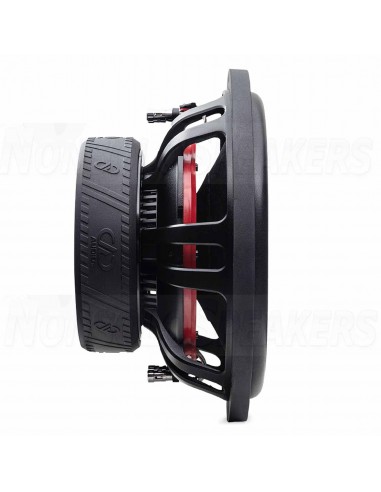

DD Audio VO-W712-D2 woofer speakers 2x2 ohm 30cm

.

The VO-W700s are drivers made to satisfy an underappreciated bandwidth between the bottom end of a midrange and the heavy lows of the subwoofer, striking a balance of clarity and power that puts them in a class of their own. With a rich pedigree tracing back to the 1990’s era of Digital Designs 9000 Series subwoofers, and a sleek undemanding profile, these woofers have been made for applications where depth is limited, but expectations are not.

The feature rich VO-W700 woofers are the ideal choice when the system design requires a higher crossover pointing to high output midranges, where normal subwoofer rolloff leaves a frequency gap. Best of all, the combination of high motor force, tight control, and compact cast frame, allow the VO-W700s to be used in small vented box designs, taking advantage of vehicle acoustic loading, allowing you to enjoy the low end punch with a higher frequency attack, from a myriad of locations in the most cramped of cabin spaces.

.

Technical Specifications

• Speaker Size (In): 12
• Watts RMS: 1200
• Impedance: D2
• VCD (In): 3
• Piston Diameter (MM): 247.7
• Frequency Response (Hz): 35 - 2k
• Fs (Hz): 40.85
• Qms: 5.807
• Qes: 0.517
• Qts: 0.475
• Vas (Liters): 17.57
• BL (TM): 30
• Xmech (MM): 30
• Xmax (MM): 12
• Frame OD w/Gasket (In): 12.625
• Mounting Diameter (In): 11 3/8
• Mounting Diameter (MM): 286
• Mounting Depth (In): 5.125
• Mounting Depth (MM): 130
