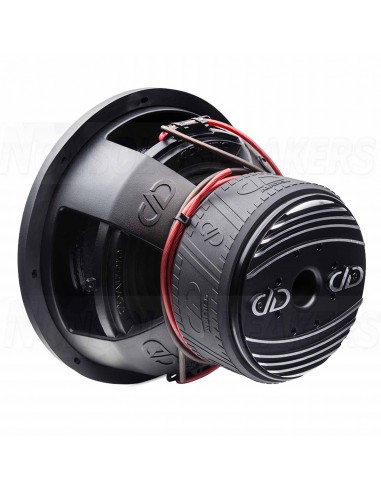

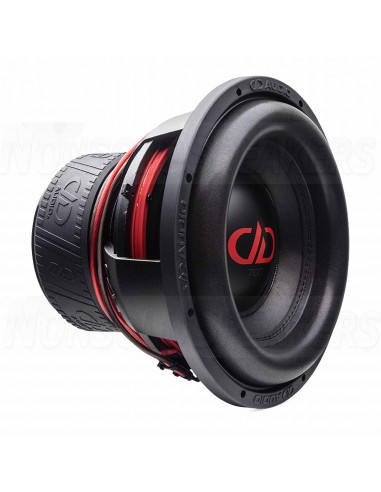

DIGITAL DESIGNS DD712f-D2 double coil 30 cm 2+2 ohm
DIGITAL DESIGNS DD712f-D2 double coil 30 cm 2+2 ohm
DIGITAL DESIGNS DD712f-D2 double coil 30 cm 2+2 ohm
  • On sale!
  • -15%
DIGITAL DESIGNS DD712f-D2 double coil 30 cm 2+2 ohm
DIGITAL DESIGNS DD712f-D2 double coil 30 cm 2+2 ohm
DIGITAL DESIGNS DD712f-D2 double coil 30 cm 2+2 ohm

DIGITAL DESIGNS DD712f-D2 double coil 30 cm 2+2 ohm

SHIPMENT IN 7/10 WORKING DAYS
€282.63 €332.50 -15%
rating No review at the moment

DIGITAL DESIGNS DD712f D2 double coil 30 cm 2+2 ohm

The 700f Series offers some of DD AUDIO’s most revered Power Tuned Subwoofers designed for exceptional power handling, with hard core bassheads in mind.

Estimated Shipping Costs
Shipping Costs
€269.00
Shipping Time
.
Want to check another country or courier?



DIGITAL DESIGNS DD712f-D2 double coil 30 cm 2+2 ohm

The 700f Series offers some of DD AUDIO’s most revered Power Tuned Subwoofers designed for exceptional power handling, with hard core bassheads in mind.

REVISION ‘F’
Previous revisions of the 600, 700 and 800 Series subwoofers made them bigger and better and in this latest “f” revision they receive precision engineered, thermal cooling enhancements of major significance along with some design work that is literally cutting edge.

THERMAL TRANSFER
The “f” revision subwoofers were specially engineered to deliver improved thermal transfer. The Dual Stage Aluminum Heat Sink works to conduct heat away from soft components, into open chambers where the Free Flow Cooling System is pushing through cooler inducted air in order to expel this heat.

MORE XMAX
As the top plate thickness was increased the voice coil winding was lengthend to keep more coil wire in the gap. More coil wire surrounded by both motor steel and billet aluminum pulls more heat away from the coil in all conditions, optimizing electrical efficiency in long term usage.

TALLER SURROUNDS
Increased Xmax and excursion required enhancements to the moving system, therefore taller surrounds have been tooled and the spider refined to fully optimize the new motor design. The taller surrounds are double stitched to fiberglass loaded non-pressed cones. Double layer, multiple spiders continue the DD tradition of long term durability.
.

DIGITAL DESIGNS DD712f-D2 Technical Specifications:

  • 12″ subwoofer
  • 3″ voice coil wound of Made in USA wire
  • 2x 2 ohms
  • alucast frame with dd-logos
  • power handling 1500 W RMS, 4500 W Peak
  • weight: N/A
  • mounting diameter: 288.9 mm
  • mounting depth: 228.6 mm
  • x-mech: 100 mm
  • x-max: +- 22 mm
  • fs: 32.13 Hz
  • qts: 0,4749
  • vas: 24.23 Liter
  • recommended ported enclosure: 49-85 liter ( NET )
  • recommended sealed enclosure: N/A
