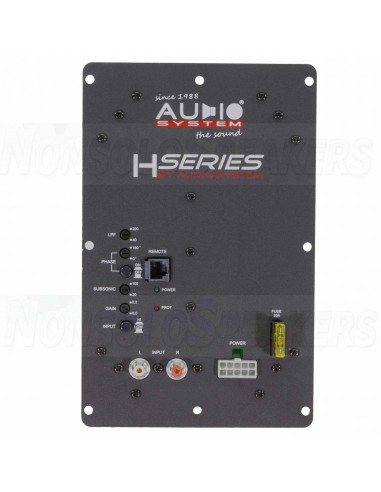

Audio System M-350.1 D built-in mono amplifier for sub

Audio System M-350.1 D built-in mono amplifier for sub

1-channel digital amplifier / active module

Description:

- Working voltage: 10 - 16 V

- Output power: at 14.4V / 3% THD

RMS power @ 4 ohms mono: 1 x 240 W

RMS power @ 2 ohms mono: 1 x 350 W

- Signal-to-noise ratio: > 96 dB

- Low pass filter: 40 - 220 Hz

- Subsonic filter: 20 - 100 Hz

- Transmission frequency: 20 Hz - 220 Hz (+/- 1 dB)

- Distortion factor at 4 ohms: < 0.048%

- Fuse: 1 x 20A

- Input sensitivity: 200 mV - 6 V (+/- 5%)

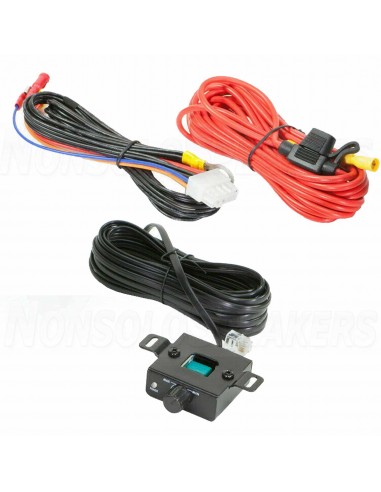

- Incl. RTC (level remote control)

- Dimensions metal lid: 210×135 mm

- Installation size: 165x106x55 (depth)mm
