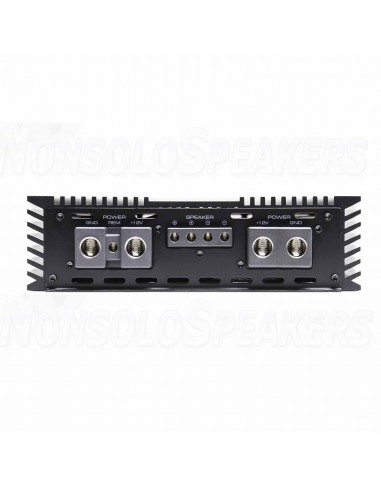

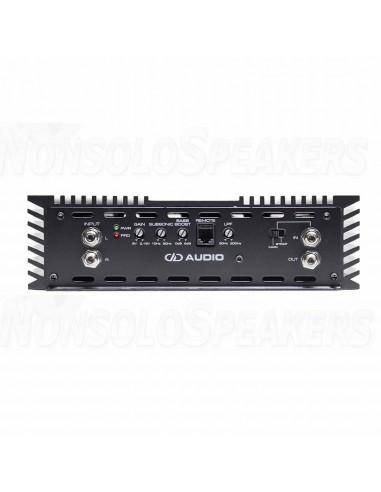

DD Audio M5a Amplifier mono

.

The latest revisions of the M5a amplifiers push the design limits of the traditional M Series circuit as far as it can go. Internally the power supplies have been optimized to better support the immense internal power demands when listeners push their system to the edge of its capability. Externally the chassis has been revised for better cooling and optional aesthetic upgrades. These amps are also the first offerings from DD to be ZVL ready making multi amp systems easier to set up and control.

.

Technical Specifications

• Operating Voltage: 9 - 16v
• Test Voltage: 14.4
• Channels: 1
• Cont Wattage @ 4ohm: 2800
• Cont Wattage @ 2ohm: 5000
• Cont Wattage @ 1ohm: 8000
• Dynamic Wattage: 10000
• Max Current Wattage Draw – Amps: 800
• RCA Input Sensitivity (Volts): 8v - 0.2v
• Frequency Response: 13Hz - 208Hz
• RCA Input S/N: 96dB
• Damping Factor: 210
• Pass-Through Output: No
• Remote Subwoofer Control: Yes (Remote Included in Box)
• Power Wire Gauge – In: 3 x 0
• Speaker Wire Gauge – Out: 10
• Dimensions (In): 27.5 x 9 x 2.6
• Optimized High Current Power Supply
• ZVL Linking Module Input
• 24dB/Oct Bandpass Filters
• Improved Cooling
• Custom Vanity Plate Ready

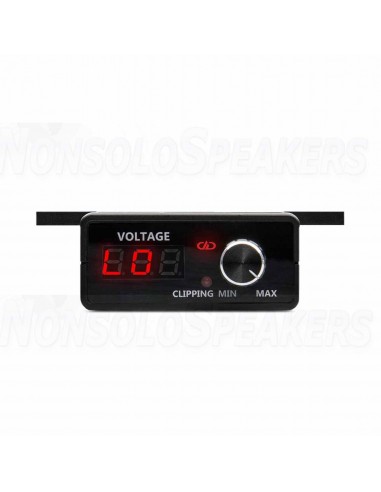

• Remote w/ LCD Voltage Display and Clipping Indicator
