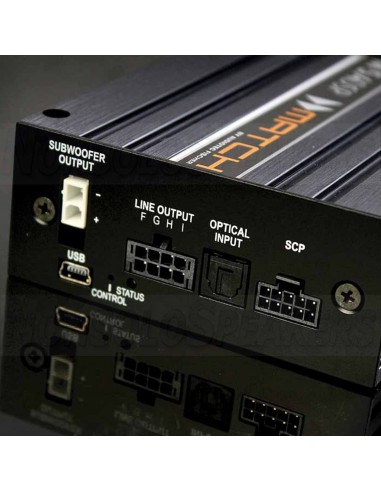

MATCH M 5.4DSP - AMPLIFIER 5 CHANNEL WITH 9 CH DSP

.

Technical data

Power RMS / Max.

- @ 4 Ohm: HighPower mode: 4 x 60 Watt / MidPower mode: 4 x 35 Watt

- Subwoofer output at 4 Ohm: High & MidPower mode: 1 x 90 Watt

- Subwoofer output at 2 Ohm: High & MidPower mode: 1 x 160 Watt

Amplifier technology: Class GD

Inputs:

- 4 x high-level speaker input

- 1 x optical SPDIF (12 - 96 kHz)

- 1 x remote in

Input sensitivity: 5 - 11 volts

High-level input impedance: 9 - 33 ohms with ADEP.3

Outputs:

- 5 x speaker output

- 4 x cinch

- 1 x remote out

Output voltage cinch: 3 volts

Frequency range: 20 Hz - 20,000 Hz

DSP resolution: 64 bit

DSP processing power: 295 MHz (1.2 billion MAC operations/second)

Sampling rate: 48 kHz

DSP type: Audio signal processor

Signal converter:

- A/D: BurrBrown

- D/A: BurrBrown

Signal-to-noise ratio digital input: > 105 dB (A-weighted)

Signal-to-noise ratio analog input: > 99 dB (A-weighted)

Total harmonic distortion (THD): < 0.03%

Attenuation factor: > 50

Operating voltage: 10.5 volts (max. 5 seconds down to 6 volts)

Power consumption: DC 12 V - 40 A max.

Idle current consumption: 280 mA

Max. remote output current: 500 mA

Fuse: 1 x 30 A maxi plug-in fuse (FK3)

Additional features: 32 bit CoProcessor, ADEP.3 circuit, auto remote switch, smart control port, start-stop capability, USB

Dimensions (H x W x D): 35 x 85 x 110 mm

.

Scope of delivery

1 x MATCH micro amplifier M 5.4DSP

1 x Control Input-to-SCP adapter

1 x USB cable

1 x connection cable PP-IOC (0.50 meters)

1 x subwoofer connection cable PP-SOC (0.45 meters)

1 x line output-to-cinch cable

1 x mounting material

1 x operating instructions
