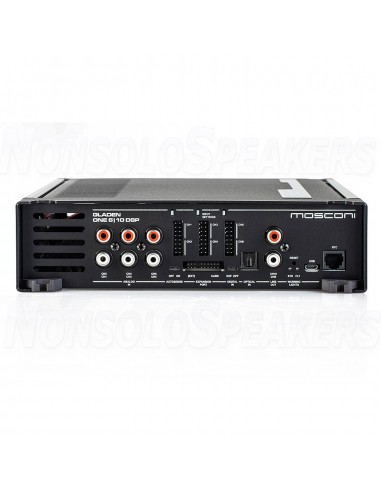

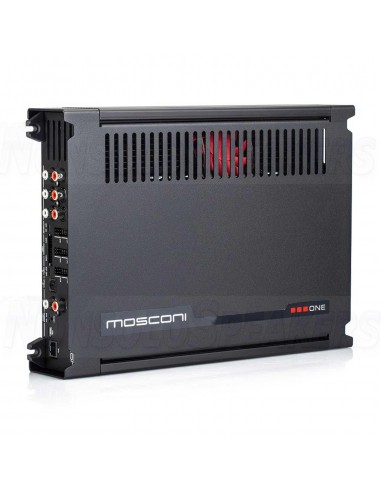

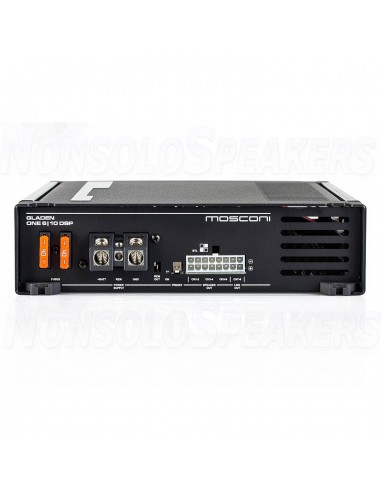

MOSCONI ONE 6/10 DSP 6ch Amplifier - 10ch DSP

6 CHANNEL HIGH QUALITY DSP AMPLIFIER - 10 CHANNEL DSP

.

Description:

The new MOSCONI ONE 6|10 DSP is a universal 6-channel DSP power amplifier in Class AB technology. It is the ideal power amplifier for loudspeaker systems in combination with efficient subwoofers.

In addition to the revised optics, this 6-channel amplifier has a 10-channel DSP with the latest software. The new ONE - Line amplifier series is now also compatible with our GUI 3.xx software and offers you the full range of functions.

The output stage section has remained analog to spoil the listener with a warm and powerful sound.

All speaker outputs can be bridged. Here the user has almost limitless configurations.

With its power of 6 x 100 watts RMS, the ONE 6|10 DSP is sufficiently equipped for large 3-way solutions as well as for complete multi-channel concepts.

The integrated 10-channel DSP offers two additional stereo outputs for system expansion.

The MOSCONI ONE 6|10 DSP has a Molex speaker connection. This not only ensures clean cabling, but is also compatible with all Plug&Play cable sets from our SoundUp program.

-

6 channel DSP amplifier

Class AB technology

Up to 6 x 120 watts @ 2 ohms

"New One Generation"

6 channel amplifier

New design

Analog amplifier technology

10 channel DSP

Loudspeaker outputs can be bridged

6 x 100 watts @ 4 ohms

6 x 120 watts @ 2 ohms

3 x 240 watts @ 4 ohms (bridged)

Auto On (High Level)

Technical specifications:

-

Specifications:

Output power at 4 ohms: 6 x 100 watts

Output power at 2 ohms: 6 x 120 watts

Output power at 4 ohms: 4 x 95 watts + 1 x 250 watts BTL

Bridge power at 4 ohms: 3 x 240 watts

-

DATA:

Input Sensitivity: 0.35V - 16V

Fuses: 2 x 40A

Analog DSP Output: 4 x 2Vrms

Digital input: Optical (Toslink)

Remote Control: RTC (optional)

Dimensions: 29 x 21 x 5.5 cm
