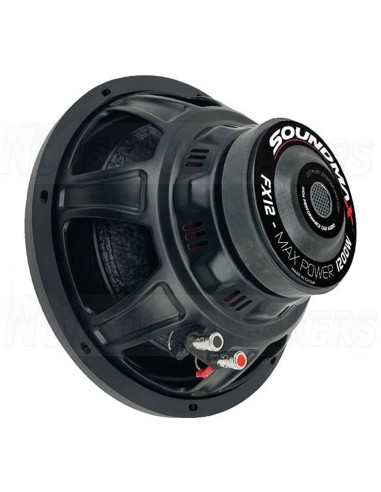

Soundmax SX-FX12.D4 12" subwoofer 2x4 Ohm 300W RMS

.

The Soundmax SX-FX12 is a well-built and reliable 12-inch subwoofer, designed to deliver rich and controlled bass in a variety of systems. With a power handling of 300W RMS (1200W max), it can handle high sound levels without compromising on precision.

The subwoofer covers a frequency range from 35 Hz to 1500 Hz, making it flexible enough to provide both deep bass and a smooth transition to the midrange. The generous cone area of ​​491 cm² and the well-balanced moving mass contribute to effective air movement and a stable foundation in the lower registers.

With a 2-inch voice coil and a powerful magnet system, the SX-FX12 is built for endurance and long-lasting performance. The basket is stable and the ventilation solution ensures good cooling of the voice coil even at high load. The result is a subwoofer that combines reliability with impressive playing pleasure.

With an outer diameter of Ø 312 mm, mounting holes of Ø 292 mm and an installation depth of 142 mm, the element fits into most standard boxes for 12-inch subwoofers. With a weight of 3.5 kg, it is also easy to handle and install.

.

Technical Specifications

• Woofer size 12"
• Power handling RMS 300W
• Power handling MAX 1200W
• Frequency range 35-1500 Hz
• Impedance 2x4 Ohm
• FS 37.35 Hz
• RE 2x 3.6 Ohm
• QES 2.27
• QMS 5.76
• QTS 1.63
• Vas 42.43 L
• Voice coil size 2
• Sensitivity 89 dB
• CMS 0.1261
• MMS 134.97
• SD 491 cm2
• Outer diameter Ø 312 mm
• Installation depth 142 mm
• Mounting hole Ø 292 mm
• Weight 3.5kg
