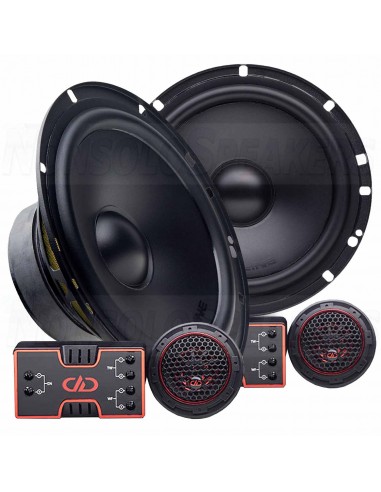

DIGITAL DESIGNS RL-C6.5 + RL-X6.5 system

The new REDLINE Series coaxials and component speakers were designed to take your daily listening to the next level without taking your hard earned cash. These 6.5 inch midrange speakers and 13mm tweeters offer compact motors and baskets, making them ideal for a quick and easy drop-in installation. A balance between power efficiency and power handling design elements allow these speakers to perform well at factory power levels, while they really come to life when paired with an aftermarket DD Audio amplifier.

.

Technical Specifications RL-C6.5 (2 way kit)

MIDRANGE
Speaker Size (In): 6.5
Watts RMS: 65 - 225
Impedance: S4
VCD (MM): 25
Frequency Response (Hz): 75 - 20k
dBSPL: 88
Mounting Diameter (In): 5.6
Mounting Diameter (MM): 143
Mounting Depth (In): 2.3
Mounting Depth (MM): 58.5

TWEETER
Speaker Size (MM): 13
Mounting Diameter (In): 1.87
Mounting Diameter (MM): 47.4
Mounting Depth (In): .67
Mounting Depth (MM): 17

.

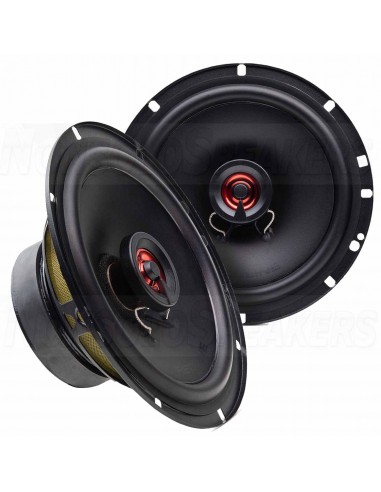

DIGITAL DESIGNS RL-X6.5 6.5″ coaxial speaker

The new REDLINE Series coaxials and component speakers were designed to take your daily listening to the next level without taking your hard earned cash. These 6.5 inch midrange speakers and 13mm tweeters offer compact motors and baskets, making them ideal for a quick and easy drop-in installation. A balance between power efficiency and power handling design elements allow these speakers to perform well at factory power levels, while they really come to life when paired with an aftermarket DD Audio amplifier.

.

Technical Specifications

Speaker Size (In): 6.5

Tweeter Size (MM): 13

Watts RMS: 65 - 225

Impedance: S4

VCD (MM): 25

Frequency Response (Hz): 75 - 20k

dBSPL: 88

Mounting Diameter (In): 5.6

Mounting Diameter (MM): 143

Mounting Depth (In): 2.3

Mounting Depth (MM): 58.5

For a perfect result, we recommend soundproofing the front and rear doors using a professional ➡️ CTK STANDARD DOORKIT
