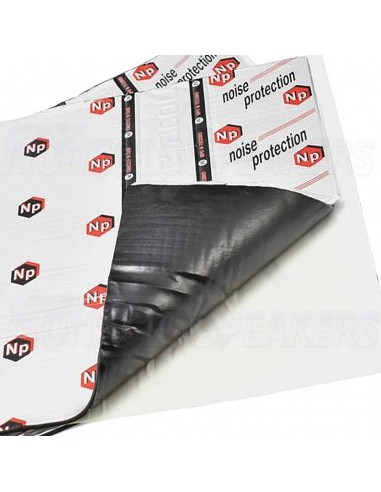

VBF Vibra Flex 40 - 4.0 mm damping material

-

VBF Vibra Flex 40 - 4.0 mm damping material: Self-adhesive anti-vibration material with a thickness of 4.0 mm.

- self-adhesive anti-vibration, damping and anti-corrosion material for use in cars, agricultural machinery, engineering

- serves to prevent unwanted resonances, dampens vibrations and absorbs acoustic waves

- composition: self-adhesive layer, polymer layer based on butyl rubber and aluminum foil

- higher grammage of ALU foil (0.1 mm) with anti-tear design during installation

- highly flexible and elastic wetted material for easy application

- resistant to water and oils

- excellent anti-corrosion and sealing properties

- temperature resistance: -45°C to +90°C (for 24 hours )

- easy installation on any surfaces without the need for heating

- use for cars, agricultural machinery and other technical equipment requiring noise and vibration reduction

- can be stored in a dry environment at temperatures up to 40°C in a horizontal position

.

Recommended use in the car: floors, doors, roof, dashboard, engine and luggage compartment, wheel arches, etc.

.

Technical properties:

- plate size 50 x 35 cm (0.175 m2)

- material thickness 4.0 mm + 0.1 mm ALU foil (+/- 0.2 mm)

- weight 6.4 kg / 1 m2

- acoustic loss factor at 200Hz: 0.6

- strength of the connection on the metal surface at temperature -45 to +70°C 6N/cm

- non-flammable

- the whole package contains 10 pcs (1.75 m2)

Price for 1 plate

.

How to apply the damping material Vibra Flex 4.0 mm?

1) Degrease the surface.

2) Cut the damping material into pieces approx. 15x15 cm in size

3) Apply from the bottom up with an overlap of about 0.5 cm (as if you were putting bags on the roof, the water from the material will then run down to the drainage channels and will not get under the material)

4) Carefully roll out with the  ➡️ CTK ROLLER

-

Our TIP:  For maximum efficiency in noise reduction, we recommend layering the material with a second layer of  ➡️ VBF NOISE NEOPRENE 3 (undercarriage) or ➡️ VBF NOISE NEOPRENE 6 (doors, floor, sides, etc.).
