Audio System HX 165 SQ-4 EVO 3 - 2 way kit

Audio System HX 165 SQ-4 EVO 3 - 2 way kit

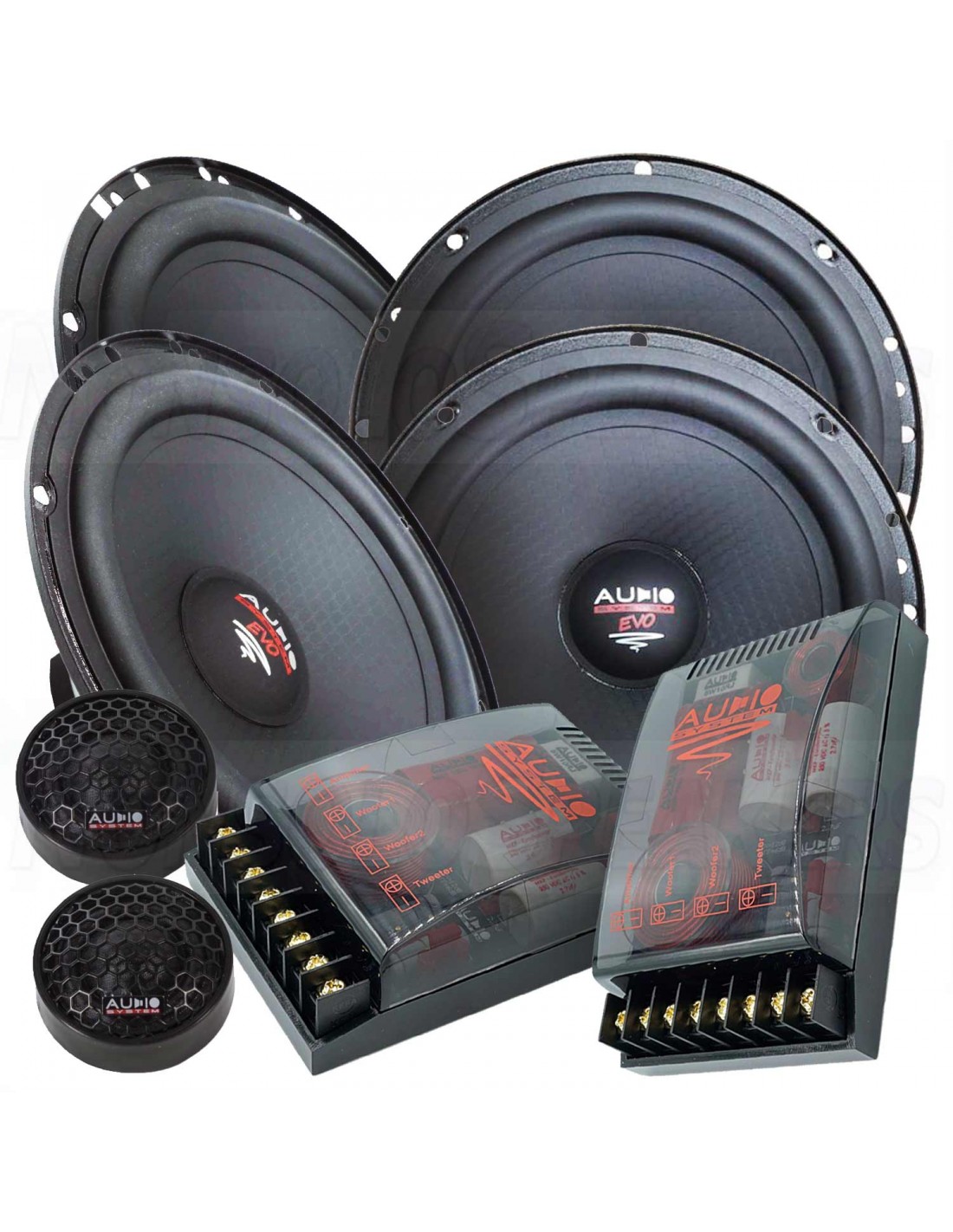

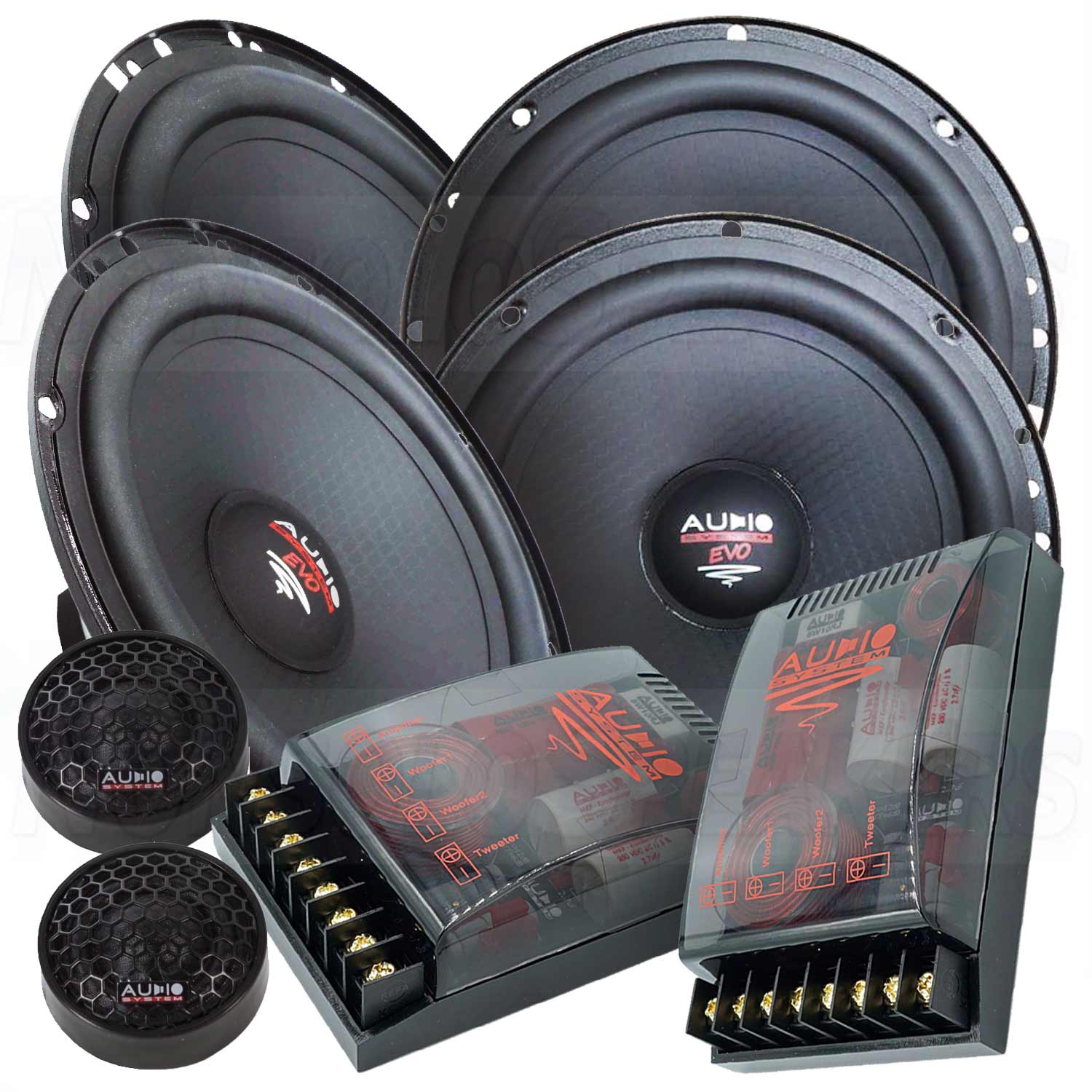

Audio system HX-SERIES SQ 2-way system 165 mm 2-way HIGH END compo system consisting of:

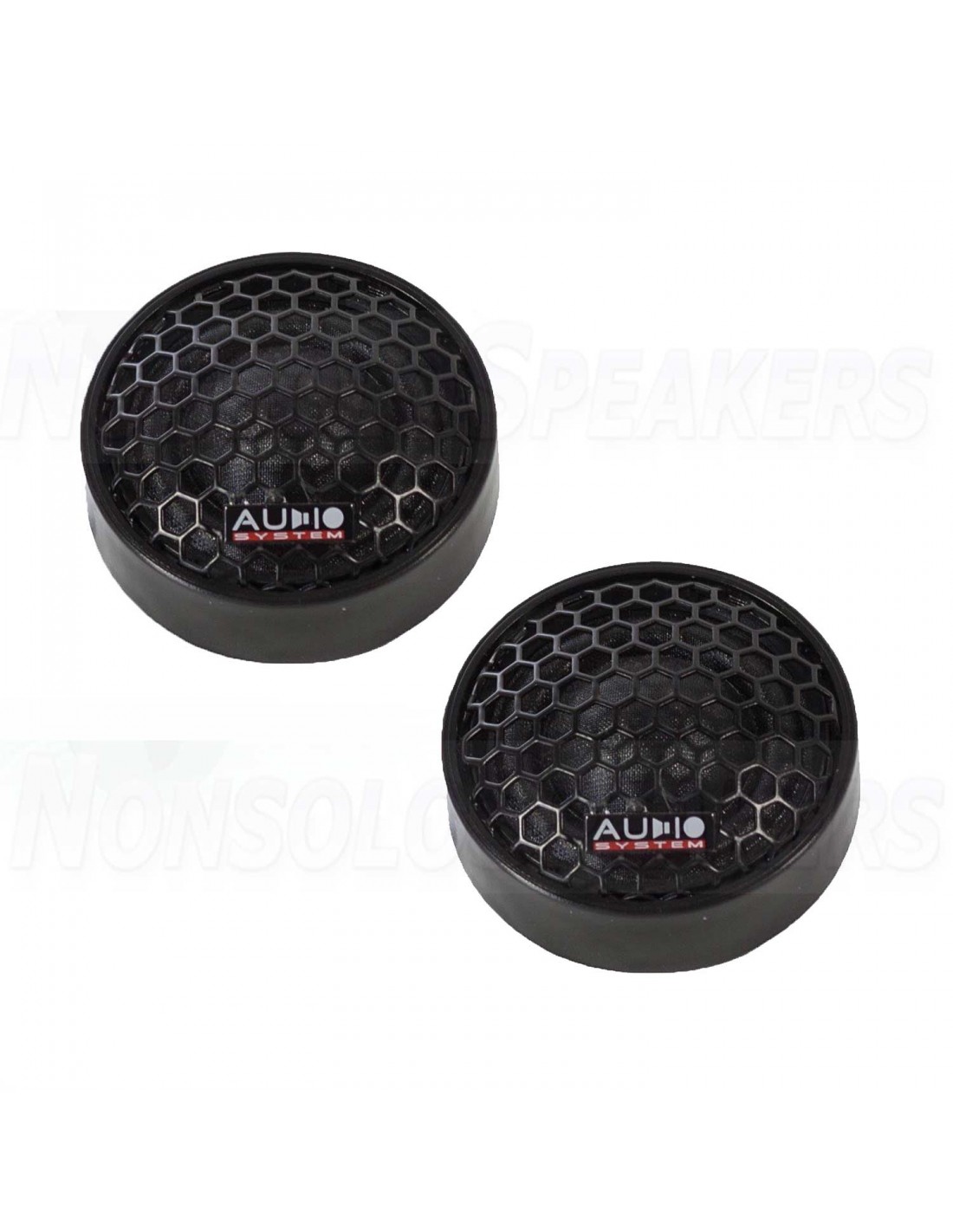

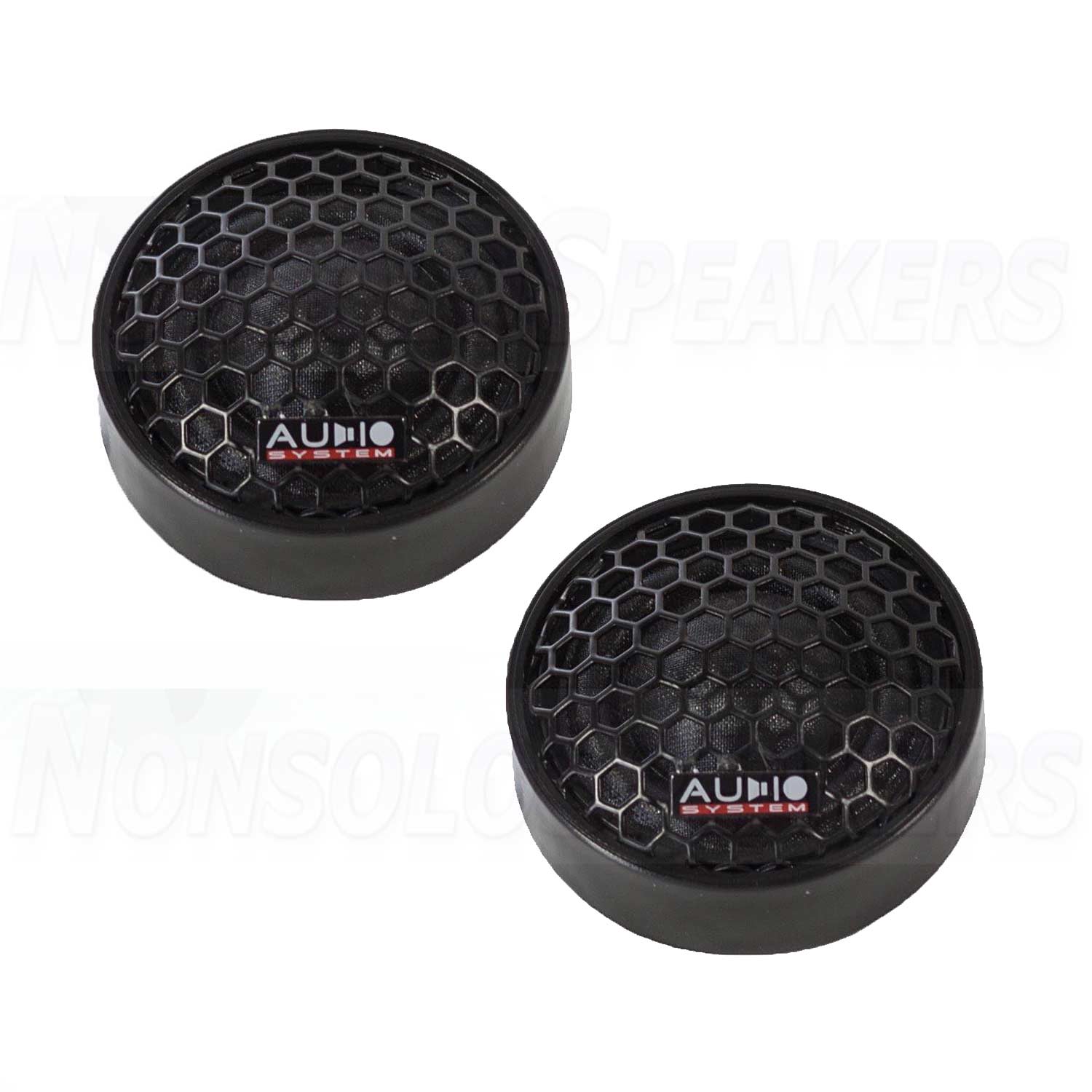

2x audio system HS 25 EVO 2

25 mm fabric neodymium tweeter

protective grid

Superstructure and substructure holder

ferrofluid cooling

Fs: 960 Hz

Outside diameter with holder: 53.5 mm, without holder: 44 mm

Installation depth with holder: 16 mm, without holder: 21 mm

Installation dimensions with holder: 47.5 mm, without holder: 44 mm

Height surface-mounted housing: 28 mm

Impedance: 4 ohms

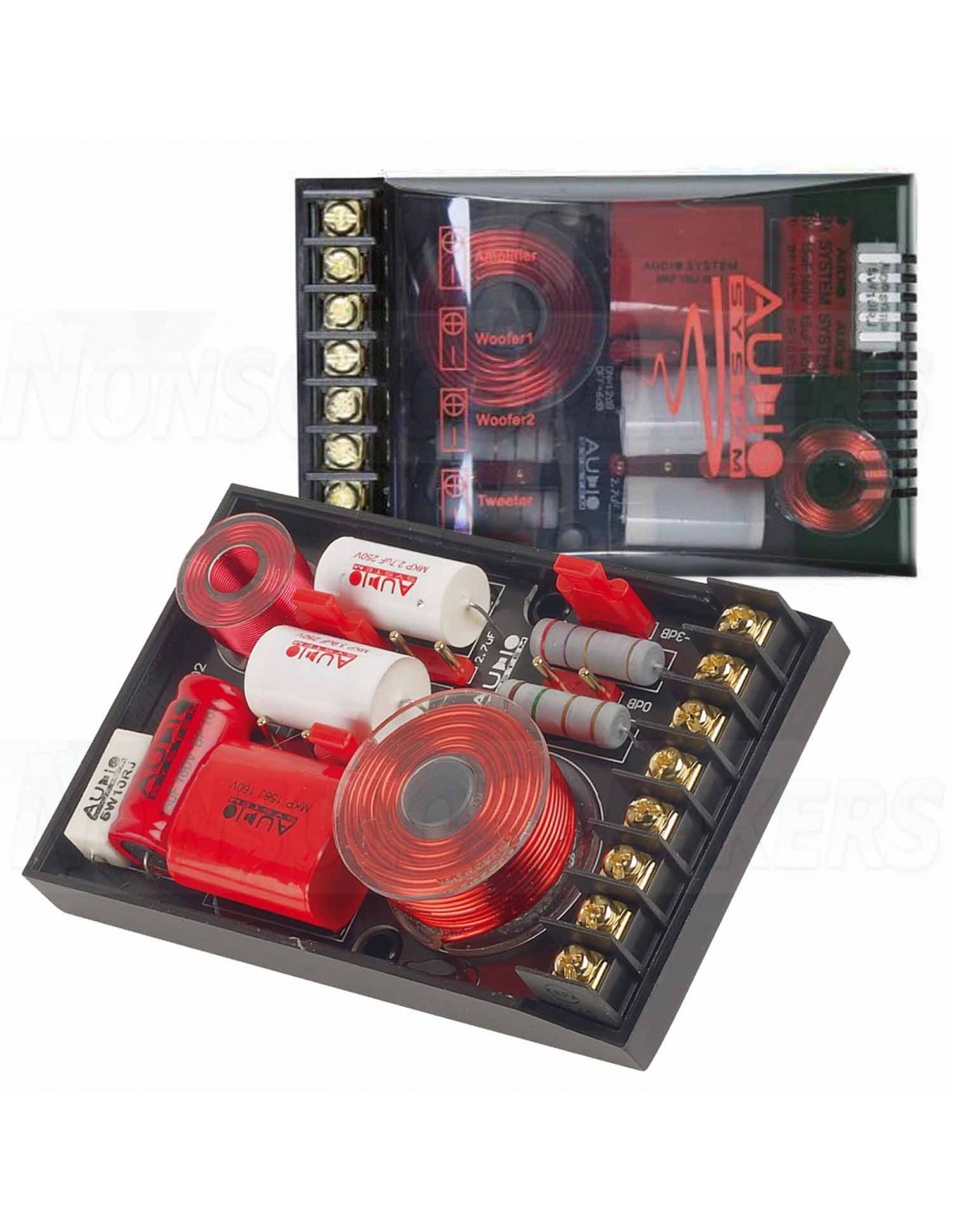

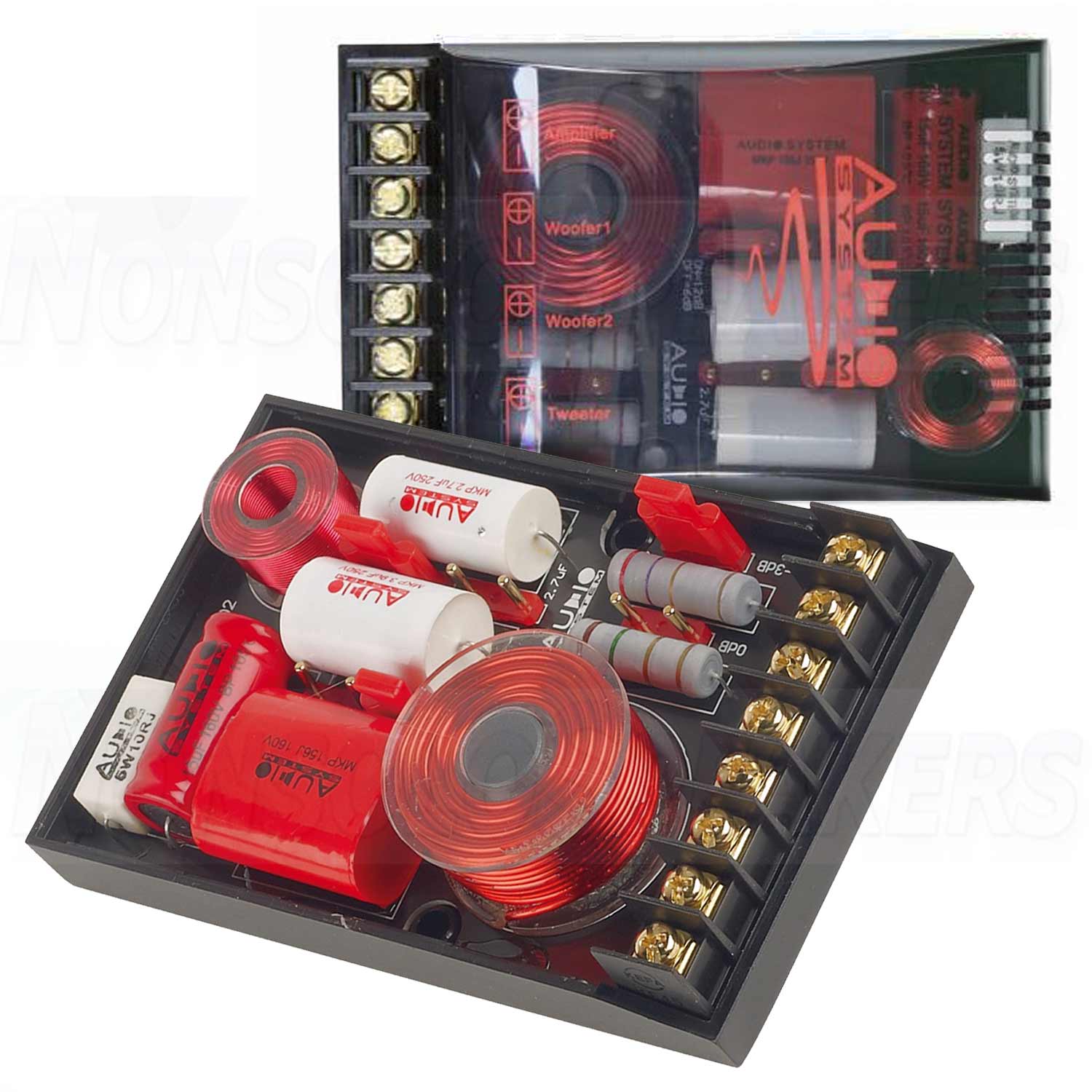

2x Audio System FWX EVO 2 crossovers

2-way crossover with 3000-fold acoustic adjustment

12 dB crossover with PTC tweeter protection circuit

Impedance linearization and pluggable HIGH END gold bridges,

suitable for 2, 4 and 8 ohm systems, 12.8x8.5x3.8cm

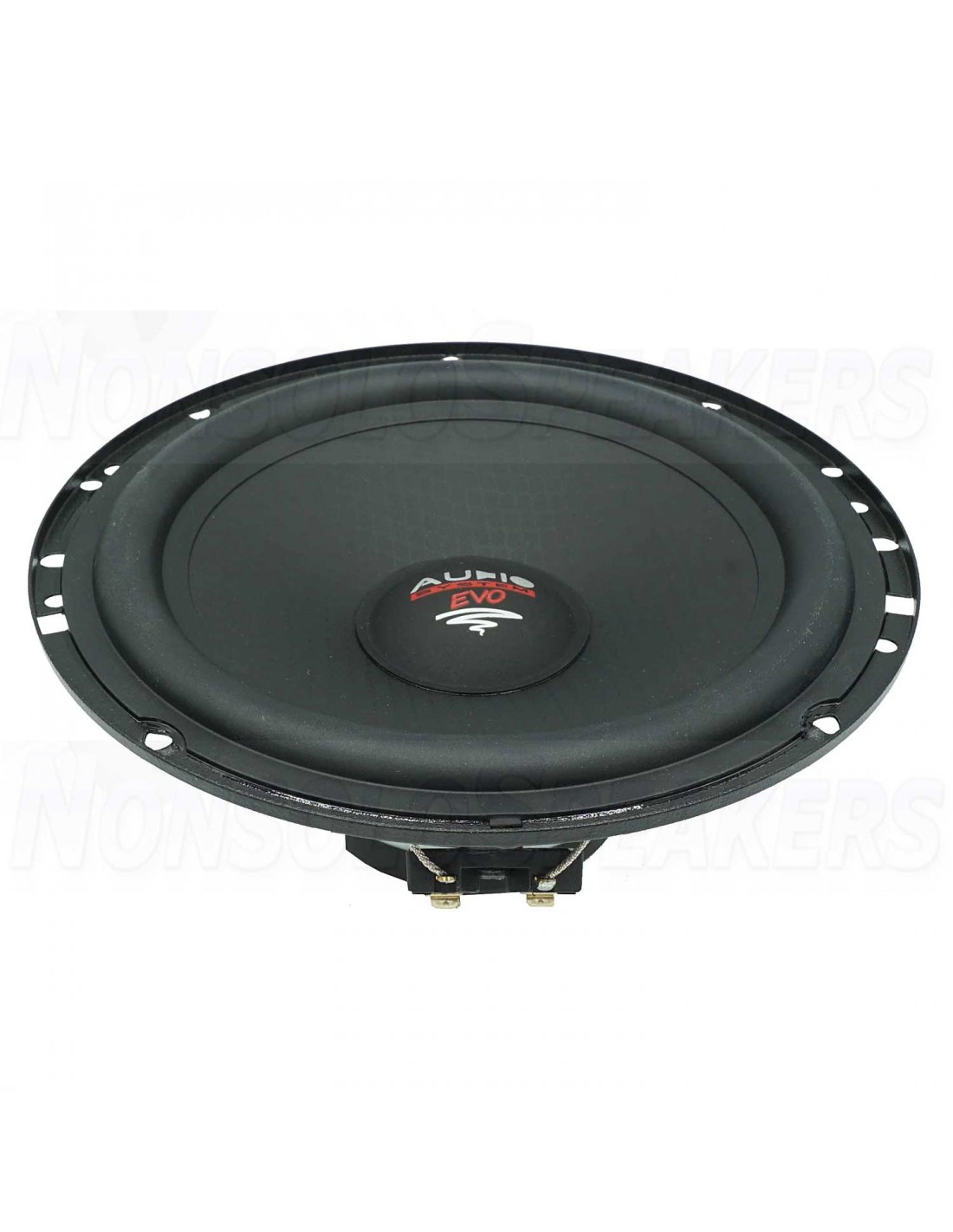

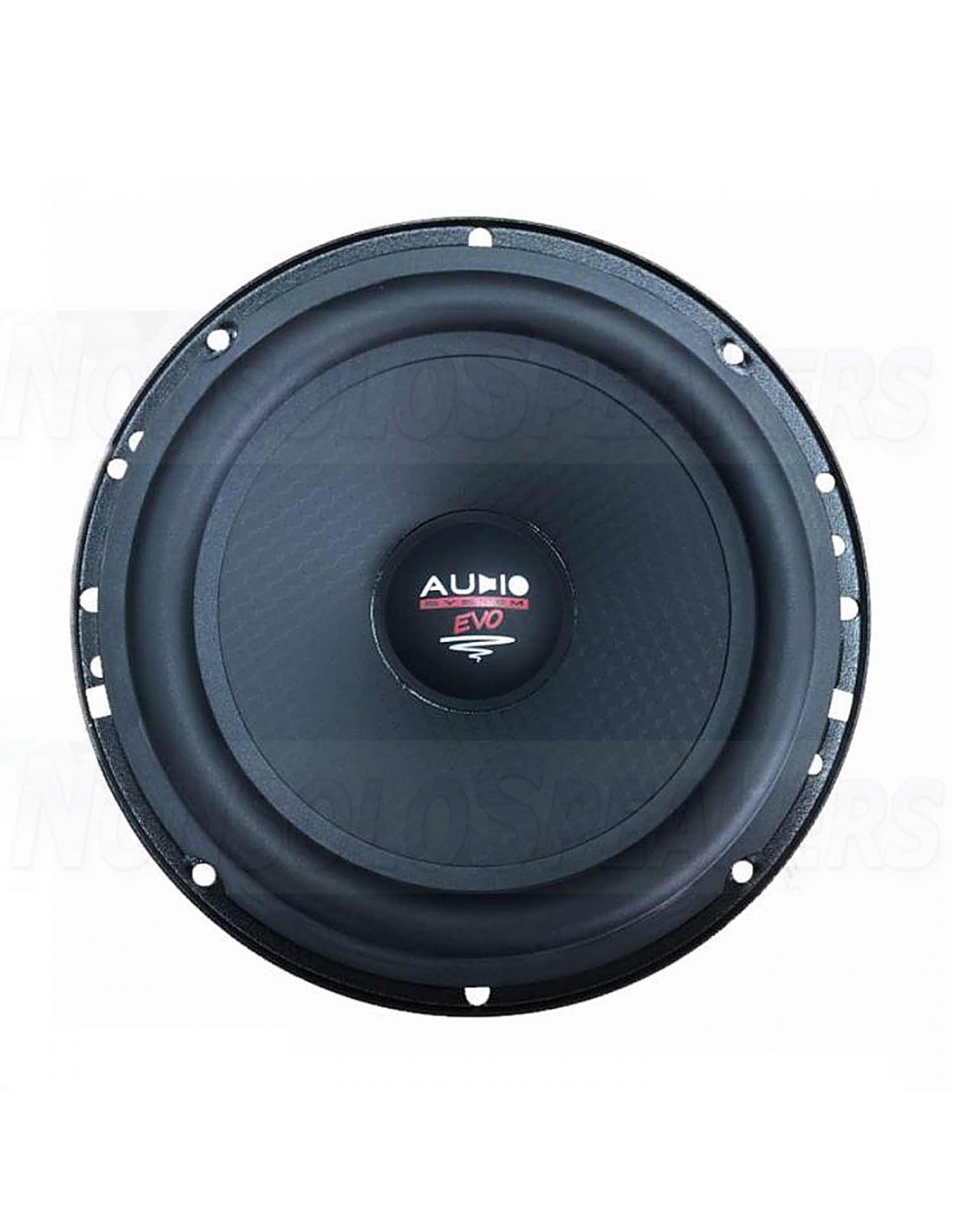

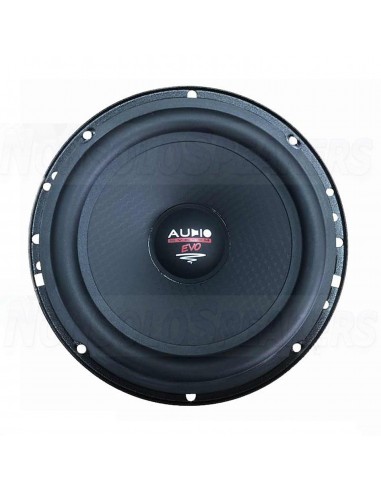

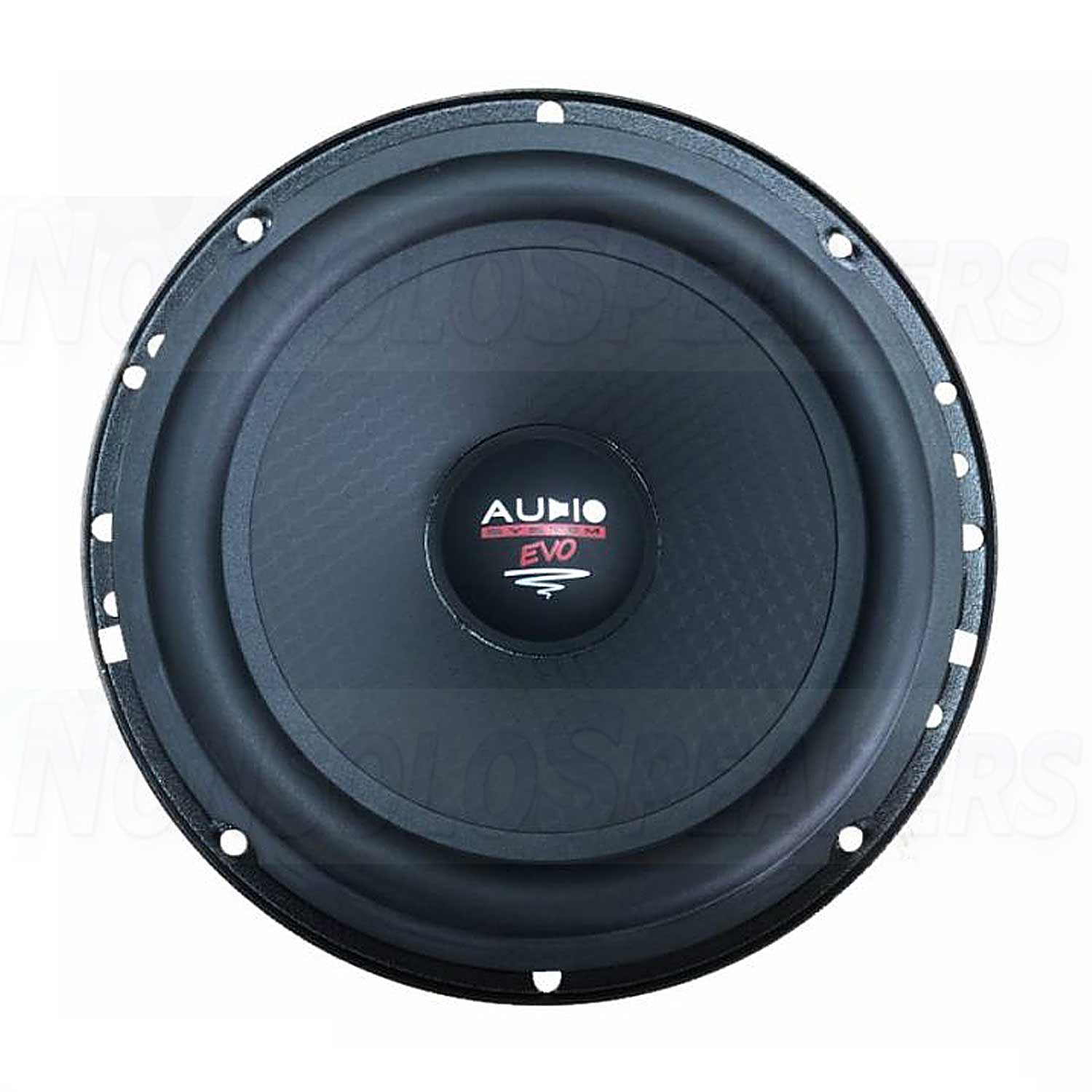

4x Audio System EX 165 SQ EVO 3

165 mm high-end speaker with ventilated basket

ultra stable and light NAWI glass fiber membrane and Nomex spider

very deep rendition

Outer diameter: 167mm

Installation depth: 65 mm

Installation dimension: 143 mm

Impedance: 4 ohms

Power: 140/120 watts
