DIGITAL DESIGNS EC6.5 2 way Component Speaker System

Overview

The E Class 6.5 Component Speakers are perfect for the listener who wants to instantly take their system from factory to fantabulous. This 2-way set offers high-end features and an outstanding sound that rivals much more expensive component sets.

Any DD Audio Product bearing the Marine Grade logo incorporates water resistant features enabling it to be used in applications where moderate exposure to moisture will not result in damage to the product.

Marine Grade products are not waterproof, and submersion or excessive moisture exposure may result in product failure. DD Audio Marine Grade products are not certified for saltwater environments.

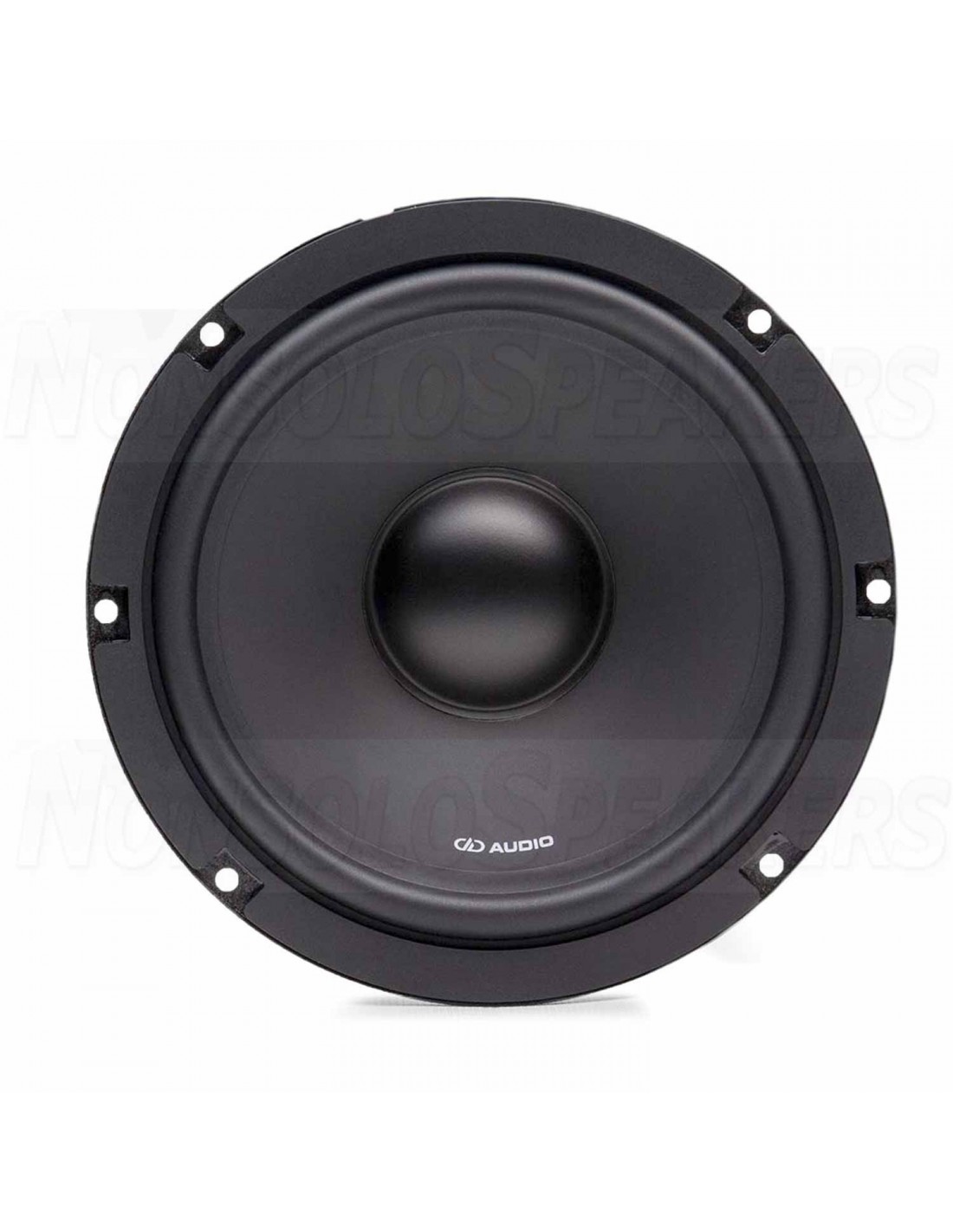

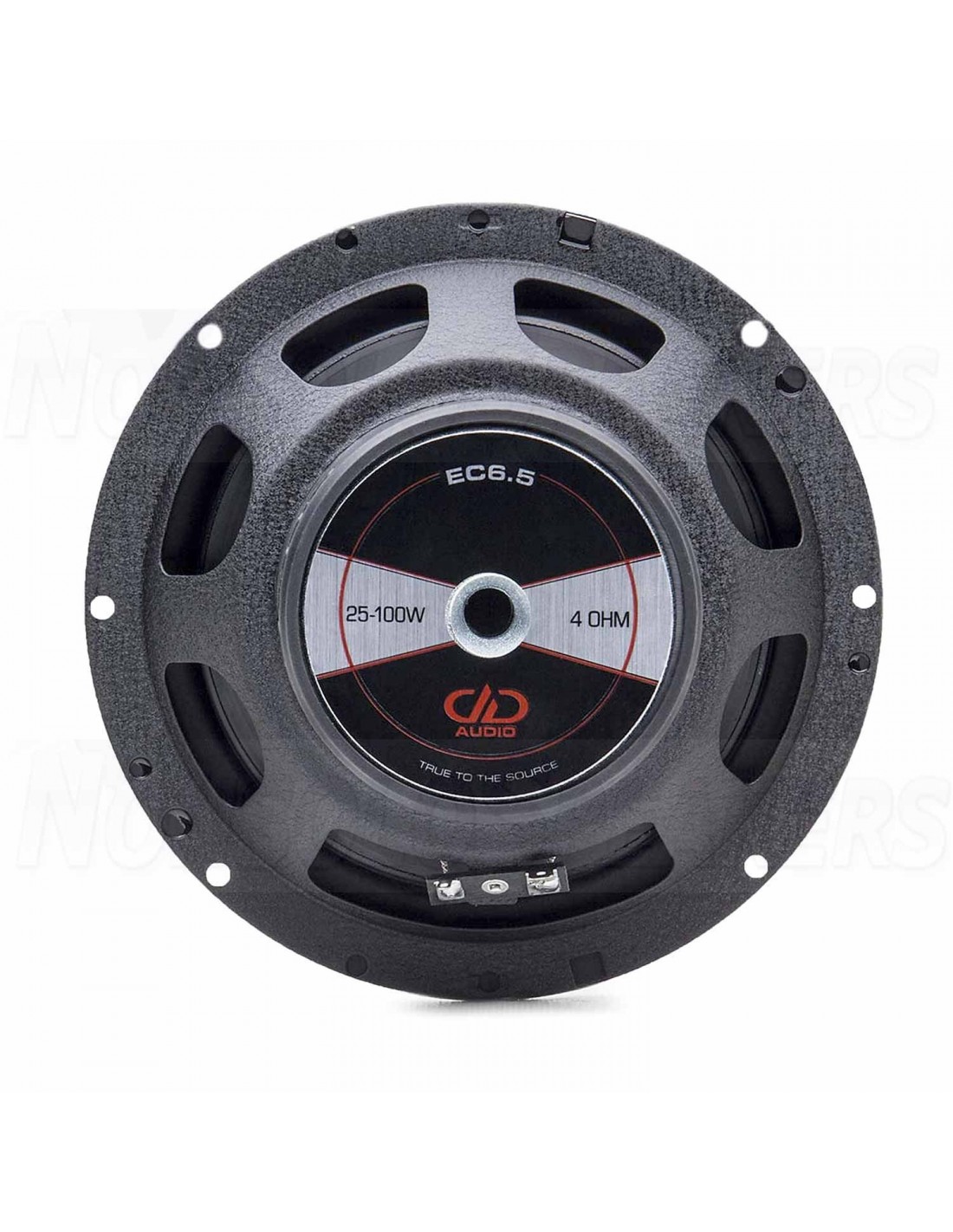

Woofer

The 6.5-inch woofer features an injection molded poly cone, rubber surround, and rigid steel frame. For reduced inductance, extended high-frequency roll off, and increased efficiency the voice coils features a double slit former and the motor utilizes a copper pole cap. The soft parts are driven with a high flux 11 Oz ferrite magnet motor.

Tweeter

The 20-mm silk dome tweeter comes with flush-mount and surface-mount solutions.

Crossover

The crossover networks are built with premium components including mylar capacitors, segmented air-core inductors and poly fuses for tweeter protection. Two selectable tweeter levels are provided for fine high-frequency tuning.

.

Specifications

     Driver Size Woofer 6.5 "/ Tweeter 20mm
     Watts RMS 25
     Peak Power 100
     Impedance S4
     Frequency Response - Hz 50-20k
     Mounting Diameter - in Woofer 5 5/8 / Tweeter 1 19/32
     Mounting Depth - in Woofer 2 1/2 / Tweeter 17/32
     Shipping Weight - 10 lbs

EC6.5
Driver Size: 6.5 "
Watts RMS: 50
Peak Power: 100
Impedance: S4
Frequency Response (Hz): 50 - 20k
Mounting Diameter (In): 5 5/8
Mounting Depth (In): 2 1/2

Tweeter
Driver Size: 20mm
Mounting Diameter (In): 1 19/32
Mounting Depth (In): 17/32
