Product description

The Dayton Audio line of 2-way crossovers were designed using a second order (12 dB/octave) Linkwitz-Riley alignment. Dayton Audio metallized polyester film capacitors are used in both the high and low-pass sections.

.

Highlights

18 gauge inductors are used to keep DC resistance to a minimum

Unique design feature of the low-pass section allows for use of 4 or 8 ohm woofers

All components are glued or fastened down to eliminate buzzing and vibrations

High quality blue PC board uses a back plate for added rigidity

.

Product details

Dayton Audio XO2W-3.5K 2-Way Speaker Crossover 3,500 Hz

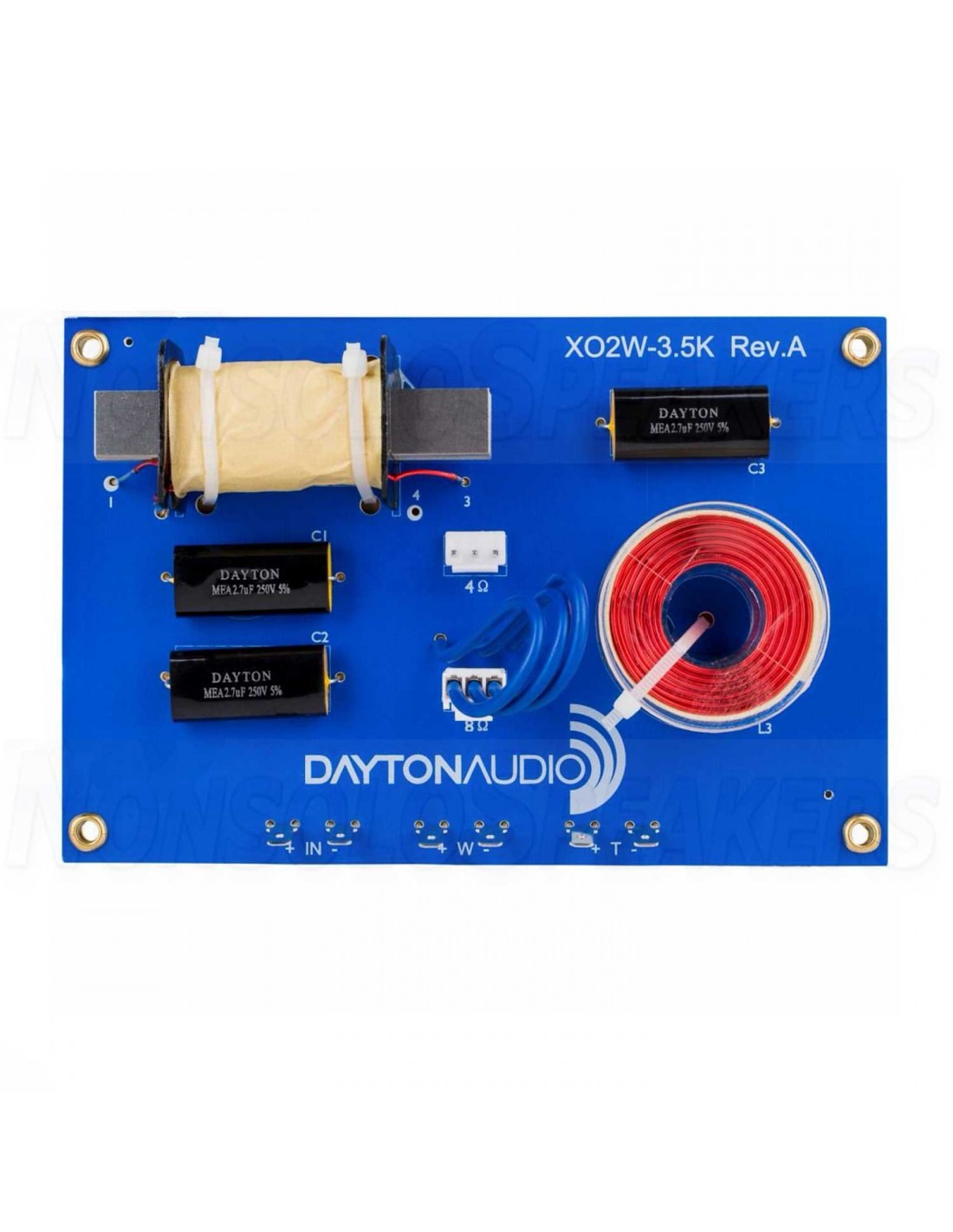

The Dayton Audio line of 2-way crossovers were designed using a second order (12 dB/octave) Linkwitz-Riley alignment. Dayton Audio metallized polyester film capacitors are used in both the high and low pass sections. 18 gauge inductors were used to keep DC resistance to a minimum. A unique design feature of the low-pass section allows for use of 4 or 8 ohm woofers, perfect for building D'Appolito style or multi woofer 2-way systems. The high-pass crossover frequency is rated for an 8 ohm load. All components are glued or fastened down to eliminate buzzing and vibrations. The high quality blue PC board uses a back plate for added rigidity and eyelet holes for easy mounting. Available in a variety of crossover points. 300W power handling. Board measures: 6-1/2" W x 4-1/4" H x 1-3/8" D. Terminals are 0.205".

XO2W-3.5K
