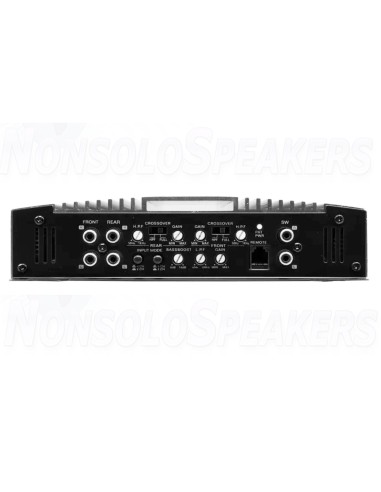

Soundmax SX-PW5024.5 24V 5-Channel amplifer Class AB 100Wx4 + 400Wx1 @ 2 ohm

Perfect for heavy-duty installations in trucks or other vehicles with higher operating voltage.

Variants
Soundmax SX-PW5024.5 24V 5-Channel amplifer Class AB
Soundmax SX-3100.4 24V 4-channel amplifier Class AB
Soundmax SX-N700.4 amplifier 4 channel
Soundmax SX-N2000.1D mono amplifier
Soundmax SX-N1000.1D mono amplifier
Soundmax SX-N500.4 mono amplifier
Soundmax SX-LX4225.4D amplifier 4 channel
+6
+6
Soundmax SX-LX4125.4D amplifier 4 channel
Soundmax SX-N1000.1D mono amplifier
Soundmax SX-LX1200.1D mono amplifier
Soundmax SX-N300.4 amplifier 4 channel
Soundmax SX-LX4350.4D amplifier 4 channel
SHIPMENT IN 7/10 WORKING DAYS
€182.00
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€19.08
Shipping Time
.
Want to check another country or courier?

You might also like



Soundmax SX-PW5024.5 24V 5-Channel amplifer Class AB 100Wx4 + 400Wx1 @ 2 ohm

.

The Soundmax SX-PW5024.5 is a versatile and powerful 5-channel amplifier designed for 24-volt environments, perfect for heavy-duty installations in trucks or other vehicles with higher operating voltage. With 100W x 4 + 400W x 1 RMS at 2 ohms, it delivers both clean power and refined sound reproduction – whether you're driving speakers, a subwoofer, or both.

The amplifier is built using Class AB technology, providing both warmth and clarity in the sound, and offers stable output even when bridged at 4 ohms (100W x 2 + 400W x 1 RMS). For traditional setups, it also delivers 65W x 4 + 350W x 1 RMS at 4 ohms.

With adjustable low-pass filter (50–250 Hz) and subsonic filter (20–180 Hz), you can optimize the sound to match your system. A signal-to-noise ratio over 98 dB and low THD (0.01%) ensure a clean signal and detailed playback. The operating voltage ranges from 22–26 V, providing stability even in demanding conditions.

An ideal choice for those who want both power and control in a single compact and affordable amplifier.

.

Technical Specifications

  • Number of channels 5 channels
  • Power into 2 ohms RMS 100Wx4 + 400Wx1
  • Power into 4 ohms bridged RMS 100Wx2 + 400Wx1
  • Power into 4 ohms RMS 65Wx4 + 350Wx1
  • Frequency range 20Hz~20KHz
  • Low pass filter 50-250 Hz
  • Subsonic filter 20-180 Hz
  • Operating voltage 22-26 V
  • Input sensitivity 30mV-6V
  • Signal noise >98 dB
  • THD 0.01%
Soundmax SX-PW5024.5
