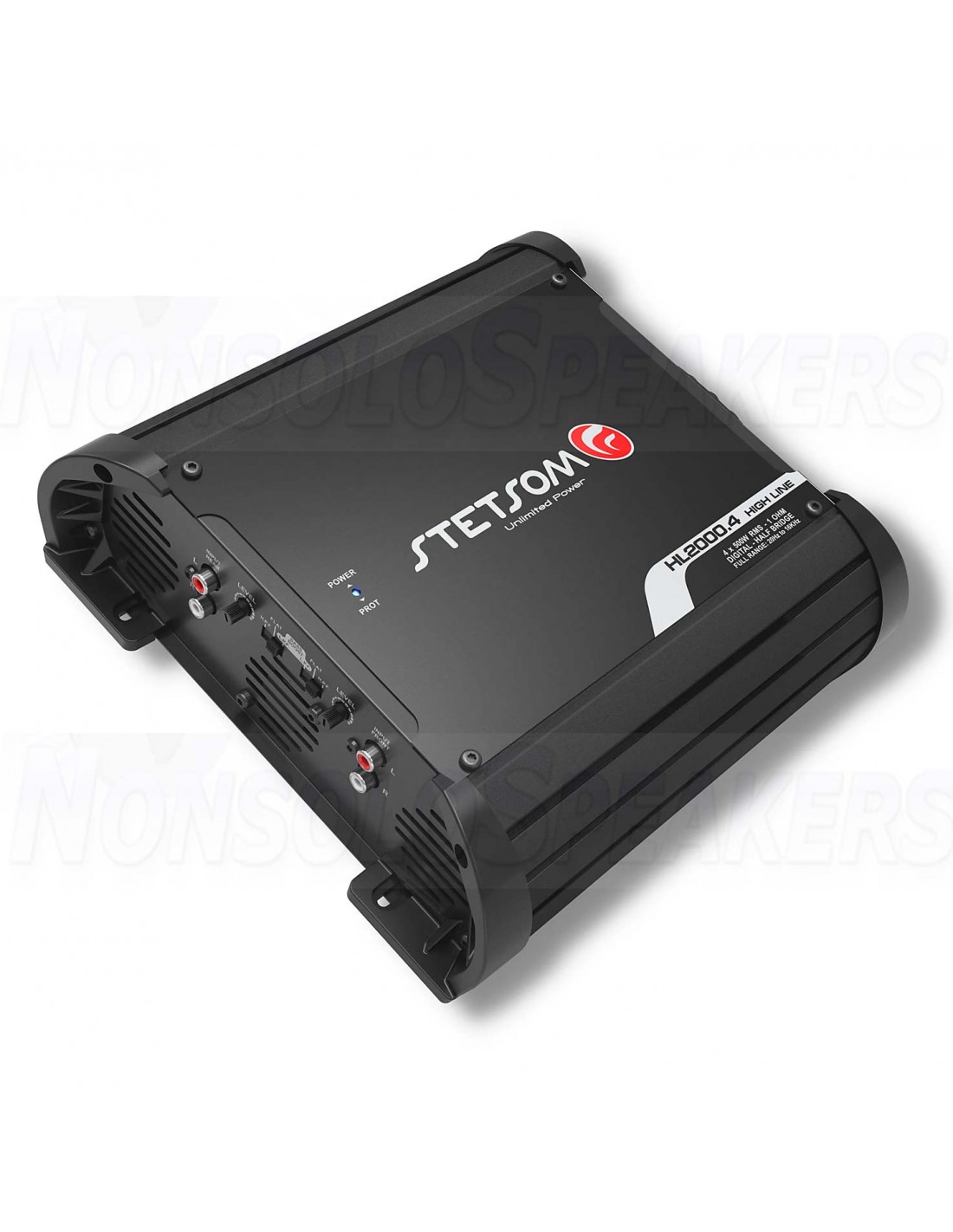

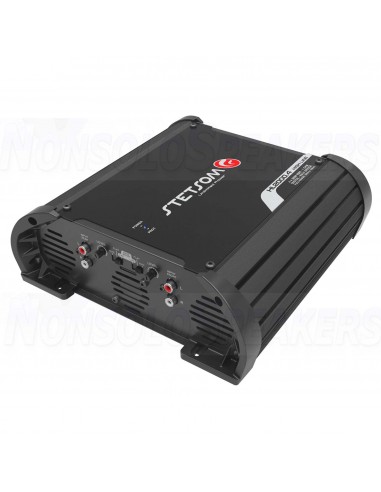

STETSOM HL2000.4_1 digital amplifier 4x545W - 1Ohm

Developed for those looking for high performance and sound fidelity in automotive amplifiers. The HL2000.4 is a 2000W RMS product with 4 CHANNELS OF 500W RMS in 1 Ohm and great installation versatility. It has independent features on the Front and Rear channels such as LEVEL to adjust the input signal level and Crossover, allowing you to choose between LOW-PASS, HIGH-PASS or FLAT (FULL-RANGE) operation. DIGITAL Amplifier and FULL RANGE Response from 20 Hz to 16 KHz. TIPS ON HOW IT CAN BE INSTALLED: 2 channels in 1000W Bridge into 2 Ohms (Front, Rear). 3 channels, two independent 500W and one bridged 1000W. And in Tri-mod mode with a 2 Ohm bridge speaker + 4 horns or 4 super twitters per channel.

.

Technical Specifications

Number of Channels 4

RMS power in 1 Ohm 12.6V 4 x 435W RMS (STEREO)

RMS power in 2 Ohms 12.6V 4 x 280W RMS (STEREO)

RMS power in 1 Ohm 14.4V 4 x 545W RMS

RMS power at 2 Ohms 14.4V 4 x 365W RMS

Power @ 12.6V Bridge 2 Ohms 2 x 870W RMS

Power @ 13.8V Bridge 2 Ohms 2 x 1100W RMS

Supply Voltage 9V ~15V DC

Frequency Response 20Hz ~16KHz

90Hz Low Pass Crossover

90Hz High Pass Crossover

Signal to Noise Ratio >90dB

Harmonic Distortion >0.3% THD

Input Sensitivity 200mV

Input Impedance 15K Ohms

Minimum Output Impedance STEREO: 1 OHM / BRIDGE: 2 OHMS

Consumption with Musical Signal 97A

Consumption with Bass 194A Signal

Dimensions (H x W x L) mm 77.5 x 235 x 240.5 mm

Weight Kg 2.8 Kg
