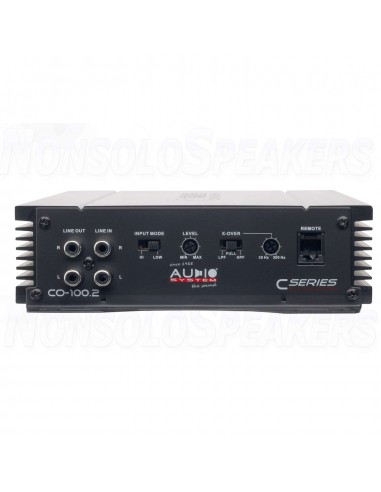

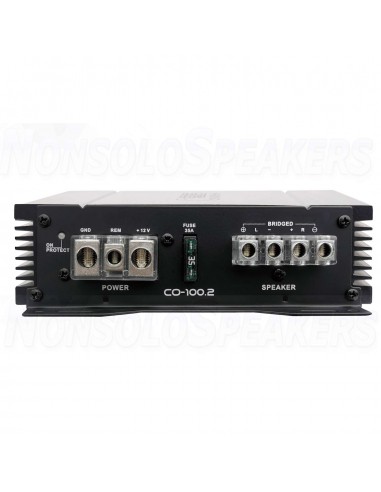

Audio System CO-100.2 Amplifier 2 channels

Audio System CO100.2 Amplifier 2 channels

AUDIO SYSTEM CO 100.2
2-channel high-frequency sub-amplifier
General information CO100.2:

     Variable switchable low / high pass filter
     Efficient safety system (MWPC) against overheating, overvoltage

High level input (for original radio) with automatic power on


Technical specifications CO100.2:

     RMS power @ 4 ohms stereo: 2 x 100 WRMS
     RMS power @ 2 ohms stereo: 2 x 150 WRMS
     RMS power bridged @ 4 ohms: 1 x 320 WRMS

     Signal-to-noise ratio:> 96 dB
     Low pass filter: 30 ~ 300 Hz
     High pass filter / subsonic filter: 30 ~ 300 Hz
     Transmission frequency: 10 Hz ~ 45 KHz (+/- 1 dB)
     Total harmonic distortion at 4 ohms at 1/2 rated power: <0.048%
     Channel separation: 75 dB
     Fuse: 30 A x 1
     Input sensitivity: 200 mV ~ 8 V (+/- 5%)
     Dimensions: 240 (W) x 47 (H) x 171 (L) mm
