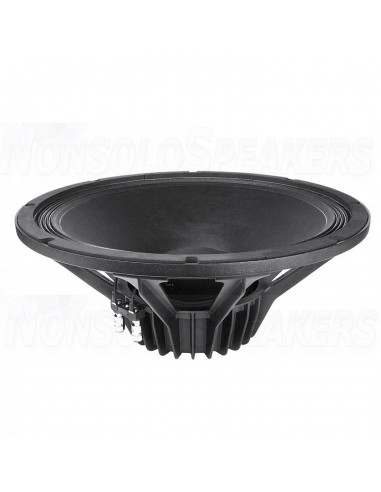

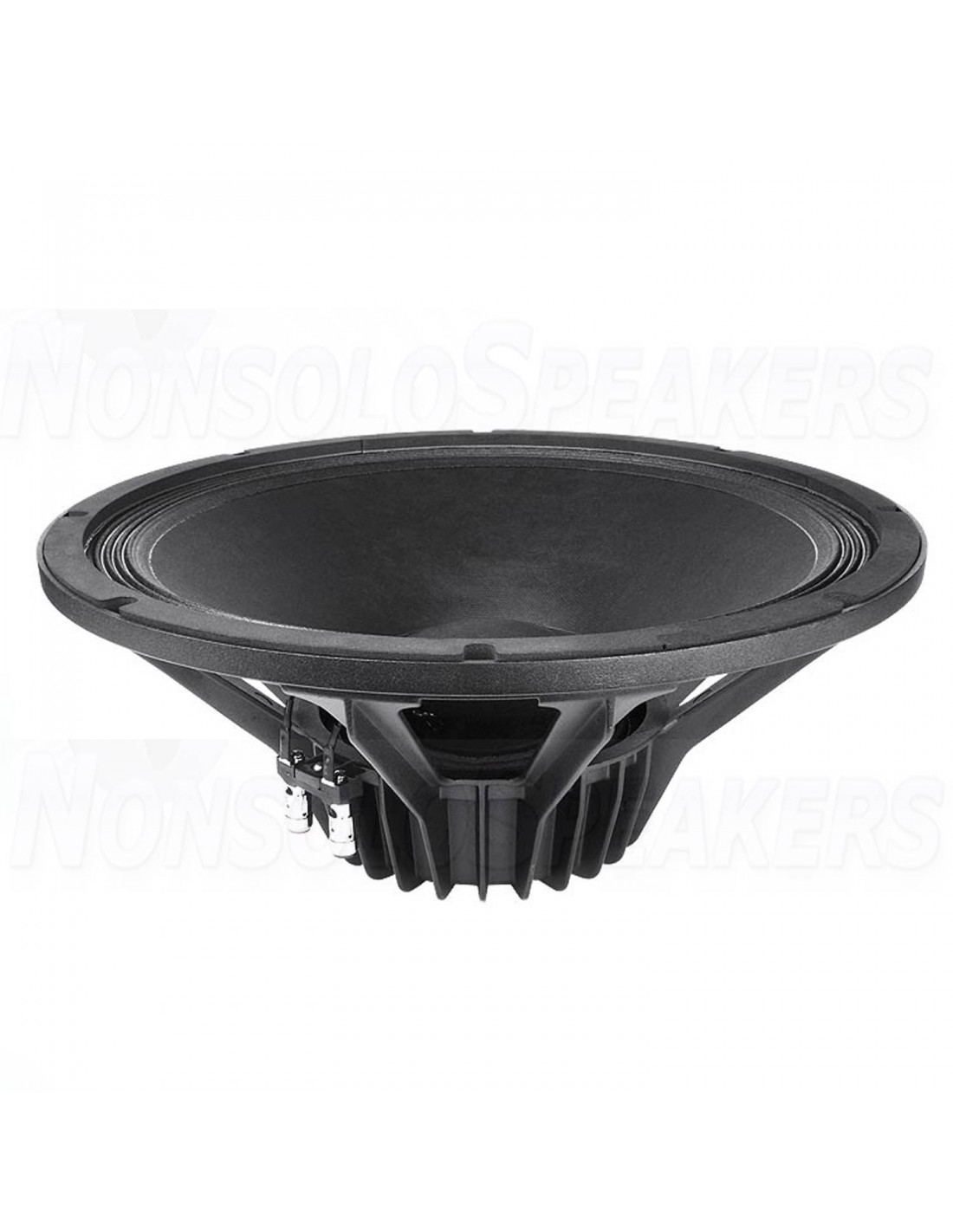

Faital 15PR400 FaitalPRO - Midwoofer 15" - 4 ohm
Faital 15PR400 FaitalPRO - Midwoofer 15" - 4 ohm

Faital 15PR400 FaitalPRO - Midwoofer 15" - 4 ohm

Faital 15PR400 FaitalPRO - Midwoofer 15" - 4 ohm

Out-of-Stock
€268.84 €282.99 -5%
Tax included
rating No review at the moment


Estimated Shipping Costs
Shipping Costs
€19.08
Shipping Time
.
Want to check another country or courier?

You might also like



Faital 15PR400 FaitalPRO - Midwoofer 15" - 4 ohm

NOMINAL SPECIFICATIONS

Nominal Diameter 380 mm (15 in)
Overall Diameter 393 mm (15.47 in)
Bolt Circle Diameter 374 mm (14.72 in)
Baffle Cutout Diameter 356 mm (14.02 in)
Depth 165 mm (6.50 in)
Flange and Gasket Thickness 13.1 mm (0.52 in)
Net Weight 3.6 Kg (7.9 lb)
Shipping Box
(Single Carton Box)		 430 x 427 x 236 mm
(16.9 x 16.8 x 9.3 in)
Shipping Weight 4.7 Kg (10.4 lb)



TECHNICAL PARAMETERS

Nominal Impedance 4 Ohm
Minimum Impedance 3.7 Ohm
AES Power Handling (1) 400 W
Maximum Power Handling (2) 800 W
Sensitivity (1W/1m) 99 dB
Frequency Range 35÷4000 Hz
Voice Coil Diameter 77 mm (3 in)
Winding Material Al
Former Material Glass Fiber
Winding Depth 15 mm (0.59 in)
Magnetic Gap Depth 10.5 mm (0.41 in)
Flux Density 1.15 T
Magnet Neodymium Slug
Basket Material Aluminum
Demodulation No
Cone Surround (3) Accordion (4 waves)
NET Air Volume filled by Loudspeaker 3.7 dm^3 (0.131 ft^3)
Spider Profile 1x constant height waves


QUICK ACOUSTIC SPECS

Nominal Impedance 4 Ohm
Minimum Impedance 3.7 Ohm
AES Power Handling (1) 400 W
Sensitivity (1W/1m) 99 dB
Frequency Range 35÷4000 Hz
Flux Density 1.15 T
Magnet Neodymium Slug
Demodulation No
Cone Surround (2) Accordion (4 waves)
Fs 35 Hz
Re 3.3 Ohm
Qes 0.33
Qms 6.0
Qts 0.31
Vas 248.9 dm^3 (8.79 ft^3)
Sd 857 cm^2 (132.84 in^2)
Xmax (3) 5.75 mm
Xdamage (4) 15.5 mm
Mms 85.2 g
Bl 13.6 N/A
Le 0.6 mH
Mmd 56.8 g
Cms 0.24 mm/N
Rms 3.1 Kg/s
Eta Zero 3..10 %
EBP 106 Hz


QUICK MECHANICAL SPECS

Nominal Diameter 380 mm (15 in)
Overall Diameter 393 mm (15.47 in)
Bolt Circle Diameter 374 mm (14.72 in)
Baffle Cutout Diameter 356 mm (14.02 in)
Depth 165 mm (6.50 in)
Flange and Gasket Thickness 13.1 mm (0.52 in)
Net Weight 3.6 Kg (7.9 lb)
Shipping Box
(Single Carton Box)		 430 x 427 x 236 mm
(16.9 x 16.8 x 9.3 in)
Shipping Weight 4.7 Kg (10.4 lb)
15PR400
