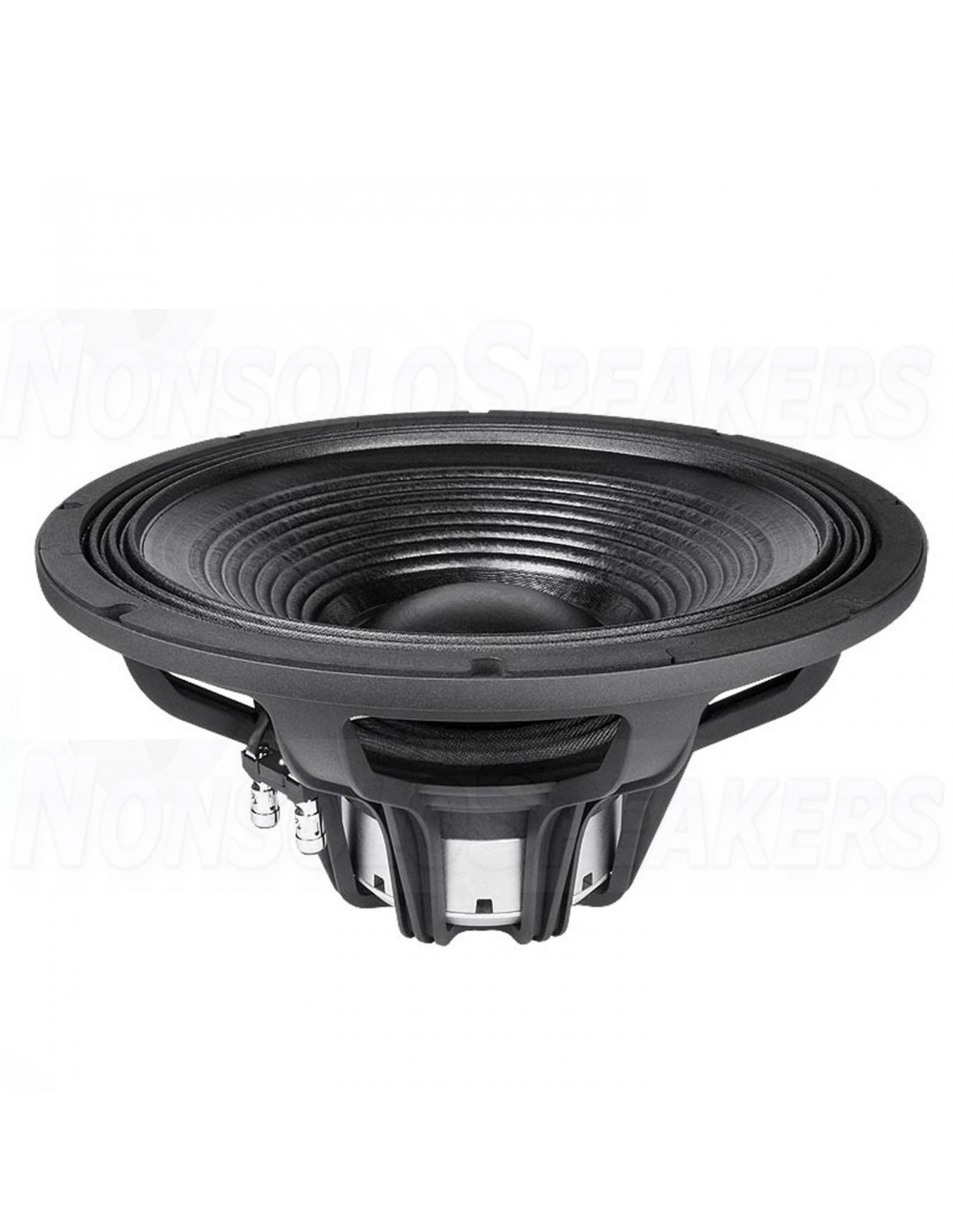

Faital 15HP1060 Subwoofer 15" Neodimio 8ohm
Faital 15HP1060 Subwoofer 15" Neodimio 8ohm

Faital 15HP1060 Subwoofer 15" Neodimio 8ohm

SHIPMENT IN 7-10 WORKING DAYS
€438.89 €461.99 -5%
Tax included
rating No review at the moment

Faital 15HP1060  Subwoofer 15"  Neodimio 8ohm

Estimated Shipping Costs
Shipping Costs
€21.60
Shipping Time
.
Want to check another country or courier?

You might also like



Faital 15HP1060  Subwoofer 15"  Neodimio 8ohm

Nominal Specifications

Nominal Diameter 380 mm (15 in)
Overall Diameter 393 mm (15.47 in)
Bolt Circle Diameter 374 mm (14.72 in)
Baffle Cutout Diameter 354 mm (13.94 in)
Depth 194.3 mm (7.65 in)
Flange and Gasket Thickness 13.7 mm (0.54 in)
Net Weight 7.1 Kg (15.7 lb)
Shipping Box
(Single Carton Box)		 430 x 427 x 236 mm
(16.9 x 16.8 x 9.3 in)
Shipping Weight 8.4 Kg (18.5 lb)


-
Technical Parameters

Nominal Impedance 8 Ohm
Minimum Impedance 6.4 Ohm
AES Power Handling (1) 1000 W
Maximum Power Handling (2) 2000 W
Sensitivity (1W/1m) 97 dB
Frequency Range 40÷2000 Hz
Voice Coil Diameter 100 mm (4 in)
Winding Material Cu
Former Material Glass Fiber
Winding Depth 28.9 mm (1.14 in)
Magnetic Gap Depth 12 mm (0.47 in)
Flux Density 1.22 T
Magnet Neodymium Ring
Basket Material Aluminum
Demodulation Aluminum Ring
Cone Surround (3) Triple Roll
NET Air Volume filled by Loudspeaker 4.1 dm^3 (0.145 ft^3)
Spider Profile 2x non-adjacent symmetrical variable height waves

15HP1060_response_8.gif 15HP1060_impedance_8.gif

Quick acoustic specs

Nominal Impedance 8 Ohm
Minimum Impedance 6.4 Ohm
AES Power Handling (1) 1000 W
Sensitivity (1W/1m) 97 dB
Frequency Range 40÷2000 Hz
Flux Density 1.22 T
Magnet Neodymium Ring
Demodulation Aluminum Ring
Cone Surround (2) Triple Roll
Fs 40 Hz
Re 5 Ohm
Qes 0.32
Qms 11.4
Qts 0.31
Vas 100.3 dm^3 (3.54 ft^3)
Sd 842 cm^2 (130.51 in^2)
Xmax (3) 12.45 mm
Xdamage (4) 21 mm
Mms 156.3 g
Bl 24.8 N/A
Le 1.32 mH
Mmd 128.7 g
Cms 0.10 mm/N
Rms 3.4 Kg/s
Eta Zero 1.95 %
EBP 125 Hz


Quick mechanical specs

Nominal Diameter 380 mm (15 in)
Overall Diameter 393 mm (15.47 in)
Bolt Circle Diameter 374 mm (14.72 in)
Baffle Cutout Diameter 354 mm (13.94 in)
Depth 194.3 mm (7.65 in)
Flange and Gasket Thickness 13.7 mm (0.54 in)
Net Weight 7.1 Kg (15.7 lb)
Shipping Box
(Single Carton Box)		 430 x 427 x 236 mm
(16.9 x 16.8 x 9.3 in)
Shipping Weight 8.4 Kg (18.5 lb)
15HP1060
