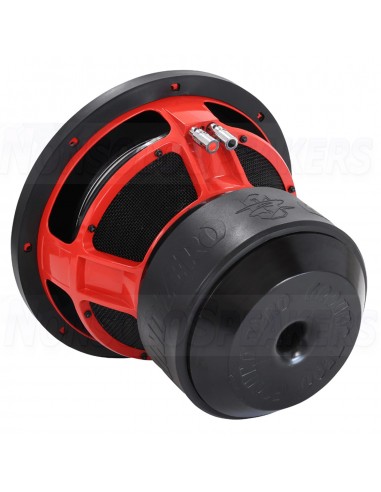

GROUND ZERO GZNW 12Xmax 30 cm / 12″ high power SPL subwoofer

.

3000 Watts RMS

12″ high power subwoofer with aluminum cast basket and Xmax surround

12″ high power SPL subwoofer
Klippel® optimized
Aluminum cone
Long stroke compound surround
Solid aluminum cast basket
75 mm / 3″ CCA round wire voice coil
4-layer Nomex spider
Aluminum dust cap

.

Specifications

• Product name GZNW 12Xmax
• Product type Subwoofer chassis
• Diameter 314 mm / 12.36“
• Mounting diameter 282 mm / 11.1“
• Mounting depth 250 mm / 9.84“
• Magnet dimension 3x 200 x 20 mm
• Total weight 24 KG
• Voice coil diameter 75 mm / 3“ round wire
• Voice coil winding height 60 mm / 2.36“
• Voice coil wire material CCA
• Voice coil former material Aluminum
• Top plate height 25 mm / 1“
• Linear excursion (one direction) 17.5 mm / 0.69“
• Effective Xmax 60 mm / 2.36“
• Top Plate and T-Yoke color Black machined
• Basket material Aluminum cast
• Basket color Red
• Spider 4x Progressive Nomex
• Surround High roll 3-layer sandwich foam
• Cone Aluminum
• Dustcap Aluminum
• Magnetcover Rubberboot
• Terminal Push Terminal
• Power handling 3000 WRMS
• Impedance 2 x 1 Ohm
• Re 1.8 Ohm
• Res 4.38 Ohm
• FS 35.6 Hz
• Qms 6.815
• Qes 0.67
• Qts 0.61
• Rms 14 kg/s
• Cms 0.047 mm/N
• Mms 427 gr
• BL 16 N/A
• SPL (1w/1m) 83 dB
• VAS 13.59 L / 0.48 cu.ft
• Le 1.28 mH
• Recommended freq. response 25 – 60 Hz
• Recommended amplifier power 2000 – 4000 WRMS @2Ohm / 0,5 Ohm
