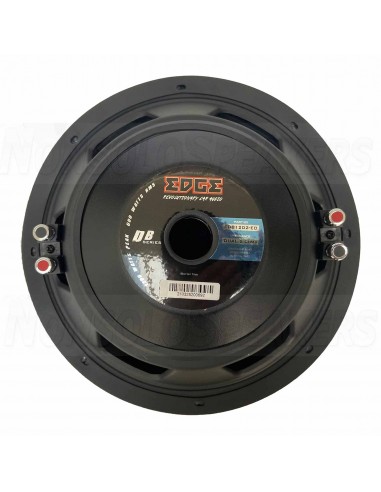

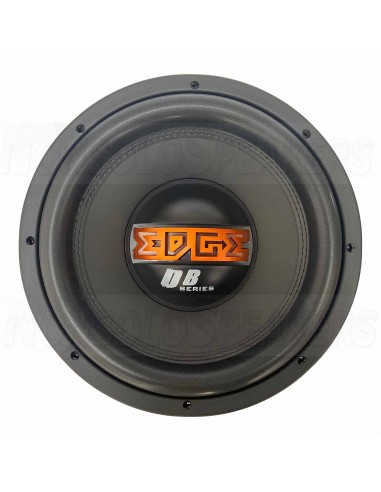

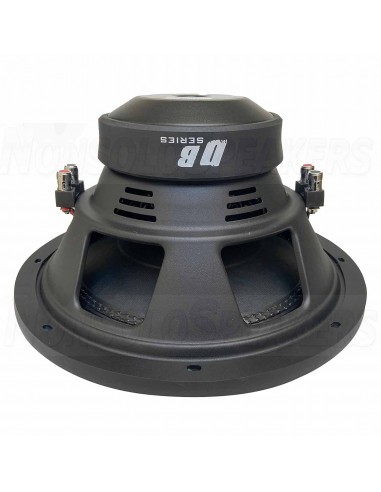

Edge Audio EDBX12D2-E0 Subwoofer 30 2x2Ω 750 Watt rms 12" DBX Series

.

EDGE is a Brand of the VIBE Car Audio GROUP.

Innovative Car Audio Products with an unbeatable Quality/Price Ratio and exciting Performances! Speakers, Subwoofers, Amplifiers and Accessories Made with the aim of not excluding anyone from the glittering world of car audio.

This new range of subwoofers features the new exclusive 2-piece Dust Cap included across the range, the 2-piece cap gives the cone greater rigidity for stronger and more controlled bass.

This subwoofer features a stamped steel torsion basket and high quality double layer ferrite magnets for an adequate level of motor force, motor structure we use a 2.5 inch voice coil and a non-pressed paper cone and a high slope coating we are able to produce efficient bass.

The DBX subwoofer offers high performance thanks to its high efficiency even without the need for powerful amplification, custom designed to offer high performance at a very competitive price.

.

Technical Specifications:

• Unpressed paper cone
• Large roll foam surround
• 100 oz double stacked magnet
• Spring loaded connectors
• Y35 ferrite magnet
• 2 Ohm dual impedance
• Double stitched surround
• Magnet: 156mm x 80mm x 20mm 2pcs
• Installation diameter: 284mm
• Mounting depth: 170mm
• Equivalent volume - Vas: 24.7 liters
• Free air resonance - Fs: 34Hz
• Mechanical factor - Qms: 4.96
• Electrical factor - Qes: 0.715
• Total factor - Qts: 0.625
• Moving mass - Mms: 272.2g
• Compliance - Cms: 78.4μ M/N
• BI factor - BI: 17.2 T
• Voice coil inductance - Le: 2.2 mH
• Diaphragm area - Sd: 471 cm 2
• DC resistance - Ref: 2*1.8 Ω S
• PL: 84 dB
• Subwoofer type 12" (30cm)
• Impedance Dual 2 ohm voice coil
• Power handling 1400 watts max / 750 watts
• Max rms Resonant frequency 34hz
• Sensitivity 84db
