DIGITAL DESIGNS DC6.5a + RL-X6.5 Speakers System

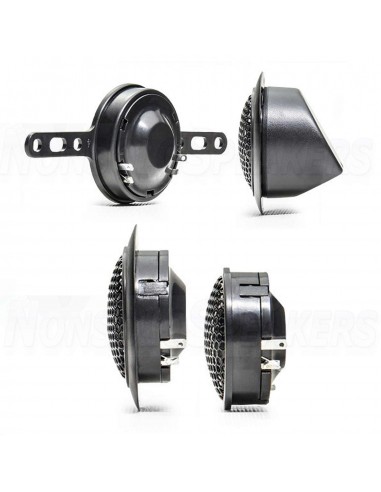

The D Class components are purposefully built, enthusiast quality sets with everything you need for great sound and nothing you don’t. The woofers deliver punchy midbass and smooth midrange by utilizing features like high energy motor assemblies, copper pole caps, double slit voice coils, aluminum cones, and frequency smoothing rubber dustcaps. The T2b 25mm tweeter features an ultra-light fabric dome coupled to a high-efficiency, low-distortion neo motor for superb highs. For installation flexibility, this set includes separate in-line woofer and tweeter crossovers, a wide array of tweeter mounting hardware, and shallow mount woofer frames. The tweeter crossovers also feature a -3db attenuation jumper for fine tuning the tweeter output to the application.

.

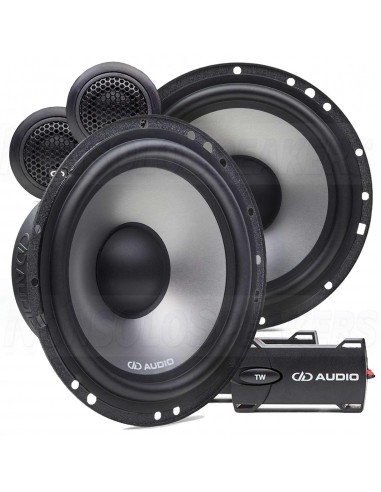

DIGITAL DESIGNS DC6.5a kit 2 way

Woofer 6.5″

Tweeter 25mm

Recommended amplifier 50-150

Impedance 4 ohm

Frequency Response 40 - 25 000 Hz

Sensitivity 90

Cutout Diameter - Woofer 140,9mm / Tweeter 49,2mm

Mounting Depth - Woofer 62,2mm / Tweeter 17,5mm

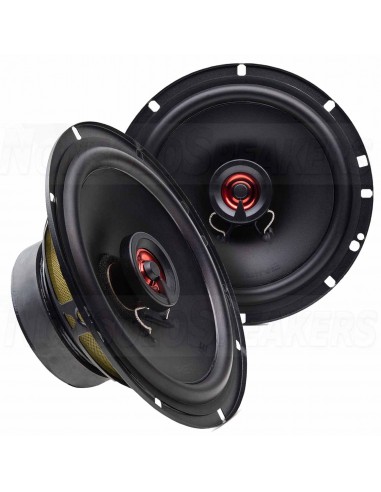

DIGITAL DESIGNS RL-X6.5 6.5″ coaxial speaker

-

DIGITAL DESIGNS RL-X6.5 coaxial

The new REDLINE Series coaxials and component speakers were designed to take your daily listening to the next level without taking your hard earned cash. These 6.5 inch midrange speakers and 13mm tweeters offer compact motors and baskets, making them ideal for a quick and easy drop-in installation. A balance between power efficiency and power handling design elements allow these speakers to perform well at factory power levels, while they really come to life when paired with an aftermarket DD Audio amplifier.

.

Technical Specifications

Speaker Size (In): 6.5

Tweeter Size (MM): 13

Watts RMS: 65 - 225

Impedance: S4

VCD (MM): 25

Frequency Response (Hz): 75 - 20k

dBSPL: 88

Mounting Diameter (In): 5.6

Mounting Diameter (MM): 143

Mounting Depth (In): 2.3

Mounting Depth (MM): 58.5

For a perfect result, we recommend soundproofing the front and rear doors using a professional ➡️ CTK STANDARD DOORKIT
