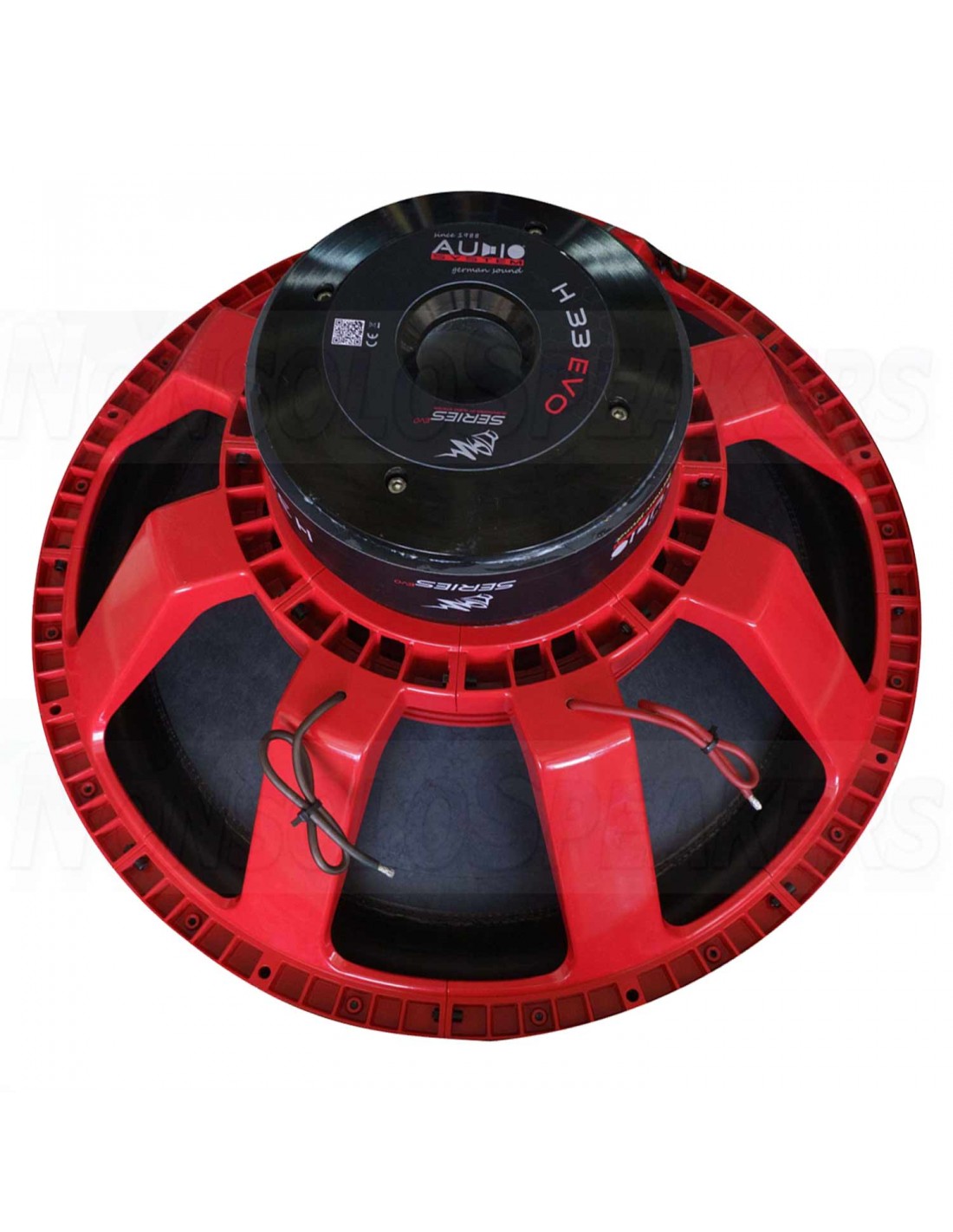

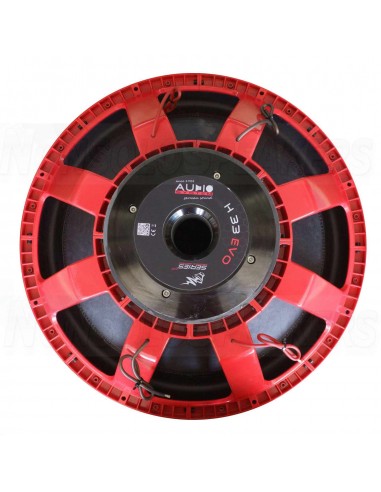

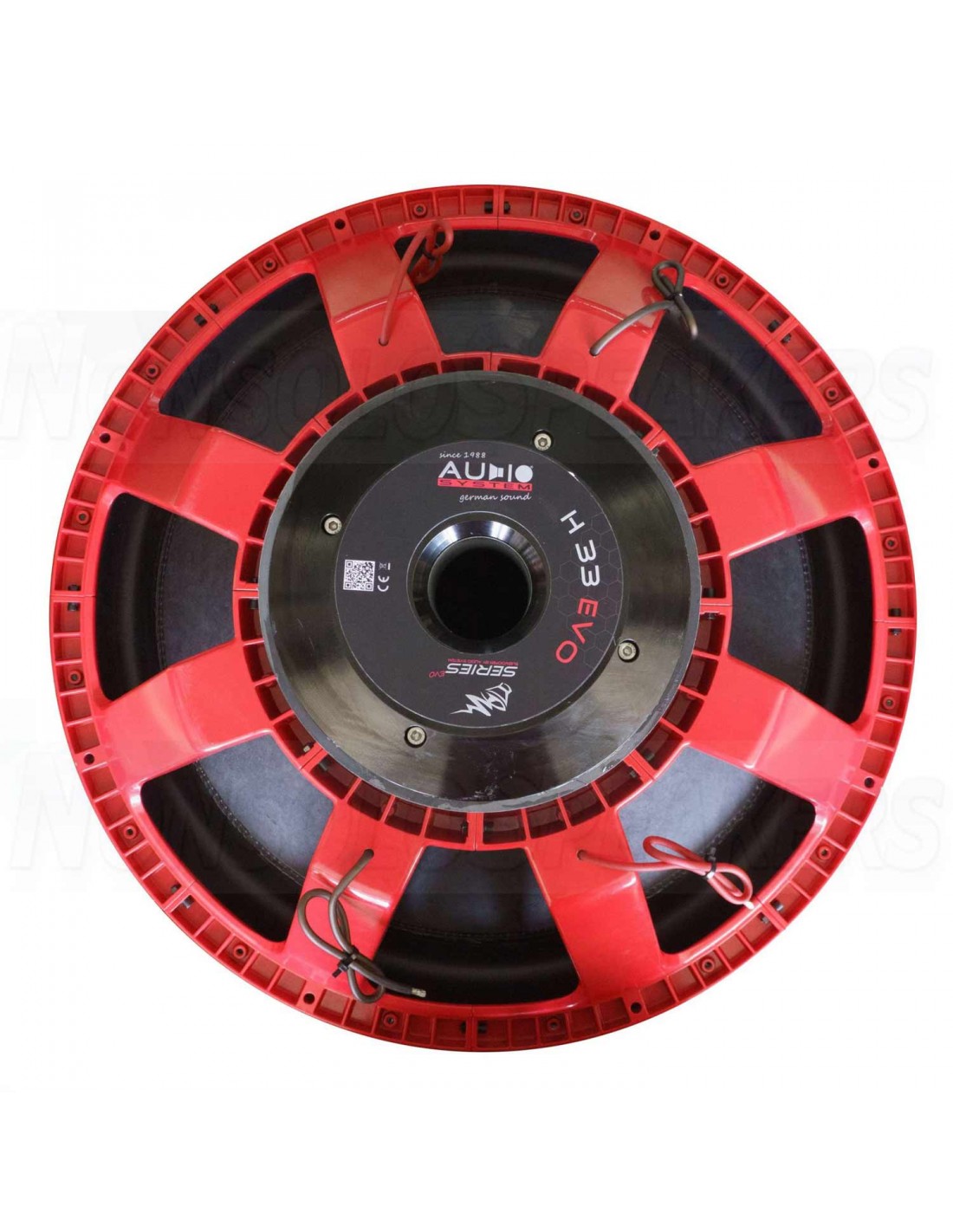

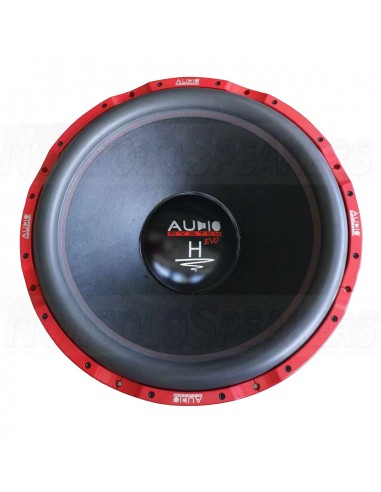

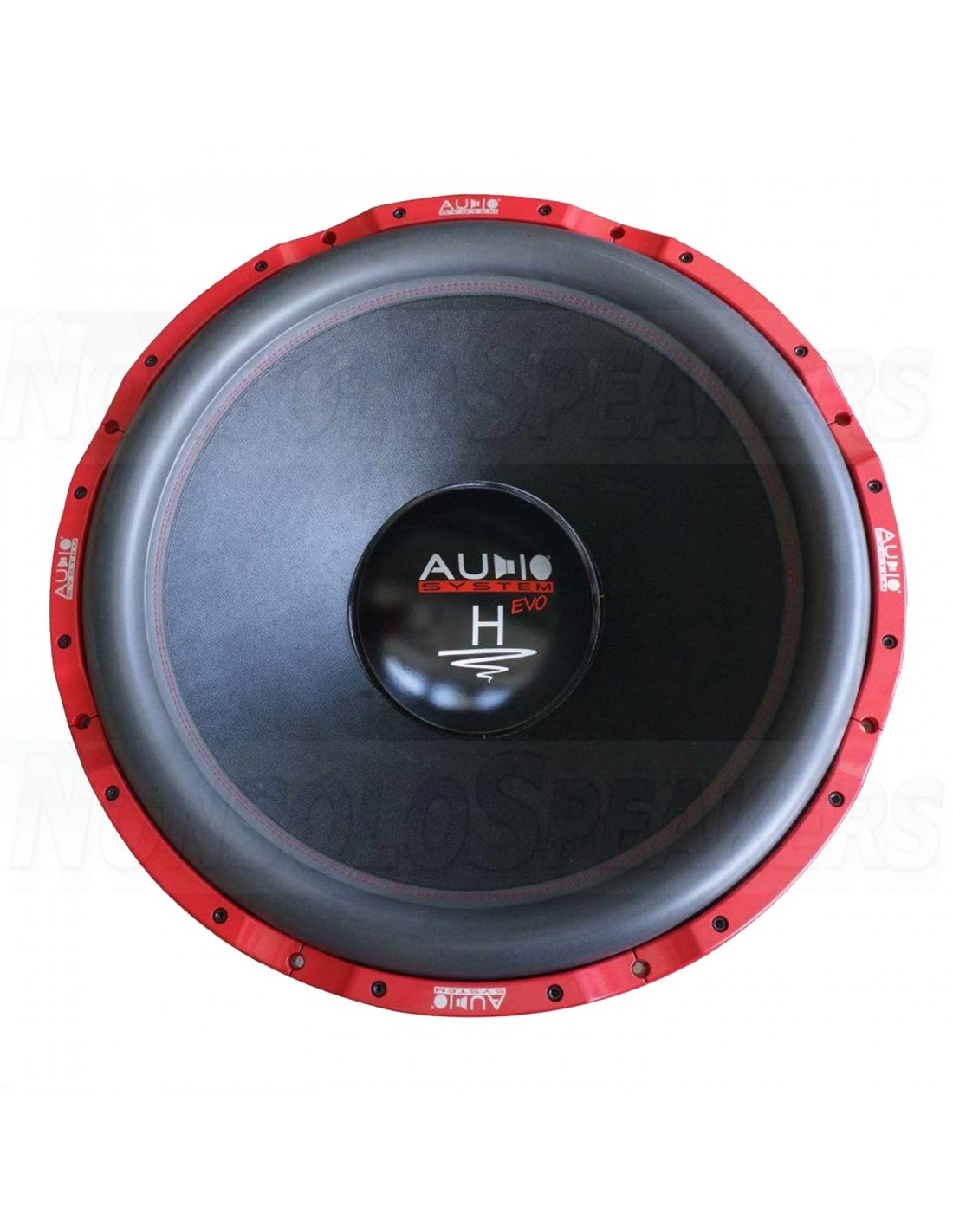

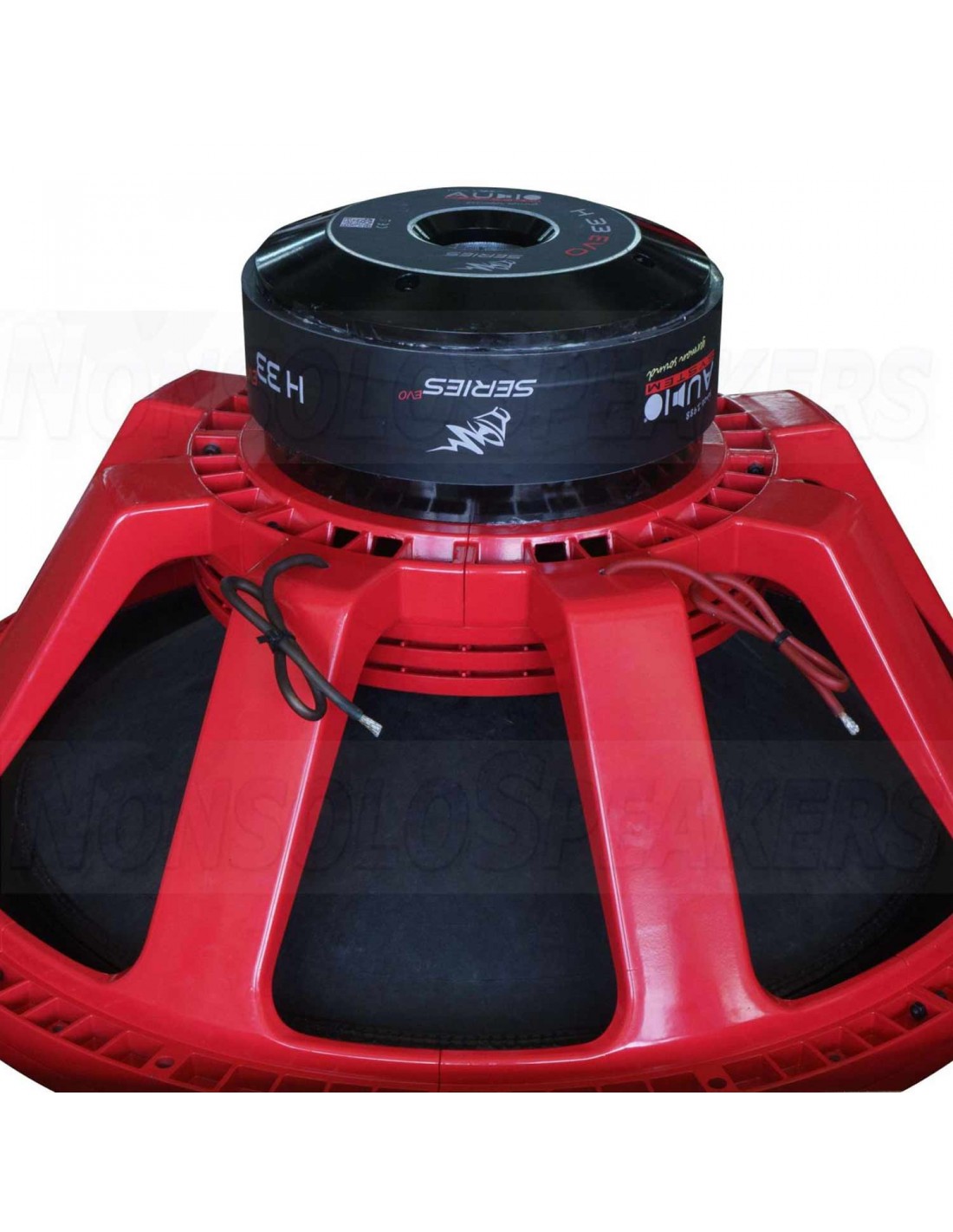

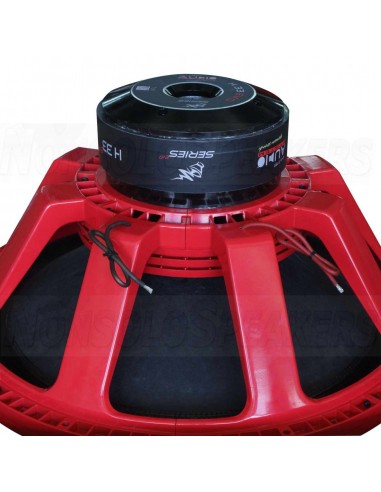

Audio System H 33 EVO 84,0 cm SPL Subwoofer

Audio System H 33 EVO 84,0 cm SPL Subwoofer

The Audio Systems HELON H series, which now also includes the Audio System HELON H 33 EVO 33" (84cm) subwoofer, has always been particularly popular with those looking for higher levels. Now the largest woofer in the family and thus the thickest chunk of the whole Delivery program as a newly made HELON EVO version with 39kg and 33" (84cm)!

As with the X-Series, Audio System is moving to the new paper cone for the HELON H-Evo woofers, which has a thick layer of plastic on the front for reinforcement. This composite is not overly heavy, but very stable and therefore perfectly suited as a subwoofer membrane.

Coupled with a huge Fertig drive, the audio system HELON H 33 EVO is able to convert up to 20,000 watts!

Features audio system HELON H 33 EVO:

H-EVO SERIES SPL woofers

840mm SPL powered subwoofer

2x 5000/2500 watts, 20000 watts peak at 50 Hz

6″ flat wire dual voice coil “MADE in USA”

20-fold ventilation system

ultra-stable KPC paper cone

Flow-optimised, ultra-stable cast basket

double-sewn, highly flexible foam surround

woven 2-fold silver strands

Magnet system with HEM magnet (High Efficient Magnet)

Improved T-Joke and Pole Plate construction

progressive 6-fold PPTA Connex spider

Pure carbon dust cap

USS Spacer(Up Stroke Spacer)

Performance data audio system HELON H 33 EVO:

Impedance: 2x 1 Ohm,

2x 5000/2500 watts

20000 watts peak at 50 Hz

Dimensions audio system HELON H 33 EVO:

Weight: 39kg

Installation Ø : 771 mm

Installation depth : 420 mm

Outside Ø: 840 mm
