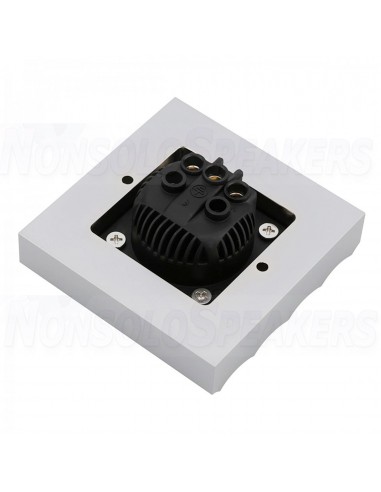

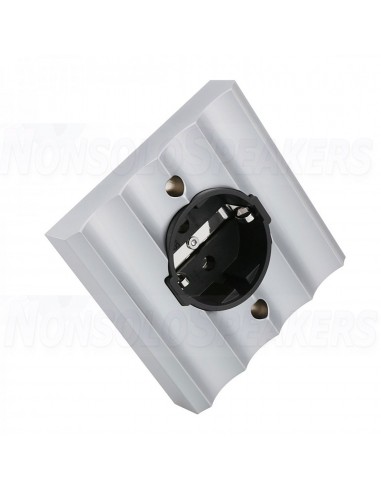

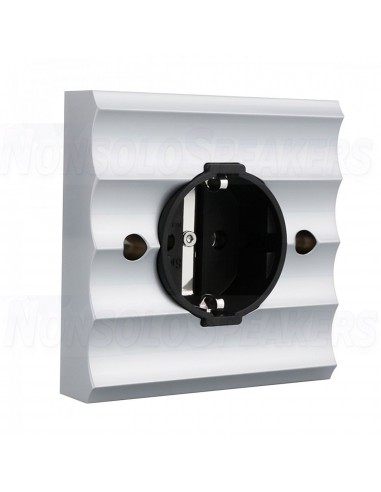

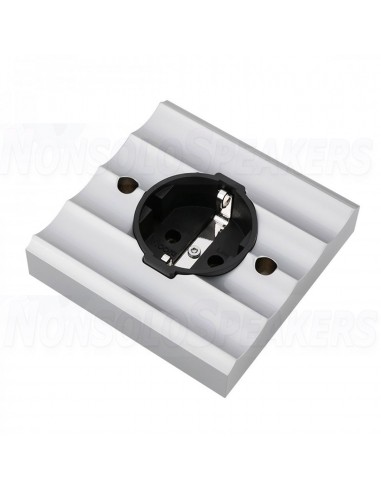

Viborg VE02R Wall Schuko in copper + aluminum plate - 86x86x38mm

This Viborg VE02R Schuko plug uses very high quality materials to ensure a perfect transmission of the electrical signal. The contacts are made of pure Copper and benefit from a triple plating of OFC Copper, Silver and Rhodium.

Product type Schuko plug
Connector type Female Schuko
2 poles + ground
Voltage / Current 250VAC / 16A
Contacts material Pure Copper
SHIPMENT IN 7/10 WORKING DAYS
€42.00

Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



Viborg VE02R Wall Schuko in copper + aluminum plate - 86x86x38mm

This Viborg VE02R Schuko plug uses very high quality materials to ensure a perfect transmission of the electrical signal. The contacts are made of pure Copper and benefit from a triple plating of OFC Copper, Silver and Rhodium. This maximizes the conductivity of the connector, while ensuring excellent resistance to oxidation for maximum durability. The insulating body of the connector is made of Nylon with Fiberglass. The panel covering the plug is made of Aluminum, a robust and stylish design. The assembly is extremely simple thanks to a screwing system, without the need for soldering. The socket accepts cables up to 5mm diameter.

Technical characteristics

Specifications
Product type Schuko plug
Connector type Female Schuko
2 poles + ground
Voltage / Current 250VAC / 16A
Contacts material Pure Copper
Contacts plating OFC Copper
Silver
Rhodium
Insulation material Nylon with fiberglass
Panel material Aluminum
Max cable diameter Ø5mm
Connection To screw (Hex screws)
Holes spacing in front 6cm
Total dimensions 86 x 86 x 38mm
