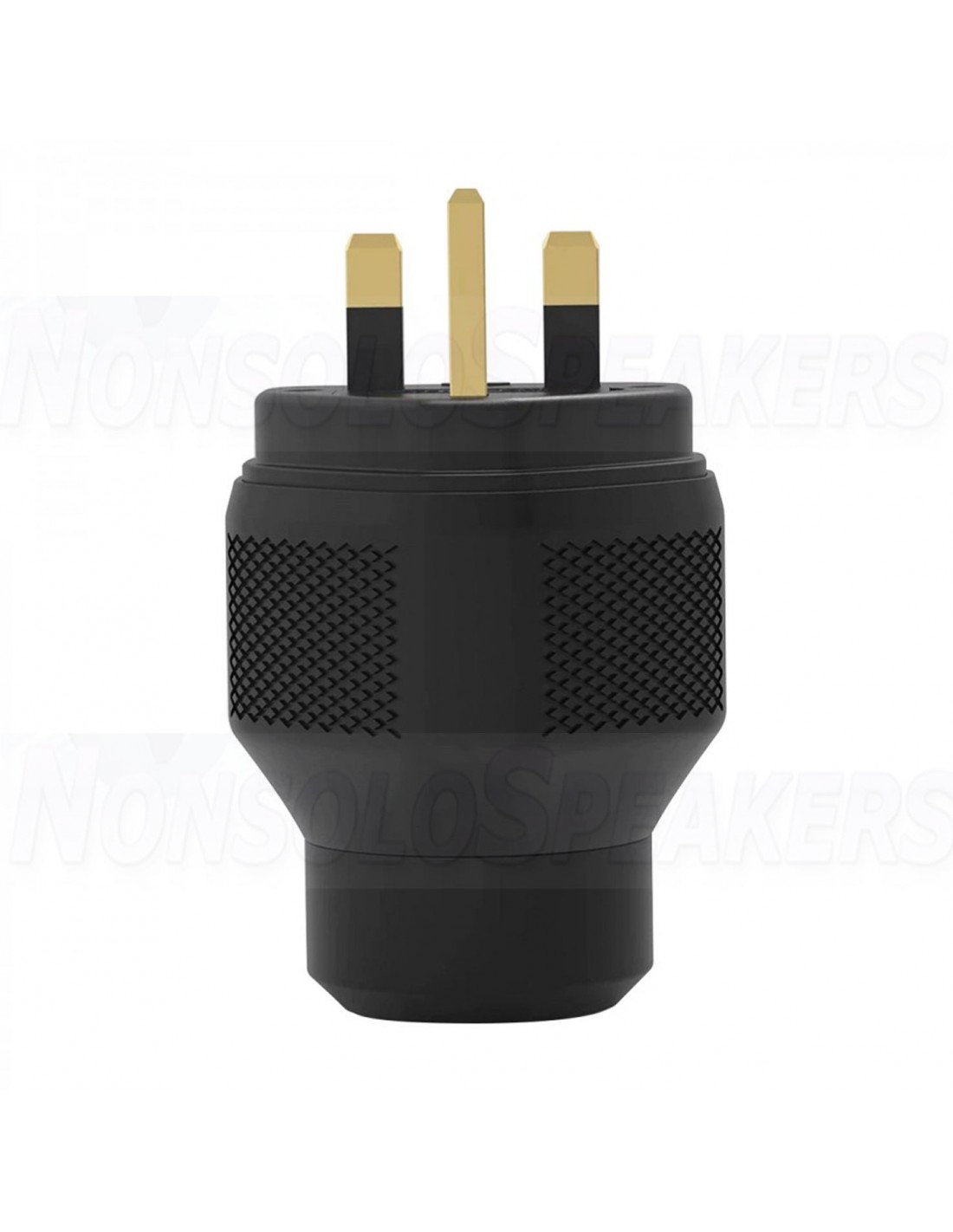

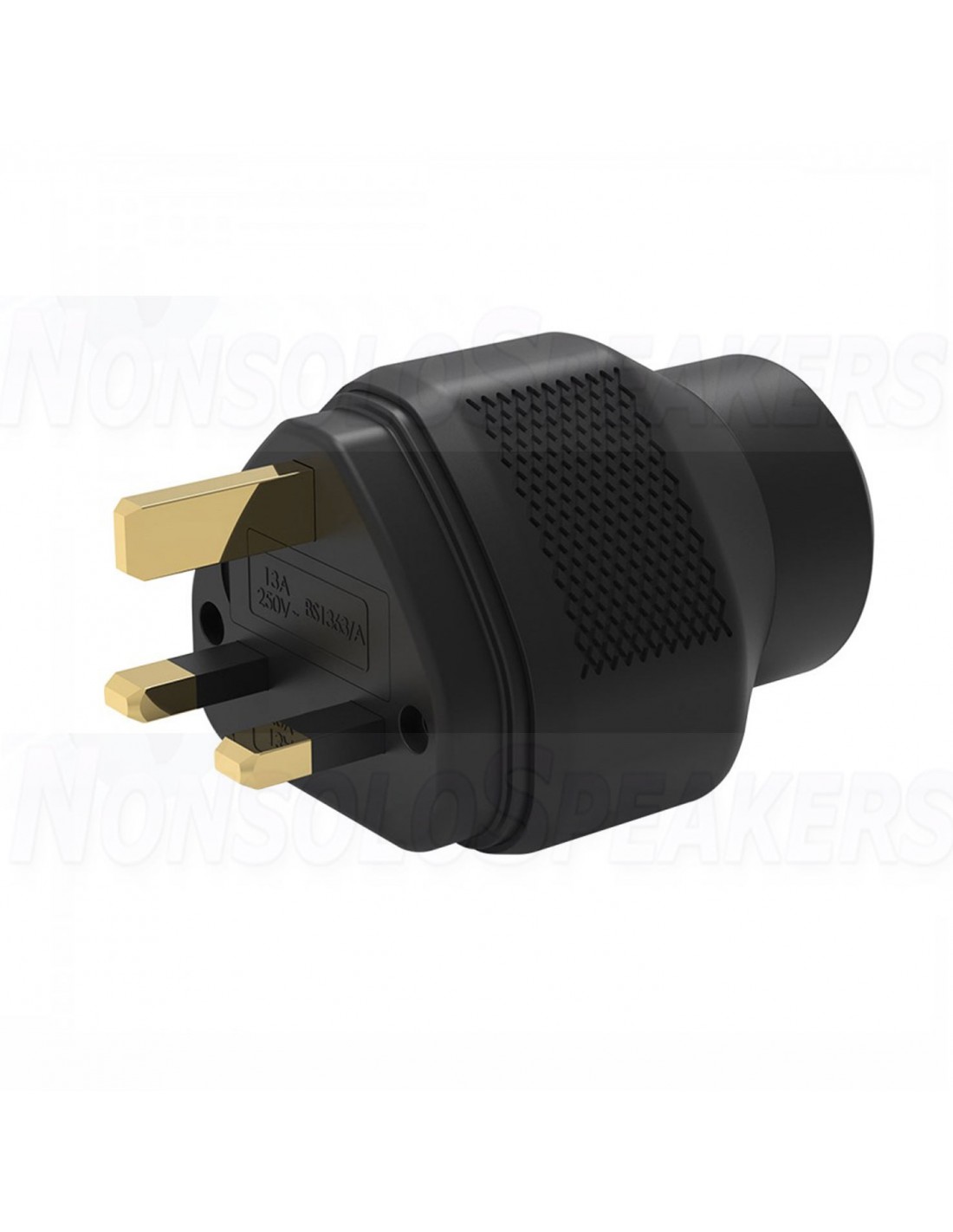

Viborg UK01G - Gold Plated Pure Copper UK Standard Power Connector

Viborg offers with the UK01G a high quality UK Type G (BS-1363) power connector. It uses high purity copper contacts (99.998%) with double Silver / Gold plating, ensuring excellent electrical conductivity. Each connector is encased in a rugged nylon and fiberglass body. Mounting is extremely easy and fast thanks to a practical screwing system that favors a very good contact.

.

SPECIFICATIONS

Product type Power connector

Connector Type G (UK) BS-1363

Conductor material Copper (purity: 99.998%)

Contacts plating Gold 24k

Silver

Shell Nylon and fiberglass

Mounting type To screw

Max conductors diameter Ø4.5mm

Max cable diameter Ø18mm

Rated voltage / current 250VAC 13A

GENERAL

Total dimensions 57 x 50 x 120mm
