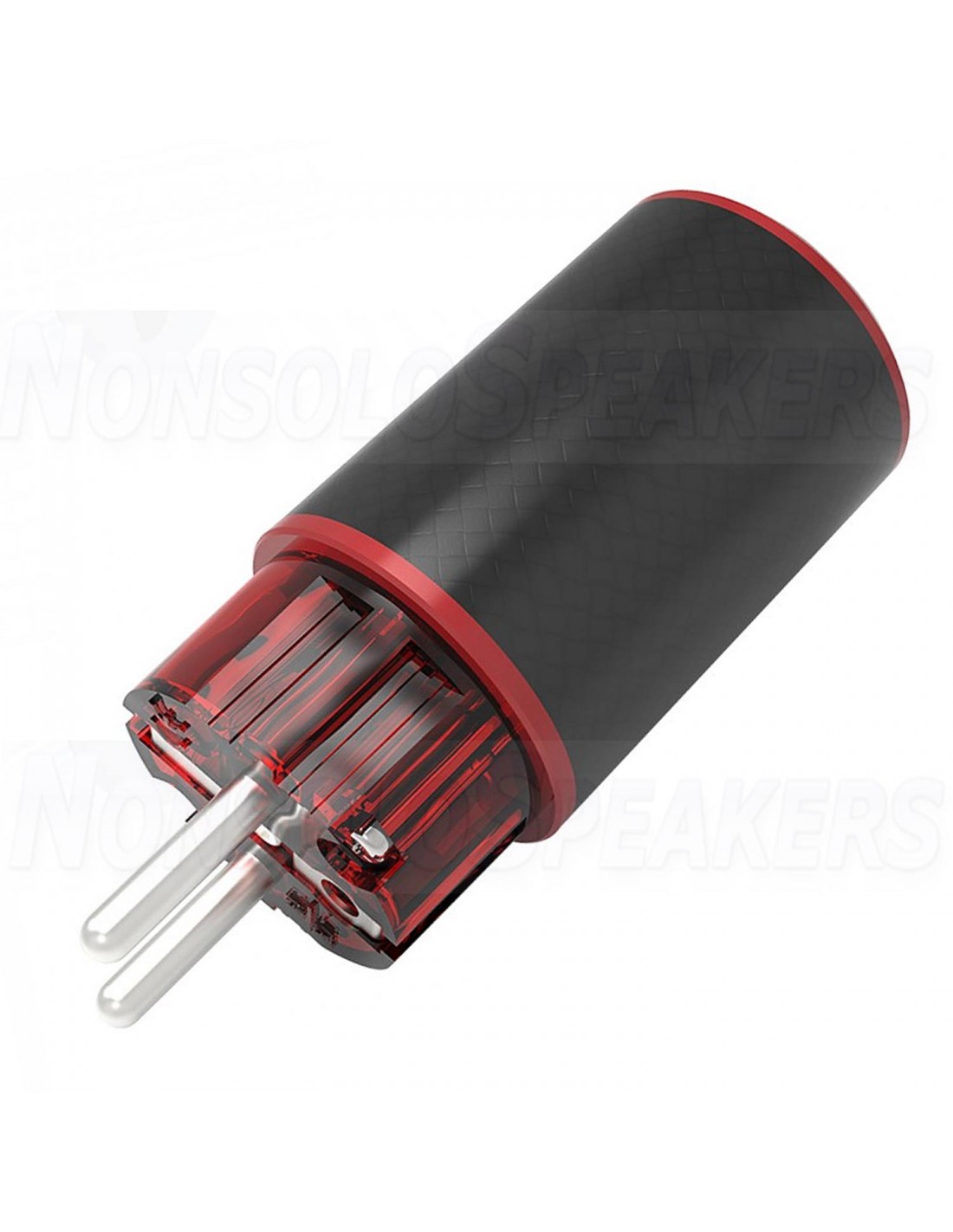

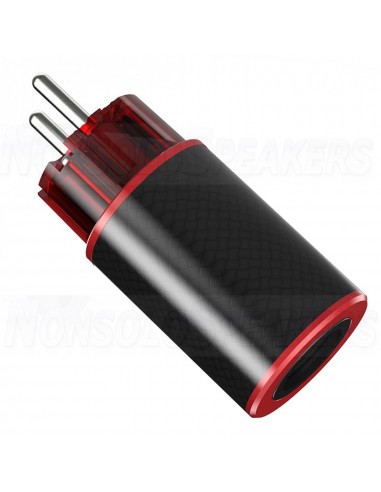

VIBORG VE504AG Power Connector Schuko Pure Silver Cryo Treated Ø18mm
VIBORG VE504AG Power Connector Schuko Pure Silver Cryo Treated Ø18mm
High-end Schuko connector that takes advantage of the best materials available to ensure perfect electrical signal transmission and enable the design of high-end power cables for your HiFi equipment. This exceptional design uses high purity silver conductors (99.998%), ensuring maximum conductivity.
Mounting type | To screw (hex screws) |
Max conductors diameter | Ø4.8mm (6AWG) |
Acceptable cable diameters | Ø5~18mm |
Rated voltage / current | 125-250VAC 10-15A |
You might also like
VIBORG VE504AG Power Connector Schuko Pure Silver Cryo Treated Ø18mm
Viborg has further expanded its range of power connectors with the VE504Ag, a high-end Schuko connector that takes advantage of the best materials available to ensure perfect electrical signal transmission and enable the design of high-end power cables for your HiFi equipment. This exceptional design uses high purity silver conductors (99.998%), ensuring maximum conductivity. These conductors are also treated with a cryogenic process and placed at a temperature of -196°C for 72 hours. This step allows to further improve the conductivity while ensuring a perfectly stable transmission.
The insulation of the VE504Ag uses a polycabornate Bayer-2805, powerful, resistant, and conferring a connector a unique and modern design thanks to its transparent red color. The body is then dressed with a beautiful aluminum and carbon fiber insert of the most beautiful effect.
The VE504Ag provides quick and easy assembly, with hex screws holding conductors securely and promoting excellent contact. The connector accepts cable diameters up to 18mm and conductors up to 4.8mm.
Technical characteristics
Specifications | |
---|---|
Product type | Power connector |
Connector | Schuko |
Conductors | Silver (purity: 99.998%) |
Insulation material | Transparent polycarbonate Bayer-2805 (made in Germany) |
Treatment | Cryogenic at -196°C during 72h |
Shell | Aluminum and carbon fiber insert |
Mounting type | To screw (hex screws) |
Max conductors diameter | Ø4.8mm (6AWG) |
Acceptable cable diameters | Ø5~18mm |
Rated voltage / current | 125-250VAC 10-15A |
Spring material | Acier inoxydable 316 |
Genreal | |
---|---|
Total dimensions | Ø40 x 100mm |
